OWNER’S MANUAL
TRINITY BASICS 2-BAG LAUNDRY CART
Model # TBFPBR-2104 / TBFPNC-2104
Important / Important / Importante
DOWNLOAD THE FREE APP | TÉLÉCHARGER L’APPLICATION GRATUITE| DESCARGUE LAAPLICACIÓN GRATUITA
Directives intelligentes
Instrucciones Inteligentes
FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS
POUR DES DIRECTIVES D’ASSEMBLAGE 3D RAPIDES ET FACILES
PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D
© 2021 TRINITY - 800.985.5506
Your TRINITY Basics 2-Bag Laundry Cart should include the following parts. Please inspect box contents
to ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY
Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online
via “Contact Us” section at www.trinityii.com.
You will NOT need additional tools for assembly.
PARTS LIST
1
CLOTH SHELF (1)
E
A B
HANDLE (4)
C
ROUND POLE (4)LEG (4)
D F
HEX KEY (1)
G
H I J K
LOCKING
CASTER (2) WRENCH (1)NON-LOCKING
CASTER (2)
CROSS BAR (4)
LAUNDRY BAG (2) SCREW (8)
© 2021 TRINITY - 800.985.5506
ASSEMBLY INSTRUCTIONS
2

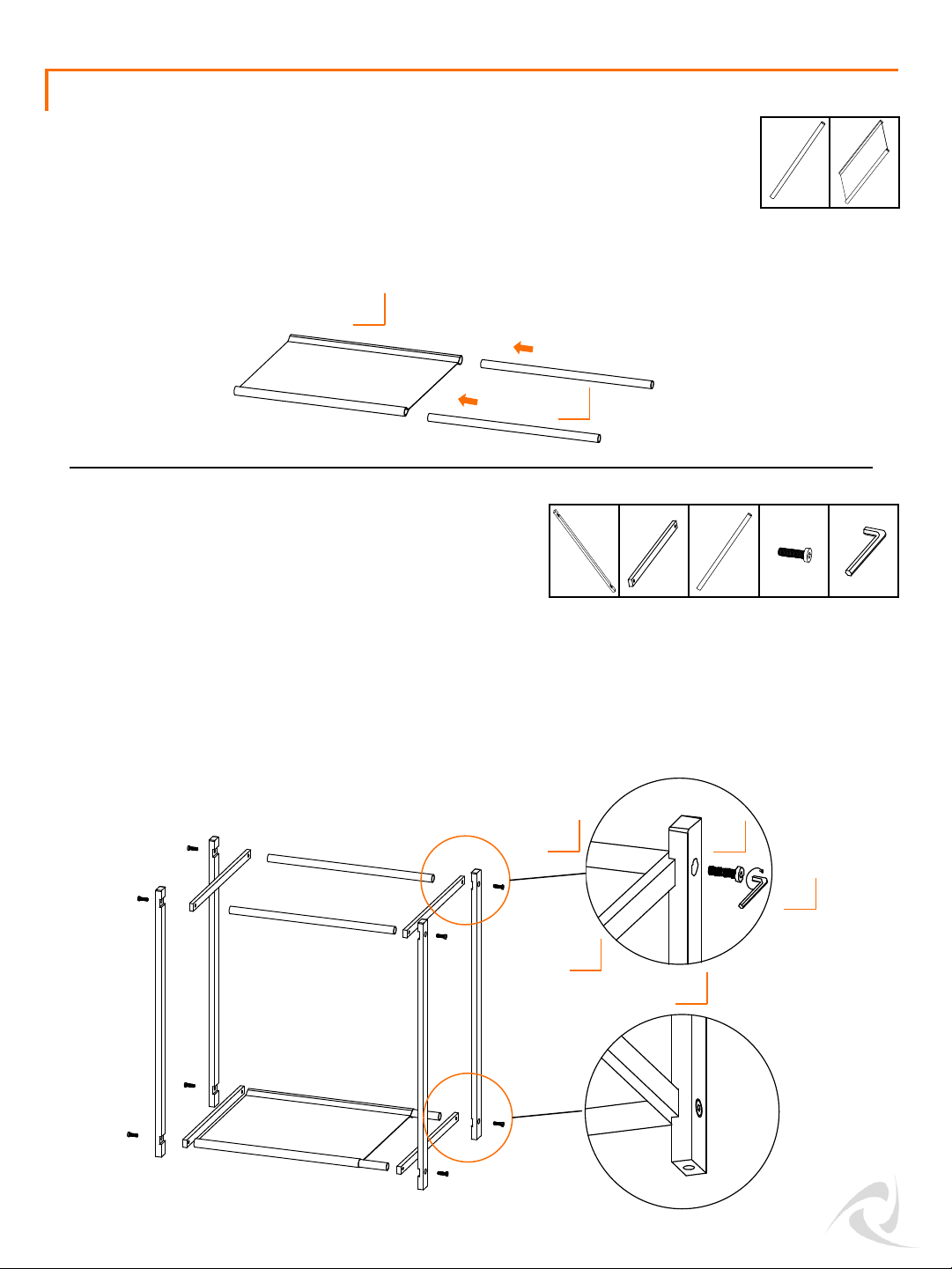

STEP 1
Lay all parts on a smooth clean surface.
Slip ROUND POLES (C) through sleeves on long ends of CLOTH SHELF (F).
As shown, place ends of CROSS BARS (B) into notches
of LEGS (A), make sure screw holes are aligned. A (4) G (8)
STEP 2
C
F
A
G
C (2) F (1)
B (4)
C
B
K
K (1)
Push SCREWS (G) into LEG & CROSS BAR (A & B) notched together to connect with ROUND POLE (C).
Repeat with assembled part from STEP 1. Make sure CLOTH SHELF (F) with ROUND POLES (C) are
assembled to threaded ends of LEGS (A). CLOTH SHELF (F) should be oriented with TRINITY BASICS logo
tag on underside.
Tighten all SCREWS (G) by using provided HEX KEY (K).
threaded end
C (2)
© 2021 TRINITY - 800.985.5506
ASSEMBLY INSTRUCTIONS
3
Lay assembled frame from STEP 2 onto its side, screw each CASTER (H & I)
into each threaded end of LEG (A). Turn clockwise to screw in place. Make
sure LOCKING CASTERS (H) are on same side of cart.
Stand unit upright.
E (2)
STEP 3
STEP 4
D (4)
Unfold LAUNDRY BAG (E), insert a HANDLE (D) through loops on each side of
LAUNDRY BAG (E). Repeat to assemble other LAUNDRY BAG (E).
J
I (2) J (1)H (2)
H & I
Use provided caster wrench to tighten
completely. Failure to do as instructed could
result in caster stem breaking.
ASSEMBLY INSTRUCTIONS
© 2021 TRINITY - 800.985.5506 4
Take assembled LAUNDRY BAGS (E) from STEP 4 and place them into cart. Hang HANDLE (D)
curved ends on ROUND POLES (C).
STEP 5
Part Number Description Part Number Description
1) PBR-05-013-1675 Handle 7) ZSV-99-009-2008 Non-locking Caster
2) XWH-24-002-0814 Laundry Bag 8) XWH-24-008-1715 Cloth Shelf
3) PBR-04-055-1725 Round Pole 9) LNA-04-053-2800 Leg
4) XXX-97-001-0001 Hex Key 10) ZBK-01-002-0625 Screw
5) ZSV-99-010-2008 Locking Caster 11) PBR-04-054-1625 Cross Bar
6) XXX-97-002-0005 Wrench

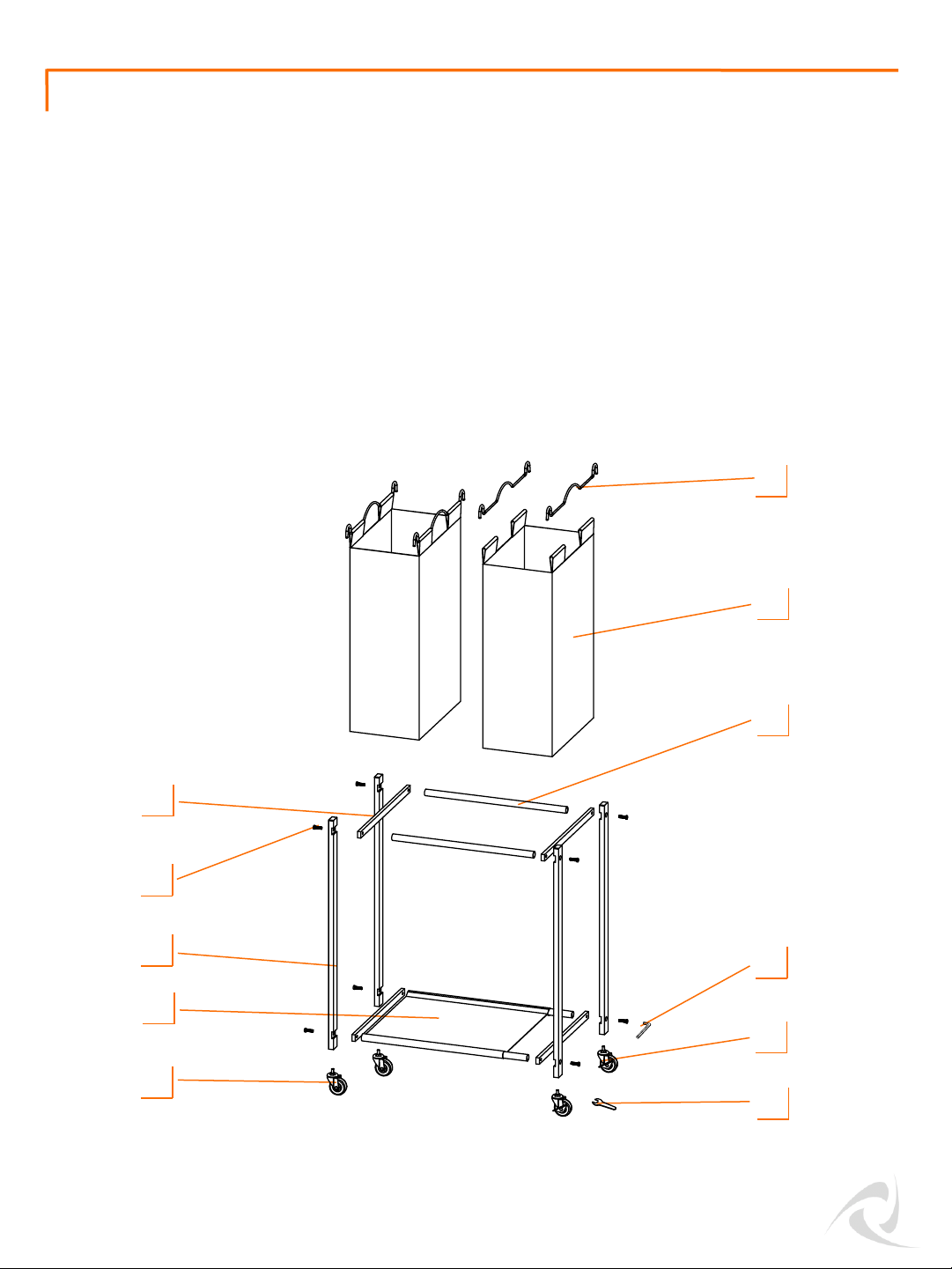

TRINITY Customer Service provides the following replacement parts:
SERVICE PARTS LIST –TBFPBR-2104 Bronze Color
1
2
3
4
5
6
11
10
9
8
7
5© 2021 TRINITY - 800.985.5506
TRINITY Customer Service provides the following replacement parts:
SERVICE PARTS LIST –TBFPNC-2104 Champagne Color
© 2021 TRINITY - 800.985.5506 6
1
2
3
4
5
6
11
10
9
8
7
Part Number Description Part Number Description
1) PNC-05-013-1675 Handle 7) ZSV-99-009-2008 Non-locking Caster
2) XGR-24-002-0814 Laundry Bag 8) XGR-24-008-1715 Cloth Shelf
3) PNC-04-055-1725 Round Pole 9) LWH-04-053-2800 Leg
4) XXX-97-001-0001 Hex Key 10) ZBK-01-002-0625 Screw
5) ZSV-99-010-2008 Locking Caster 11) PNC-04-054-1625 Cross Bar
6) XXX-97-002-0005 Wrench
1. Read and understand all instructions. Failure to follow all instructions may result in injury
and/or damage.
2. Use the provided caster wrench to tighten casters completely. Failure to do as instructed
could result in the caster stem breaking thereby causing the shelving rack to collapse.
3. The warnings, cautions, and instructions discussed in this manual cannot cover all
possible conditions or situations that may occur. The user must always be aware of the
environment where the product will be placed and make sure to use the product in a safe
and responsible manner.
4. Do NOT modify the product in any way. Unauthorized modification may impair the
function and/or safety of the product, and may affect the life of the product. Any
modifications will void product warranty.
5. Check for damaged parts.Before using this product, carefully check that all parts are in
good condition, and that the product will operate properly and perform its intended
function. Check for damaged parts and any other conditions that may affect the operation
of this product. Replace damaged or worn parts, and never use this product with a damaged
part.
6. Do NOT roll product on an uneven surface. Only move product on a smooth surface.
Rolling over rough or uneven surface may cause product to break.
7. Do NOT overload the product.
8. Do NOT allow children to climb or play around the product. Tipping may occur causing
injury.
9. Always lock the locking casters when not moving the product.
Weight capacity per bag (evenly distributed) 15 lb
Total weight capacity of cart (evenly distributed) 30 lb
WARNINGS
7© 2021 TRINITY - 800.985.5506
© 2021 TRINITY - 800.985.5506 8
CARE AND MAINTENANCE
•White Laundry Bags (included in TBFPBR-2104) are made of 100% cotton:
•Machine wash warm
•Tumble dry low
•Warm iron
•Do not bleach
•Gray Laundry Bags (included in TBFPNC-2104) are made of 60% polyester and 40% cotton:
•Machine wash cold
•Tumble dry low
•No iron
•Do not bleach
•Laundry bag handles MUST be removed before washing laundry bags.
•Bamboo can be maintained with mineral oil for best results.
•Avoid harsh, abrasive cleaners, and other corrosive chemicals.
Thank you for purchasing a TRINITY Basics 2-Bag Laundry Cart. In order to register your product and
receive streamlined customer service, please fill out the following Product Registration Form and (1)
fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com
or (3) scan and email the form to customerservice@trinityii.com. Include a copy of your original receipt
with your submission.
First Name: Last Name:
Address:
City: State: Zip Code:
Email Address: Phone:
Product Model #: Purchase Date: / /
Location of Purchase:
Please rate the importance of each feature (1=least important; 10=most important)
Quality Price Size/Capacity Appearance Other
How did you hear about our product?
Magazine Ad Catalog Salesperson Word of Mouth
Internet Store Display Other
Marital Status: Single Married
Household Income: Below $50,000 $50,000-$150,000 $150,000+
Education: High School College Graduate School
Primary Residence: Own Rent
Comments/Suggestions:
PRODUCT REGISTRATION
9© 2021 TRINITY - 800.985.5506
