BGS technic 7750 User manual

SW-Stahl und Werkzeugvertriebs GmbH Tel. +49 (0) 2191 / 46438-0

F56essartSresukreveL ax +49 (0) 2191 / 46438-40

ed.lhatsws@ofni:liaM-EdiehcsmeR79824-D

Instruction Manual

BGS technic KG

Bandwirkerstr. 3

42929 Wermelskirchen

Tel.: 02196 720480

Fax.: 02196 7204820

[email protected]

www.bgstechnic.com

Art. 7750

Bearing and Gear Puller

Mechanical puller for removing bearings, gears and bushes from shafts.

Suitable for engineering, automotive, marine and agricultural applications.

Included

2 / 2 circular puller halves made of forged steel

with the dimensions:

1 1/4 "- 2 1/4 " (30 mm - 50 mm)

2 / 2 circular puller halves made of forged steel

with the dimensions:

2 1/4" - 3 1/2" (30 mm - 75 mm)

Bolt: 9,5 mm x L 125 x 3 / 8 "x 24UNF Bolt: 12,7 mm x L 135 mm x 1 / 2 "x 20UNF

Extention: 3/8" x 16UNC Extention: 3/8" x 15UNC

The product consists of a chromium-vanadium alloy and meets the highest quality standards.

Notes:

The manufacturer is not liable for damage to the shells of A, caused by the operation of the pressure

screw E, with a hammer instead of a wrench.

The L-shaped brackets Fmay be only used in pairing. The use of brackets as crowbar is strongly

discouraged.

Do not use the puller for pulling bearings and / or gear with too small outer diameters. All damage by

improper use of the tool, falling out of the guarantee facility of the manufacturer.

When assembled

SW-Stahl und Werkzeugvertriebs GmbH Tel. +49 (0) 2191 / 46438-0

F56essartSresukreveL ax +49 (0) 2191 / 46438-40

ed.lhatsws@ofni:liaM-EdiehcsmeR79824-D

Instruction Manual

BGS technic KG

Bandwirkerstr. 3

42929 Wermelskirchen

Tel.: 02196 720480

Fax.: 02196 7204820

[email protected]

www.bgstechnic.com

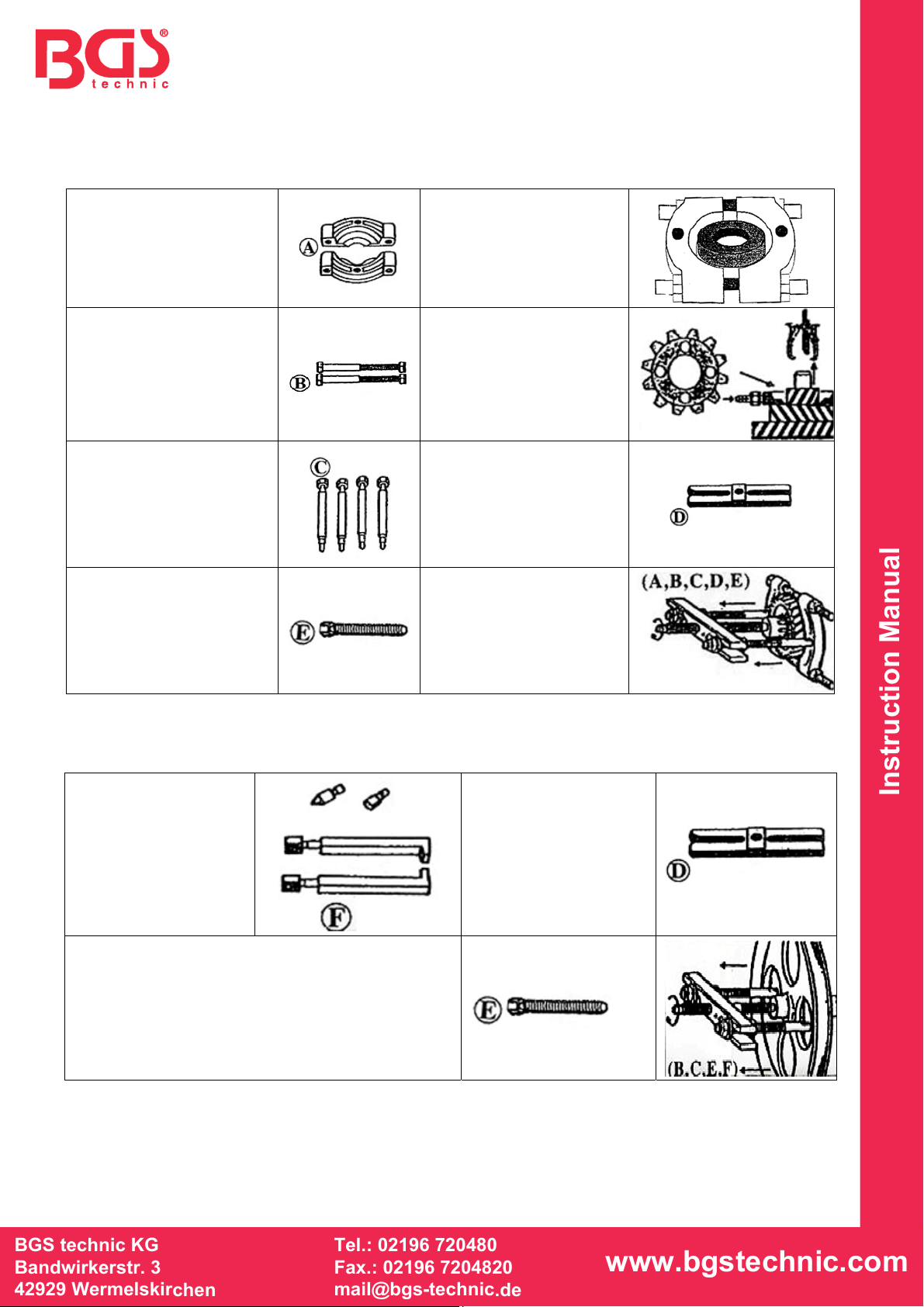

OPERATION

Using at gears and bearings

Take the two semi-

circular

Shells A

Set this to the object that

be pulled.

Connect the shells with

screws B.

Remove security ring of

the bearing / gear, the

semi-circular shells A

grips around the bearing

or gear.

Now attach the two

screws Cto the shell unit

Insert the bracket D, on

the screws Cand secure

with the help of the

accompanying nuts.

Turn the screw Ethrough

the central thread of the

bracket Dto the object to

be extracted.

Turn the pressure screw

Eclockwise until the

bearing or gear is

removed.

Using at pulley

During removal of a

pulley, first insert the

puller jaws Fto the

pulley.

Attach the puller jaws F

to the mounting

brackets Dand secure

the puller jaws with the

associated nuts.

Turn the pressure screw Einto the central

threaded of the bracket Duntil the pressure screw

touch the pulley. By tightening of the screw E, you

can pull out the pulley.
