Bestway Falcon Plus User manual
1
Important Precautions
1. This model applies to swimming pool with flat floor.
2. Do not power on the unit when it is outside of the water.
3. Do not operate the cleaner when there is people in pool.
4. The filter tray should be cleaned after use. This will prevent the dirty filter tray affecting the normal
operation of the cleaner.
5. The cleaner should be stored in a cool and ventilated place, away from direct sunlight.
6. Please close the main pool filtration system before use this cleaner.
7. Only authorized personnel should open the cleaner’s motor assembly and battery pack, fail to do
which will cause a invalid warranty.
8. Slightly water pollution may occur in case grease in motor seal oil leaks.
9. Use original and authorized adapter only, warranty dose not cover the risk of using unauthorized
adapter to charge the battery.
10. Never charge the battery when cleaner in water, charge the battery indoor and make sure at least
3.5m away from pool edge.
11. Never power on the battery when in charge.
12. Make sure close and tighten the charging cover on the battery charging socket before use.
13. Do not use the cleaner when environment temperature is over 60 , do not charge the battery when ℃
temperature is bellow 0 .℃
14. Avoid touching the battery pack by sharp items, do not throw out or impact the battery pack.
15. If the battery pack and cleaner need to be stored over 3 months, please put it in an environment with
temperature of 23±5 , humidity of 65±20%RH, and make sure the remaining b℃attery capacity is
over 80%, suggest charge the battery every 3 months.
16. Do not use the cleaner beyond the working environment/conditions stated in this manual. Read this
manual carefully before use.
2
Note
1. Putting into or lifting out from pool with the cleaner bottom toward the wall to avoid any possible scratch
to the pool surface.
2.Install the brush before use to avoid possible dirt leaks.
3
Contents
Ⅰ. Introduction································································································P. 4
Ⅱ. Safety········································································································P. 4
Ⅲ. Specifications·····························································································P. 4
Ⅳ. Cleaner Structure························································································P. 5
Ⅴ. Operation Instructions·················································································P. 5
Ⅵ. Trouble Shooting·························································································P. 17
Ⅶ. Packing List································································································P. 17
4
Ⅰ. Introduction:
The automatic swimming pool floor cleaner HJ1107 is a new type of highly efficient swimming pool cleaning
equipment. Through its advanced computer controlled program, it can clean the pool floor automatically
without draining pool water. At the same time, it filters the pool water and gets rid of suspended particles and
sediments.
For safe operation, the cleaner powered by 22.2V 8.8AH.Lithium battery pack.
Please read this instruction manual carefully before use.
. Safety:Ⅱ
1, Position requirement of battery pack：Refer to item 10 in “Important Precautions”.
2, Use original and authorized adapter only, and do not use this adapter to charge other battery.
3, Do not use the cleaner when in charge.
4, Make sure close and tighten the charging cover on the battery charging socket before use.
5, Please store the battery pack within environment temperature of -10 ~45 , If the batt℃ ℃ ery pack and
cleaner need to be stored over 3 months, please put it in an environment with temperature of 23±5 , ℃
humidity of 65±20%RH, and make sure the remaining battery capacity is over 80%; please recharge and
release the battery at least 1-3 times for an optimal capacity recovery.
6, Using protective package for safety in transportation.
7, Avoid touching the battery pack by sharp items, do not throw out or impact the battery pack.
8, Do not use the cleaner when environment temperature is over 60 , ℃
9, Do not charge the battery when temperature is bellow 0℃
. Specifications:Ⅲ
1, Rated input voltage and frequency of adapter: 100-240V AC, 50/60Hz
2, Max charging Voltage of adapter: 25.2V±0.2V DC; 3, Charging Currency: 3.0A
4, Battery duration: Max 1.5 hours; 5, Filtering capacity: 20m³/h
6, Filter density: 180µm; 7, Creeping speed: 20m/min
8, IP Grade：Cleaner-IPX8 9, Maximum pool depth: 2m
10, Remote distance: >10m; 11, Working temperature: Charging-0~+40℃；Release：-20~+60℃
5
Ⅳ. Cleaner Structure
Assemble the cleaner according to above structure
Ⅴ. Operation Instruction
5.1 Panel
Top cover
Chassis
Filter tray
3
5
6
4
1
2
6

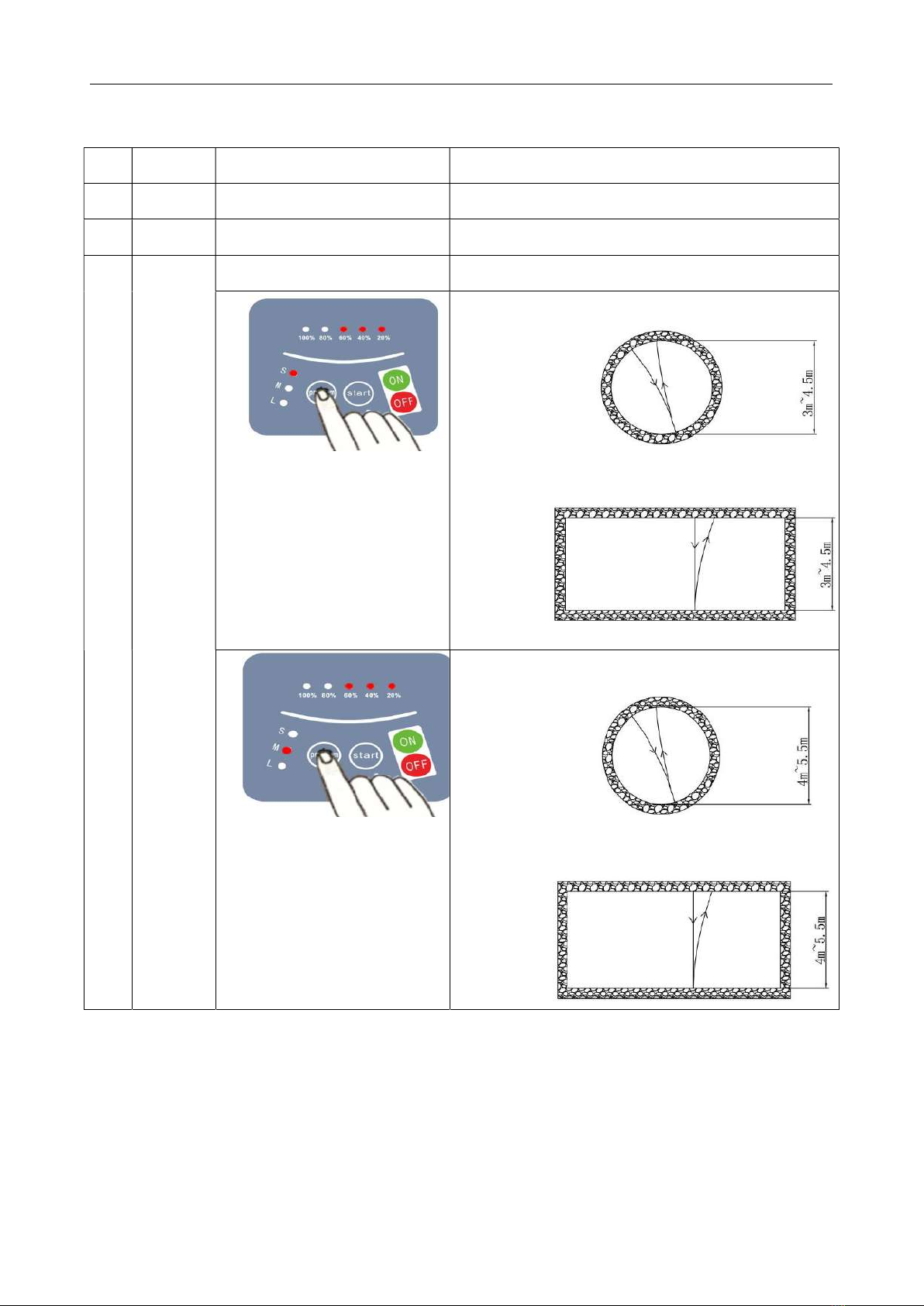

Chart 5-1Buttons & indicator lights instructions
Item
Name Function Instruction
1 ON Power on
2 OFF Power off
3
Program
Pool size selection Chose the proper program based on pool size
S Moving direction reverses every 18 seconds, ideal
for pool size:
M Moving direction reverses every 23 seconds, ideal
for pool size:
7
L Moving direction reverses every 28 seconds, ideal
for pool size:
4 START Start working
Press this button and the cleaner starts working in
selected program, corresponding indicator light will
flash
5 Indicator
light
Corresponding light flashes when the cleaner works in
selected program (pool size)
When battery is deleting, cleaner moves in single direction
till it touches wall, indicator of S/M/L flashes in sequence,
while the indicator S/L flashes in sequence once the cleaner
touches the wall
When operated by remote control, cleaner moves forward
with S/M/L flashes in sequence, or backward with L/M/S
flashes in sequence.
Indicator of selected program flashes rapidly when fault
occurs (overload, short circuit ), twice per second.
6 Indicator
light
Remaining battery capacity
indicator Showing the remaining battery capacity
8
5.2 Remote control
Item Nam
e Function Instruction
1 ON Automatic program
Cleaner works automatically
2 FWD Manual forward Cleaner moves forward
3 REW Manual backward Cleaner moves backward
4 OFF Stop Cleaner stops working
5 Indicator light
5.3 Battery charging
5.3.1 Lift out the cleaner out of pool before charge the battery
5.3.2 Connect to adapter 5.3.3 Connect to home power
5.3.4 Indicator of adapter
Indicator light color Status
Steady Green Ready for charging/no connection with battery/Finish
Flashing red (triple times per
second) Charging on low currency (0.75A±0.1A)
Flashing red (once per second) Normal charging (3.0A±0.3A)
Flashing orange Faulty battery
1
2
3
4
5
9
5.4 Function and adjustment of nozzle
There are two nozzles on the cleaner, one of them opens once the other closes. Water flows out through
the opening nozzle to thrust the cleaner move forward. Adjust the nozzle by rotating it to control the
moving path.
5.4.1, Settings of nozzle
Nozzle angle from 0°to 60°
Cleaner moves in approximately straight line when nozzles in position 0°.
Cleaner moves in a more curved line at a larger angle from 0°—60°.
Note: A full coverage is not guaranteed for some of free shape pools.
5.4.2, Recommended cycle and nozzle settings:
Setting 1 (Default Setting), 0°/ 60°, for most pools.
Nozzle
10
Moving
path
Setting 2; 0°/ 45° When the cleaner move in too much curved line to cover the pool.
Nozzle
Moving
path
