BestScope BS-6012 Series User manual

Version: V1.0

BS-6012 Series

Upright Metallurgical

Microscope

Instruction Manual

This instruction manual is for the operation guide, troubleshooting and

maintenance to the BS-6012 Series Upright Metallurgical Microscope. Please

study this manual thoroughly before operating, and keep it with the

instrument. The manufacturer reserves the rights to the modifications by

technology development. On the basis of operation ensured, technical

specifications may be subject to changes without notice.

 BestScope International Limited
Contents BS-6012 Series
Before Use
1. Components............................................................................................................................... 1
2. Assembling................................................................................................................................. 5
2-1 Assembling Scheme ......................................................................................................... 5
2-2 Assembling Steps ............................................................................................................. 7
3. Operation................................................................................................................................. 11
3-1 Set Illumination.............................................................................................................. 11
3-2 Select the Light Path ...................................................................................................... 12
3-3 Adjust the Bracket (For Reflected Illumination) ............................................................. 12
3-4 Adjust Focusing.............................................................................................................. 12
3-5 Adjust the Focusing Tension .......................................................................................... 13
3-6 Adjust the Diopter.......................................................................................................... 13
3-7 Adjust the Interpupillary Distance ................................................................................. 14
3-8 Center the Condenser (For Transmitted Illumination) ................................................... 14
3-9 Adjust the Field Diaphragm........................................................................................... 15
3-10 Adjust the Aperture Diaphragm .................................................................................. 15
3-11 Adjust the Stage........................................................................................................... 17
3-12 Use the Eye-cap ........................................................................................................... 17
3-13 Adjust the Oblique Illumination (For Reflected Illumination) ...................................... 17
3-14 Use the Color Filter ...................................................................................................... 18
3-15 Use the Simple Polarizer Device................................................................................... 18
3-16 Assemble and Use the TV Device................................................................................. 19
3-17 Use the Digital Head.................................................................................................... 19
3-18 Replace the Fuse.......................................................................................................... 20
4. Troubleshooting ....................................................................................................................... 21






BestScope International Limited

Before Use BS-6012 Series

1. Operation Notice

(1) As the microscope is a high precision instrument,

always operate it with care, and avoid physical shake

during the operation.

(2) Do not expose the microscope in the sun directly, either

not in the high temperature, damp, dust or acute shake.

Make sure the worktable is flat and horizontal. Following

environment is required when operating: Indoor

temperature: 5℃～40℃, Max relative humidity: 80%.

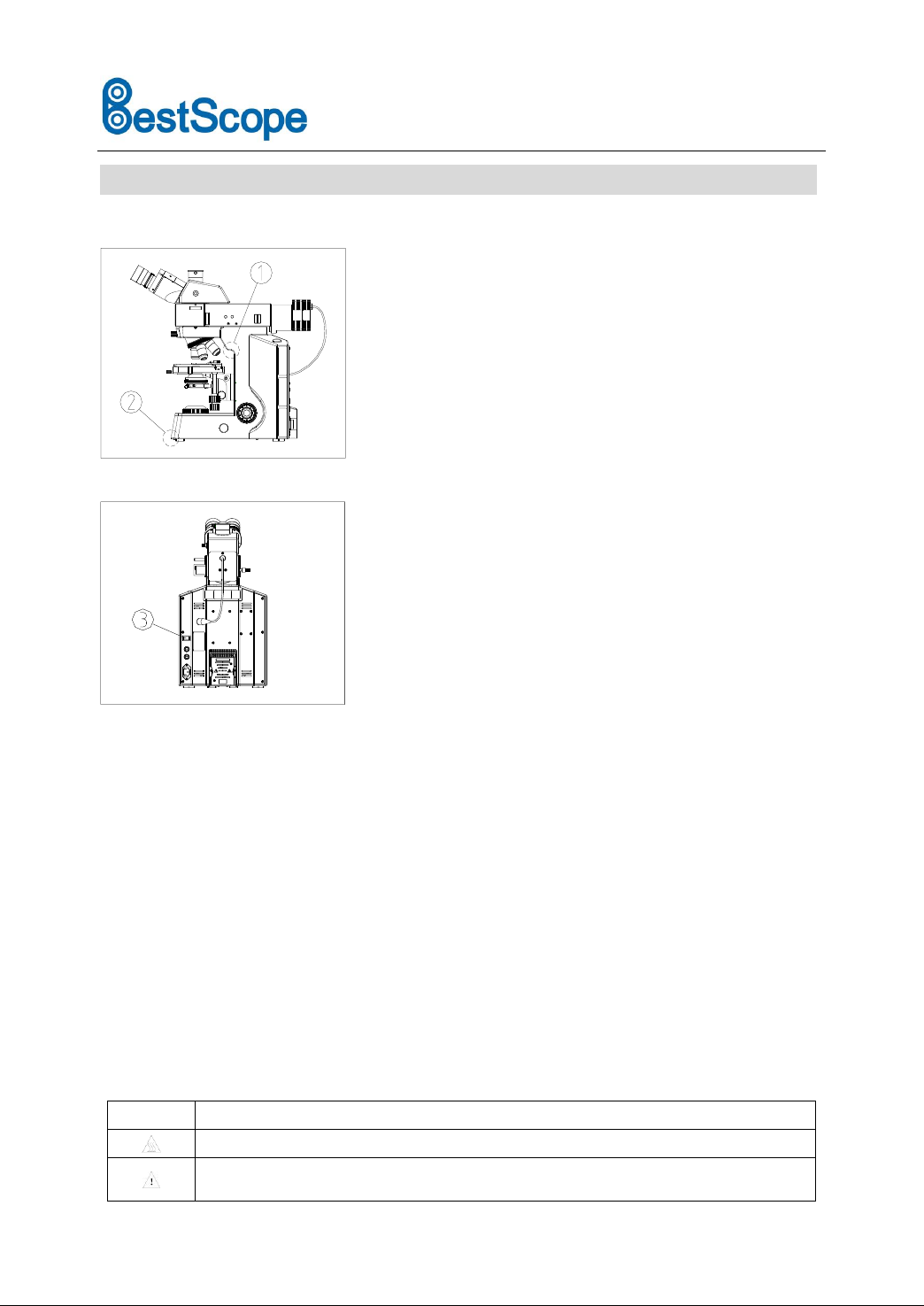

(3) When moving the microscope, use one hand to hold its

arm①and the other hand to hold its front base②, and

lay it down carefully (See Fig. 1).

★It will damage the microscope by holding the stage,

focusing knob, head or light source when moving.

(4) When working, the surface of light source will be very

hot. Make sure there is enough room for the heat

dissipating around the light source.

(5) Connect the microscope to the ground to avoid

lightning strike.

(6) For safety, make sure the power switch③is at “O” (off)

and power it off before replacing the fuse (See Fig. 2).

(7) Wide voltage range is supported as 100~240V.

Additional transformer is not necessary. Make sure the

voltage is in this range.

(8) Use the special wire supplied by our company.

(9) All the power OFF devices have been set in the position

where is easy to operate.

2. Maintenance

(1) Wipe the lens gently with a soft tissue. Carefully wipe off the oil marks and fingerprints on

the lens surfaces with a tissue moistened with a small amount of 3:7 mixture of alcohol and

ether or dimethylbenzene.

★As the alcohol and ether is flammable, don’t place these chemical near to fire or fire source.

For example, when turning on/ off the electrical device, please use these chemicals in a

ventilated place.

(2) Don’t use organic solution to wipe the surfaces of the other components. Please use the

neutral detergent if necessary.

(3) If the microscope is damped by liquid when using, power it off immediately and wipe it dry.

(4) Never disassemble the microscope, otherwise the performance will be affected or the

instrument will be damaged.

(5) After using, cover the microscope with a dust cover.

3. Safety Sign

Sign

Signification

The surface gets hot and don’t touch it with bare hand.

Study the instructions before use. Unsuitable operation would lead to person

hurt or instrument faulty.

Fig.1

Fig.2

BestScope International Limited

Main switch ON

Main switch OFF

BestScope International Limited

1. Components BS-6012 Series

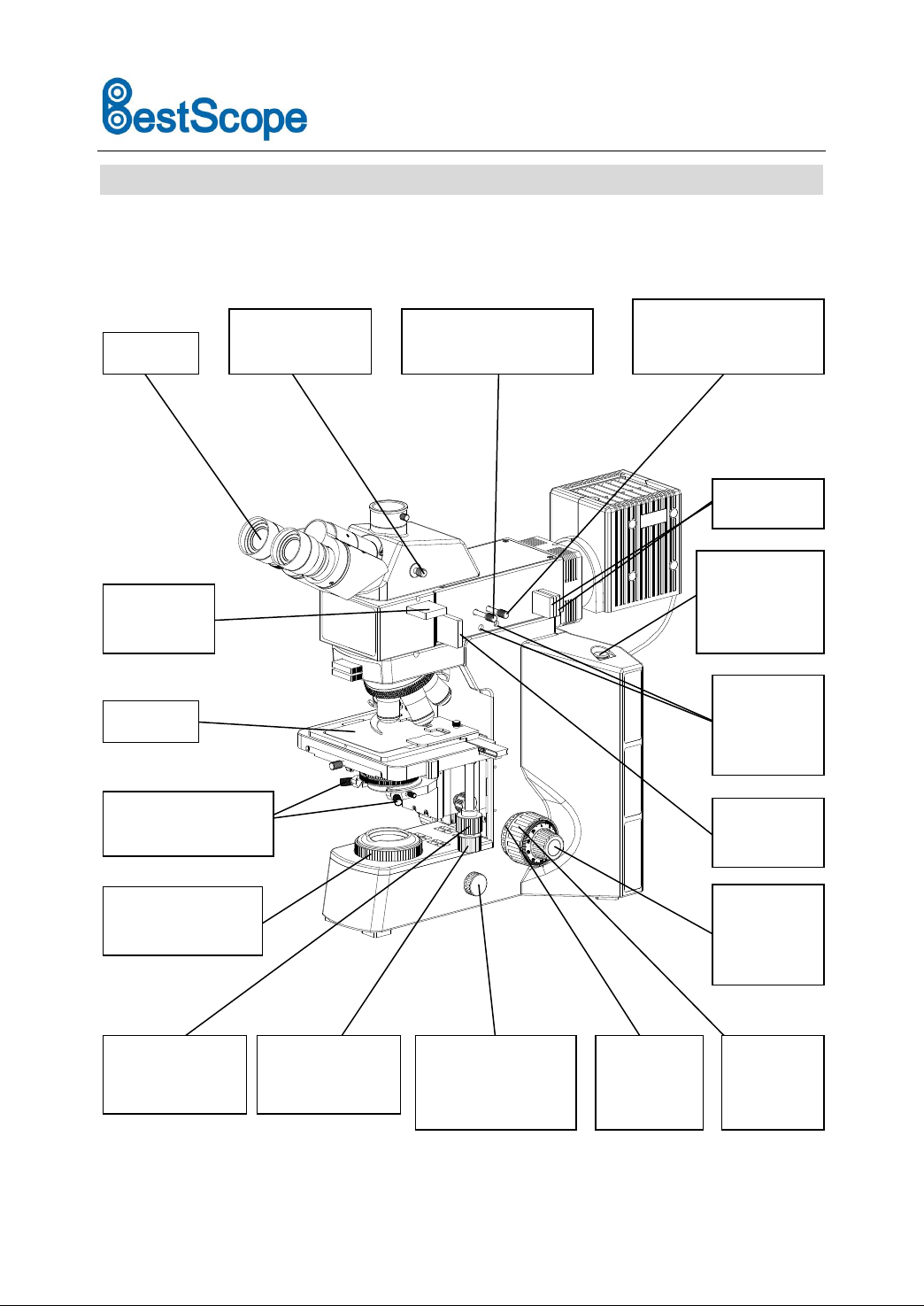

BS-6012 Series Upright Metallurgical Microscope (LED Illumination) Components

Eyepiece

Light Path

Selecting Pole

Inner

Hexangular

Spanner

Stage

Condenser Center

Adjusting Screw

Field Diaphragm

Adjustment Ring

Y-axis Moving

Knob

X-axis Moving

Knob

Fine

Focusing

Knob

Aperture Diaphragm

Adjusting Pole

Field Diaphragm

Adjusting Pole

Analyzer

Slot

Light Adjustment

Knob (Reflected

Illumination)

Coarse

Focusing

Knob

Diaphragm

Centering

Screw

Filter Slot

Polarizer

Slot

Tension

Adjustment

Knob

BestScope International Limited

BS-6012 Series

Diopter

Adjustment

Ring

Nosepiece

Fuse

Power

Outlet

LED Light

Source Group

(Transmitted

Illumination)

Light Adjustment

Knob (Transmitted

Illumination)

Coarse

Focusing

Knob

Focusing Bracket

Group

Reflected

Illuminater

Body

Hinged

Trinocular Head

Oblique

Illumination

Pole

Random

Upper Limit

Knob

Power

Switch

LED Light

Source Group

(Reflected

Illumination)

Fine Focusing

Knob

Condenser

Up-down

Adjustment knob

Condenser

Metallographic

Objective

Diaphragm

Centering

Screw

BestScope International Limited

BS-6012 Series

BS-6012 Series Upright Metallurgical Microscope (Halogen Illumination) Components

Eyepiece

Light Path

Selecting Pole

Inner

Hexangular

Spanner

Stage

Condenser Center

Adjusting Screw

Field Diaphragm

Adjustment Ring

Y-axis Moving

Knob

X-axis Moving

Knob

Fine

Focusing

Knob

Aperture Diaphragm

Adjusting Pole

Field Diaphragm

Adjusting Pole

Analyzer

Slot

Light Adjustment

Knob (Reflected

Illumination)

Coarse

Focusing

Knob

Diaphragm

Centering

Screw

Filter Slot

Polarizer

Slot

Tension

Adjustme

nt Knob

BestScope International Limited

BS-6012 Series

Diopter

Adjustment

Ring

Nosepiece

Fuse

Power

Outlet

Light Adjustment

Knob (Transmitted

Illumination)

Coarse

Focusing

Knob

Focusing

Bracket Group

Reflected

Illuminator

Body

Hinged

Trinocular Head

Oblique

Illumination

Pole

Random Upper

Limit Knob

Power

Switch

Halogen Light

Source Group

(Reflected

Illumination)

Fine Focusing

Knob

Condenser

Up-down

Adjustment knob

Condenser

Metallographic

Objective

Diaphragm

Centering

Screw

Halogen Light

Source Group

(Transmitted

Illumination)

BestScope International Limited

2. Assembling BS-6012 Series

2-1 Assembling Scheme

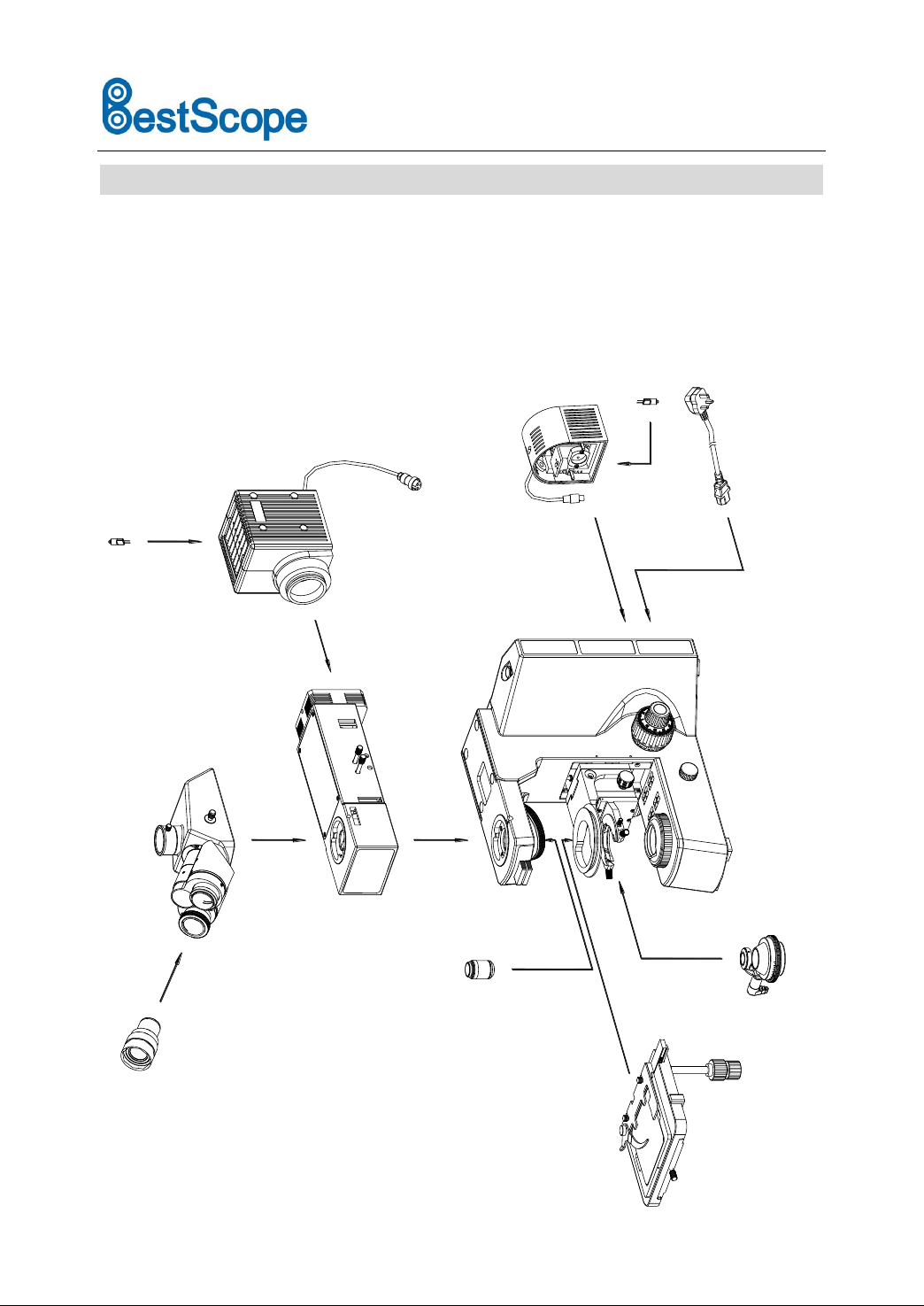

Following is the Assembling Scheme, and the numbers denote the assembling order.

★Before assembling, make sure there is no dust, dirt or other matters to affect the

assembly. Assemble carefully and do not scrap any part or touch the glass surface.

BS-6012 Upright Metallurgical Microscope (LED Illumination)

①

②

③

④

⑤

⑥

⑦

⑧

Reflected

Illuminator

LED Light Source

Group (Transmitted

Illumination)

Power Cord

Body

Stage

Condenser

Hinged Trinocular Head

Objective

Eyepiece

BestScope International Limited

BS-6012 Series

BS-6012 Upright Metallurgical Microscope (Halogen Illumination)

①

③

④

⑤

⑥

⑦

⑧

⑨

Reflected

Illuminater

Halogen Light

Source Group

(Transmitted

Illumination)

Power Cord

Body

Stage

Condenser

Hinged Trinocular Head

Objective

Eyepiece

Halogen

Lamp

Halogen Lamp

①

②

Halogen Light

Source Group

(Reflected

Illumination)

②
