Bergstrom NITE Parts list manual
1
Digital Display Usage Instructions
Rev 2 © 04/11
2
To start the system push ON/OFF button. Display
will show current mode/ temperature setting /
battery level.
Initial default setting is blower speed 1/ AUTO-
MODE /60 °F
Changing MODE –press ENTER, while mode is
flashing use up or down arrows to select AUTO /
COOL / HEAT. After 5 seconds selection will be
set.
Changing BLOWER SPEED –press ENTER
until display shows FAN and SPEED. Press up or
down arrows to select 1 –2 –3 speed. After 5
seconds selection will be set.
ON/OFF
ENTER
ENTER
3
Changing TEMPERATURE set point. Anytime
the temperature set point is displayed on the
screen, push the up or down arrows to change.
Temperature range is from 60 °F (coolest) to
85 °F (warmest).
NOTE: Control will always default to the last
setting when the unit is turned on.
To view system runtime/hours –press ENTER
until “Hrs” show on display. When hours are
displayed, pressing ENTER for 7 seconds will
reset the hours to zero.
To change from °F to °C press ENTER until
temperature symbol only shows –push the up or
down arrow to change. After 5 seconds selection
will be locked.
Anytime the control is idle for 5 seconds the
screen will return to the temperature set point
screen.
ENTER
ENTER
ENTER
4

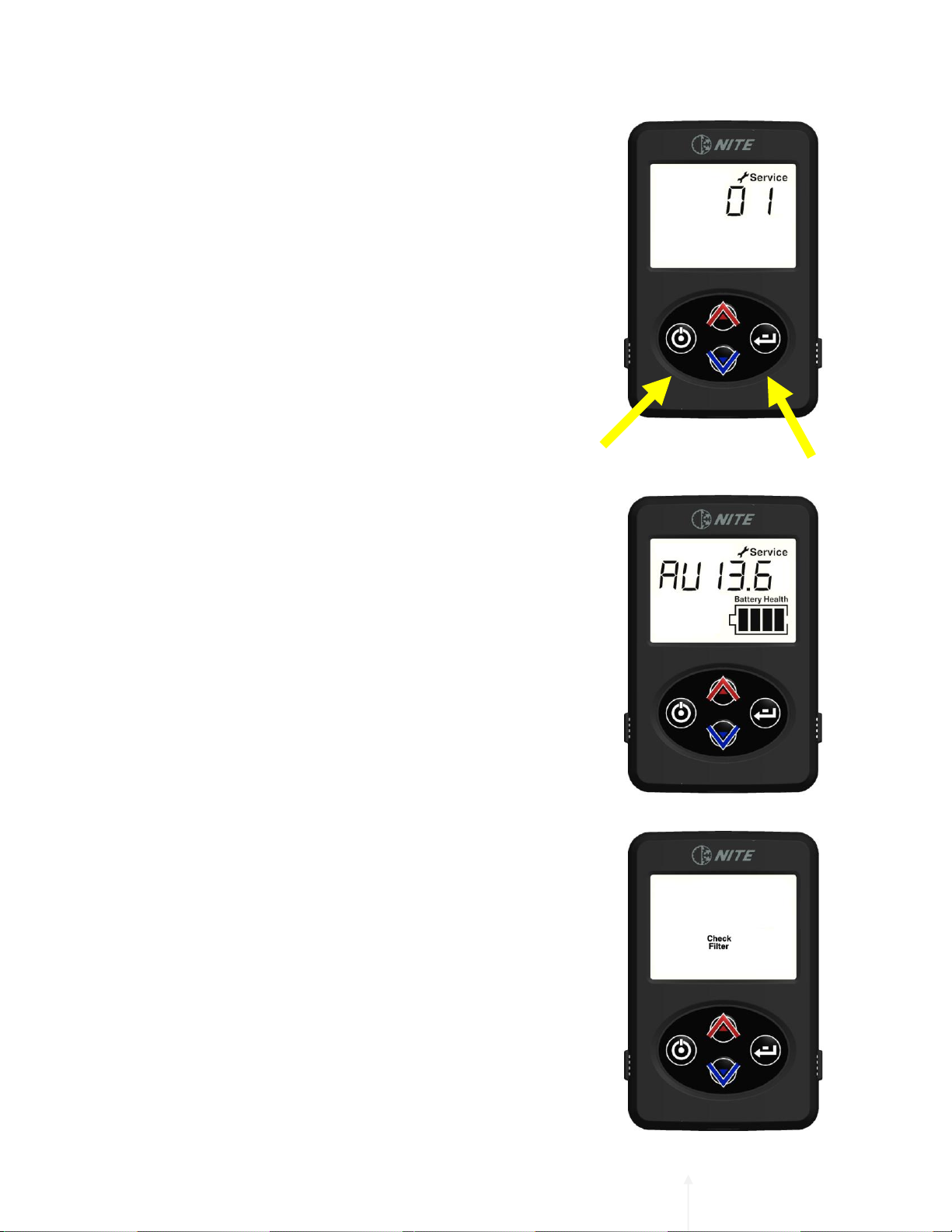

To enter SERVICE MODE: Push both the
ON/OFF and ENTER button simultaneously at
any time.
Display will show service indicator and a code #1
to #3. Use up and down arrows to scroll through
the Fault Codes.
1) Evap sensor open or shorted high
2) Evap sensor shorted low
3) High pressure switch open or shorted high
Press the ENTER button to proceed through the
available service screens.
1) SV = Starting batteries Voltage
2) AV = Auxiliary batteries Voltage
3) AA = Unit Amperage draw
Pressing ENTER arrow after viewing service
screen will return you to the fault code screen.
Pressing the ON/OFF button will return you to the
Temperature Display screen.
When necessary, Check Filter light will notify you
that the Phoenix filter must be cleaned or changed.
To reset filter: at screen 1 press and hold enter
button for 3 seconds.
ENTER
ON/OFF
