BenQ MP514 User manual
EN-1
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in residential installation.
This equipment generates, uses and can radiate radio frequency energy and if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, detectable by turning the equipment in question off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna
Increase the distance between the equipment and the receiver
Connect the equipment to an outlet on a different circuit than that which the receiver
is connected to
Or consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to following
two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference that may cause undesired operation.
http://www.pureglare.com.au
EN-2
Safety Instructions
Read all of these instructions before you operate your projector and save for future
reference.
1. Read instructions
All the safety and operating instructions should be read before the appliance is
operated.
2. Notes and warnings
All notes and warnings in the operating instructions should be adhered to.
3. Cleaning
Unplug the projector from the wall socket before cleaning. Use a damp cloth for
cleaning the projector housing. Do not use liquid or aerosol cleaners.
4. Accessories
Do not place this product on an unstable cart, stand, or table. The product may fall,
causing serious damage to the product.
Keep the plastic packing materials (from the projector, accessories and optional
parts) out of the reach of children as these bags may result in death by
suffocation. Be particularly careful around the small children.
5. Ventilation
The projector is equipped with ventilation holes (intake) and ventilation holes (exhaust).
Do not block or place anything near these slots, or internal heat build-up may occur,
causing picture degradation or damage to the projector.
6. Power sources
Check that the operating voltage of your unit is identical with the voltage of your local
power supply.
7. Servicing
Do not attempt to service this projector yourself. Refer all servicing to qualified
service personnel.
8. Replacement parts
When replacement parts are required, be sure that the replacement parts are
specified by the manufacture. Unauthorized substitutions may result in fire, electric
shock or other hazards.
9. Moisture Condensation
Never operate this projector immediately after moving it from a cold location to
a warm one. When the projector is exposed to such a change in temperature,
moisture may condense on the lens and the crucial internal parts. To prevent
the unit from possible damage, do not use the projector for at least 2 hours
when there is an extreme or sudden change in temperature.
http://www.pureglare.com.au
EN-3
CONTENTS
Introduction .......................................................................................................4
Projector Features .......................................................................................................4
Package Contents ....................................................................................................... 5
Projector Overview ......................................................................................................6
Using the Product ........................................................................................ 8
Control Panel .............................................................................................................. 8
Connection Ports .........................................................................................................9
Remote Control .........................................................................................................10
Replacing the Battery ................................................................................................11
Remote Control Operation ........................................................................................12
Installation ........................................................................................................ 13
Connecting the Projector ...........................................................................................13
Powering On/Off the Projector ..................................................................................14
Adjusting the Projector ..............................................................................................15
Menu Operation ............................................................................................ 17
Maintenance ..................................................................................................... 21
Cleaning the Lens .....................................................................................................21
Cleaning the Projector Housing ................................................................................21
Replacing the Lamp ..................................................................................................22
Specifications ...............................................................................................24
Appendix ............................................................................................................25
LED Indicator Messages .......................................................................................25
Compatibility Modes ..................................................................................................26
Troubleshooting ........................................................................................................27
http://www.pureglare.com.au
EN-4
Introduction
Projector Features
The projector integrates high-performance optical engine projection and a user - friendly
design to deliver high reliability and ease of use.
The projector offers the following features:
Single chip 0.55" Texas Instruments DLP®technology
SVGA (800 x 600 pixels)
Auto image re-sizing (Auto-Sync.) to 800 x 600 full screen with scaling
compression compatibility for VGA, SVGA, XGA* and SXGA*
Compatibility with Macintosh®computers
Compatibility with NTSC, PAL, SECAM and HDTV
D-Sub 15-pin terminal for analog video connectivity
User-friendly, multi-language on-screen display
Advanced electronic keystone correction
* means compressed.
http://www.pureglare.com.au
EN-5

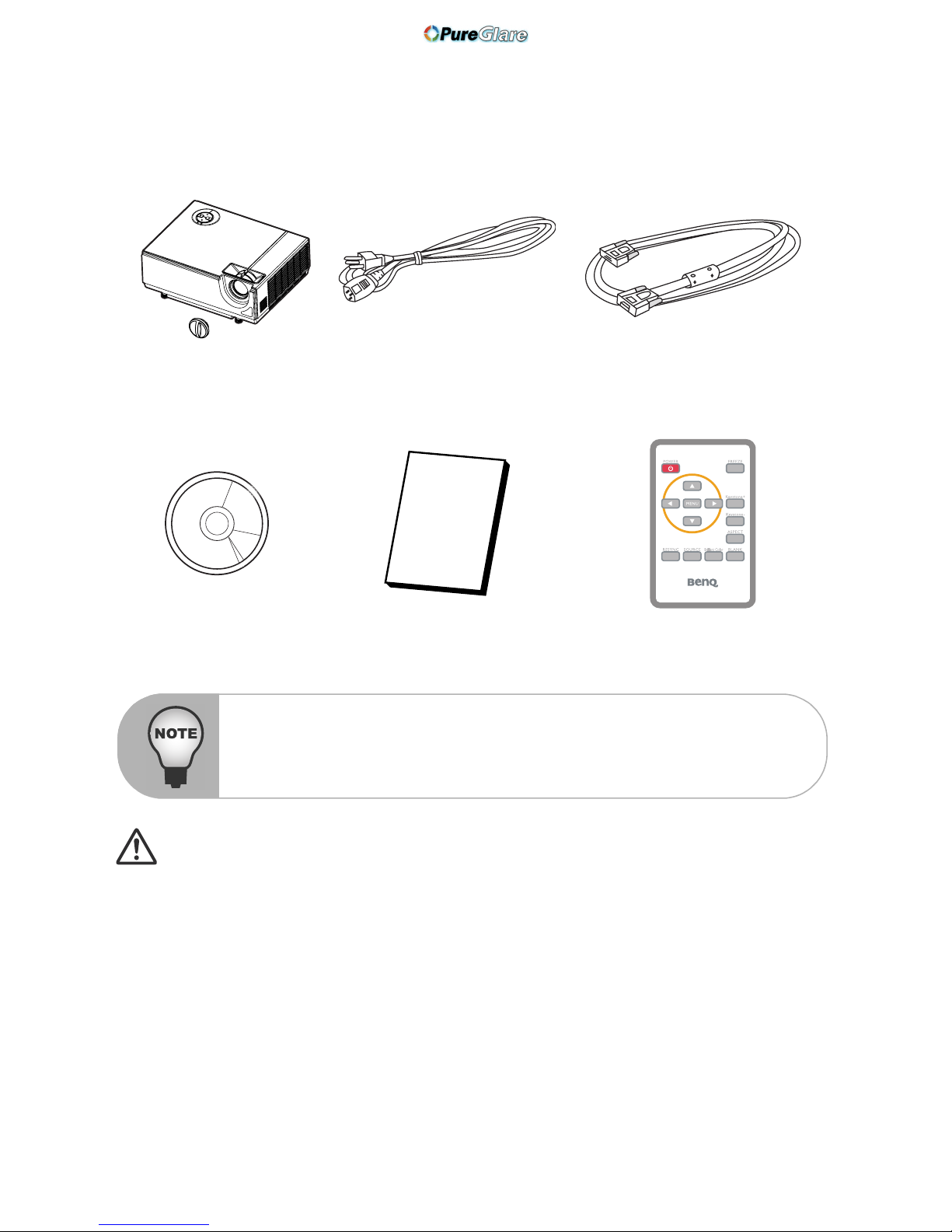

Package Contents
When you unpack the projector, make sure you have all these components:
Caution
Avoid using the projector in dust environment.
Leave the power cable plug-in for 5-10 minutes until projector adjust to
room temperature before using.
Save the original shipping carton and Packing material; they will come-in
handy if you ever to ship your unit. for maximum protection, repack your unit
as it was originally packed at the factory.
Projector with Lens Cap AC Power Cord VGA Cable (D-SUB to D-SUB)
User Manual CD Quick Start Guide Remote Control (IR)
Contact you dealer immediately if any items are missing, appear damaged, or if
the unit does not work
.
http://www.pureglare.com.au
EN-6
Projector Overview
Front View
Caution
Do not touch the lamp cover and exhaust vents during projector usage to
prevent from possible burning.
Do not looking into the lens or vents while the lamp is on. Strong light ray
may be harmful to eyes.
Do not carry the projector by solely handling the adjustment feet. Projector
may drop and be damaged.
Tilt-adjustment feet Ventilation holes ((intake)
Lens cap Zoom ring
Projection lens Focus ring
Front IR remote control sensor Control panel
7
8 6
2 3 4 5
1
15
2 6
3 7
4 8
http://www.pureglare.com.au
EN-7

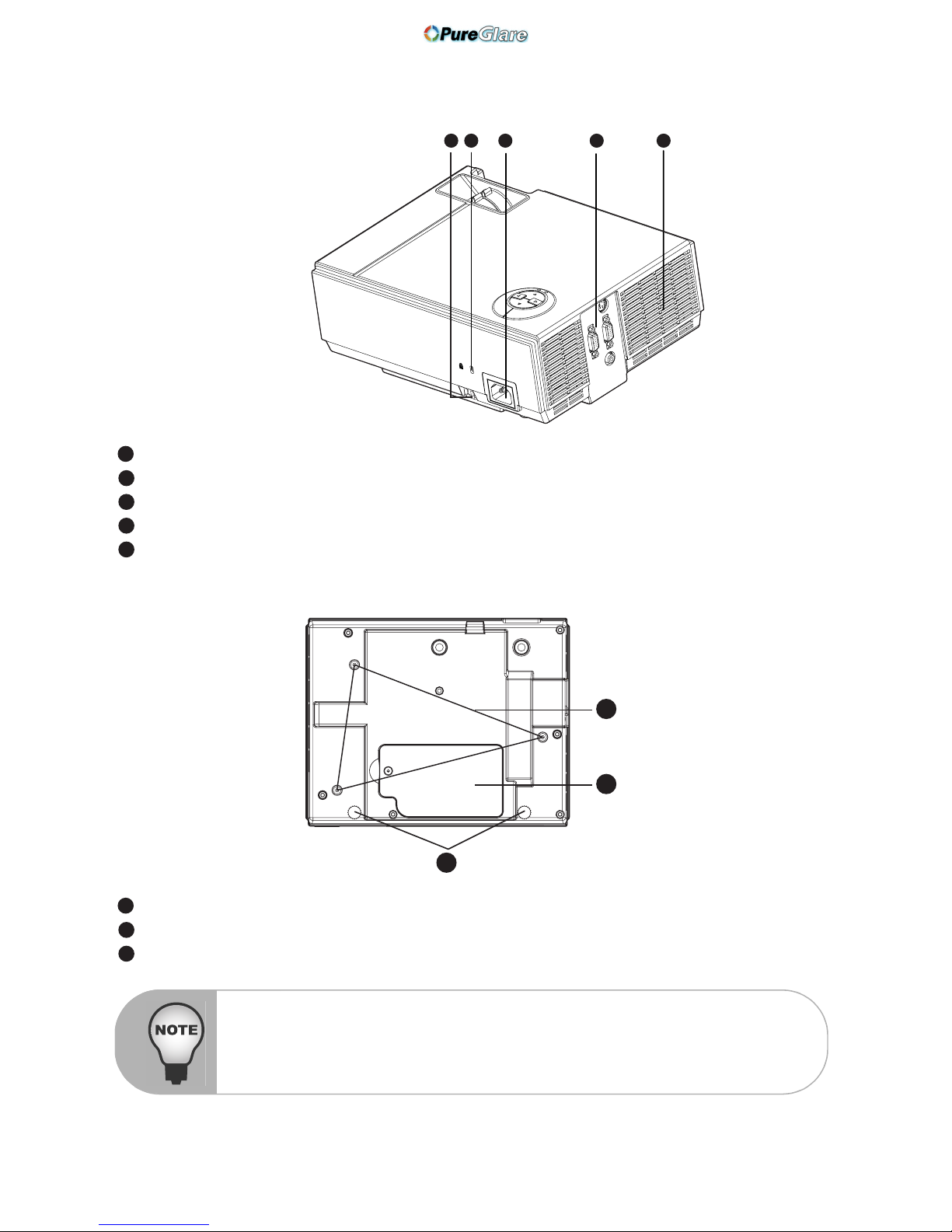

Rear View
Security lock
Kensington lock
AC power socket
Connection ports
Ventilation holes (exhaust)
Bottom View
Ceiling mount
Tilt-adjustment feet
Lamp cover
4 5
3
21
1
2
3
4
5
1
2
3
1
22
23
This projector can be used with a ceiling mount for support. The ceiling mount is
not included in the package.
Contact your dealer for information to mount the projector on a ceiling.
http://www.pureglare.com.au
EN-8
Using the Product

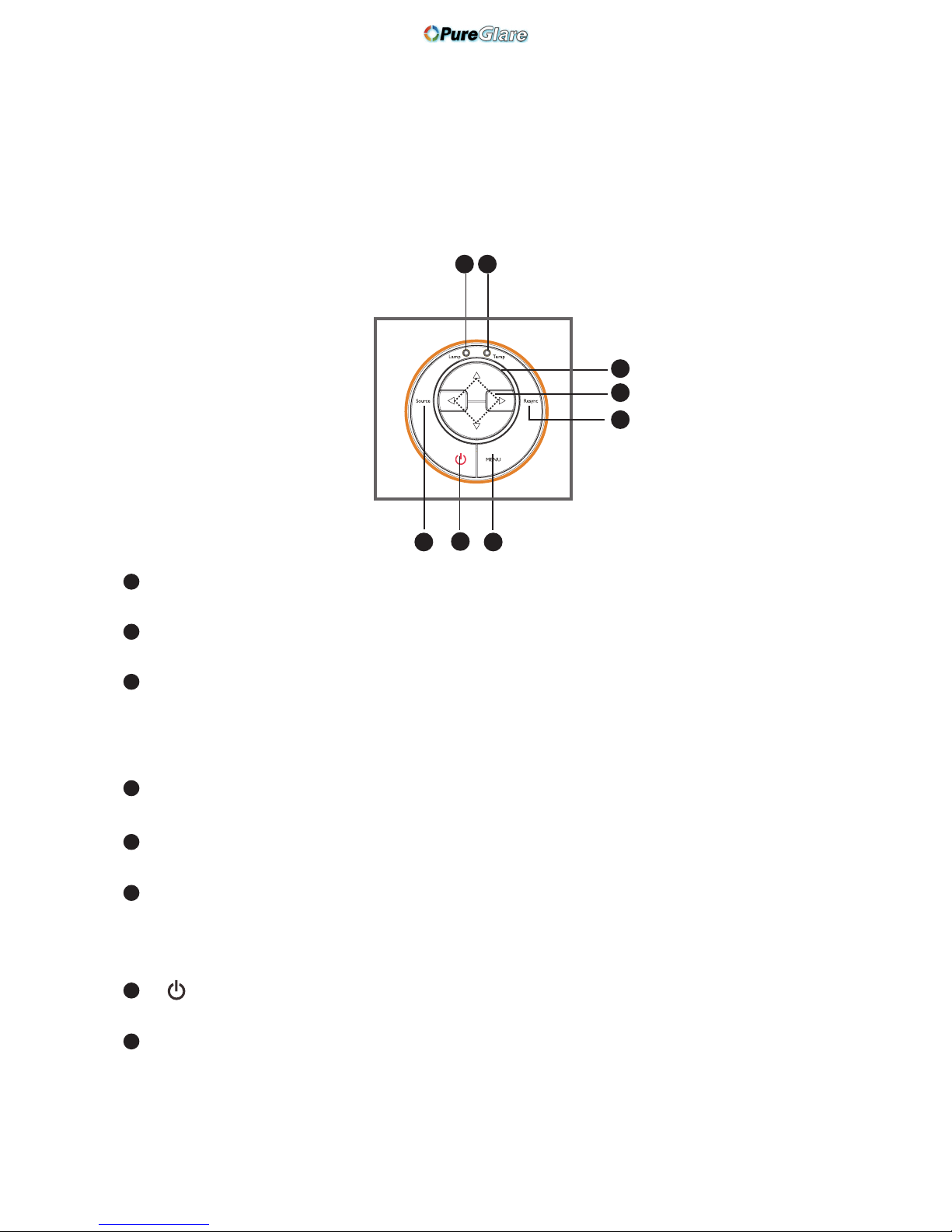

Control Panel
LED
Button Function
Lamp (Lamp LED indicator)
Refer to “LED Indicator Messages”.
Temp (Temperature LED indicator)
Refer to “LED Indicator Messages”.
Power LED
Refer to “LED Indicator Messages”.
Four directional buttons
Use four directional buttons to select items or make adjustments to your selection.
Resync
Resynchronize the projector to the input signal from a computer.
MENU
-
Display or exit the on-screen display menus.
-
Enter to sub-menu and confirm the menu selection. Activate in Color Setting,
Lamp Hours Reset and Factory Default menu operations.
(Power)
Turn the projector on or off.
Source
Manually select an input source.
1 2
3
6
7
4
5
8
1
2
3
4
5
6
7
8
http://www.pureglare.com.au
EN-9

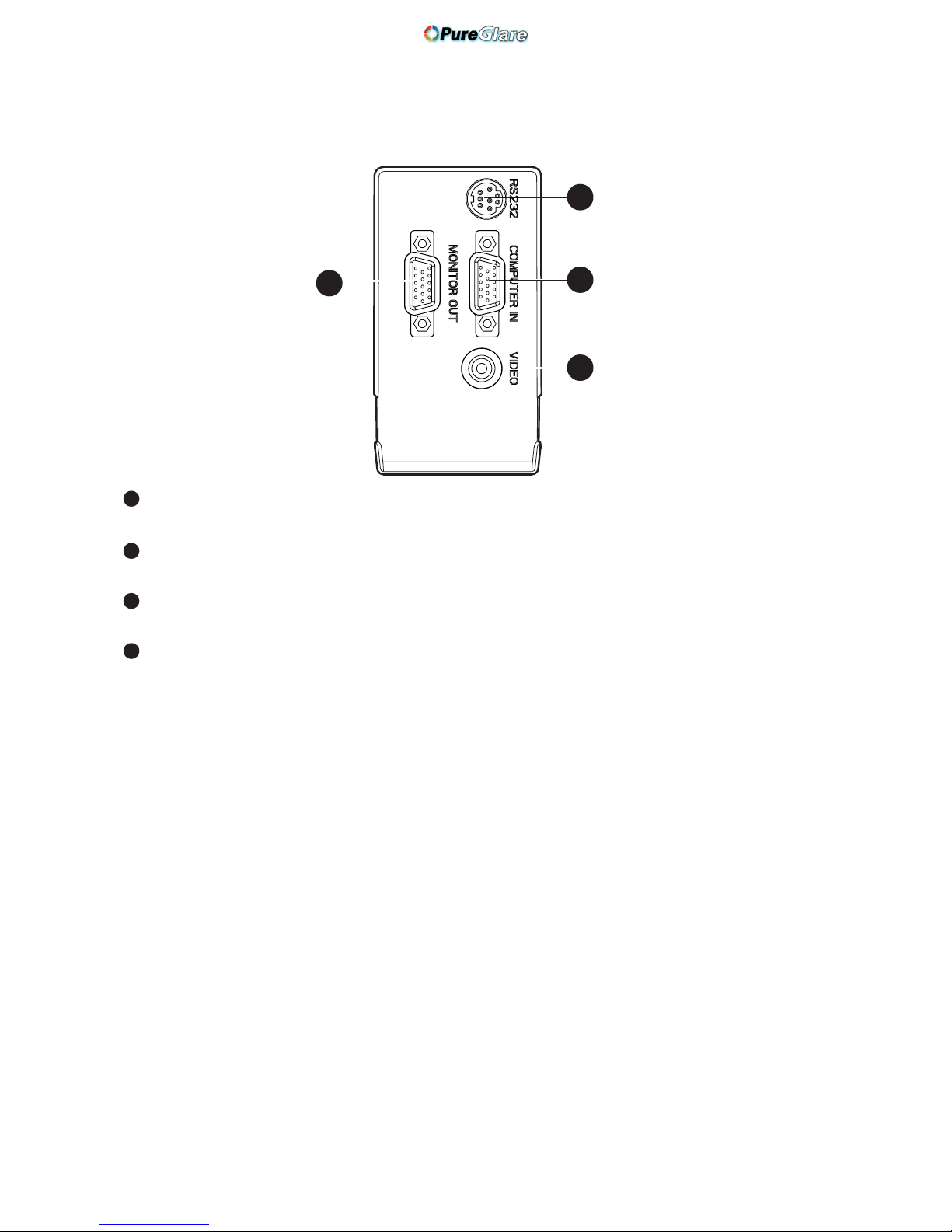

Connection Ports
RS232
Reserved for installation control and firmware upgrades.
COMPUTER IN
Connect image input signal (analog RGB or component) to this jack.
VIDEO
Connect composite video output from video equipment to this jack.
MONITOR OUT
Connect to a computer display, etc.
1
2
3
4
1
2
3
4
http://www.pureglare.com.au
EN-10

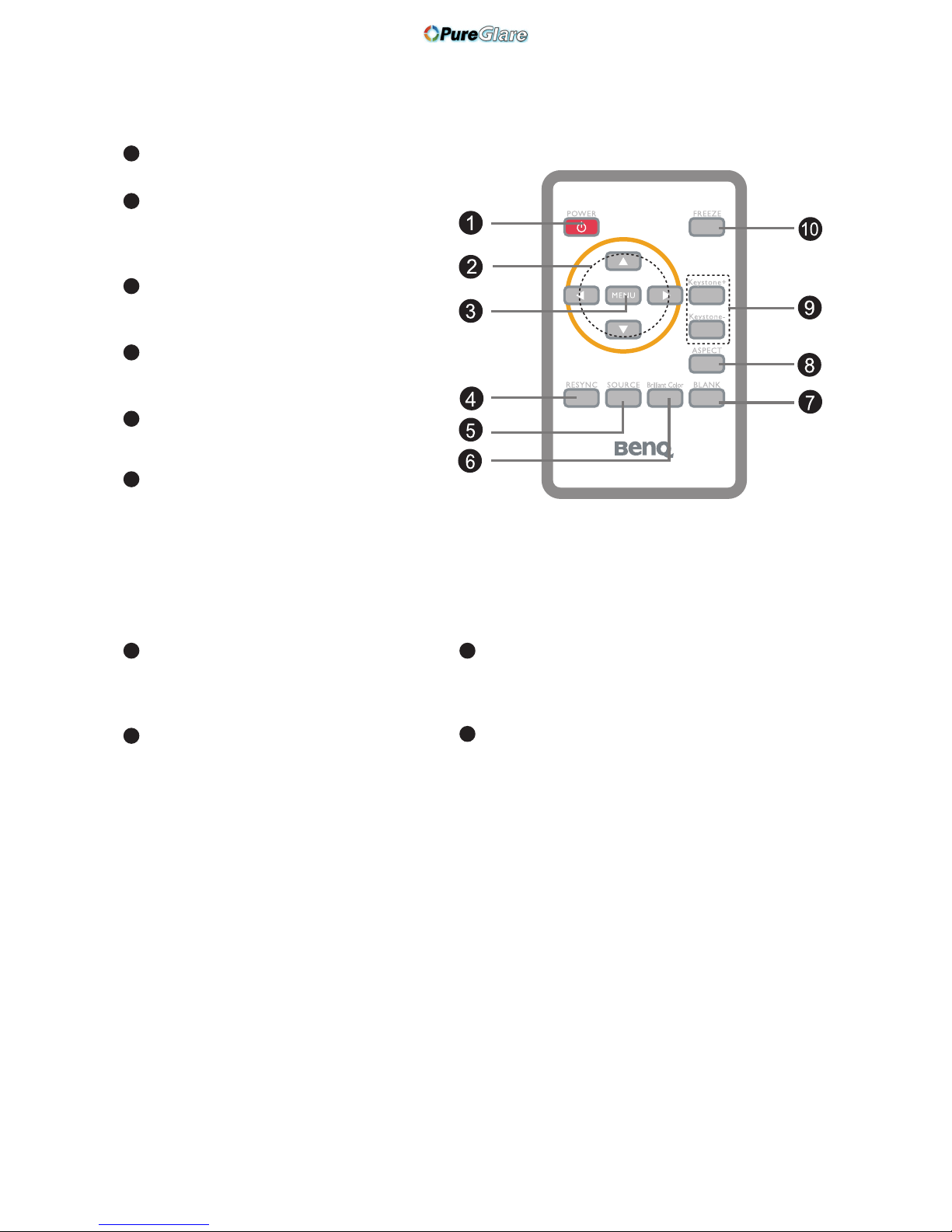

Remote Control
POWER
Turn the projector on or off.
Four directional buttons
Use four directional buttons to
select items or make adjustments
to your selection.
MENU
Display or exit the on-screen display
menus.
RESYNC
Resynchronize the projector to the
input signal from a computer.
SOURCE
Manually select an input source.
Brilliant Color
Produce an expanded on-screen
color spectrum that delivers
enhanced color saturation for
bright, true-to-life images. Activate
this function for most computer
sources.
BLANK
Cut off the screen temporarily.
Press again to cancel the blank
function.
Keystone+ / -
Adjust image distortion caused by
tilting the projector.
ASPECT
Press this button to switch the image
aspect ratio from 4:3 to 16:9.
FREEZE
Press "FREEZE" to pause the screen
image. Press again to cancel the freeze
function.
1
2
3
4
5
6
7 9
810
http://www.pureglare.com.au
