BenQ Home Entertainment PE5120 User manual

PE5120 Digital Projector

Home Entertainment Series

Quick Start Guide

Welcome

QSG-e.fm Page 1 Monday, December 6, 2004 8:11 PM

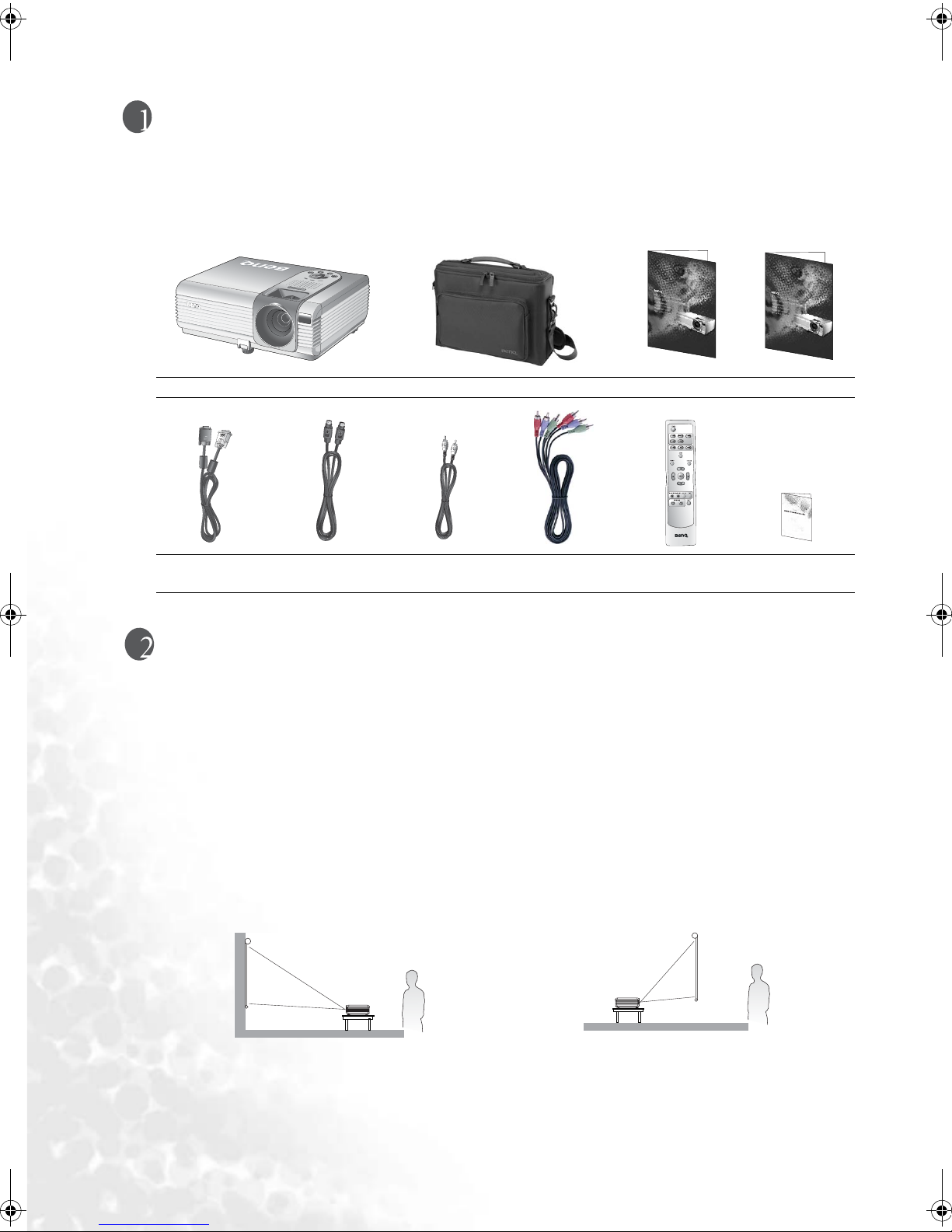

2 Shipping contents

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items are

missing, please contact your place of purchase. The standard accressories may vary from country to

country.

Choosing a location

Your projector is designed to be installed in one of four possible installation configurations:

1. Floor in front of screen;

2. Ceiling in front of screen;

3. Floor at rear of screen; or

4. Ceiling at rear of screen.

For quick setup and portability, it is recommended to position your projector in either the Floor front

or Floor rear as shown below. For instructions to permanently mount the projector on the ceiling,

please refer to the user’s manual.

Projector Soft Carry Case User’s Manual Quick Start Guide

VGA-DVI Cable S-Video Cable Video Cable Component

Video Cable

Remote Control Warranty Booklet

PE6800 Digital Projector

Home Theater

User’s Maunal

PE6800 Digital Projector

Home Theater

User’s Maunal

I. Floor front: The most common way to

position the projector.

II. Floor rear: A special rear projection screen is

required.

QSG-e.fm Page 2 Monday, December 6, 2004 8:11 PM

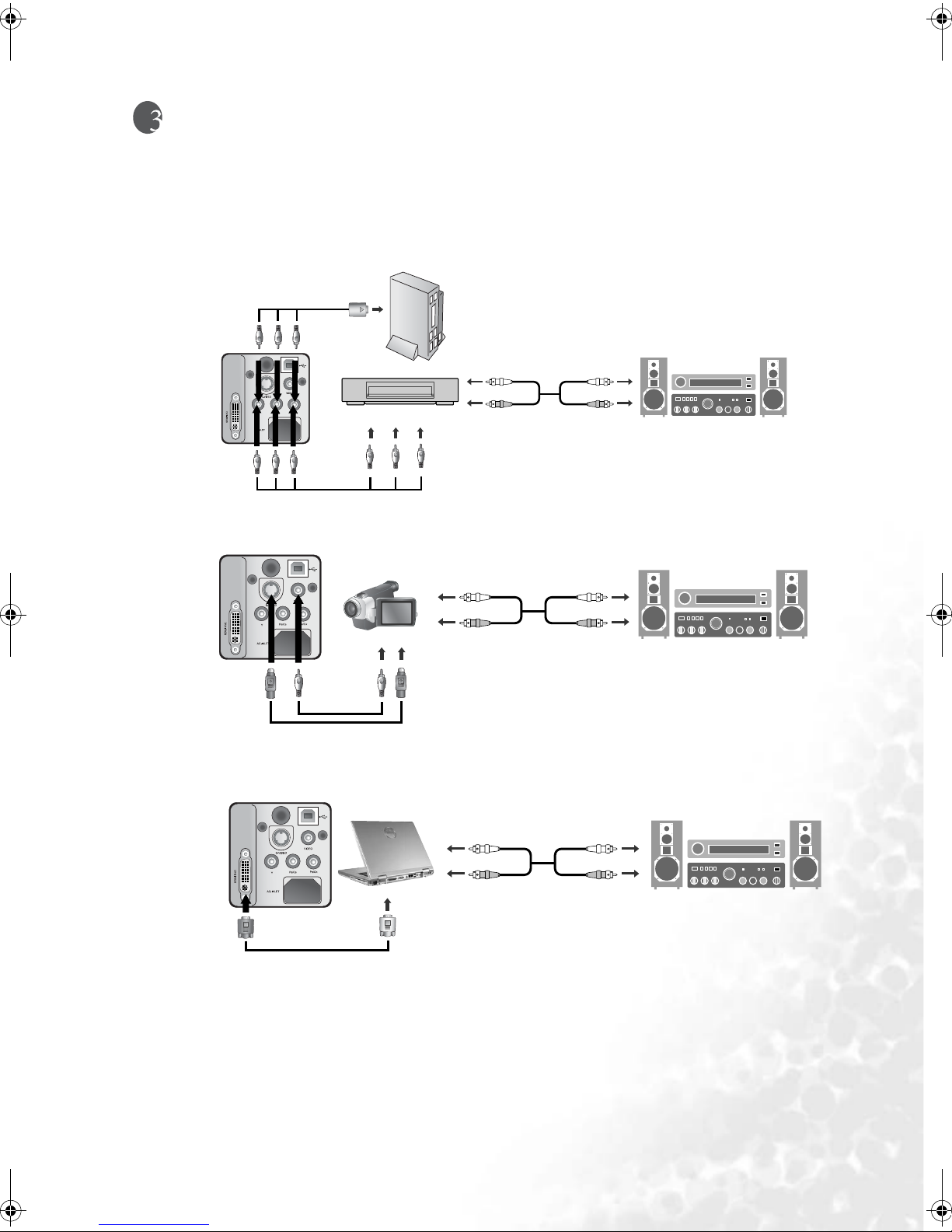

Connecting to video devices

Connecting video inputs

Connecting component-video devices

Connecting S-video or video devices

Connecting a computer

AV equipment

Component Video cable Game player

From audio output

terminals To audio input

terminals

Component Video cable

Composite

Video

cable S-Video cable

From audio output

terminals To audio input

terminals

S-Video or video device

VGA-DVI cable

From audio output

terminals To audio input

terminals

QSG-e.fm Page 3 Monday, December 6, 2004 8:11 PM

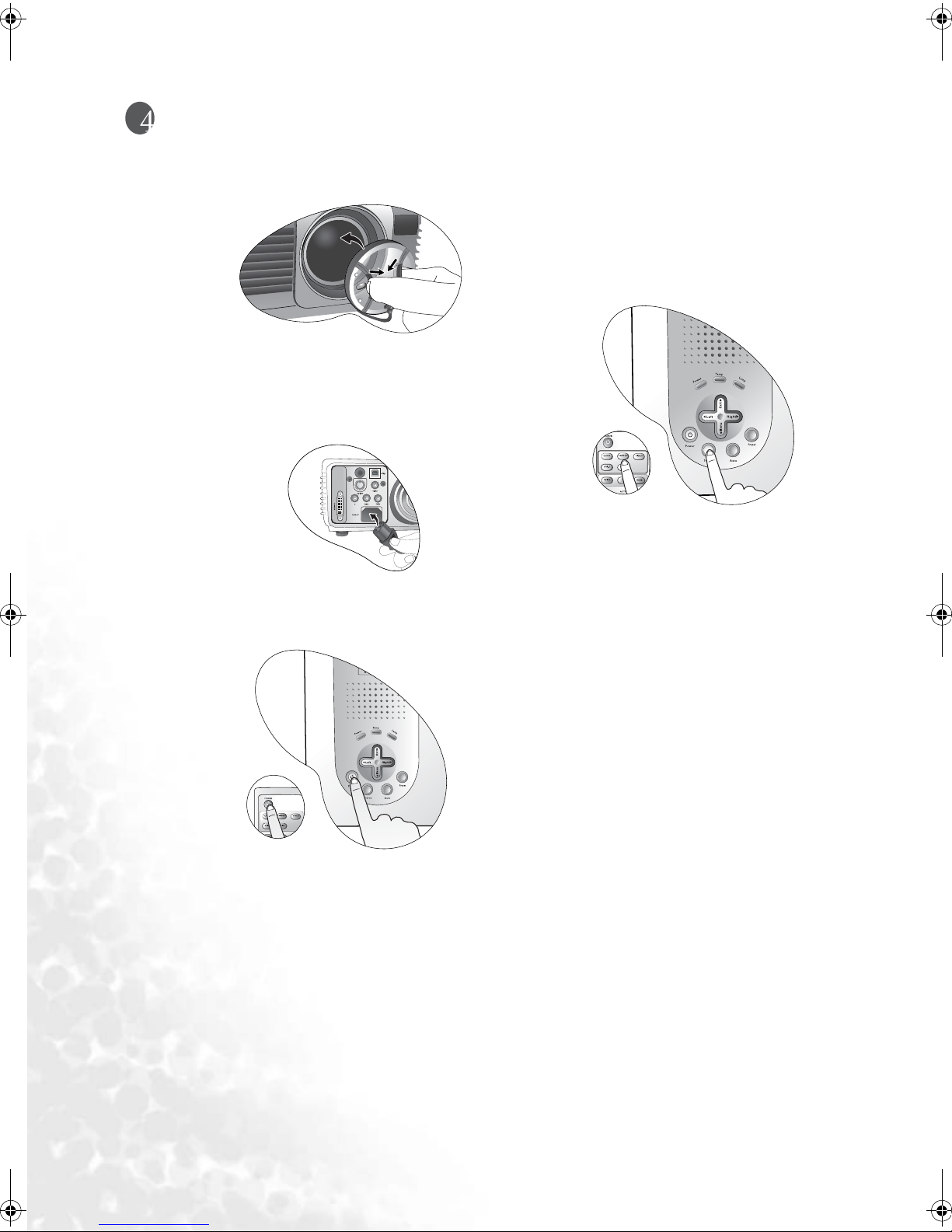

4 Starting up

Starting up

1. Turn all of the connected equipment on.

2. Remove the lens cap.

3. Plug the supplied power cord into the AC inlet

and the other end of the power cord into a

wall socket and turn the wall switch on (where

fitted).

4. Press and hold the Power button on the

projector or remote control to turn the

projector on.

5. The start up procedure takes about 30

seconds. Then, press Source on the

projector or one of the Source buttons

on the remote control to select your

desired input signal. A message shows

on the screen when the port is being

searched.

QSG-e.fm Page 4 Monday, December 6, 2004 8:11 PM

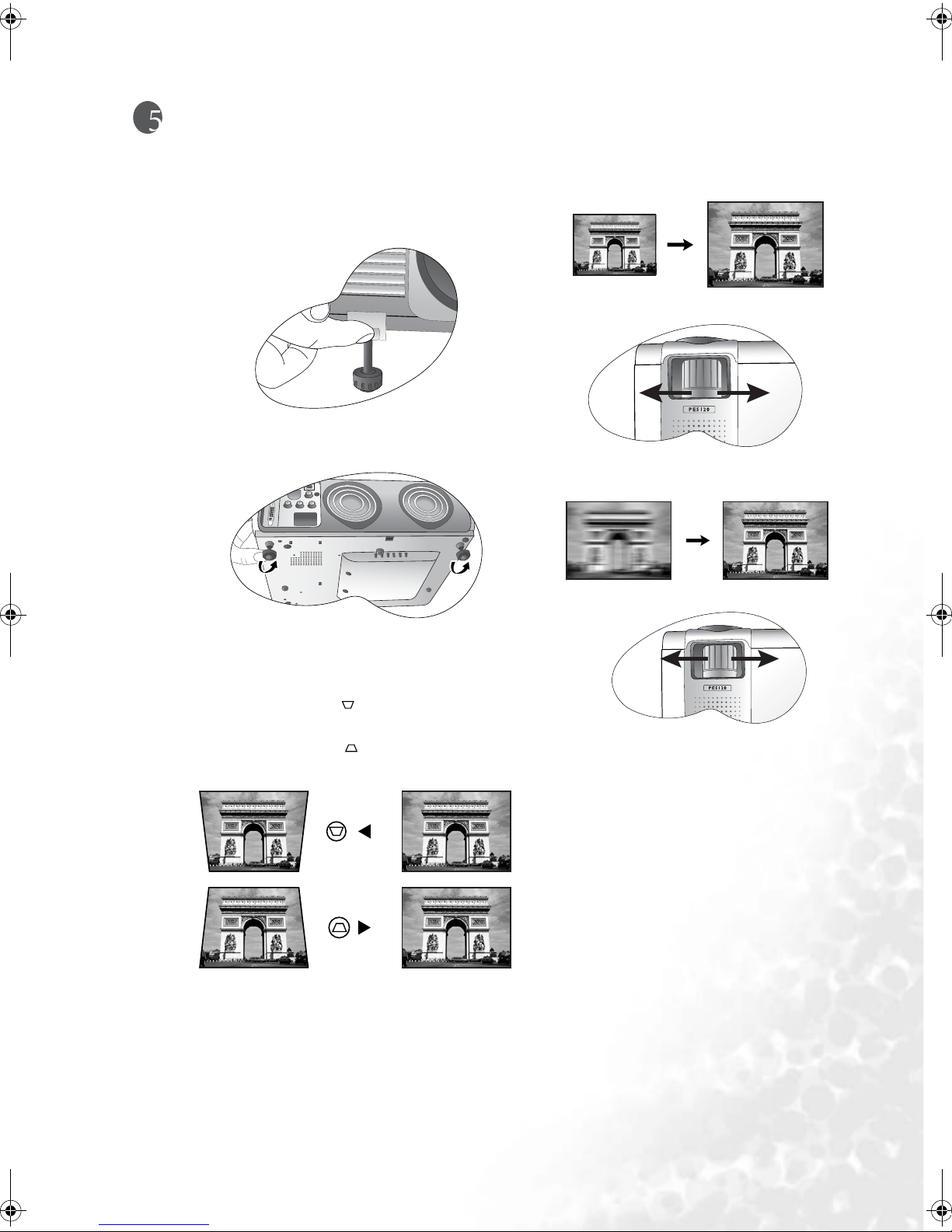

Adjusting the image

1. If you need to raise the image, tilt the

projector up at the front by extending the

adjuster legs. Push the quick release button to

speed the operation.

2. Adjust the rear legs to balance the projector

and have them sit flat without wobbling.

3. If the screen and the projector are not

perpendicular to each other, the projected

image becomes trapezoidal. Press the top

keystone button ( ) to reduce the upper

part of the image. Or press the bottom

Keystone button ( )to reduce the lower

part until the image is square.

4. Rotate the Zoom ring to reduce or

enlarge the image.

5. Rotate the Focus ring to sharpen the

image to a preferred quality.

QSG-e.fm Page 5 Monday, December 6, 2004 8:11 PM

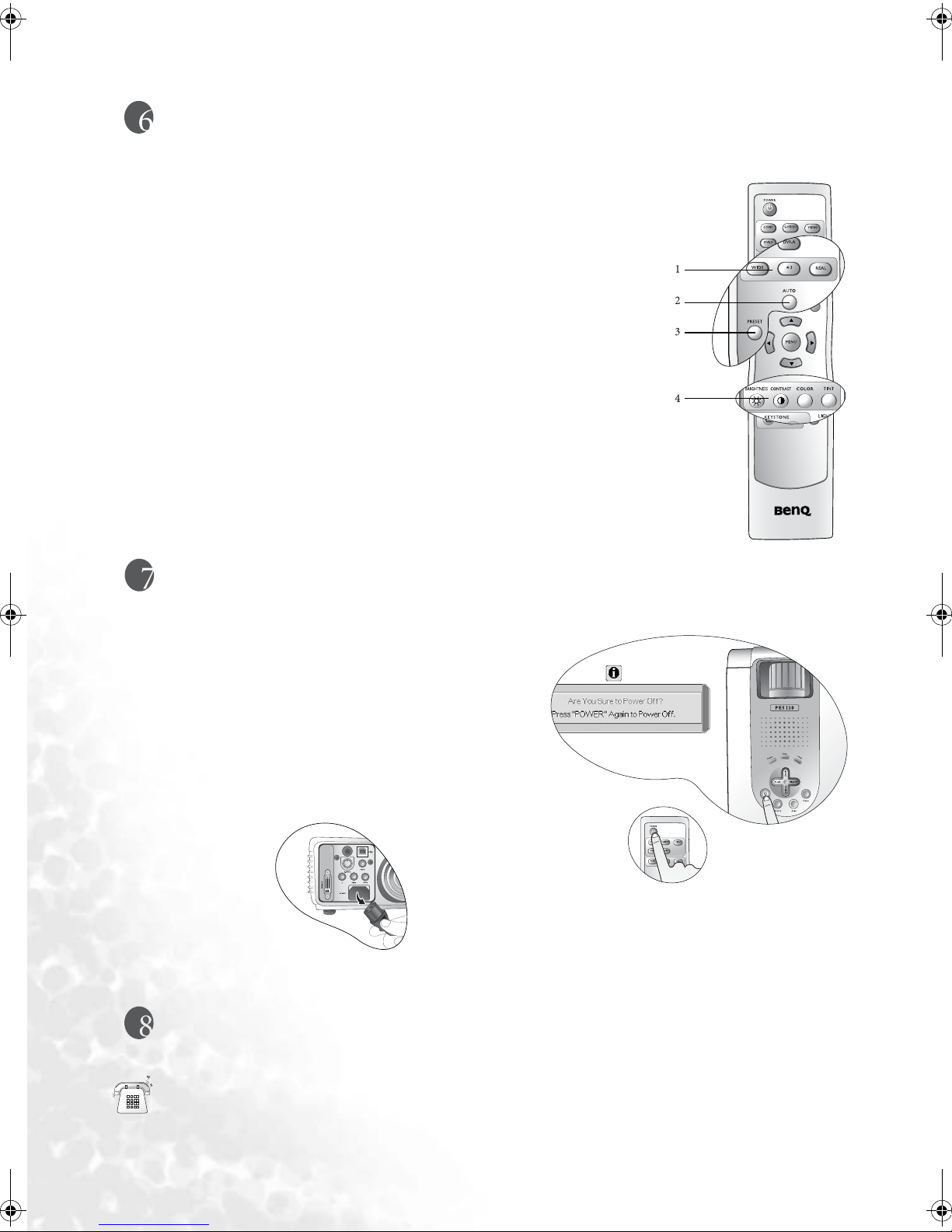

6 Optimizing the image

Optimizing the image

The following steps are optional. You may not need to follow every step.

1. Change the image ratio.

2. Pess Auto to re-adjust the values of frequency and phase to provide

the best image quality.

3. Select a preset mode.

4. Adjust brightness and contrast settings for a computer image in the

Picture menu. Or adjust brightness, contrast, tint, and color settings for

a video image.

For more advanced settings, refer to the user’s manual.

Turning the projector off

1. Press Power on the projector or remote control.

A confirmation message displays. Press Power a

second time to turn the projector off.

The Power indication light flashes orange and

the lamp shuts down, the fans will continue to

run approximately 110 seconds to cool down the

projector.

2. Disconnect the power cord from the wall socket

and the projetor..

For more information on storing and transporting the projector, refer to the user’s manual.

Need more help?

Refer to the user’s manual for more information. If the manual does not help you resolve your

problem, please call your place of purchase or visit our website at www.BenQ.com for further

assistance.

QSG-e.fm Page 6 Monday, December 6, 2004 8:11 PM
