Benelli TNT249S User manual
TNT249S USER’S MANUAL
TNT249S 2
CONTENTS
CONTENTS ...........................................................................................................................................................................................................
Special Reminding ...........................................................................................................................................................................................
Preface ..................................................................................................................................................................................................................
Safety Notes ........................................................................................................................................................................................................
Safety Driving Rules ...................................................................................................................................................................................
Protection Clothes .....................................................................................................................................................................................
Serial Number ....................................................................................................................................................................................................
Location of Parts ...............................................................................................................................................................................................
Meter & Indicator ........................................................................................................................................................................................
Primary Parts ......................................................................................................................................................................................................
Key switch ......................................................................................................................................................................................................
Left Handle ....................................................................................................................................................................................................
Right Handle .................................................................................................................................................................................................
Fuel Tank ........................................................................................................................................................................................................
Rear Shock Absorber ..................................................................................................................................................................................
Rear Brake Pedal ..........................................................................................................................................................................................
256778
9
10
11
15
15
16
21
22
23
24
CONTENTS
3TNT249S
Shift Pedal ...................................................................................................................................................................................................
Tool Bag .......................................................................................................................................................................................................
Notice of Use of Fuel and Engine Oil ......................................................................................................................................................
Running In .......................................................................................................................................................................................................
Inspection before Driving ..........................................................................................................................................................................
How to start the engine ........................................................................................................................................................................
Smooth launching ..................................................................................................................................................................................
To change gear ........................................................................................................................................................................................
Inspection& Maintenance ..........................................................................................................................................................................
Maintenance Schedule .........................................................................................................................................................................
Oil Level & Oil Change ...........................................................................................................................................................................
Spark plug ..................................................................................................................................................................................................
Catalytic Converter...................................................................................................................................................................................
Battery ..........................................................................................................................................................................................................
Throttle Cable Adjustment ...................................................................................................................................................................
Clutch Adjustment ...................................................................................................................................................................................
Chain Adjustment ....................................................................................................................................................................................
24
25
25
26
26
28
29
30
31
31
34
35
35
36
39
40
40
CONTENTS
4
TNT249S
Brake ...............................................................................................................................................................................................................
Maintenance of Air Filter..........................................................................................................................................................................
Bulb Replacement ......................................................................................................................................................................................
Fuse Replacement ......................................................................................................................................................................................
Lubrication points ......................................................................................................................................................................................
Adjustment of Valve Clearance .............................................................................................................................................................
Tire ...................................................................................................................................................................................................................
Storage Guideline .............................................................................................................................................................................................
Specication & Technical Parameter .........................................................................................................................................................
42
44
44
45
46
46
47
48
50
9TNT249S
Vehicle identication number (VIN) and the serial number are used for the registration of the motorcycle, which
can also make sure that the dealer would provide you better services involving accessories purchasing or other
services.
Record the numbers for the possible use in the future.
Vehicle identication number (VIN) (IF EQUIPPED)is printed on the right side of the head tube.
The engine number is printed on lower part of the right case of engine crank case.
Please write down the numbers for your reference.
SERIAL NUMBER
VIN:
Engine Number:
10
TNT249S
LOCATION OF PARTS
1 Clutch lever
2 Left handle switch
3 ABS switch(if equipped)
4 Meter
5 Key switch
7 Right handle switch
6 Meter function button
9 Front brake lever
8 Throttle grip
Rear shock absorber
Rear brake pedal
Shift pedal
13 Side stand
10
11
12
14 Tank
Left view
Right view
45
7
689
1
23
14
13
12
11
10
TNT249S
11
LOCATION OF PARTS

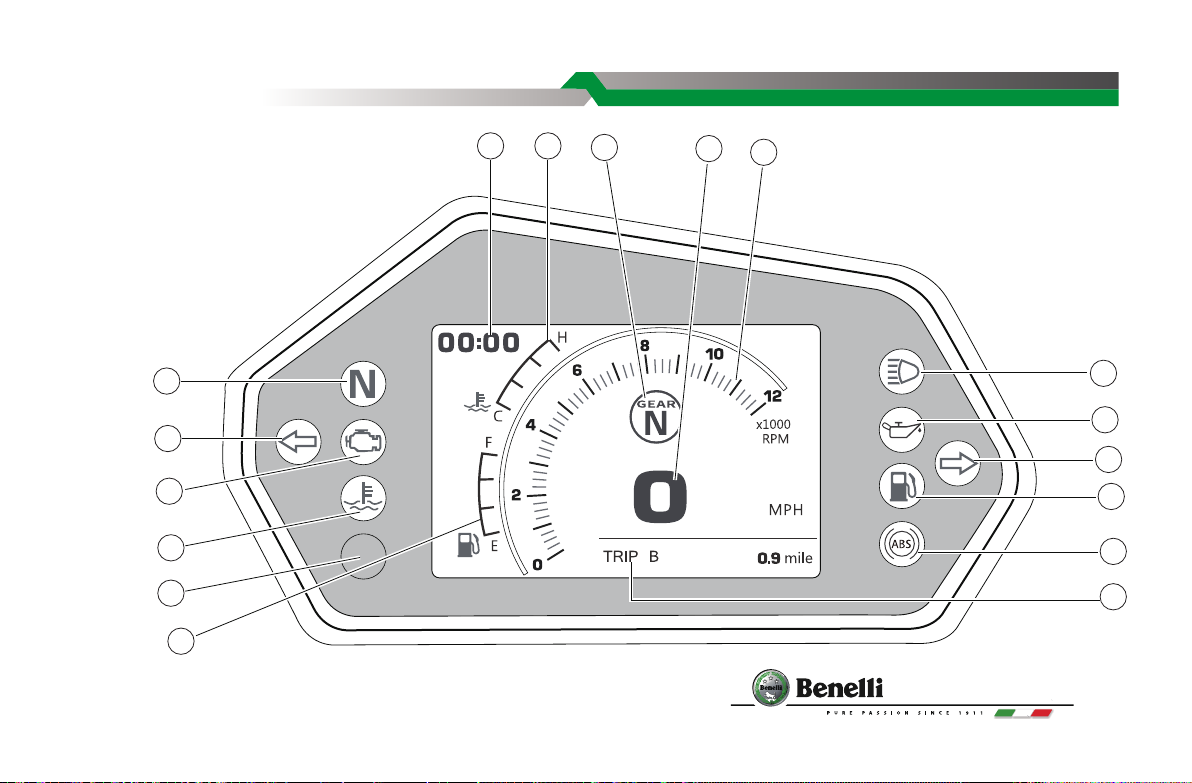

Meter & Indicator 11
10
112
3
2
4
5
16
6
9
7 8
13
14
16
15
Daytime mode
TNT249S 12
LOCATION OF PARTS
Night mode
11
10
112
3
2
4
5
8
9
7
13
14
6
16
16
15
TNT249S
13
LOCATION OF PARTS
1. NEUTRAL INDICATOR LAMP
When the transmission is in the neutral, the indicator lamp
would be on.
2.TURNING INDICATOR
The indication lamps would ash with the turning signals.
3.TURNING INDICATOR
The indication lamps would ash with the turning signals.
4.ENGINE CONTROL SYSTEM TROUBLE INDICA-
TOR
Return to authorized dealer if this indicator is activated
during riding.
5. WATER TEMPERATURE INDICATOR
It should stop to check the water tank if the INDICATOR is
light .
6. FUEL LEVEL INDICATOR
It indicates the fuel level in the fuel tank.
7. CLOCK
It shows the time.
8. WATER TEMPERATURE INDICATOR
This indicator indicates the temperature of cooling liquid.
When the pointer is in between C and H, the temperature is
normal. It should stop to check the water tank if the pointer is
higher than H level.
9. GEAR INDICATOR LAMP
Numbers on the meter indicate the gear positions of the
vehicle including 1, 2, 3, 4 ,5,and6.
10.SPEEDOMETER
Speedometer shows the running speed, kilometers/hour.
11. TACHOMETER
Tachometer indicates the revolution per minute of
engine.
12. HIGH BEAM INDICATOR LAMP
When the high beam lamp of the headlamp turns on, the
high beam indicator lamp would be on.
13.ENGINE OIL PRESSURE WARNING LAMP
When this indicator light up, that means the bike has the
risk of insucient lubrication and should be
checked/repaired immediately.
14. FUEL LEVEL WARNING LAMP
It indicates the fuel is less than 15% of total capacity in the
fuel tank.
15. ODOMETER/ TRIP METER
Odometer records the total mileage driven, and Trip
meter can be reset, which records the mileages driven in
a specic period.
