Belkin F9K1113V4 User manual
<NEW BELKIN LOGO><Please use colors of AC1200 (F9K1113)>
Wireless AC+ Gigabit ROUTER
AC1200 DB
USER MANUAL
8820-01755 Rev. A01
F9K1113V4
TABLE OF CONTENT
Getting Started123
What’s in the Box
Initial Setup
Manually Set Up Your Internet Connection
Additional Capabilities
Adding Other USB Devices
USB Print and Storage Manager
Guest Access
Media Server by myTwonky
Content Filtering by Norton
Intellistream QoS
IPv6 Configuration
Getting to Know Your Router
Front Panel
Back Panel
Technical Details
Technical Features
System Requirements
Using Your Router
Enabling Auto Update on Your Router
Updating the Router’s Firmware via the Web Interface
Resetting the Router
Restoring your Router to Factory Default
Troubleshooting, Support, and Warranty
Troubleshooting
Technical Support
Belkin International, Inc., Limited 2-Year Product Warranty
Regulatory Information
FCC Statement
Getting Started
What’s in the Box
AC1200 DB Wireless AC+ Gigabit Router
Ethernetcable(attachedtorouter)
Powersupply(attachedtorouter)
Networkinformationcard(attachedtorouter)
Quick Setup Guide
Initial Setup
WheretoPlaceYourRouter
Forthebestresults,placetheRouternexttoyourmodeminan
openlocation,awayfromlargemetalobjectsandmagnetssuchas
thosefoundinspeakers.RaisingtheRouterabovefloorlevelcan
improvethestrengthofyourwirelesssignal.
HowtoSetItUp
Connect Your AC1200 DB Router
΅ΦΣΟΠΗΗΪΠΦΣΞΠΕΖΞΓΪΕΚΤΔΠΟΟΖΔΥΚΟΘΚΥΤΡΠΨΖΣΤΦΡΡΝΪ΄ΠΞΖΞΠΕΖΞΤΙΒΧΖΒΓΒΥΥΖΣΪ
ΓΒΔΜΦΡΥΙΚΤΨΚΝΝΟΖΖΕΥΠΓΖΕΚΤΔΠΟΟΖΔΥΖΕΒΥΥΙΚΤΥΚΞΖΒΤΨΖΝΝ
ΡΝΖΒΤΖΦΤΖΚΞΒΘΖΗΣΠΞΤΥΖΡΠΗΥΙΖΟΖΨΨΖΝΔΠΞΖΔΒΣΕΡΖΧͲ
ʹΠΟΟΖΔΥΪΠΦΣΠΦΥΖΣΥΠΪΠΦΣΞΠΕΖΞΦΤΚΟΘΥΙΖΔΒΓΝΖΒΝΣΖΒΕΪΒΥΥΒΔΙΖΕ
ΡΝΖΒΤΖΦΤΖΚΞΒΘΖΗΣΠΞΤΥΖΡΠΗΥΙΖΟΖΨΨΖΝΔΠΞΖΔΒΣΕΡΖΧͲ
ΠΨΖΣΦΡΪΠΦΣΞΠΕΖΞΓΪΡΝΦΘΘΚΟΘΚΟΚΥΤΡΠΨΖΣΤΦΡΡΝΪͺΗΪΠΦΣΞΠΕΖΞΙΒΤΒΓΒΥΥΖΣΪΓΒΔΜΦΡ
ΚΥΔΒΟΓΖΣΖΔΠΟΟΖΔΥΖΕΒΥΥΙΚΤΥΚΞΖΪΠΦΞΒΪΟΖΖΕΥΠΙΠΝΕΥΙΖΣΖΤΖΥΓΦΥΥΠΟΗΠΣΤΖΔΠΟΕΤ
ΠΨΖΣΦΡΪΠΦΣΠΦΥΖΣΓΪΡΝΦΘΘΚΟΘΚΟΚΥΤΡΠΨΖΣΤΦΡΡΝΪ
ΡΝΖΒΤΖΦΤΖΚΞΒΘΖΗΣΠΞΤΥΖΡΠΗΥΙΖΟΖΨΨΖΝΔΠΞΖΔΒΣΕΡΖΧͲ
Connect to Your Router
Retrieve the network ID card from the foot of your new Belkin
Router.
[Diagram of bottom of the router showing service card – can be
obtained from “Tested QIG 2011 07 14.pdf” provided]
Can’t find the card? The default network name and password are also printed on the foot of
the Router.

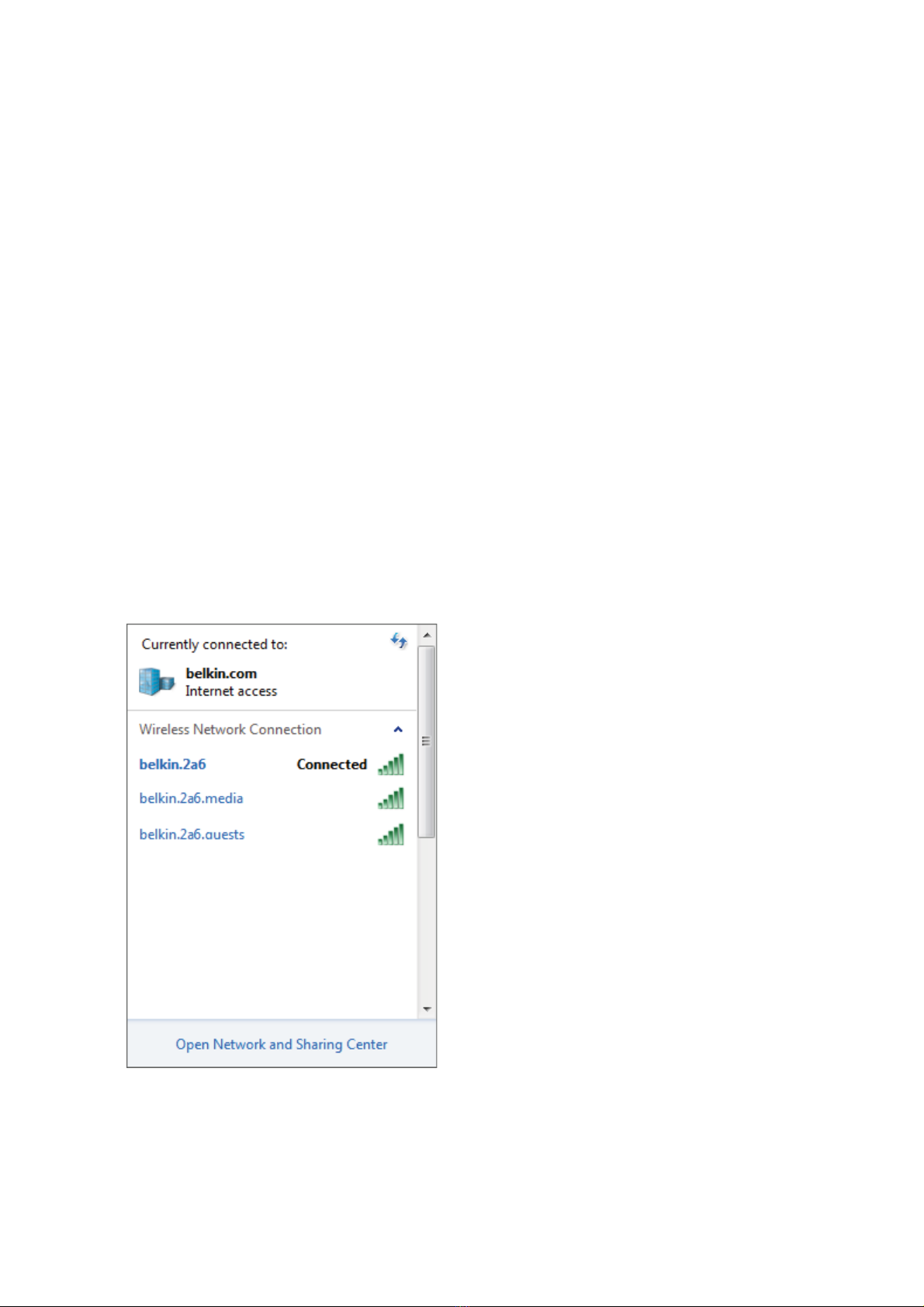

Use your computer, tablet, or smartphone to connect to the
wireless network shown on the network ID card.
For information on how to connect your wireless devices, please see the “Connect Your
Wireless Devices” section on page 20.
When requested, please enter the password (security key) provided
on the card.
WhenyourdevicehasconnectedtotheRouter,useabrowserto
visithttp://router/.Therouter homepage willappear.
If the page does not load, then try visiting http://192.168.2.1 to see
the router homepage.

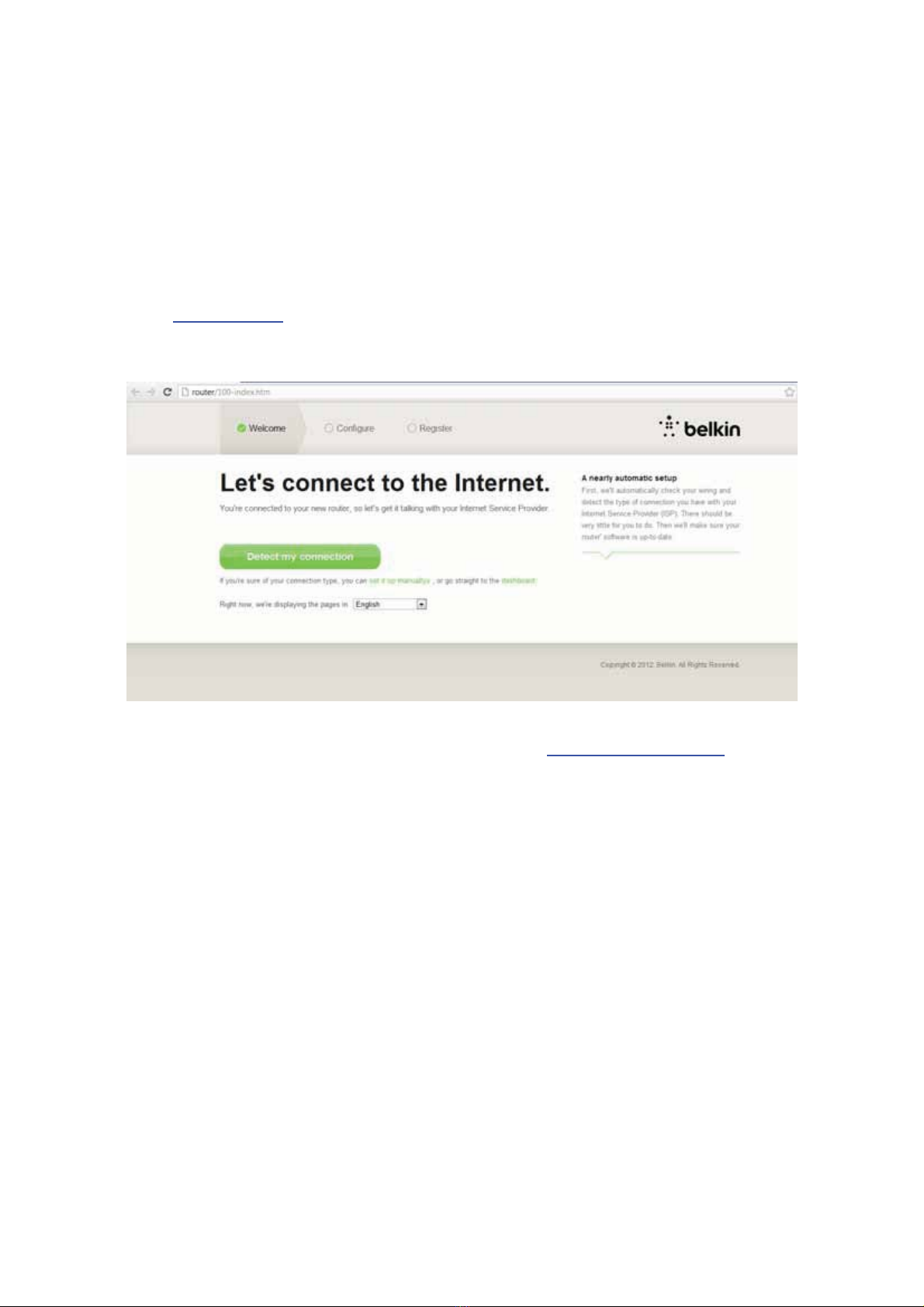

Click the “Detect my connection” button in green. (If you would
rather set up the Router manually, click the “set it up manually”
link and proceed to page 10.)
After several moments, your Router should automatically detect
your Internet connection and restart. This can take anywhere from
30 seconds to 3 minutes depending on your connection type.
If your Router is unable to establish an Internet connection on its
own, you may be asked to restart your modem or provide a
username and password if your connection requires one. Follow
the on-screen instructions provided.
Once your Router is online, it will determine if there is a firmware
update available and offer to install it. Please allow up to 5 minutes
for the firmware to update.
If there are no updates available, then setup will proceed.
At the next screen you will be invited to change your network
name and password. Re-using your previous network name (SSID)
and password makes connecting your existing devices to the new
router much easier.
If you decide to change these settings, then enter the new values
and click “Save and Continue.” (Note: The password must be at
least 8 characters long.)
If you changed your network name and password, make note of it
on the service card located on the foot of the Router. You will then
have to connect to the new network.
Please take this opportunity to register your Router. This will help
technical support if there is a problem with your Router.
Simply complete each of the required fields and click “Complete
Registration.” If you don’t want to register right now, click
“Register Later” to proceed.
At the next screen you can download optional software that was
bundled with your Router.
This screen shows you optional software that is available for your
Router, such as the USB software to allow you to print through the
Router’s USB port. If you wish to download and install any of
these software programs, simply click on the button appropriate for
your device.
When finished installing optional software, click “Thanks, take me
to the dashboard.”
