Belkin OMNIVIEW F1DN102D User manual
PM00507
© 2008 Belkin International, Inc. All rights reserved. All trade names are registered trademarks
of respective manufacturers listed. Windows, Windows Vista, Microsoft, and IntelliMouse are
either registered trademarks or trademarks of Microsoft Corporation in the United States and/
or other countries. Mac OS and Mac are trademarks of Apple Inc., registered in the U.S. and
other countries.
OmniView®Secure DVI
Dual-Link KVM Switch
Belkin Tech Support
US: 800-282-2355
310-898-1100, ext. 2263
UK: 0845 607 77 87
Australia: 1800 235 546
New Zealand: 0800 235 546
Singapore: 65 64857620
Europe: www.belkin.com/support
Belkin International, Inc.
501 West Walnut Street
Los Angeles, CA 90220, USA
310-898-1100
310-898-1111 fax
Belkin Ltd.
Express Business Park, Shipton Way
Rushden, NN10 6GL, United Kingdom
+44 (0) 1933 35 2000
+44 (0) 1933 31 2000 fax
Belkin Ltd.
4 Pioneer Avenue
Tuggerah Business Park
Tuggerah, NSW 2259, Australia
+61 (0) 2 4350 4600
+61 (0) 2 4350 4700 fax
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk, The Netherlands
+31 (0) 20 654 7300
+31 (0) 20 654 7349 fax
User Manual
F1DN102D
F1DN104D
OmniView®Secure DVI
Dual-Link KVM Switch
Table of Contents
1. Introduction.............................................................................................1
Package Contents ........................................................................... 1
2. Overview .................................................................................................2
Security Features............................................................................. 2
Other Features ................................................................................ 3
Equipment Requirements ................................................................. 4
System Requirements ...................................................................... 5
Unit Display Diagrams ..................................................................... 6
Specifications.................................................................................. 7
3. Installation..............................................................................................8
Pre-Configuration ............................................................................ 8
Mounting the Switch (optional)......................................................... 9
Connecting the Console to the Switch ............................................10
Connecting Computers to the Switch ..............................................11
Powering Up the Systems...............................................................12
4. Using your Switch..................................................................................13
Selecting a Computer Using Port Selectors.....................................13
5. Frequently Asked Questions ..................................................................14
6. Troubleshooting ....................................................................................16
7. Information ...........................................................................................18
1
1
2
3
4
5
6
7
section
Congratulations and thank you for purchasing this Belkin OmniView Secure
DVI Dual-Link KVM Switch (the Switch). Designed especially for secure military
and government installations, the Switch provides the centralized control
required by today’s IA (Information Assurance) computer environments. It
allows users to manage multiple computers from a single USB console, while
preventing unintended data transfer between computers running on different
security levels.
This User Manual provides all the details you’ll need to install and operate
your new Switch, in addition to expert troubleshooting advice—in the unlikely
event of a problem. For quick and easy installation, please refer to the Quick
Installation Guide included in your packaging.
Important: Tamper-evident seals have been placed on both sides of the
Switch enclosure, to provide evidence if the product has been opened and
potentially compromised (see diagram on page 6). If either seal has been
removed or appears disrupted, please call Belkin Technical Support at
(800) 282-2355.
User Manual
OmniView Secure
DVI Dual-Link
KVM Switch
5V DC, 3A Global
Power Adapter
Quick
Installation Guide

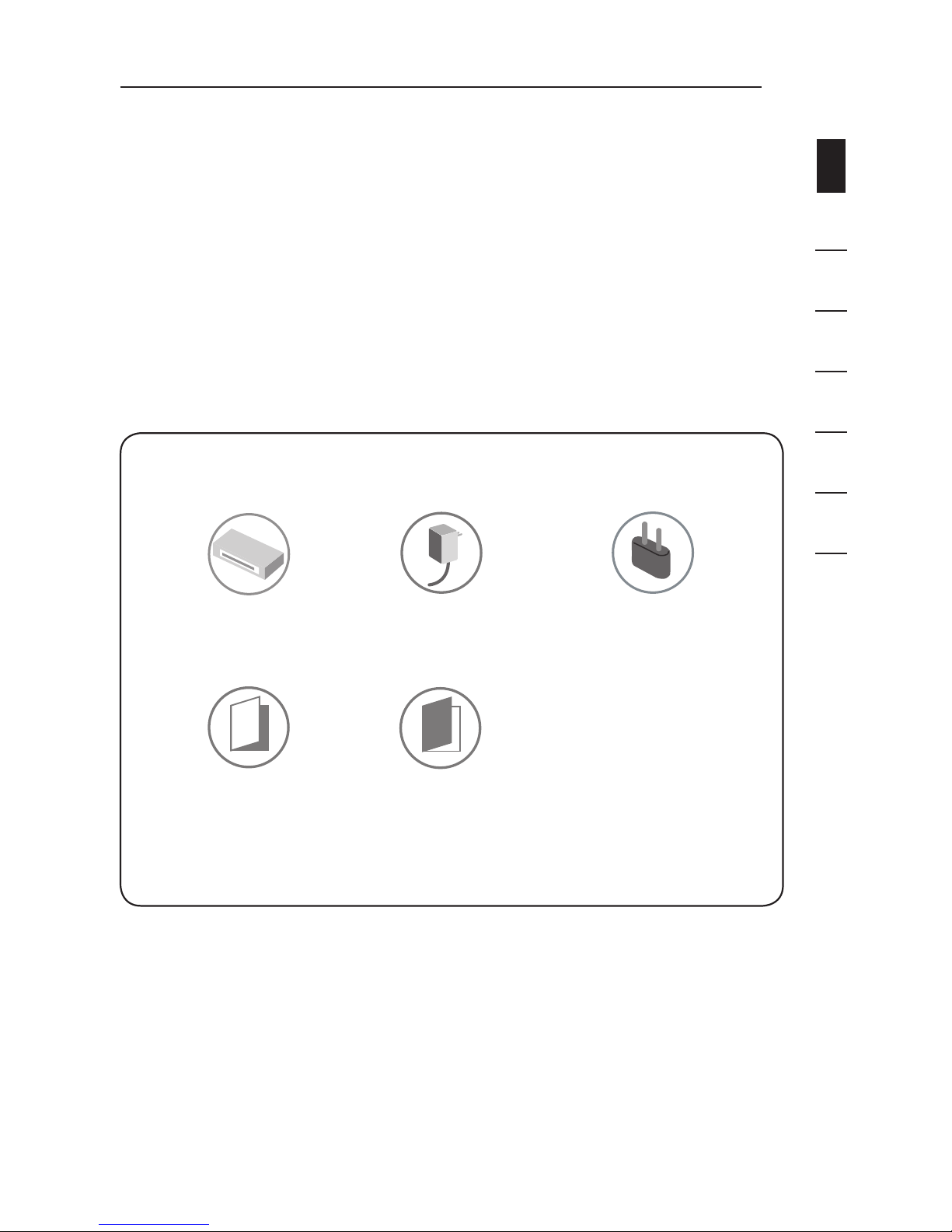

Package Contents
4 Interchangeable
AC Plugs1
1Includes AC plugs for the U.S., U.K., Europe, and Australia.
Introduction
2
Security Features
• DedicatedProcessors
Designed specifically for secure environments, the Switch features a
dedicated processor per computer port. This keeps each computer running
on different security levels completely separated and secure at all times, and
prevents any unintended data transfer between computers.
• NoMemoryBuffer
The Switch does not have a memory buffer and does not have the ability
to store data. This prevents any keystrokes or other data input from being
unintentionally transferred as you switch between computers, ensuring the
integrity of your data. The Switch does not include any features that require
memory, such as hot keys, AutoScan, or an on-screen display (OSD).
• Non-ReprogrammableFirmware
The Switch features custom firmware that is not reprogrammable, preventing
the ability to tamper with the KVM logic.
• Tamper-EvidentSeals
Tamper-evident seals are placed on both sides of the enclosure, to provide
indication if the Switch has been opened or compromised.
• Tamper-ProofHardware
All integrated circuits are soldered directly to the printed circuit board to
prevent tampering with the components.
• NIAPListing
The Switch is listed by the National Information Assurance Partnership (NIAP).
It is NIAP Common Criteria validated to EAL 4 (Evaluation Assurance Level 4)
augmented with ALC FLR 3.
Overview
3
1
2
3
4
5
6
7
section
3
Overview
Other Features
• USBSupport
The Switch is compatible with USB 1.1 and USB 2.0 technology and supports
Plug-and-Play connectivity with USB computers, keyboards, and mice.
• Dual-LinkDVISupport
The Switch supports video resolutions of up to 2560x1600. This includes
support for digital displays 20 inches and larger.
• AudioSwitching
Allows you to share speakers and microphone between computers.
• DedicatedPortSelectors
Port selectors, located conveniently on the front panel of the Switch, allow you
to switch easily from one computer to the next. Each button controls a single
computer port.
• LEDIndicators
An LED above each port selector illuminates to indicate that the console
currently controls the corresponding computer. As a port selector is pushed,
the LED above it will illuminate.
• MetalEnclosure
The Switch features a rugged, metal enclosure that provides stability and
allows the Switch to be placed beneath your monitor or other desk item.
• DesktoporRack-MountInstallation
With its compact design, the Switch can be placed on your desktop or
mounted to a standard 19-inch server rack for 1U installation.2
• GlobalPowerAdapter
The Switch includes a global power adapter and interchangeable plugs, to
allow for both domestic and international installations.3
2The 2- and 4-Port Switches require an optional Rack-Mount Kit for rack installation
(Belkin part number F1D005).
3Includes AC plugs for the U.S., U.K., Europe, and Australia.
4
Overview
EquipmentRequirements
Cables
Belkin highly recommends you use
Belkin DVI/USB KVM Cable Kits with
Audio & Mic for your Switch to help
ensure superior performance. These
cables offer the highest quality possible
to ensure optimal data and audio video
transmission. One Cable Kit is required
per connected computer.
Belkin DVI/USB KVM Cable Kits
with Audio & Mic:
F1D9201-06 – 6 ft. (1.8m)
F1D9201-10 – 10 ft. (3m)
F1D9201-15 – 15 ft. (4.6m)
F2E0271-SD – DVI-I to DVI-D Adapter
Note: Due to USB and DVI limitations,
the cable length cannot exceed 15
feet (4.6m).
F1D9201-XX
5
1
2
3
4
5
6
7
section
Overview
SystemRequirements
Operating-System(OS)Platforms
The Switch is compatible with computers running on, but not limited to, the
following OS platforms:
•Windows®2000
•WindowsXP(Home/Professional)
•Windows2003Server
•WindowsVista®
•RedHat®Linux®Desktop
•RedHatEnterpriseLinuxWS
•MacOS®X v10.3 and higher
Keyboards
•USB-compatible(includingwirelesskeyboards)
Mice
•USB-compatible(includingwirelessoropticalmice)
Monitors
•DigitaldisplayswithDVI-Dsupport,single-linkanddual-link
Speakers
• Computerspeakerswith3.5mmstereoplug
Microphone
• Computermicrophonewith3.5mmplug
