Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and

checked under the most meticulous quality control procedures, will provide you

an effective service.

For this, we recommend you to carefully read the entire manual of your product

before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

CImportant information or useful usage tips.

AWarning against dangerous conditions for life and property.

BWarning against electric voltage.

1 Your refrigerator 3

2 Important Safety

Warnings 4

Intended use ..................................... 4

General safety ................................... 5

For products with a .......................... 9

water dispenser; ................................ 9

Child safety........................................ 9

Compliance with WEEE Directive and

Disposing of the Waste Product: ....... 9

Package information........................ 10

HC warning ..................................... 10

Things to be done for energy saving 10

3 Installation 11

Points to be paid attention to when the

relocation of the refrigerator ............. 11

Electrical connection........................ 11

Disposing of the packaging ............. 12

Disposing of your old refrigerator ..... 12

Placing and Installation .................... 12

Adjusting the legs ............................ 13

Changing the illumination lamp ....... 13

Reversing the doors ........................ 14

Reversing the doors ........................ 15

4 Preparation 16

CONTENTS

5 Using your refrigerator 17

Thermostat setting button................17

Defrost ............................................ 17

Making ice....................................... 18

Stopping your product..................... 18

6 Maintenance and

cleaning 19

Protection of plastic surfaces .......... 19

7 Troubleshooting 20

Figures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the

product you have purchased, then it is valid for other models.

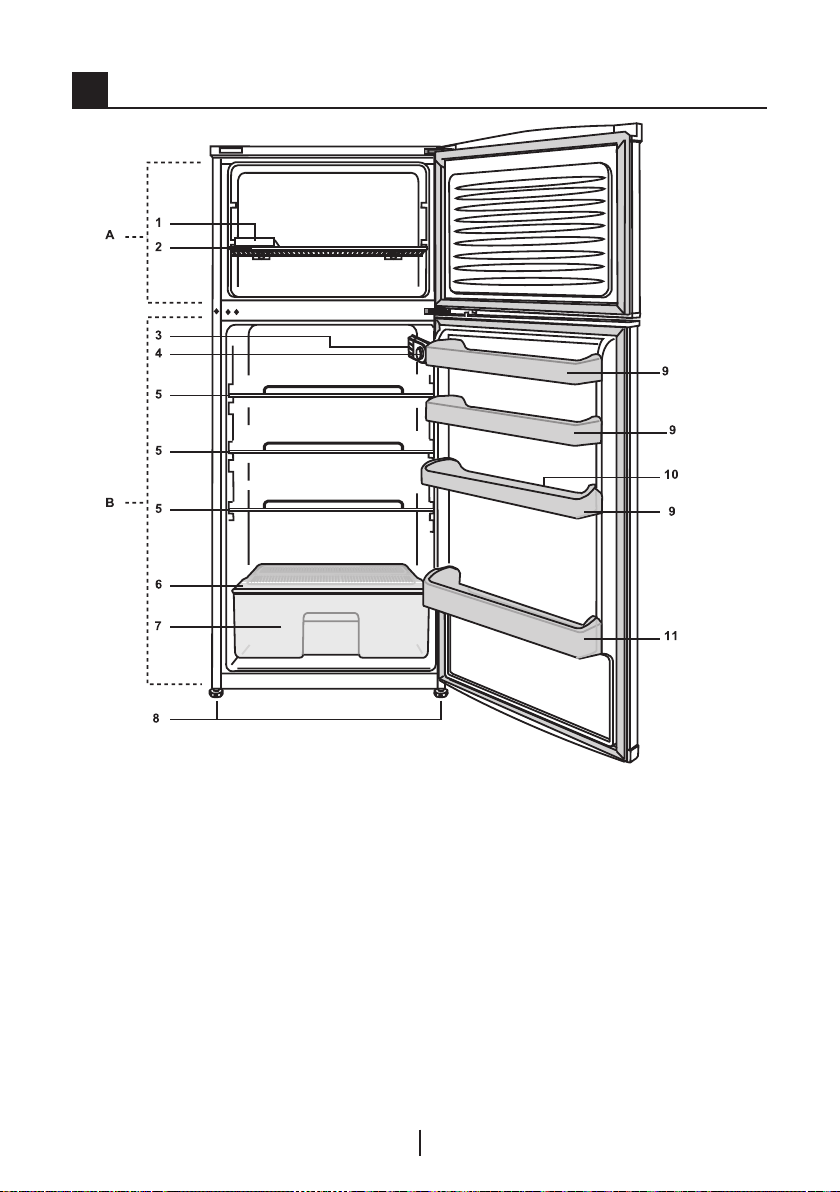

1Your refrigerator

A-

Freezer compartment

B-

Fridge compartment

Ice cube tray

Freezer shelf

Interior light

Thermostat knob

Fridge compartment shelves

Crisper cover

Salad crisper

Adjustable front feet

Door shelves

10)

Egg tray

11)

Bottle shelf

2Important Safety Warnings

Please review the

following information.

Failure to observe this

information may cause

injuries or material

damage. Otherwise, all

warranty and reliability

commitments will become

invalid.

Original spare parts will

be provided for 10 years,

following the product

purchasing date.

Intended use

WARNING:

Keep ventilation

openings, in the

appliance enclosure

or in the built-in

structure, clear of

obstruction.

WARNING:

Do not use

mechanical devices

or other means

to accelerate the

defrostingprocess,

other than those

recommended by

the manufacturer.

WARNING:

Do not damage the

refrigerant circuit.

WARNING:

Do not use electrical

appliances inside

the food storage

compartments

of the appliance,

unless they

are of the type

recommended by

the manufacturer.

WARNING:

Do not store

explosive

substances such

as aerosol cans

with a flammable

propellant in this

appliance.

This appliance is intended

to be used in household

and similar applications

such as

– staff kitchen areas in

shops, offices and other

working environments;

– farm houses and by

clients in hotels, motels

and other residential type

environments;

– bed and breakfast type

environments;

– catering and similar

non-retail applications.

General safety

• When you want to

dispose/scrap the

product, we recommend

you to consult the

authorized service

in order to learn the

required information and

authorized bodies.

• Consult your authorized

service for all your

questions and problems

related to the refrigerator.

Do not intervene or let

someone intervene to

the refrigerator without

notifying the authorised

services.

• For products with a

freezer compartment;

Do not eat cone ice

cream and ice cubes

immediately after you

take them out of the

freezer compartment!

(This may cause frostbite

in your mouth.)

• For products with a

freezer compartment;

Do not put bottled

and canned liquid

beverages in the

freezer compartment.

Otherwise, these may

burst.

• Do not touch frozen food

by hand; they may stick

to your hand.

• Unplug your refrigerator

before cleaning or

defrosting.

• Vapor and vaporized

cleaning materials

should never be used in

cleaning and defrosting

processes of your

refrigerator. In such

cases, the vapor may

get in contact with the

electrical parts and

cause short circuit or

electric shock.

• Never use the parts on

your refrigerator such as

the door as a means of

support or step.

• Do not use electrical

devices inside the

refrigerator.

• Do not damage the

parts, where the

refrigerant is circulating,

with drilling or cutting

tools. The refrigerant

that might blow out

when the gas channels

of the evaporator, pipe

extensions or surface

coatings are punctured

causes skin irritations

and eye injuries.

• Do not cover or block

the ventilation holes on

your refrigerator with any

material.

• Electrical devices must

be repaired by only

authorised persons.

Repairs performed by

incompetent persons

create a risk for the user.

• In case of any failure or

during a maintenance or

repair work, disconnect

your refrigerator’s mains

supply by either turning

off the relevant fuse

or unplugging your

appliance.

• Do not pull by the cable

when pulling off the plug.

• Ensure highly alcoholic

beverages are stored

securely with the lid

fastened and placed

upright.

• Never store spray

cans containing

flammable and explosive

substances in the

refrigerator.

• Do not use mechanical

devices or other means

to accelerate the

defrosting process,

other than those

recommended by the

manufacturer.

• This product is not

intended to be used by

persons with physical,

sensory or mental

disorders or unlearned

or inexperienced people

(including children)

unless they are attended

by a person who will

be responsible for their

safety or who will instruct

them accordingly for use

of the product

• Do not operate a

damaged refrigerator.

Consult with the service

agent if you have any

concerns.

• Electrical safety of your

refrigerator shall be

guaranteed only if the

earth system in your

house complies with

standards.

• Exposing the product

to rain, snow, sun and

wind is dangerous with

respect to electrical

safety.

• Contact authorized

service when there is a

power cable damage to

avoid danger.

• Never plug the

refrigerator into the wall

outlet during installation.

Otherwise, risk of death

or serious injury may

arise.

• This refrigerator is

intended for only storing

food items. It must not

be used for any other

purpose.

• Label of technical

specifications is located

on the left wall inside the

refrigerator.

• Never connect your

refrigerator to electricity-

saving systems; they

may damage the

refrigerator.

• If there is a blue light on

the refrigerator, do not

look at the blue light with

optical tools.

• For manually controlled

refrigerators, wait for at

least 5 minutes to start

the refrigerator after

power failure.

• This operation manual

should be handed in to

the new owner of the

product when it is given

to others.

• Avoid causing damage

on power cable when

transporting the

refrigerator. Bending

cable may cause fire.

Never place heavy

objects on power cable.

Do not touch the plug

with wet hands when

plugging the product

• Do not plug the

refrigerator if the wall

outlet is loose.

• Water should not be

sprayed on inner or outer

parts of the product for

safety purposes.

• Do not spray substances

containing inflammable

gases such as propane

gas near the refrigerator

to avoid fire and

explosion risk.

• Never place containers

filled with water on top

of the refrigerator; in

the event of spillages,

this may cause electric

shock or fire.

• Do not overload the

refrigerator with food.

If overloaded, the food

items may fall down and

hurt you and damage

refrigerator when you

open the door.

• Never place objects on

top of the refrigerator;

otherwise, these objects

may fall down when

you open or close the

refrigerator’s door.

• As they require a precise

temperature, vaccines,

heat-sensitive medicine

and scientific materials

and etc. should not be

kept in the refrigerator.

• If not to be used for a

long time, refrigerator

should be unplugged.

A possible problem in

power cable may cause

fire.

• Refrigerator may move

if adjustable legs are not

properly secured on the

floor. Properly securing

adjustable legs on the

floor can prevent the

refrigerator to move.

• When carrying the

refrigerator, do not hold

it from door handle.

Otherwise, it may be

snapped.

• When you have to place

your product next to

another refrigerator or

freezer, the distance

between devices

should be at least 8cm.

Otherwise, adjacent side

walls may be humidified.

• The product shall never

be used while the

compartment which is

located at the top or

back of your product

and in which electronic

boards are available

(electronic board box

cover) (1) is open.

For products with a

water dispenser;

• Pressure for cold water

inlet shall be maximum

90 psi (6.2 bar). If your

water pressure exceeds

80 psi (5.5 bar), use a

pressure limiting valve

in your mains system. If

you do not know how

to check your water

pressure, ask for the

help of a professional

plumber.

• If there is risk of water

hammer effect in your

installation, always

use a water hammer

prevention equipment

in your installation.

Consult Professional

plumbers is you are not

sure that there is no

water hammer effect in

your installation.

• Do not install on the

hot water inlet. Take

precautions against

of the risk of freezing

of the hoses. Water

temperature operating

interval shall be 33°F

(0.6°C) minimum

and 100°F (38°C)

maximum.

• Use only potable water.

Child safety

• If the door has a lock,

the key should be kept

away from reach of

children.

• Children must be

supervised to prevent

them from tampering

with the product.

Compliance with WEEE

Directive and Disposing of

the Waste Product:

This product complies

with EU WEEE Directive

(2012/19/EU). This product

bears a classification

symbol for waste electrical

and electronic equipment

(WEEE).

This manual suits for next models

Table of contents

Languages:

Popular Refrigerator manuals by other brands

Bonnet Neve

Bonnet Neve SKYVIEW PLUS User instructions

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Instruction book

Sharp

Sharp SJ-BA31IEXW2-EU user manual

CORBERO

CORBERO CC2300MCW Instruction booklet

KitchenAid

KitchenAid 2205264 Use and care guide

Stengel

Stengel KU 1101 A++ user manual

NEFF

NEFF KI181 Series user manual

Hoshizaki

Hoshizaki Reach-In instruction manual

Amana

Amana ASD2524VES00 User instructions

BOMANN

BOMANN KGC 213 instruction manual

Danby

Danby DAR044A1SLDD Owner's use and care guide

Samsung

Samsung RF323TE user manual

IKEA

IKEA FROSTIG C 185 E manual

Electrolux

Electrolux ER 6821 D Instruction book

True

True TS-28 Specifications

Frigidaire

Frigidaire FSC23R5DW9 installation guide

Teledyne

Teledyne 6712FR and Installation and operation guide

Matsui

Matsui MTT50W12E instruction manual
