Beghelli MPL Series User manual

INSTALLATION INSTRUCTIONS

MULTIPURPOSE AREA LIGHT (MPL)

Beghelli USA

3250 Corporate Way

Miramar, Florida 33025 USA

P: 800 726 4316 / P: 954 442 6600 F:

954 442 6677

www.BeghelliUSA.com

MPL15, MPL30, MPL50

MODEL INFORMATION

MPL

WATTAGE 15W, 30W, 50W

MPL

120-277V (50/60Hz)

WET LOCATION

HT (AC ONLY)

SEE BELOW

15W: 0.9 lbs (knuckle) /1.1 lbs (yoke only)

30W: 2.5 lbs (knuckle & yoke)

50W: 3.6 lbs (knuckle & yoke)

VOLTAGE

SUITABLE FOR

OPERATION

WEIGHT

DIMENSIONS

15W 30W 50W

IP66 IK09

Vibration

Rated

MULTIPURPOSE AREA LIGHT (MPL) INSTALLATION INSTRUCTIONS

MPL15, MPL30, MPL50

IMPORTANT SAFEGUARDS

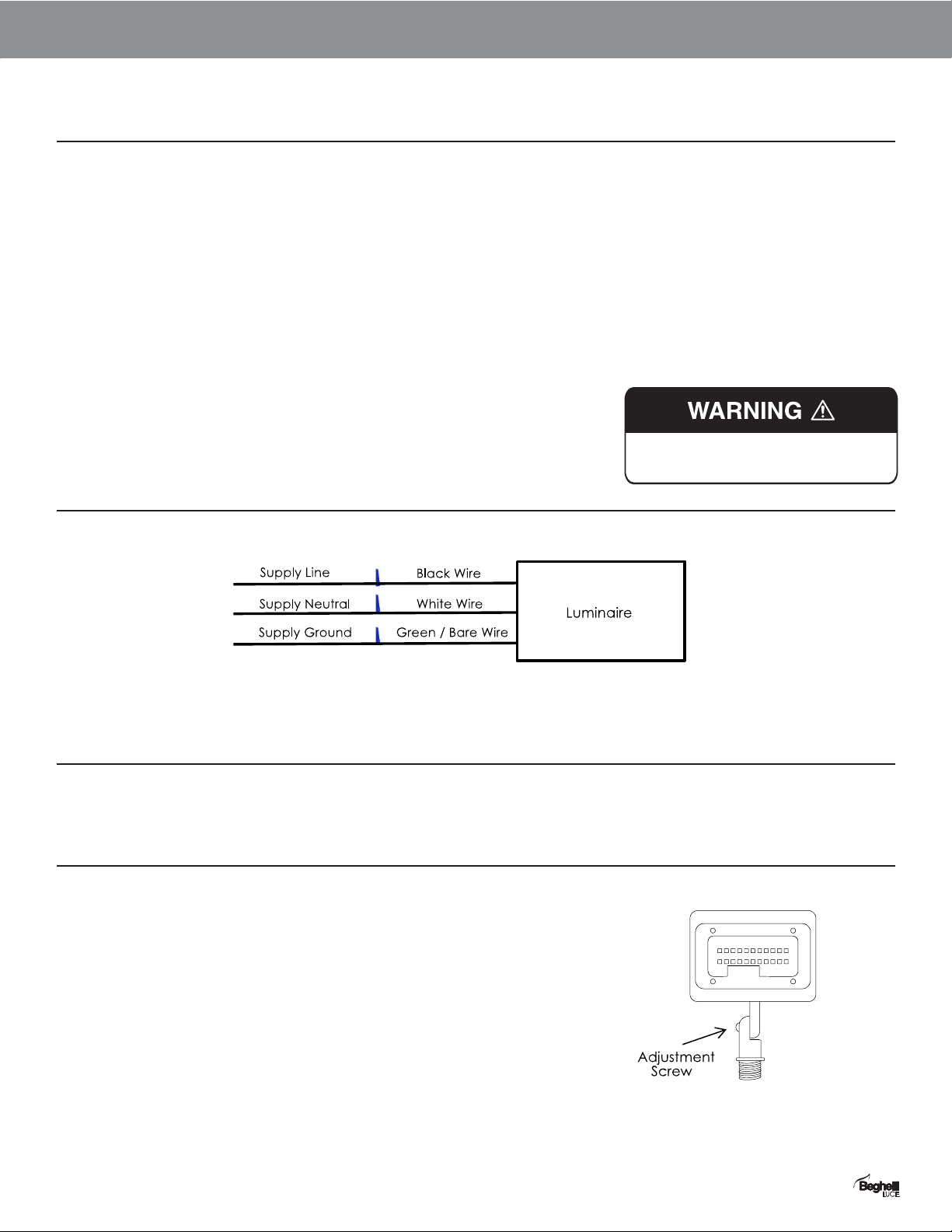

WIRING DIAGRAM

MOUNTING OPTIONS

KNUCKLE MOUNT (KM)

When using electrical equipment, basic safety precautions should always be followed including the following:

READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

This product must be installed in accordance with the applicable installation codes by a qualified electrician familiar

with the construction and operation of the product and the hazards involved.

Disconnect power at circuit breaker of fuse before starting installation.

To avoid injury, wear gloves during installation.

To reduce the risk of electrical shock and product damage, do not install this luminaire during rain or other storms.

Do not test luminaire using an electric generator before installation.

Use minimum 75°C Supply Wires.

SAVE THESE INSTRUCTIONS!

THERE ARE TWO MOUNTING OPTIONS FOR THE MPL15-50 LUMINAIRES.

No user serviceabl e parts. Refer service to a qualif ied service

technician. Read instruc tions prior to installing and/or operating

this device. Installatio n should be performed by a licensed

electrician/inst aller in accordance with local codes.

MULTIPURPOSE AREA LIGHT (MPL) INSTALLATION INSTRUCTIONS

NOTE: Knuckle-Mounted models are intended to be mounted to

a junction box suitable for the installation environment.

Secure luminaire to appropriate junction box.

Make supply connections inside junction box (see Wiring Diagram).

Replace junction box cover.

To adjust the vertical position of the luminaire, use a Philips

head screwdriver to loosen the adjustment screw. Reposition

the luminaire head to the desired position, then re-tighten the

adjustment screw.

To install the luminaire, mark and drill mounting holes in

the structure on which the luminaire will be mounted.

Using appropriate hardware (supplied by others), attach

the luminaire yoke to the stationary structure.

To make wire connections, route the power cord to an

appropriate junction box.

Make supply connections inside junction box (see Wiring

Diagram).

Replace junction box cover.

To adjust the vertical position of the luminaire, use a hex

wrench to loosen the adjustment screw, and reposition

the luminaire head to the desired position, then re-tight-

en the bolt.

YOKE MOUNT (YM)

MULTIPURPOSE AREA LIGHT (MPL) INSTALLATION INSTRUCTIONS
