Beef Eater Signature Trolley User manual
BeefEater Signature Trolley
Assembly Instructions
AUSTRALIA
USA/CANADA
2
Parts List
48 x screws, washers and nuts
(Allen head screw M6x12mm, washer & nut M6)
may not all be required
2 x fixed
wheels
hose protector
2 x side shelves
base panel
cylinder bracket
cross brace
left side panel
right side panel
2 back panels (identical)
left door right door
top enclosure panel
front infill
panel (5 burner
models only)
2 x magnets
2 x rotating
castors
2 x hubcaps 2 x circlips
1 x axle
3
Phillips Head
Screwdriver
adjustable
spanner/wrench
Allen key
Assembly Instructions
Fit the axle through the holes in the end of
the base panel. Fit the wheels as shown.
Before You Start
Note the tools you will need before you begin.
Check for damaged or missing parts, and
consult your retailer if necessary.
Many components and panels are covered
with a protective sheet of plastic. You will
need to remove this plastic covering from all surfaces, especially where two panels join. It is a good idea to
leave some plastic on the panels during assembly to protect the stainless steel during the assembly process.
Ensure however that all plastic covering is removed on completion.
Assemble on a clean, smooth, flat working surface that will not scratch the surface of the stainless steel..
1a) Fit The Fixed Wheels
2) Fit The Rotating
Castors
Fit the rotating castors into the holes
in the bottom of the base. Use only
two Allen head screws, washers and
nuts for each castor in the positions
shown.
Spanner/wrench tighten immediately.
Fit the circlips to the grooved ends
of the axle shaft. Fit the hubcaps.
1b) Fit The Circlips
and Hub Caps
4
Steel is folded
up towards you
The right side has
holes for the gas hose
3) Fit The Right And Left
Side Panels
Use 5 Allen head screws, washers and nuts
on each panel. You may find it easier to lay
the cart on its side for this step.
Only hand tighten at this stage - You will
wrench/spanner tighten at a later step.
5) Fit The Front Cross
Brace
Use 4 Allen head screws, washers and nuts.
Ensure the magnets are towards the bottom and
the folded tabs are facing outwards.
The cross brace “wraps around” the side panels,
to bring them closer together, as shown in the
inset.
Hand tighten only at this stage.
Assembly Instructions
4) Fit The Magnets To
The Cross Brace
Hold the cross brace so the folded
tabs are facing towards you. Push the
magnets into place so the magnetic
side is facing you.
Magnet here
5
Assembly Instructions
6) Fit The Lower Back
Panel
Both back panels are identical.
Screw one of the back panels to the base and
side panels using 7 Allen head screws, washers
and nuts.
Hand tighten only at this stage.
7) Fit The Upper Back
Panel
Screw the other back panel to the side
panels. Use only one Allen head screw,
washer and nut on each side, in the
uppermost hole.
Hand tighten only at this stage.
6
Assembly Instructions
8) Fit The Side Shelves
Use 4 Allen head screws, nuts and washers
for each side shelf. Get in underneath the
side shelf and screw the shelf to the side
panel. The screws go into the slotted holes
as shown.
9) Fit The Top Enclosure
Panel
The front of the enclosure panel sits neatly on
the front cross brace. The back of the panel
screws into both the upper back panel and the
side panel. Use two Allen head screws, washers
and nuts.
Hand tighten only at this stage.
7

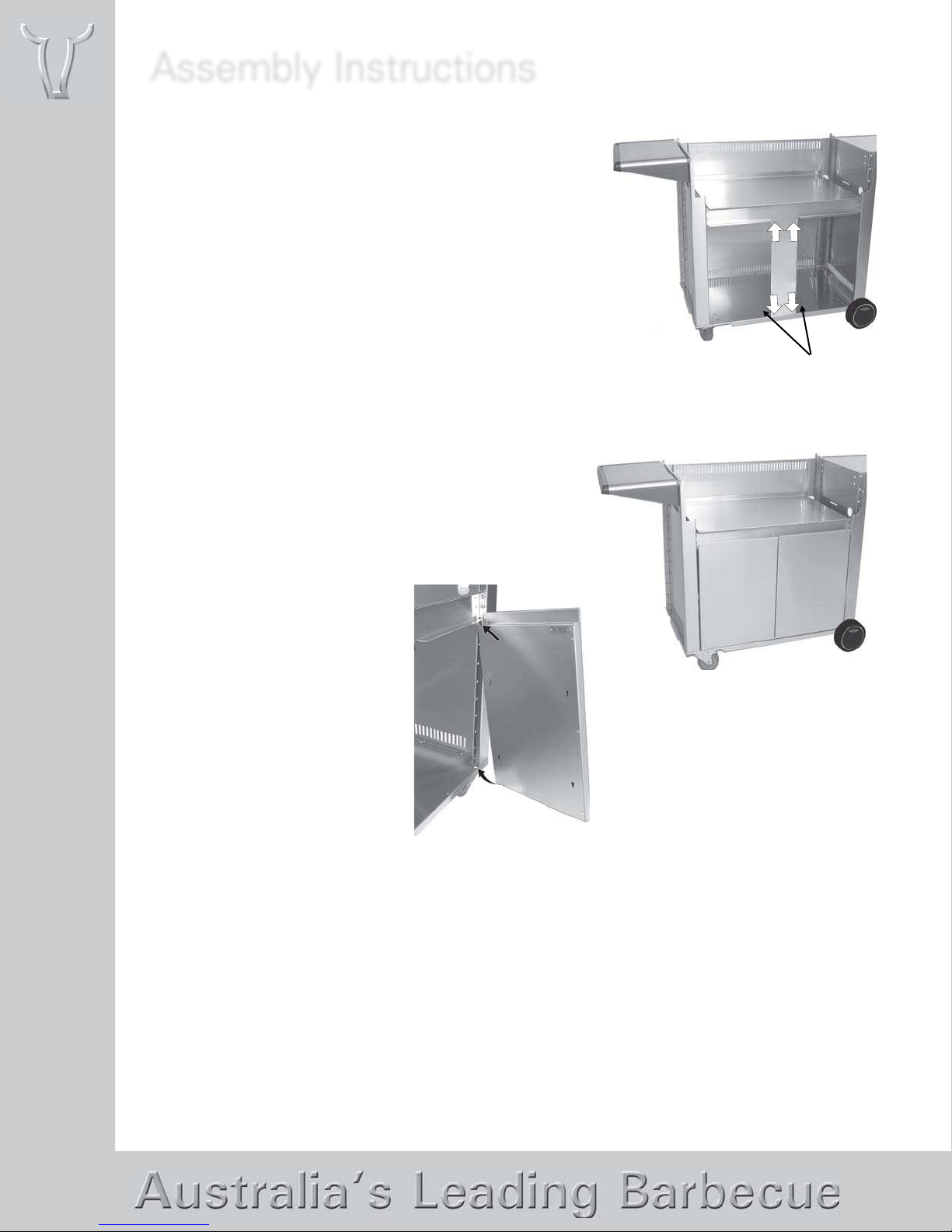

11) Fit The Doors
Support the door rod from
underneath, slip the top of the
rod into the hole in the cross
brace, and allow the bottom of
the rod to fall into the hole in the
base plate.
You should now wrench/spanner
tighten the infill panel if one has
been fitted.
Assembly Instructions
10) Fit The Infill Panel
(5 burner models only)
5 burner models require an infill panel between the
two doors. Use 4 Allen head screws, washers and
nuts to secure the panel between the front cross
brace and the base plate.
Hand tighten only at this stage.
Magnets here
8
Assembly Instructions
13) Fit The Hose Protector
Squeeze the rubber hose protector and fit it
into one of the holes in the side panel. Yo u
have a choice as to which hole you use:
If you intend to use bottled gas, you should
use the hole in the side as shown.
If you will be using piped gas, then your
gas plumber may prefer it at the rear of the
barbecue.
14) Fit The Cylinder
Bracket
This slips into the slot on the right side panel,
on either the inside or the outside of the
cart. This allows a cylinder to be placed on
the outside of the cart, or inside the cabinet
enclosure.
12) Fit The Storage Racks
If you purchased any optional storage racks,
they slide easily into the holes on the right or
left side panel.
(Optional)
9
16) Lower The Barbecue Into The
Cart
You will need to tease the side panels apart slightly to be able to
put the barbecue into place. Make sure the barbecue is pushed
back against the rear edge of
the cart, and the front of the
barbecue is flush with the front
of the cart.
You do not need to screw
anything in at this stage. That
is done in the next two steps.
Assembly Instructions
1
2
3a
b
15) Fit The Hose To The Barbecue
You need to connect the proper hose to the barbecue inlet before the barbecue is in place in the cart. You
should follow the separate barbecue instructions for directions on methods of connection and leak testing.
If you purchased a side burner:
Pass hose a through the side hole (arrow 1) and
connect to the barbecue. Follow your separate side
burner instructions for remaining connection details.
If you did not purchase a side burner:
If you are using a portable LPG/propane cylinder and
you wish to place the bottle on the outside of the
cabinet, thread the hose and regulator (b) through the
hole in the side panel (arrow 1), and connect to the
barbecue.
If you are using a portable LPG/propane cylinder
and you wish to place the bottle on the inside of the
cabinet, thread the hose and regulator (b) past the top
enclosure panel from underneath (arrow 2) and connect
to the barbecue.
If you are using piped gas, your gas plumber may
choose to thread a special hose from the rear of the
cart (arrow 3).
10
17) Finish Screwing In The
Barbecue
The barbecue should be secured using 4 Allen head
screws, washers and nuts, as shown. If you have
a side burner, the right side of the barbecue will
already be secured.
Assembly Instructions
To Fit The Optional Side
Burner
If you purchased a side burner, the side burner
must go on the right side of the barbecue. Use
4 Allen head screws, washers and nuts. The
screws go through the inside of the barbecue
and help to secure it.
For the rest of the side burner assembly and connection,
consult the instructions that came with the side burner.
Now tighten all remaining screws and your assembly is complete.
18) Slide The Drip
Tray Into Place
Ensure the drip tray slides along the
top of the tracks underneath the
barbecue..
