Beamz WH-248 User manual

V2.2

Ref. No.: 150.672

WH-248 LED WASH

24X 8W QUAD DMX

MANUAL

- 2 -

Thank you for purchasing one of our products. Before you use this product please read these instructions

carefully to enjoy optimal performance and a longer service life.

UNPACKING INSPECTIONS

Unpacking instructions

•Please unpack the carton and check the goods carefully when you receive it , if you discover any

packing damage, shortage or quality problems, please notify the shipper and reject the goods.

•Before using this product, please read the instructions carefully and store them in a safe place for

future reference.

SAFETY INSTRUCTIONS

•Always connect this product to a grounded circuit to avoid the risk of electrocution.

•Never put tiny metal objects such as a screwdriver, iron wire, etc. into this product in case of a short

circuit .

•Please make sure that the voltage of the outlet to which you are connecting this product is within

the range stated on the decal or rear panel of the product.

•Avoid physical damage to the product during transportation. Never carry this product from the

power cord or any moving part . Always use the hanging / mounting bracket or the handles.

•This product is for indoor use only. To avoid risk of fire or shock, do not expose this product to rain

or moisture.

•Never pull or tug on the cord and change it for another one, stop using it when it is damaged or

becomes hot .

•Stop using the product once there are sparks when connecting it to the power socket.

•Do not operate this product with wet hands and never place it near water or any other liquids.

•Make sure there are no flammable materials close to the unit while operating. Always install it in a

location with adequate ventilation.

•When the original lightning source is damaged, do not replace it with a lightning source which has

different specifications and ratings.

•Always disconnect this product from the power source before replacing the light source or the fuse.

•The maximum ambient temperature is 40°C(104°F).

•Never clean the unit with water, thinner or any other dissolving agent .

•Stop using the product in case of a serious operating problem and send it to our maintenance agent

immediately. Never get this product repaired by non-professional workers.

•Avoid direct eye exposure to the light source while this product is on.

•Never clean the fixture by water, thinner or other dissolved agent .

•Stop using the product in case of a serious operating problem and send it to our maintenance agent

immediately. Never repair by non-professional workers .

•Avoid direct eye exposure to the light source while the product is on.

- 3 -

SPECIFICATION

Tilt movement:

220° manually

No. of LEDs:

24x 8W Quad LEDs

No. of patterns:

DMX channels:

1-4-8

IP Rating”:

IP65

Power Supply:

220-240Vac / 50Hz

Consumption:

230W

MAINTENANCE

The unit should be cleaned periodically to ensure the optimal performance, smudginess can decrease the

life of the light source and the output of light is affected by the dust which can make the machine overheat.

It is advised to perform maintenance 2 times a month. Be sure to disconnect the unit from the power socket

before cleaning.

Do not clean until the unit recovers a normal temperature, use the lens tissue or soft cotton cloth with

alcohol and wipe gently.

The cleaning frequency depends on the environment in which this unit operates, damp, smoky or dirty

surroundings can cause greater accumulation of dirt on the optics. Never rub or press strongly on the panel.

FUNCTIONS INTRODUCTIONS

Main Functions

•1, 4 or 8 DMX channels.

•DMX, auto and master/slave mode .

•24x 8W Quad LEDs

•10 Built-in programs

•Electronic dimming 0 – 100%

- 4 -

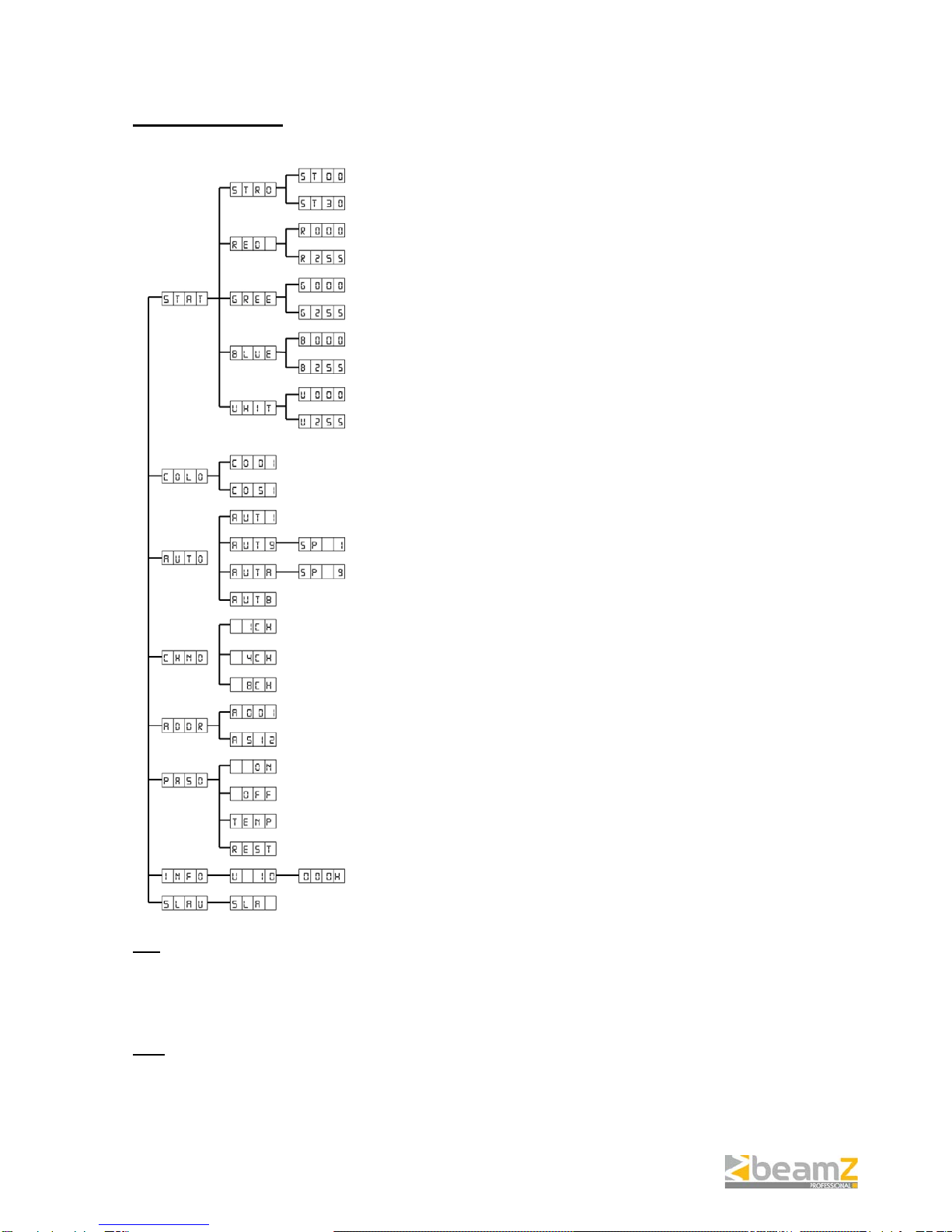

SYSTEM MENU

Stat - Set the static color mode and strobe mode

Press MENU, press the UP or DOWN button until “Stat” is displayed, press ENTER.

You have now 5 options. To select the desired option press ENTER. With the UP and DOWN button the

desired value can be set. Press ENTER to confirm the desired value.

Colo - Built-in color mix

Press MENU, press the UP or DOWN button until “Colo” is displayed, press ENTER.

“Colx” will now be displayed, (“x” representing a number between 0 - 51). Press the UP or DOWN button to

find the desired static mode. Press ENTER to confirm.

- 5 -

Auto mode - This menu will let you select the desired auto mode

Press MENU, press the UP or DOWN button until “Auto” is displayed, press ENTER.

There are 11 auto modes, press the UP or DOWN button to select the desired mode, press ENTER to

confirm.

Channel mode - Select the desired channel mode

Press MENU, press the UP or DOWN button until “Chnd” is displayed, press ENTER

“X Ch” will now be displayed, (“X” represents the displayed channel mode). Press the UP or DOWN button

to find the desired channel mode. Press ENTER to confirm.

DMX Address - Set the DMX address

Press MENU, press the UP or DOWN button until “Addr” is displayed, press ENTER.

“Axxx” will now be displayed, (“xxx” represents the displayed address). Press the UP or DOWN button to

find the desired address. Press ENTER to confirm

Pasd - Password function switch

Press MENU, press the UP or DOWN button until “Pasd” is displayed, press ENTER.

Set the password for the password function. Password is MENU – UP – DOWN – ENTER

Tenp: Temperature

rEST: Reset

Info - Will display the software version and working time of the unit.

Press MENU, press the UP or DOWN button until “Info” is displayed, press ENTER.

The software version of the unit will be displayed. Press MENU to leave this function

Slave mode - In this mode the unit functions as a slave

Press MENU, press the UP or DOWN button until “Slav” is displayed, press ENTER. “Sla” will now be

displayed, Slave mode is confirmed. The unit will now act as a slave in Auto, sound and chase mode.

OPERATING INSTRUCTIONS

DMX connection.

Master / Slave connection.

- 6 -

DMX CHANNELS

1 DMX Channel mode

DMX

Value

Desciption

000 – 000

Light off

001 – 004

Color 1

005 – 009

Color 2

010 – 014

Color 3

240 – 244

Color 49

245 – 249

Color 50

250 – 255

Color 51

4 DMX Channel mode

DMX

Value

Desciption

000 – 255

Red

000 – 255

Green

000 – 255

Blue

000 – 255

White

8 DMX Channel mode

DMX

Value

Desciption

000 – 255

Master dimmer

000 – 255

Red

000 – 255

Green

000 – 255

Blue

000 – 255

White

000 – 255

Strobe

000 – 000

Channel 1 – 6

001 – 024

Auto 1

025 – 049

Auto 2

050 – 074

Auto 3

075 – 099

Auto 4

100 – 124

Auto 5

125 – 149

Auto 6

150 – 174

Auto 7

175 – 199

Auto 8

200 – 224

Auto 9

225 – 249

Auto 10

250 – 255

Auto 11

000-255

Auto Speed Ch 7 (slow-fast)

- 7 -

CE Declaration of Conformity

Importer: TRONIOS BV

Bedrijvenpark Twente 415

7602 KM - ALMELO

Tel : 0031546589299

Fax : 0031546589298

The Netherlands

Product number: 150.672

Product Description: WH-248 LED Wash 24x 8W Quad DMX

Regulatory Requirement: EN 60598-1/-2-17

EN 55015

EN 61547

EN 61000-3-2/-3-3

The product meets the requirements stated in Directives 2006/95 and 2004/108/EC and conforms to

the above mentioned Declarations.

13-12-2012

Signature:

P. Feldman

Specifications and design are subject to change without prior notice..
