BE Ag & Industrial Agri Ease BE-SG24 Application guide

PURCHASE DATE MODEL NO. SERIAL NUMBER

DEALER

OPERATIONS & PARTS MANUAL

STUMP GRINDER

BE-SG24

2 BE-SG24 USER MANUAL

TABLE OF CONTENTS

3IMPORTANT SAFETY INFORMATION

4MACHINE USE AND CARE

5SET-UP PROCEDURES

8OPERATION

13 STORAGE & MAINTENANCE

15 PARTS LIST & EXPLODED ASSEMBLIES

BE-SG24 USER MANUAL 3

IMPORTANT SAFETY INFORMATION

WARNING

Read and understand all instructions. Failure to follow all instructions listed below may result in electric

shock, ﬁre, and/or serious injury.

The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible

conditions or situations that could occur. It must be understood by the operator that common sense and

caution are factors which cannot be built into this product but must be supplied by the operator.

• All Federal and State laws and any regulation having jurisdiction covering the safety requirements for

use of the machine take precedence over the statements in this manual. Users of this machine must

adhere to such regulations.

• Only people that have read and understood these instructions are permitted to use the stump grinder.

• Inspect the stump grinder and tractor at the beginning of every working day and repair any defects.

• Stop the engine and make sure that the machine will not start accidentally while repairing defects or

performing maintenance.

• Do not disable or remove the stump grinder’s safety devices.

• Always locate and mark buried wires, cables, and pipelines prior to grinding.

PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating machinery. Do not use

a machine when you are tired or under the inﬂuence of drugs, alcohol, or medication. A moment of

inattention while operating machinery may result in serious personal injury.

• Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing, and

gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. Air

vents often cover moving parts and should be avoided.

• Use safety apparel and equipment. Use safety goggles or safety glasses with side shields which comply

with current national standards, or when needed, a face shield. Use a dust mask in dusty work conditions.

This applies to all persons in the work area. Also use non-skid safety shoes, hardhat, gloves, dust collection

systems, and hearing protection when appropriate.

• Do not overreach. Keep proper footing and balance at all times.

• Remove adjusting keys or wrenches before connecting to the power supply or turning on the machine. A

wrench or key that is left attached to a rotating part of the machine may result in personal injury.

• Never conduct any maintenance or make any other adjustments while the tractor engine is running. Always

shut the tractor engine o, remove the ignition key, and keep the engine o before carrying out any of the

following procedures. Consult your tractor’s operator manual for safe shutdown procedures to prevent

accidental ignition.

• Never allow passengers to ride on the stump grinder.

4 BE-SG24 USER MANUAL

MACHINE USE AND CARE

• Always be sure the operator is familiar with proper safety precautions and operation techniques before

using machine.

• Do not force the machine. Machines do a better and safer job when used in the manner for which they are

designed.

• Storing the machine. When the machine is not in use, store it in a dry, secure place or keep it well-covered

and out of the reach of children. Inspect the machine for good working condition prior to storage and

before each use.

• Maintain the machine. It is recommended that the general condition of the machine be examined before

it is used. Keep your machine in good working order by adopting a program of conscientious repair and

maintenance in accordance with the recommended procedures found in this manual. If any abnormal

vibrations or noise occurs, turn the machine o immediately and have the problem corrected before further

use.

• Cleaning. Use a pressure washer to clean the carbide teeth while taking care not to pressure-wash the

bearings as this could introduce water into areas of the machine that may cause malfunction or damage.

• Use only accessories that are recommended by the manufacturer. Accessories that may be suitable for

another machine may create a risk of injury when used on this machine.

• Always operate the machine with all safety devices and guards in place and in good working order. DO

NOT modify or make changes to safety devices. DO NOT operate the machine if any safety devices or

guards are missing or inoperative.

• Never leave the machine running unattended. • Never use the machine to grind anything other than stumps

or for any purpose other than grinding stumps as described in this manual.

BE-SG24 USER MANUAL 5

SET-UP PROCEDURES

TRIMMING THE PTO SHAFT

The stump grinder is shipped with a slip clutch PTO shaft that can be ﬁtted to most Category 1 tractors. The

PTO shaft may need to be trimmed depending on your tractor and conﬁguration. Follow the steps below to

ensure the PTO shaft is correctly ﬁtted to your tractor.

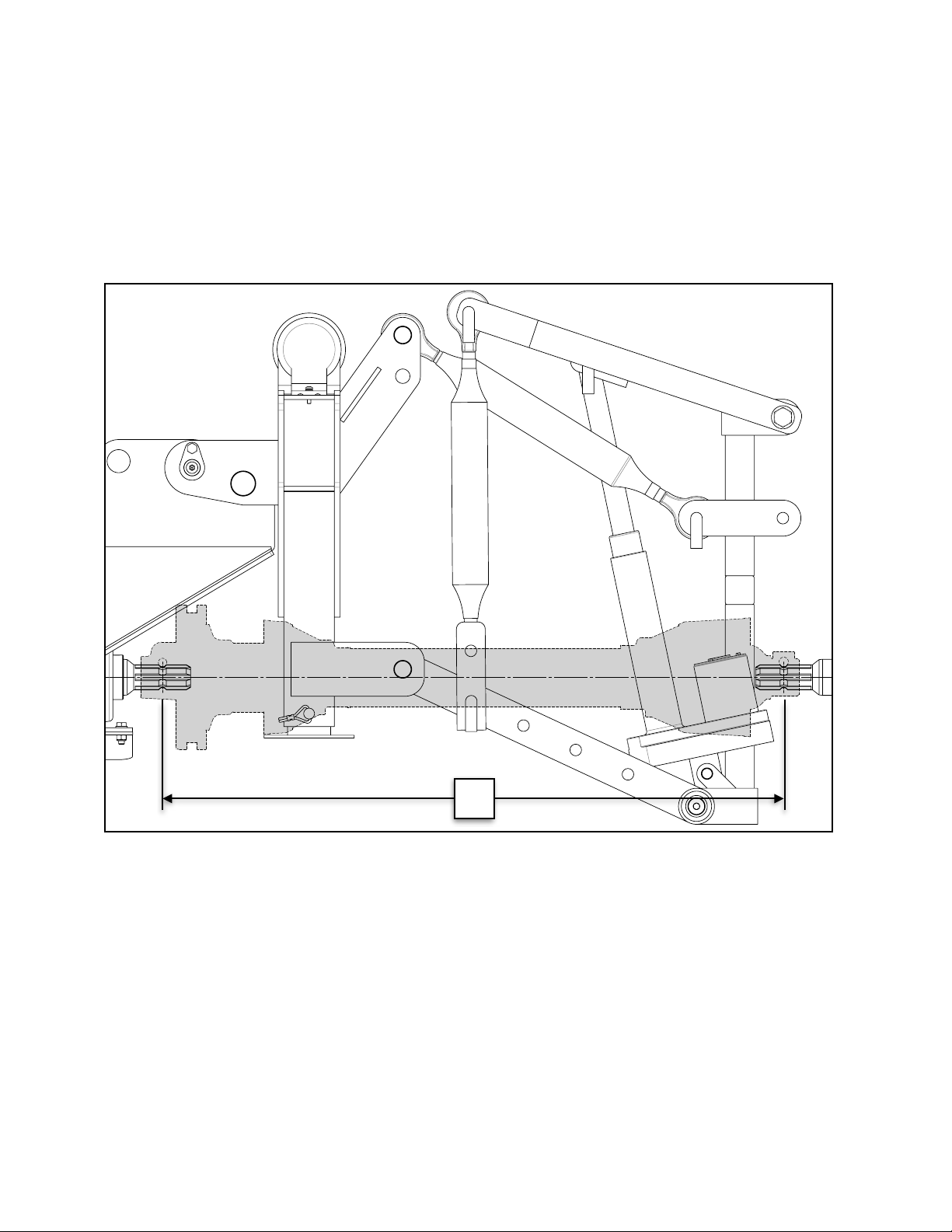

1. Attach the stump grinder to the tractor’s 3-point hitch system. Do not install the PTO shaft.

2. Raise the stump grinder so that the shaft on the tractor is in line with the shaft on the stump grinder.

3. Measure the distance between the locking grooves on the splined shafts of the tractor and stump grinder

(Dim A) as shown below:

SET-UP PROCEDURES

TRIMMING THE PTO SHAFT

The stump grinder is shipped with a slip clutch PTO shaft that can be Þtted to most Category 1

tractors. The PTO shaft may need to be trimmed depending on your tractor and conÞguration.

Follow the steps below to ensure the PTO shaft is correctly Þtted to your tractor.

1. Attach the stump grinder to the tractorÕs 3-point hitch system. Do not install the PTO shaft.

2. Raise the stump grinder so that the shaft on the tractor is in line with the shaft on the stump

grinder.

3. Measure the distance between the locking grooves on the splined shafts of the tractor and

stump grinder (Dim A) as shown below:

Page 5of 18

Stump Grinder

Tractor

6 BE-SG24 USER MANUAL

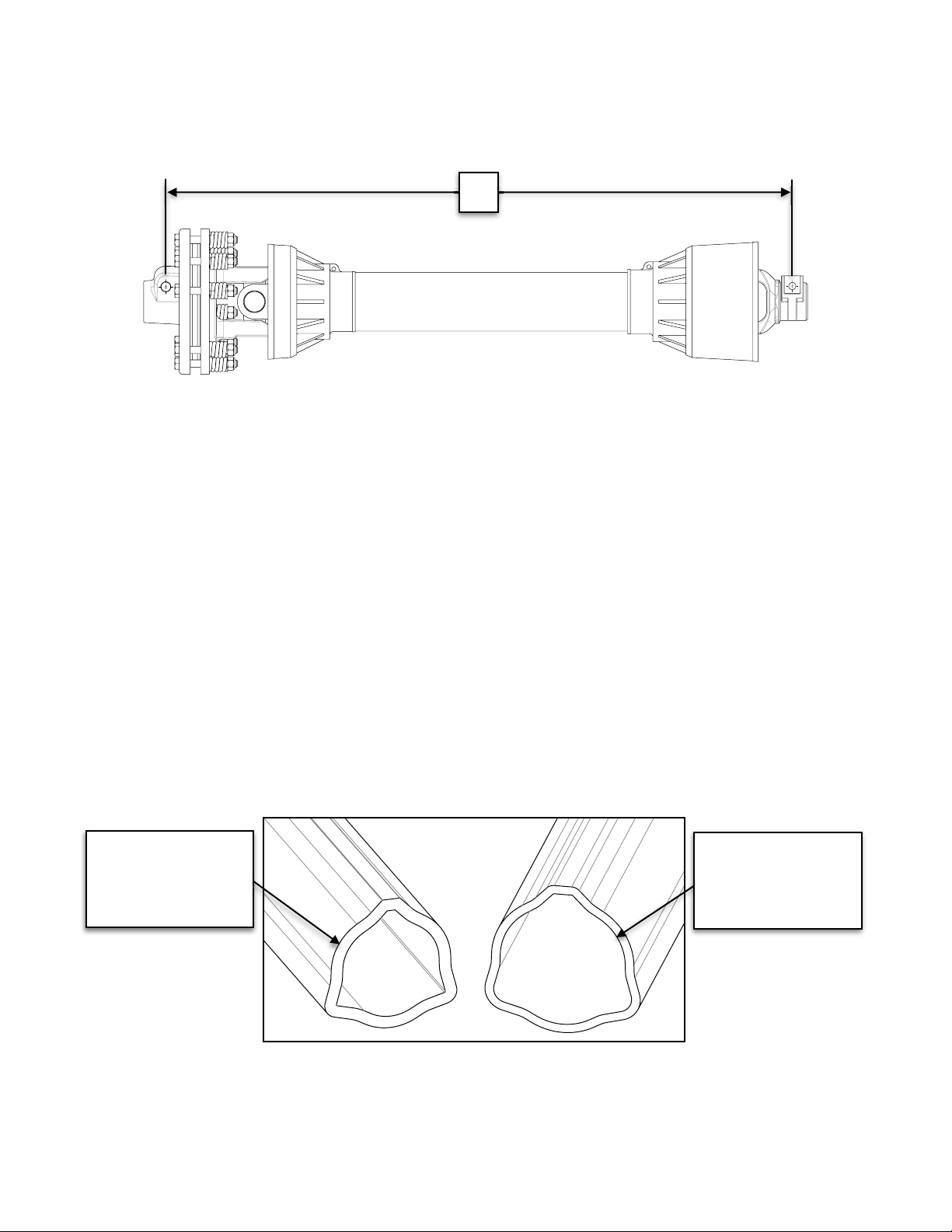

4. Verify the distance between the locking pins on the PTO shaft while in the compressed state (Dim B) as

shown in the image below. It should measure 34” (862.5 mm).

4. Verify the distance between the locking pins on the PTO shaft while in the compressed state

(Dim B) as shown in the image below. It should measure 34” (862.5 mm).

5. If Dim A is at least 1” (25 mm) longer than Dim B, the PTO shaft does not require trimming.

It is recommended the shaft not be used if there is less than 6” (150 mm) of overlap

between the two halves of the PTO shaft when the equipment is in the operating position.

6. If Dim B is longer than Dim A, the PTO shaft will require trimming. Use this equation to

calculate the correct amount to trim:

(B - A) + 1 inch = C (Amount to Trim)

7. Once Chas been calculated, trim that amount from BOTH halves of the PTO shaft safety

cover Þrst, then trim the same amount from both shafts. This will ensure the safety cover on

each end remains a few inches back from the ends of the shafts, otherwise PTO shaft

reassembly could be difÞcult.

8. After trimming both halves of the PTO shaft, use a Þle to remove any burrs or sharp edges

and slide the halves back together, ensuring they telescope in-and-out freely. The PTO

shaft is now ready to connect the stump grinder to the tractor for operation.

Page 6of 18

Remove burrs from

outer edge of inner

telescoping shaft

after trimming

Remove burrs from

inner edge of outer

telescoping shaft

after trimming

5. If Dim A is at least 1” (25 mm) longer than Dim B, the PTO shaft does not require trimming. It is

recommended the shaft not be used if there is less than 6” (150 mm) of overlap between the two halves

of the PTO shaft when the equipment is in the operating position.

6. If Dim B is longer than Dim A, the PTO shaft will require trimming. Use this equation to calculate the

correct amount to trim: (B - A) + 1 inch = C (Amount to Trim)

7. Once C has been calculated, trim that amount from BOTH halves of the PTO shaft safety cover ﬁrst, then

trim the same amount from both shafts. This will ensure the safety cover on each end remains a few

inches back from the ends of the shafts, otherwise PTO shaft reassembly could be dicult.

8. After trimming both halves of the PTO shaft, use a ﬁle to remove any burrs or sharp edges and slide the

halves back together, ensuring they telescope in-and-out freely. The PTO shaft is now ready to connect

the stump grinder to the tractor for operation.

BE-SG24 USER MANUAL 7

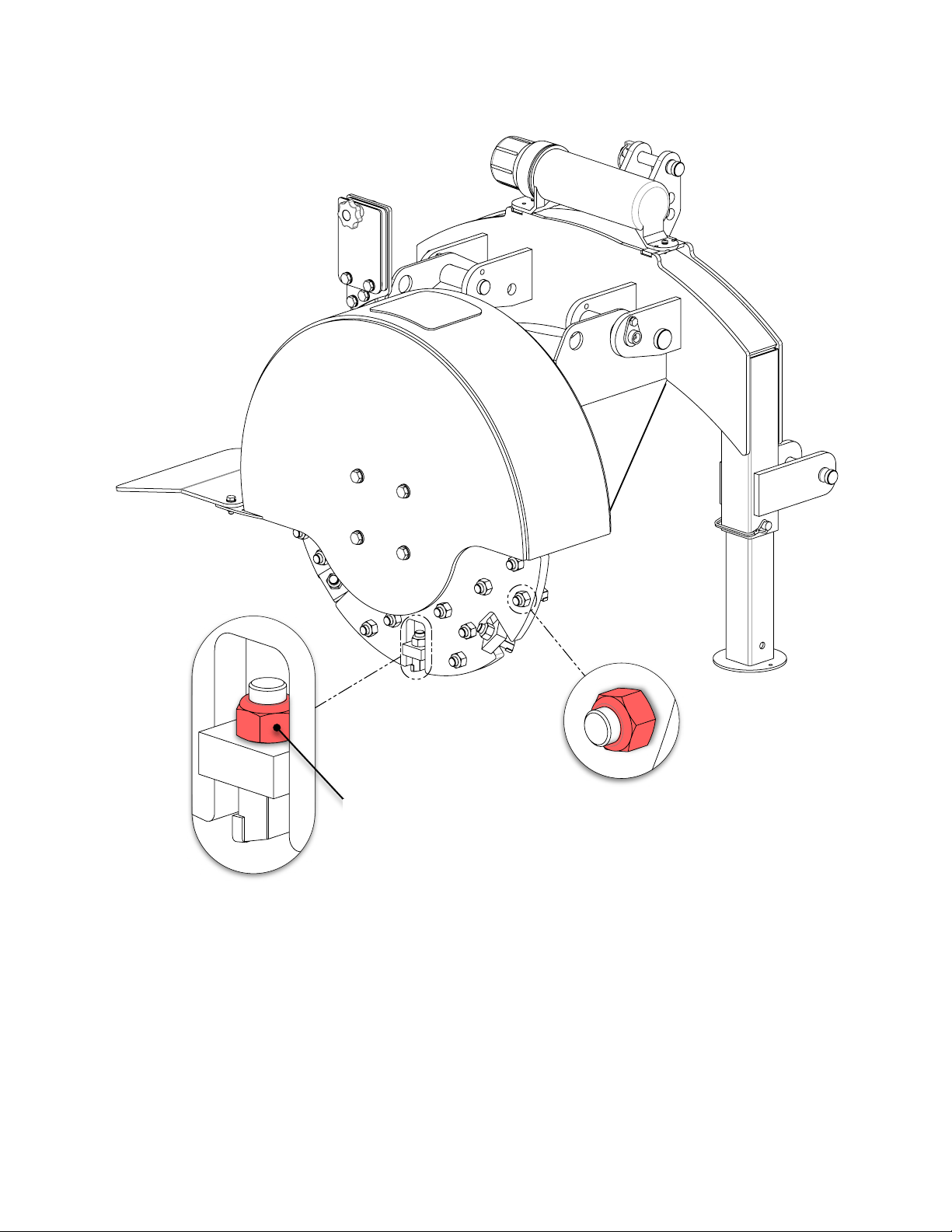

FLYWHEEL TOOTH TORQUING

Prior to each operation, ensure all 34 teeth are torqued to 160 ft•lb (215 N•m) using a torque wrench with a

24 mm socket.

FLYWHEEL TOOTH TORQUING

Prior to each operation, ensure all 34 teeth are torqued to 160 ft•lb (215 N•m) using a torque

wrench with a 24 mm socket.

Page 7of 18

8 BE-SG24 USER MANUAL

OPERATION

PRE-START CHECKLIST

1. Prior to operation, ensure all 34 teeth are torqued to 160 ft•lb [215 N•m] using a torque wrench with a 24

mm socket. Refer to the “FLYWHEEL TOOTH TORQUING” section of the operator’s manual.

2. With the stump grinder attached to your tractor, take the appropriate measurements to trim the

PTO shaft. Refer to the “TRIMMING THE PTO SHAFT” section of the operator’s manual for detailed

instructions.

Note: Failure to do so may result in severe damage to the implement and is not covered under

warranty.

3. The stump grinder has multiple bearings ﬁtted with Zerk ﬁttings for greasing. The PTO shaft is ﬁtted with

two (2) Zerk ﬁttings, one on each yoke. The PTO shaft and all bearings com e pre-greased and do not

require greasing on initial start up. Refer to the“M AINTENANCE” section of the operator’s manual for

detailed maintenance instructions.

4. Read the “STUMP GRINDING PROCEDURE” section of the operator’s manual before operating the

stump grinder. It is important to grind stumps correctly to ensure optimal grinding performance and safe

operation.

START UP

WARNING

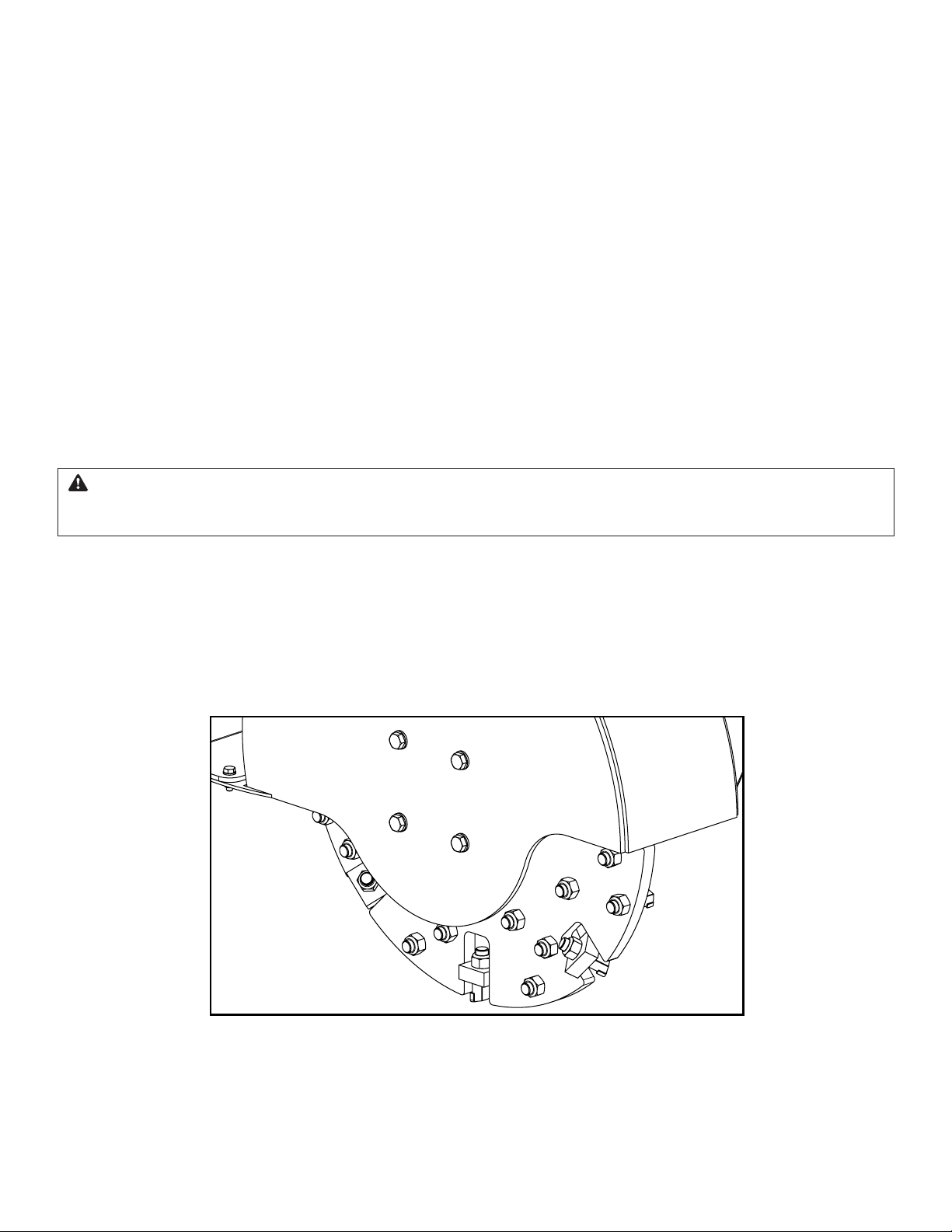

To avoid death or serious injury, do not grind stumps containing embedded foreign objects such as nails,

wire, metal fragments, etc.

1. Wear heavy-duty work gloves, ANSI-approved goggles behind a full-face shield, steel-toed work boots,

and a dust mask.

2. Securely attach the stump grinder to the tractor’s 3-point hitch system and install the PTO shaft.

3. Prior to each daily use, check all 34 teeth and ensure they are not loose, missing, or damaged, and are

torqued to the proper speciﬁcation. Torque any undamaged loose teeth to 160 ft lb (215 NM) using a

torque wrench with a 24 mm socket.

STARTUP

1. Wear heavy-duty work gloves, ANSI-approved goggles behind a full face shield, steel-toed

work boots, and a dust mask.

2. Securely attach the stump grinder to the tractor’s 3-point hitch system and install the PTO

shaft.

3. Prior to each daily use, check all 34 teeth and ensure they are not loose, missing, or

damaged, and are torqued to the proper speciÞcation. Torque any undamaged loose teeth

to 160 ft•lb (215 N•m) using a torque wrench with a 24 mm socket.

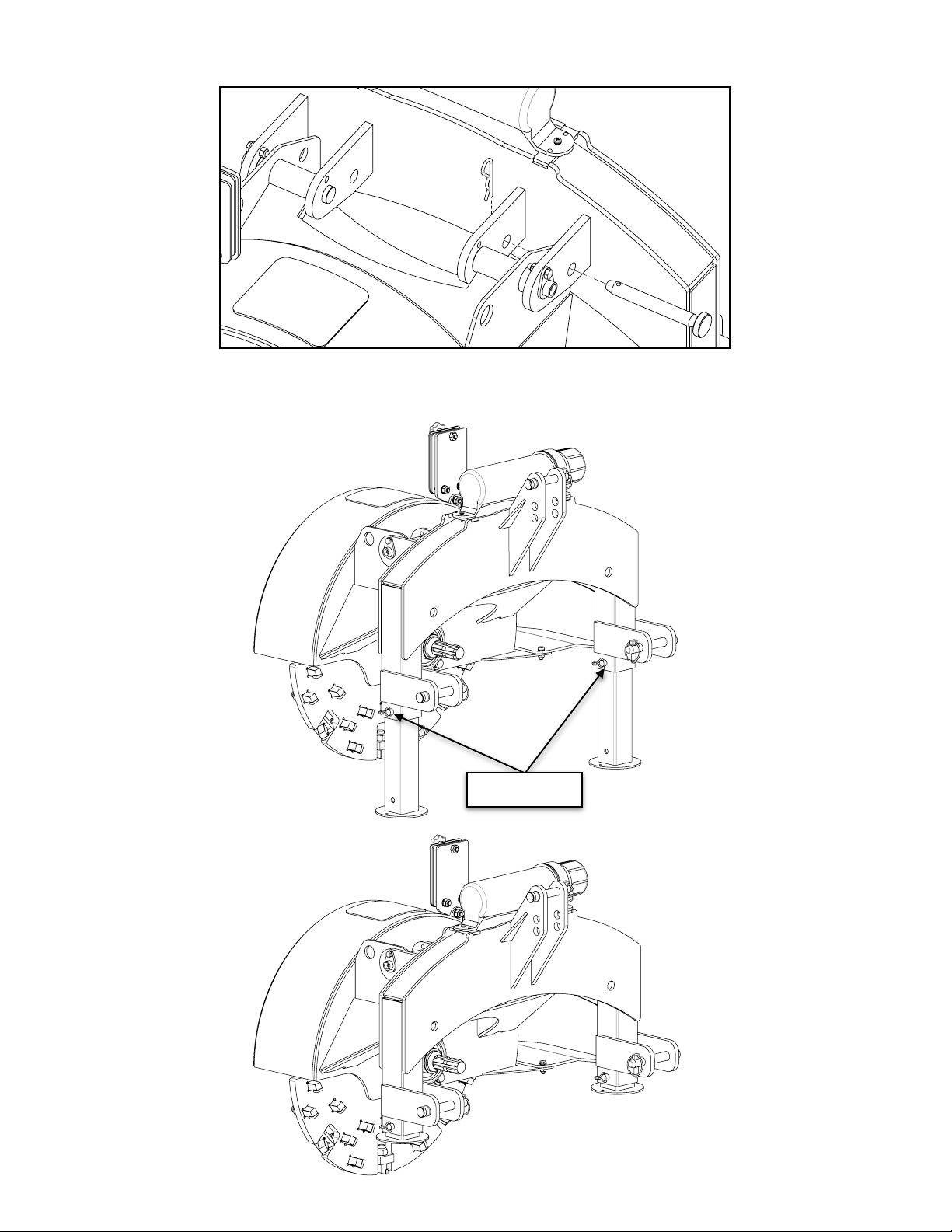

4. Remove the stabilizer pin prior to operation as shown below:

Page 9of 18

To avoid death or serious injury, do not grind stumps containing

embedded foreign objects such as nails, wire, metal fragments, etc.

WARNING!

BE-SG24 USER MANUAL 9

4. Remove the stabilizer pin prior to operation as shown below:

STARTUP

1. Wear heavy-duty work gloves, ANSI-approved goggles behind a full face shield, steel-toed

work boots, and a dust mask.

2. Securely attach the stump grinder to the tractor’s 3-point hitch system and install the PTO

shaft.

3. Prior to each daily use, check all 34 teeth and ensure they are not loose, missing, or

damaged, and are torqued to the proper speciÞcation. Torque any undamaged loose teeth

to 160 ft•lb (215 N•m) using a torque wrench with a 24 mm socket.

4. Remove the stabilizer pin prior to operation as shown below:

Page 9of 18

To avoid death or serious injury, do not grind stumps containing

embedded foreign objects such as nails, wire, metal fragments, etc.

WARNING!

5. Remove the leg locking pins, slide the legs up inside the tubes, and reinstall the locking pins to secure

them in place.

5. Remove the leg locking pins, slide the legs up inside the tubes, and reinstall the locking

pins to secure them in place.

6. Reverse over a tree stump and lower the stump grinder so it will remove 2" (50 mm) per

pass. Always ensure the grinder is cutting properly and not jumping around erratically.

Page 10of 18

Locking Pins

10 BE-SG24 USER MANUAL

6. Reverse over a tree stump and lower the stump grinder so it will remove 2” (50 mm) per pass. Always

ensure the grinder is cutting properly and not jumping around erratically.

7. Once the stump is at ground level, continue to take up to 2” (50 mm) deep passes until the stump and

roots are 4-6” (100-150 mm) below grade. Keep a watch out for foreign objects below the soil like rocks

or buried metal. These can damage or break the teeth resulting in poor grinding performance.

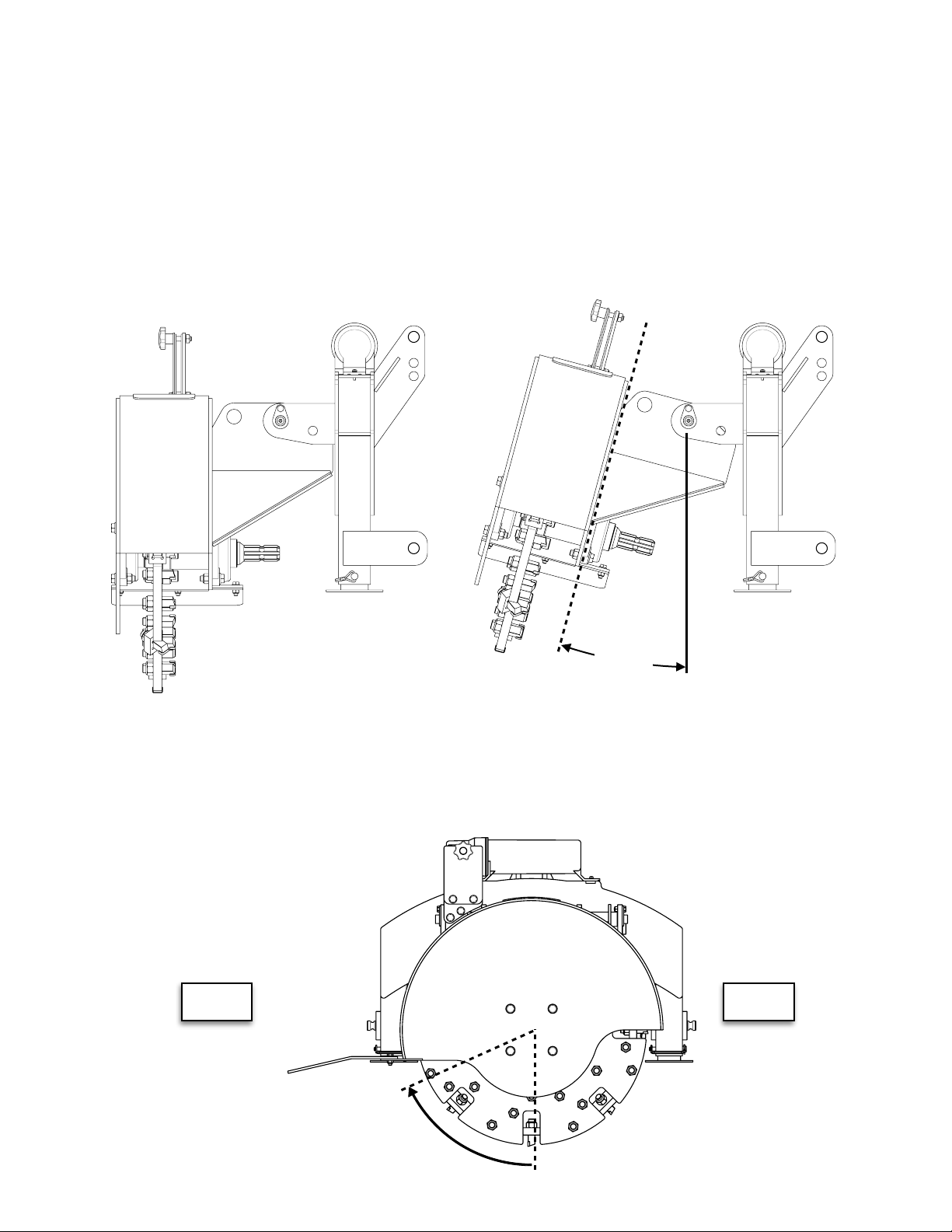

8. During use, it is important to never let the stump grinder sway beyond an angle that will allow the PTO

shaft to separate. Do not operate the stump grinder with less than 6” (150 mm) of overlap between the

two halves of the PTO shaft. If the stump grinder begins to sway, it means either the tractor is advancing

faster than the grinder can remove material or that too much material is being removed per pass. If this

is observed, immediately stop moving forward and position the tractor and stump grinder in a manner so

that it is in the vertical position. Take a slower pass and/or shallower cut if necessary.

7. Once the stump is at ground level, continue to take up to 2” (50 mm) deep passes until the

stump and roots are 4-6” (100-150 mm) below grade. Keep a watch out for foreign objects

below the soil like rocks or buried metal. These can damage or break the teeth resulting in

poor grinding performance.

8. During use, it is important to never let the stump grinder sway beyond an angle that will

allow the PTO shaft to separate. Do not operate the stump grinder with less than 6” (150

mm) of overlap between the two halves of the PTO shaft. If the stump grinder begins to

sway, it means either the tractor is advancing faster than the grinder can remove material or

that too much material is being removed per pass. If this is observed, immediately stop

moving forward and position the tractor and stump grinder in a manner so that it is in the

vertical position. Take a slower pass and/or shallower cut if necessary.

Page 11of 18

Vertical Sway

STUMP GRINDING PROCEDURE

The ﬂywheel spins in a clockwise manner (when facing the rear of the machine) with the eective cutting

area in the lower-left quadrant as shown below:

STUMP GRINDING PROCEDURE

The ßywheel spins in a clockwise manner (when facing the rear of the machine) with the

effective cutting area in the lower-left quadrant as shown below:

Therefore, when grinding a tree stump, always start from the right side of the stump, moving

incrementally to the left, pulling the grinder straight forward through the stump on each pass.

When grinding softwoods like pine, spruce, or poplar, it may be permissible to remove upwards

of 2Ó (50 mm) of material per pass. However, hardwoods like oak, ash, and birch can be much

more dense and the depth of grind may only be up to 1Ó (25 mm). If the chassis is swaying like

described in the previous section, or the grinder is vibrating or bouncing, reduce the depth of

cut or feed rate accordingly.

Page 12of 18

Depth of Grind

Direction of

Grind

Progression

Effective cutting

area

Left Right

Other BE Ag & Industrial Grinder manuals

BE Ag & Industrial

BE Ag & Industrial Agri Ease BE-SGG Series Application guide

Popular Grinder manuals by other brands

Parkside

Parkside PWS 230 C3 Translation of the original instructions

SUHNER ABRASIVE

SUHNER ABRASIVE ASC 9 Technical document

PTA

PTA P1322 Operation manual

Crown

Crown CT13313 Original instructions

Parkside

Parkside 280250 instructions

Climax

Climax VM2150 Series operating manual

Jet

Jet JPSG-618M1 Operating instructions and parts manual

Makita

Makita GA4030 instruction manual

DeWalt

DeWalt DWEN202 Original instructions

Grizzly

Grizzly G2790 instruction manual

Fein

Fein MSf843-1a Original instructions

Bosch

Bosch GWS 14,4 V PROFESSIONAL operating instructions

RAMSET

RAMSET CBAGR18 owner's manual

Bosch

Bosch 8-115 Z Original instructions

STEELE PRODUCTS

STEELE PRODUCTS SP-PB008 owner's manual

MW TOOLS

MW TOOLS ME15W manual

Caravaggi

Caravaggi SP 20 User & maintenance manual

SUHNER ABRASIVE

SUHNER ABRASIVE UWK 10-R125 Technical document
