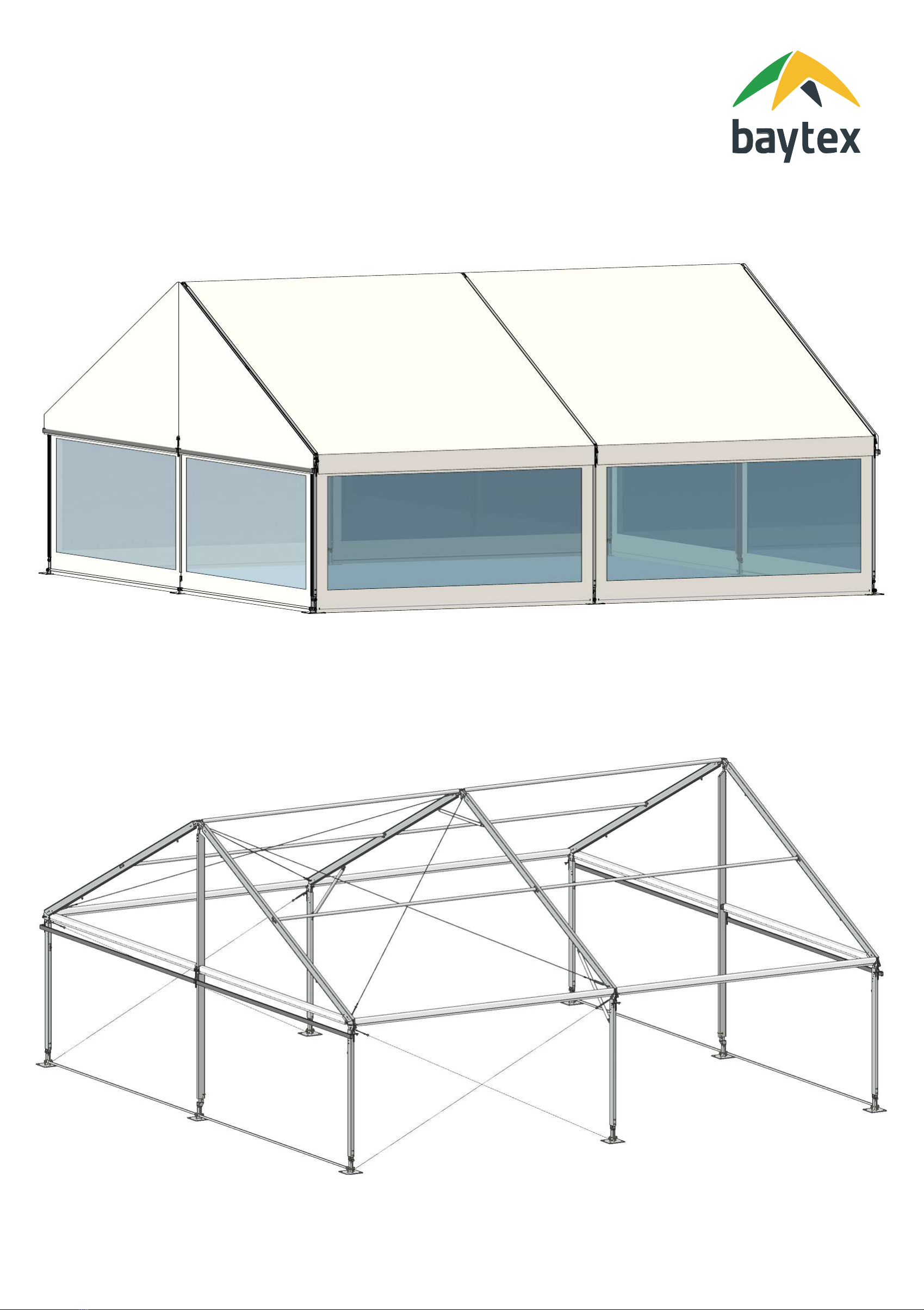

10m Square Frame Marquee

Assembly Manual

80.110.500 10m SQ Assembly Manual.vwx

www.baytex.co.nz 1/18

SIMPLICITY - PERFORMANCE - STYLE

10m Square Frame Marquee

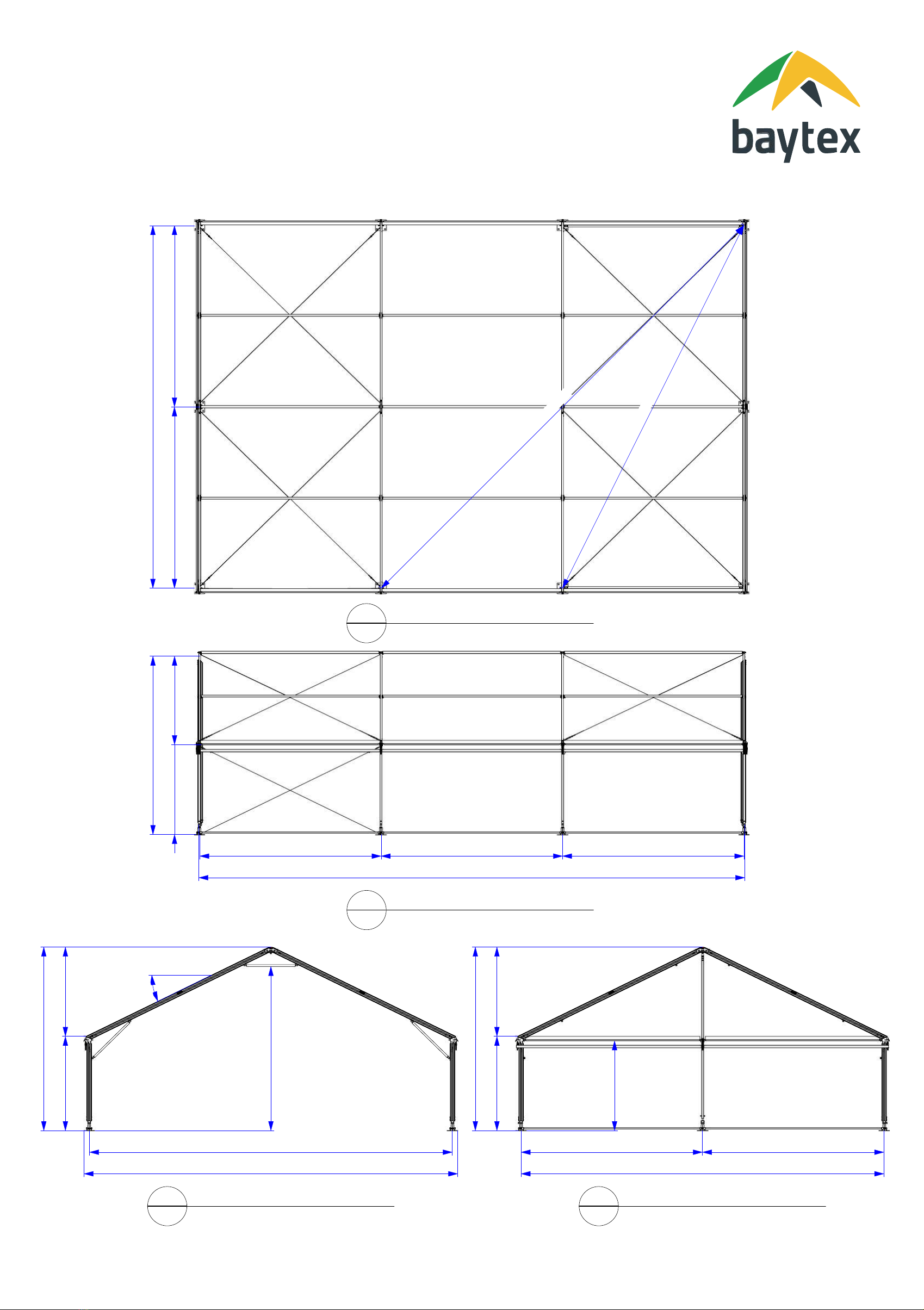

Plan and Elevations

21 Dec 2021

80.110.500 10m SQ Assembly Manual.vwx

5000 CTRS 5000 CTRS

24362480 Top of Eave

4916 Top of Apex

15050 Outside Legs

Scale 1:85

01/2

Side View

5000 CTRS

50005000

10000 Centre of Plates

Scale 1:85

01/1

Plan View

Gable End Portal

14142

11180

5000 CTRS

2600 Eave Point 2460

5059 Top of Apex

10000 Outside Eaves

Scale 1:85

01/4

Gable End Portal

2476

5000 CTRS10000 CTRS

2600 Eave Point 2460

5060 Top of Apex

10300 Outside Base Plates

Scale 1:85

01/3

Mid Portal

4527

26°

www.baytex.co.nz 2/18

SIMPLICITY - PERFORMANCE - STYLE

10m Square Frame Marquee

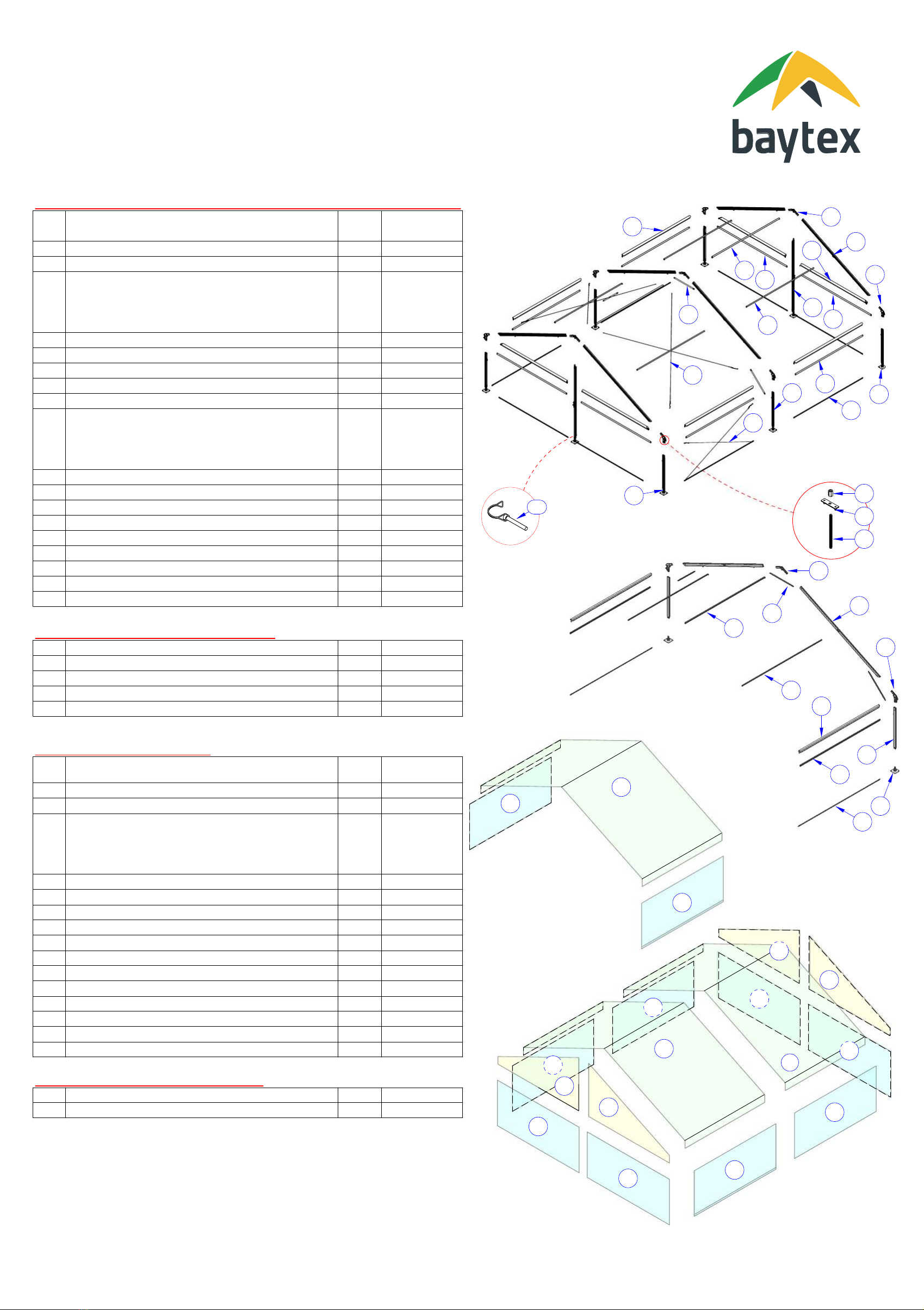

Parts Lists

21 Dec 2021

80.110.500 10m SQ Assembly Manual.vwx

Mid Bay Hardware List

(Bay Quantity = 1)

Ref. Part Name

Qty

Number

Part

Apex Connector - Channel Tube 4Track 26º

180.700

Shoulder Fitting 26º

280.701

Tensioner Set (bolt to Shoulder & GE Upright)

- (x1) 16mm Reid Bar Nut

- (x1) Tension Bar Bracket

80.712

- (x1) Tensioner Reid Bar

80.715

410m Side Rafter - Channel Tube 4Track 280.510.01

2.6m Leg

280.703

6Eave Purlin 5m 280.708

7Ø50 Intermediate Purlin 5m 280.707

Ø65 Ridge Purlin 5m

180.706

Apex Brace / Knee brace

380.705

12 Base Rail 5m 272.704

13 5m Mid Tension Bar 272.715

Roof Brace Cable (10m x 5m Bay)

080.510.10

Wall Brace Cable (5m Bay x 2.6m Leg)

080.727

Base Fitting (standard on ground)

280.716

18 Base Pin 280.732

Mid Bay Fabric List - All Plain

A10m x 5m Roof Mid 180.310.10

C5m x 4.6m Side Wall 280.300.01

End Bays Hardware List - On Ground, Cable Bay Brace

Ref. Part Name

Qty

Number

Part

Apex Connector - Channel Tube 4Track 26º

380.700

Shoulder Fitting 26º

680.701

Tensioner Set (bolt to Shoulder & GE Upright)

- (x1) 16mm Reid Bar Nut

- (x1) Tension Bar Bracket

80.712

- (x1) Tensioner Reid Bar

80.715

410m Side Rafter - Channel Tube 4Track 680.510.01

2.6m Leg

680.703

6Eave Purlin 5m 480.708

7Ø50 Intermediate Purlin 5m 480.707

Ø65 Ridge Purlin 5m

280.706

10m Gable End Upright

- (x1) 10m Gable Upright Leg, and

80.510.02

- (x1) Gable Base Insert Fitting

80.711

- (x1) Tractor Clip (AG272)

10 10m Gable End Eave Purlin 480.510.03

Apex Brace / Knee Brace

380.705

12 Base Rail 5m 872.704

13 5m Mid Tension Bar 472.715

14 10m Gable End Tension Bar 480.510.05

Roof Brace Cable (10m x 5m Bay)

880.510.10

Wall Brace Cable (5m Bay x 2.6m Leg)

880.727

Base Fitting (standard on ground)

880.716

18 Base Pin 880.732

End Bays Fabric List - All Plain

A10m x 5m Roof Mid 280.310.10

10m Gable End Infill Pair of Ends (4 pieces)

180.310.70

C5m x 4.6m Side Wall 480.300.01

D5m x 4.6m Gable End Wall Left Hand 280.310.20

5m x 4.6m Gable End Wall Right Hand

280.310.25

End Bays

Mid Bay

End Bays

Options -

- On Flooring. - Replace Base Fittings for On Floor Base Fittings

- x2 LH x2 RH On Floor End, x2 On Floor Gable Gable

- Bay Brace Strut. - Replace pair of cross Wall Brace Cables (wind up to 75kph)

- Clear Fabric Panels. - Replace as desired

www.baytex.co.nz 3/18

SIMPLICITY - PERFORMANCE - STYLE

10m Square Frame Marquee

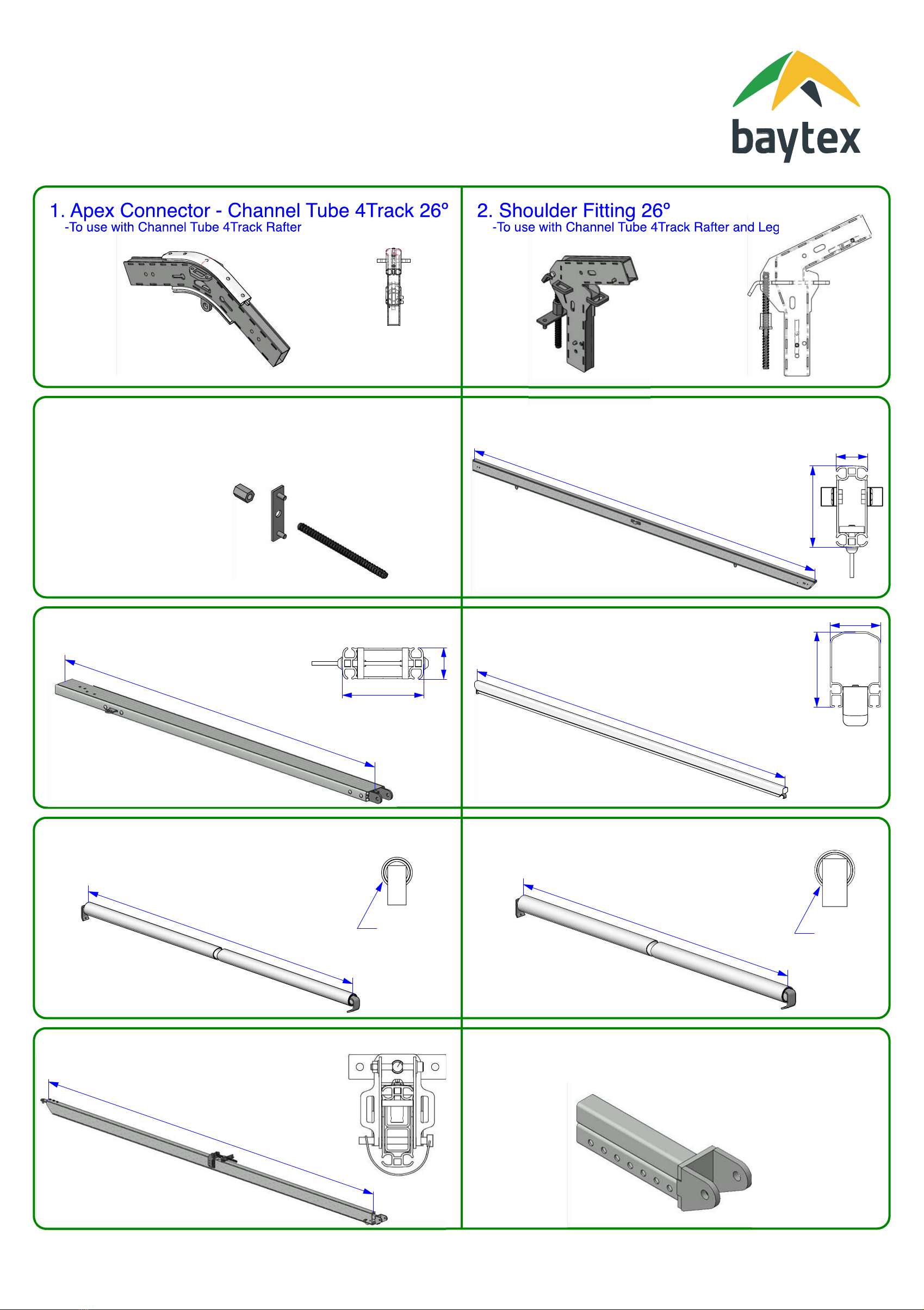

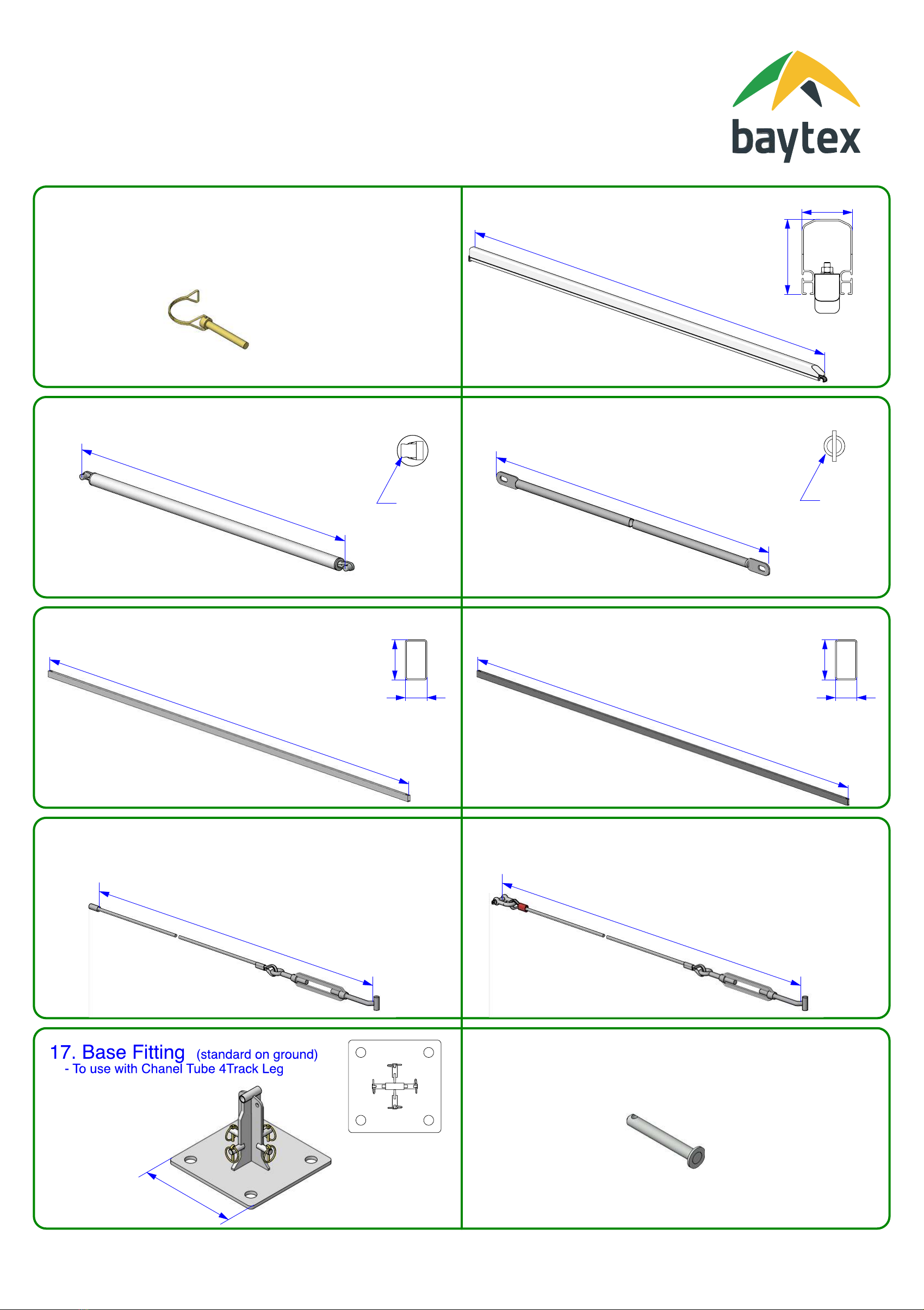

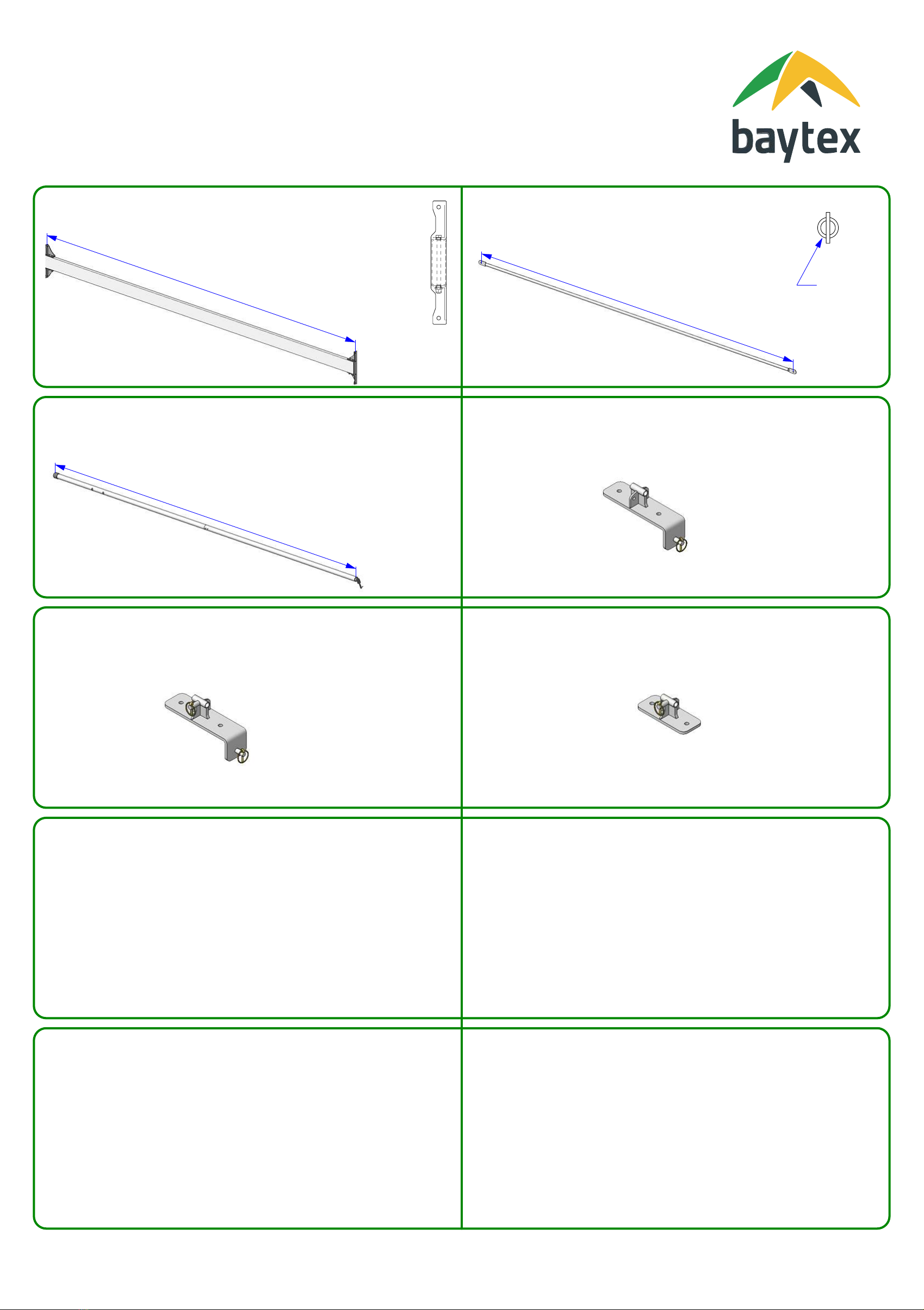

Parts Identification

21 Dec 2021

80.110.500 10m SQ Assembly Manual.vwx

4. 10m Side Rafter - Channel Tube 4Track

8. Ø65 Ridge Purlin 5m

-5m Bay

6. Eave Purlin 5m

-5m Bay , SQ Eave Tube

1. Apex Connector - Channel Tube 4Track 26º

-To use with Channel Tube 4Track Rafter

7. Ø50 Intermediate Purlin 5m

-5m Bay

2. Shoulder Fitting 26º

-To use with Channel Tube 4Track Rafter and Leg

3. Tensioner Set

-Included with Shoulder and Gable Uprights

-(x1) 16mm Reid Bar Nut, (x1) Tension Bar Bracket,

(x1) Tensioner Reid Bar

5462

4894

4904

4948

132

Ø65mm

Ø50mm

122

5. 2.6m Leg

- Chanel Tube 4Track

2131

132

9. 10m Gable End Upright

- 2.6m Leg

4468

9b. Gable Upright Base Insert Fitting

-Included with Gable Upright

www.baytex.co.nz 4/18

SIMPLICITY - PERFORMANCE - STYLE

10m Square Frame Marquee

Parts Identification

21 Dec 2021

80.110.500 10m SQ Assembly Manual.vwx

12. Base Rail - 5m11. 10m Apex Brace / Knee Brace

18. Base Pin

- To use with All Base Fittings

15. Roof Brace Cable (10m x 5m Bay)

- Ø6mm Cable with Turnbuckle and T lug

1450

7275

5050

Ø34mm

Ø50mm

16. Wall Brace Cable Set (5m Bay x 2.6m Leg )

- Ø6mm Cable with Shackle,Turnbuckle and T lug

5445

13. 5m Mid Tension Bar

4940

14. 10m Gable End Tension Bar

5094

17. Base Fitting (standard on ground)

- To use with Chanel Tube 4Track Leg

300

10. 10m Gable End Eave Purlin

- SQ Eave Tube

4805

122

9c. Tractor Pin

-Included with Gable Upright

5500

www.baytex.co.nz 5/18

SIMPLICITY - PERFORMANCE - STYLE

10m Square Frame Marquee

Parts Identification

21 Dec 2021

80.110.500 10m SQ Assembly Manual.vwx

22. On Floor Mid Base Fitting21. Push Pole

- 2 piece , Ø65 Alloy

23. On Floor End Base Fitting

- Left Hand and Right Hand

24. On Floor Gable Base Fitting

4950

19. Bay Brace Strut

5000

20. Setout Rail

Ø34mm

www.baytex.co.nz 6/18

SIMPLICITY - PERFORMANCE - STYLE

10m Square Frame Marquee

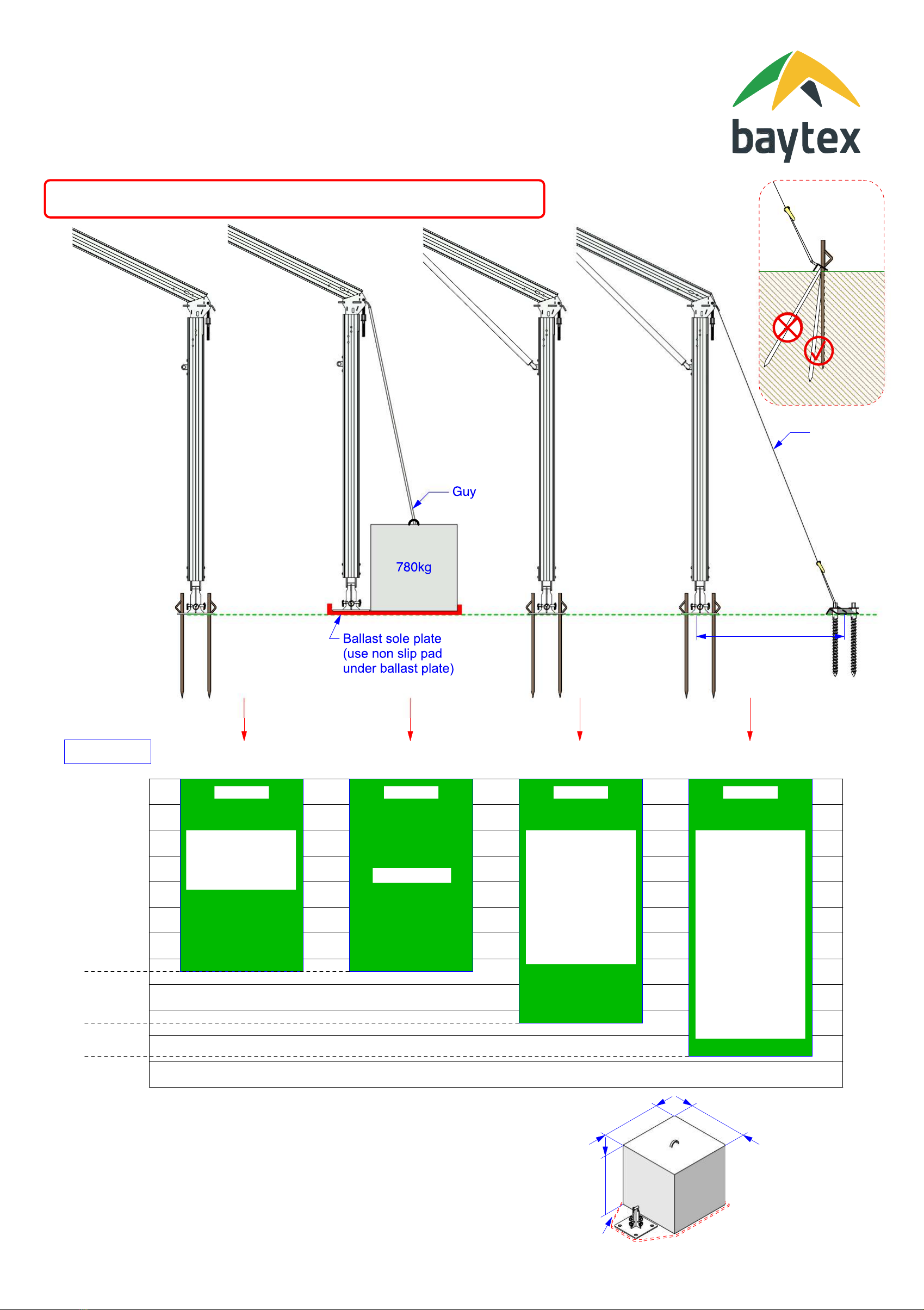

On Ground - Staking / Ballasting Options

21 Dec 2021

80.110.500 10m SQ Assembly Manual.vwx

1200 nominal

2500kg

load binder

For Max. Capacity

Pegs Must be

Driven Vertically

x2 Stakes

per Base Foot

A B D

0km/h

10km/h

20km/h

30km/h

40km/h

50km/h

60km/h

70km/h

80km/h

90km/h

120km/h

Wind Speed

Recommended Staking Options. Based on average Soil Conditions.

Minimum ground bearing capacity 50kpa.

Consider Location factors

eg: on Exposed Hilltop, limit speed to 50% of above.

In poor soil use more stakes or longer stakes.

Guy options: 10mm Nylon Rope or 50mm Ratchet Loadbinders

Over 50km/h - All Walling to be fitted and closed

For Wind Speeds over engineered solution - All Fabric to be Removed from Frame. Frame may be left standing

780kg Ballast

Typical Stake Capacity

250kg in average soil

conditions

700

780kg Ballast

0.7m x 0.7m x 0.7m

Concrete Block.

Tied to base with sole plate

700

Nominal Stake

Capacity 250kg.

2 Stakes per base.

1.5 x safety factor.

engineered engineered engineered

Minimum Staking for each Leg of typical 10m x 5m Bay

Stake Options:

- Peg Ø25 x850mm

minimum 650mm

embedment

- Earth Anchor PE18-33

Ø33 x 460mm

minimum 430

embedment

Guy

780kg

Ballast 780kg

per Base Foot

attach to Foot

and Shoulder

Connector

Ballast sole plate

(use non slip pad

under ballast plate)

x2 Stakes

per Base Foot

x3 Stakes

per Base Foot

with Bracing

engineered

100km/h

110km/h

Nominal Stake

Capacity 250kg.

2 Stakes per base.

1.5 x safety factor.

3 Stakes per base

with Bracing

Knee Braces

Required

108km/h

75km/h

95km/h

x3 Stakes

per Base Foot

x4 Stakes

per Base Foot

with Bracing

x2 PE26

Earth Anchor

with pegging

plate and

2.5t Guy

per shoulder

Nominal Stake

Capacity 250kg.

3 Stakes per base.

4 Stakes per base

with Bracing

x2 PE26

Earth Anchor

with pegging plate

and 2.5t Guy

per shoulder

Wall Barce Cables

Required

www.baytex.co.nz 7/18

SIMPLICITY - PERFORMANCE - STYLE

10m Square Frame Marquee

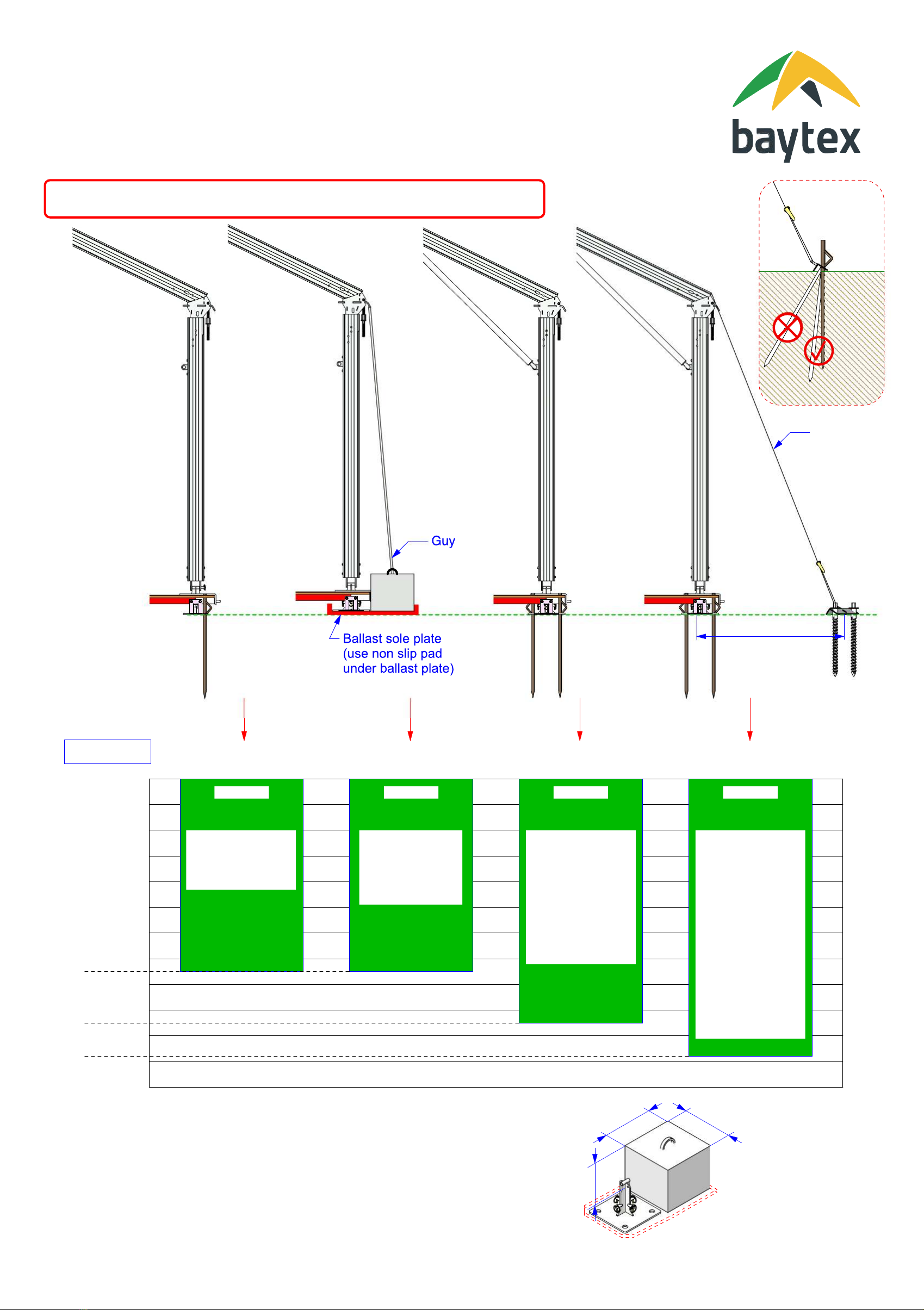

On Floor - Staking / Ballasting Options

21 Dec 2021

80.110.500 10m SQ Assembly Manual.vwx

1200 nominal

2500kg

load binder

For Max. Capacity

Pegs Must be

Driven Vertically

x1 Stakes

per Base Foot

A B D

0km/h

10km/h

20km/h

30km/h

40km/h

50km/h

60km/h

70km/h

80km/h

90km/h

120km/h

Wind Speed

Recommended Staking Options. Based on average Soil Conditions.

Minimum ground bearing capacity 50kpa.

Consider Location factors

eg: on Exposed Hilltop, limit speed to 50% of above.

In poor soil use more stakes or longer stakes.

Over 50km/h - All Walling to be fitted and closed

For Wind Speeds over engineered solution - All Fabric to be Removed from Frame. Frame may be left standing

80kg Ballast

per Portal Foot

230kg Ballast

per Gable Upright

Typical Stake Capacity

250kg in average soil

conditions

300

80kg Ballast

0.35m x 0.35m x 0.3m

Concrete Block.

Tied to base with sole plate

350

Nominal Stake

Capacity 250kg.

1 Stakes per base.

1.5 x safety factor.

engineered engineered engineered

Minimum Staking for each Leg of typical 10m x 5m Bay

Stake Options:

- Peg Ø25 x850mm

minimum 650mm

embedment

- Earth Anchor PE18-33

Ø33 x 460mm

minimum 430

embedment

Guy

80kg

Ballast 80kg

per Base Foot

attach to Foot

and Shoulder

Connector

Ballast 230kg

Gable Upright

Ballast sole plate

(use non slip pad

under ballast plate)

x2 Stakes

per Base Foot

x2 Stakes

per Base Foot

with Bracing

engineered

100km/h

110km/h

Nominal Stake

Capacity 250kg.

2 Stakes per base.

1.5 x safety factor.

2 Stakes per base

with Bracing

Knee Braces

Required

108km/h

75km/h

95km/h

x2 Stakes

per Base Foot

x2 Stakes per

Base Foot with

Bracing

x2 PE26

Earth Anchor

with pegging

plate and

2.5t Guy

per shoulder

Nominal Stake

Capacity 250kg.

2 Stakes per base.

2 Stakes per base

with Bracing

x2 PE26

Earth Anchors

pegging plate

and 2.5t Guy

per shoulder

Wall Barce Cables

Required

www.baytex.co.nz 8/18

SIMPLICITY - PERFORMANCE - STYLE

10m Square Frame Marquee

Base Plate Layout Options

21 Dec 2021

80.110.500 10m SQ Assembly Manual.vwx

Identify Relevant Base Plate Option

A - On Röder HTS Floor System

B - On Ground

note: If Marquee is Set up with Part Flooring, Start with Flooring

B1. Attach Layout Rails to First and Second Base Plates.

secure with lynch pin

B2. Correct Locations for 10m Portal Width and Square

B3. Peg Base Plates

- 2 per 800mm Pegs Per Base Plate

B4. Move Layout Rails and Repeat process

Until All Base Plates are Pegged

A. Floor Specific Base Plates are attached to Flooring Rails

Spacings are set by the Flooring System

Refer to Flooring Document for Details

SQ Base Fitting

80.716

SQ 5m SetUp Rail

80.736

On Floor Mid Base Fitting

#80.728

On Floor End Base Fitting

#80.728

On Floor Gable Base Fitting

#80.728

www.baytex.co.nz 9/18

SIMPLICITY - PERFORMANCE - STYLE

10m Square Frame Marquee

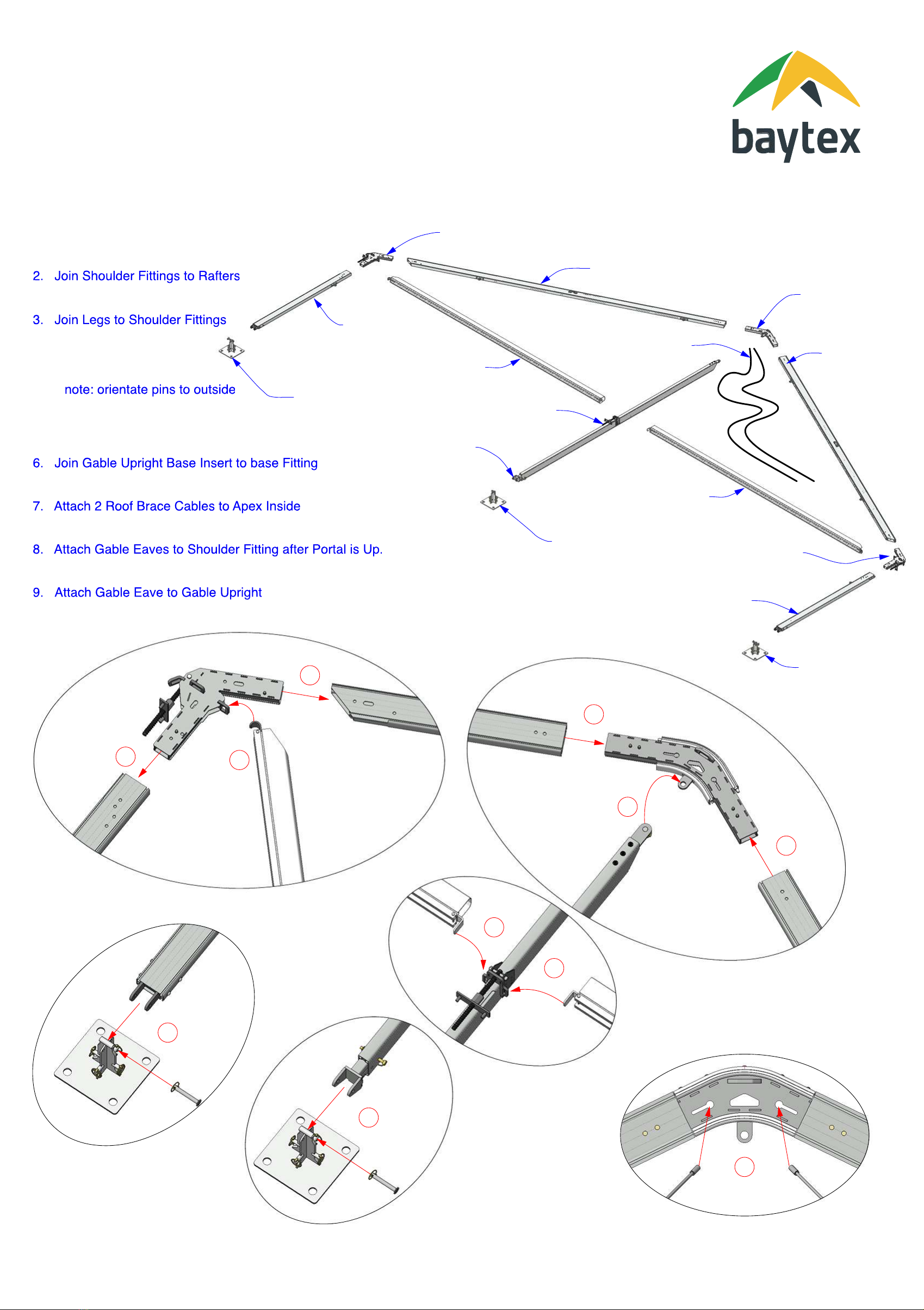

Gable End Frame Portal Assembly

21 Dec 2021

80.110.500 10m SQ Assembly Manual.vwx

Assemble Gable Portal

3. Join Legs to Shoulder Fittings

- Use Button Lock

1. Join Rafters to Apex Fitting

- Use Button Lock

2. Join Shoulder Fittings to Rafters

- Use Button Lock

4. Join Legs to Base Fitting

- Use Base Pin

note: orientate pins to outside

5. Join Gable Upright to Apex

- Use Lynch Pin

6. Join Gable Upright Base Insert to base Fitting

- Use Base Pin

7. Attach 2 Roof Brace Cables to Apex Inside

8. Attach Gable Eaves to Shoulder Fitting after Portal is Up.

- Rotate in

9. Attach Gable Eave to Gable Upright

10m SQ Rafter

80.510.01

SQ Apex Fitting

80.700

10m SQ Rafter

80.510.01

10m SQ Gable Eave Puriln

80.510.03

SQ 2.6m Leg

80.703

SQ Shoulder Fitting

80.701

10m SQ Gable Upright

80.510.02

SQ Gable Base Insert Fitting

80.711

SQ Base Fitting

80.716

SQ Base Fitting

80.716

SQ Base Fitting

80.716

SQ 2.6m Leg

80.703

SQ Shoulder Fitting

80.701

Roof Brace Cables

80.510.10

10m SQ Gable Eave Puriln

80.510.03

Table of contents

Other Baytex Tent manuals

Baytex

Baytex ALISPAN User manual

Baytex

Baytex ELECTRON 6m User manual

Baytex

Baytex 10m CLIPFRAME GABLE END User manual

Baytex

Baytex ELECTRON 6m User manual

Baytex

Baytex CLIPFRAME HIP END User manual

Baytex

Baytex ALISPAN User manual

Popular Tent manuals by other brands

OZTENT

OZTENT JV SIGNATURE EDITION owner's manual

GigaTent

GigaTent Summer Chalet Mini Tent owner's manual

Coleman

Coleman 2000007827 Setup instructions

ShelterLogic

ShelterLogic 107153 Assembly instructions

Outsunny

Outsunny 84C-230 manual

Napier

Napier SPORTZ COVE 61 Series instructions

EuroTrail

EuroTrail ATLANTIS PRO manual

Reimo

Reimo Marina instructions

TiiTENT

TiiTENT TB300 manual

Coleman

Coleman 2000033134 Assembly & instruction manual

Ozark Trail

Ozark Trail W784.1 Assembly instructions and owner's manual

SlingFin

SlingFin CrossBow 2 instructions

Coleman

Coleman 9600-141 instructions

Palram

Palram Arizona 5000 Wave - WINGS manual

COVERPRO

COVERPRO 56184 Owner's manual & safety instructions

Vango

Vango Zenith 100 instructions

Costway

Costway PATIOJOY OP70818 user manual

Clarke

Clarke PUC 88 Assembly guide
