Bayliner 2302 DXILX User manual

Hull Identification Number___________________________________________

Engine Serial Number _______________________________________________

Hull Identification Number:

The Hull Identification Number

(HIN) is located on the starboard

side of the transom. Record the

HIN and the engine serial number

in the space provided above. Refer

to the HIN for any correspondence

or orders.

No part of this publication may be reproduced, stored in any retrieval system, or transmitted

in any form by any means, electronic, mechanical, photocopying, recording or otherwise,

without prior written permission of Bayliner. Printed in the United States of America.

Changes

The material in this document is for information only and is subject to change without notice.

While reasonable efforts have been made in the preparation of this document to assure its ac-

curacy, Bayliner assumes no liability resulting from errors or omissions in this document, or

from the use of information contained herein.

Bayliner reserves the right to make changes in the product design, specifications, and equip-

ment at any time without notice or obligation.

Illustrations and/or photos may show optional equipment.

HIN LOCATION (TYPICAL)

HULL

NUMBER

IDENTIFICATION

TRANSOM

The information in this Owner’s Manual Supplement relates to 2000 & 2001

2302 DX/LX, 2352 DX/LX 2359, DX/LX Bayliner Trophy Fishing Boats.

Contents

Chapter 1: Welcome Aboard!

1Dealer Service

1Boating Experience

1Qualified Maintenance

2Special Care For Moored Boats

2Engine & Accessories

Guidelines

3Safety Standards

3Hazard Warning Symbols

Chapter 2: Specifications &

Features

42302FP

10 2352 FN Features and Systems

16 2359 FB Features and Systems

Chapter 3: General Systems

23 Electrical System

24 12-Volt DC Electrical System

24 Fuses and Circuit Breakers

24 Batteries

24 Battery Switch (2359 FB)

25 Battery Charger (2359 FB LX)

26 AC Electrical System (2359 FB)

26 Connecting to Shore Power

28 Propulsion

28 Engine

28 Bilge Blower

29 Fuel System

29 Fuel Fills and Vents

29 Fuel Filters

29 Oil Injection System (2302 FP)

30 Trim Tabs

30 Power Trim and Tilt

31 Navigation and

Communication Equipment

31 VHF Radio (LX only)

31 Compass

31 Lighting

31 Navigation Lights

32 AM/FM Cassette Stereo

32 Alcohol Stove

32 Refrigerator (2359 FB LX)

32 Bilge Pumps

33 Bilge Pump Testing

33 Checking for clogging debris:

33 Autofloat Switches

34 Fresh Water System

34 Water Pump (2359FB LX)

34 Raw Water System

34 Seacocks

35 Head System

35 Portable Head

35 Marine Head with Holding Tank

(LX Only)

35 Macerator (LX Option)

36 Fishwells

36 Bait Well System

37 Recirculation System

(2352 FN, 2302 FP)

38 Canvas Top Installation

(2302 FP, 2352 FN)

Chapter 4: Electrical Routings

39 2302 FP Electrical Routings

39 Deck Harness Routing

40 Hull Harness Routing

40 2352 FN Electrical Routings

40 Hull Harness Routing

41 Deck Harness Routing

42 2359 FB Electrical Routings

42 Hull Harness Routing

43 Battery Cable Routings

44 Forward Deck Harness Routing

44 Mid Deck Harness Routing

45 Aft Deck

45 AC Panel Routings

Chapter 5: Wiring Diagrams

46 2302 FP Electrical System

47 2352 FN Electrical System

48 2359 FB AC Electrical System

49 2359 FB DC Electrical System

Appendix A: Limited Warranty

50 What Is Not Covered

50 Other Limitations

50 Your Obligation

23’ Trophy •Owner’s Manual Supplement

Chapter 1: Welcome Aboard!

Welcome aboard! This owner’s manual supplement provides specific information

about your boat that is not covered in the owner’s manual. Please study the owner’s

manual and this supplement carefully, paying particular attention to Appendix A:

Limited Warranty in this supplement. Keep the owner’s manual and this supple-

ment on your boat in a secure, yet readily available place.

Dealer Service

Make sure you receive a full explanation of all systems from the selling dealer

before taking delivery of your boat. Your selling dealer is your key to service. If

you experience any problems with your new boat, immediately contact the selling

dealer. If for any reason your selling dealer is unable to help, you can call us direct

on our customer service hotline: 360-435-8957 or send us a FAX: 360-403-4235.

Boating Experience

If this is your first boat or if you are changing to a type of boat you are not familiar

with, for your own comfort and safety, you must obtain handling and operating

experience before assuming command of the boat.

Take one of the boating safety classes offered by the U.S. Power Squadrons or the

U.S. Coast Guard Auxiliary. For more course information, including dates and

locations of upcoming classes, contact the organizations directly:

•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet

at: http://www.usps.org

•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet

at: http://www.cgaux.org

Outside the United States, your selling dealer, national sailing federation or local

yacht club can advise you of local sea schools or competent instructors.

Qualified Maintenance

Failure to maintain your boat’s systems as designed could violate the laws in your

jurisdiction and will expose you and other people to the danger of bodily injury or

accidental death. Follow the instructions provided in the owner’s manual, this

owner's manual supplement, the engine owner’s manual and all accessory instruc-

tion sheets/manuals included in your boat’s owner’s packet.

CONTROL HAZARD! A qualified operator must be in control of the boat at all

times. DO NOT operate your boat while under the influence of alcohol or drugs.

WARNING!

2 Chapter 1: Welcome Aboard!

23’Trophy •Owner’sManual Supplement

Special Care For Moored Boats

If moored in saltwater or fresh water, your boat will collect marine growth on its

hull bottom. This will detract from the boat’s beauty, greatly affect its performance

and may damage the gelcoat. There are two methods of slowing marine growth:

•Periodically haul the boat out of the water and scrub the hull bottom with a bristle

brush and a solution of soap and water.

•Paint the hull below the waterline with a good grade of anti-fouling paint.

Engine & Accessories Guidelines

Your boat’s engine and accessories were selected to provide optimum performance

and service. Installing different engines or accessories will cause unwanted han-

dling characteristics. Should you choose to install different engines or add accesso-

ries that will affect the boat’s running trim, have an experienced marine technician

perform a safety inspection and handling test before operating your boat again.

Please be advised that certain modifications to your boat can result in cancel-

lation of your warranty protection. Always check with your dealer before mak-

ing any modifications to your boat.

The engine and accessories installed on your boat come with their own operation

and maintenance manuals. Read and understand these manuals before operating the

engine and accessories.

To maintain the integrity and safety of your boat, only qualified personnel

should perform maintenance on, or in any way modify: The steering system,

propulsion system, engine control system, fuel system, environmental control

system, electrical system or navigational system.

WARNING!

NOTICE

To help seal the hull bottom and reduce the possibility of gelcoat blistering on

moored boats, Bayliner recommends the application of an epoxy barrier coat-

ing, such as Interlux, Interprotect 2000E/2001E. The barrier coating should be

covered with several coats of anti-fouling paint.

Many states regulate the chemical content of bottom paints in order to meet

environmental standards. Check with your local Bayliner dealer about recom-

mended bottom paints, and about the laws in effect in your area.

NOTICE

When storing your boat refer to your engine’s operation and mainte-

nance manuals.

Chapter 1: Welcome Aboard! 3

23’Trophy •Owner’s Manual Supplement

Safety Standards

Your boat’s mechanical and electrical systems were designed to meet safety stan-

dards in effect at the time it was built. Some of these standards were mandated by

law; all of them were designed to insure your safety, and the safety of other people,

vessels and property.

In addition to this supplement, read the owner’s manual and all accessory

instruction sheets included in your owner’s packet for important safety standards

and hazard information.

Hazard Warning Symbols

The hazard warning symbols shown below are used throughout this supplement

to call attention to potentially dangerous situations which will lead to either

personal injury or product damage. Read these warnings carefully and follow

all safety instructions.

DANGER

PERSONALSAFETYHAZARD! DO NOT allow anyone to ride on

parts of the boat not designated for such use. Sitting on seat

backs, lounging on the forward deck, bow riding, gunwale riding

or occupying the transom platform while underway is especially

hazardous and WILL cause personal injury or death.

DANGER!

DANGER

This symbol alerts you to immediate hazards which WILL cause severe per-

sonal injury or death if the warning is ignored.

DANGER!

This symbol alerts you to hazards or unsafe practices which COULD result in

severe personal injury or death if the warning is ignored.

WARNING!

CAUTION!

This symbol alerts you to hazards or unsafe practices which COULD result in

minor personal injury or cause product or property damage if the warning is

ignored.

NOTICE

This symbol calls attention to installation, operation or maintenance informa-

tion, which is important to proper operation but is not hazard related.

EXPLOSION

HAZARD!

HOT

HAZARD! ROTATING

PROPELLER HAZARD!

PERSONAL INJURY

& FALLING HAZARD!

OPEN FLAME

HAZARD!

ELECTRICAL

HAZARD!

23’Trophy •Owner’s Manual Supplement

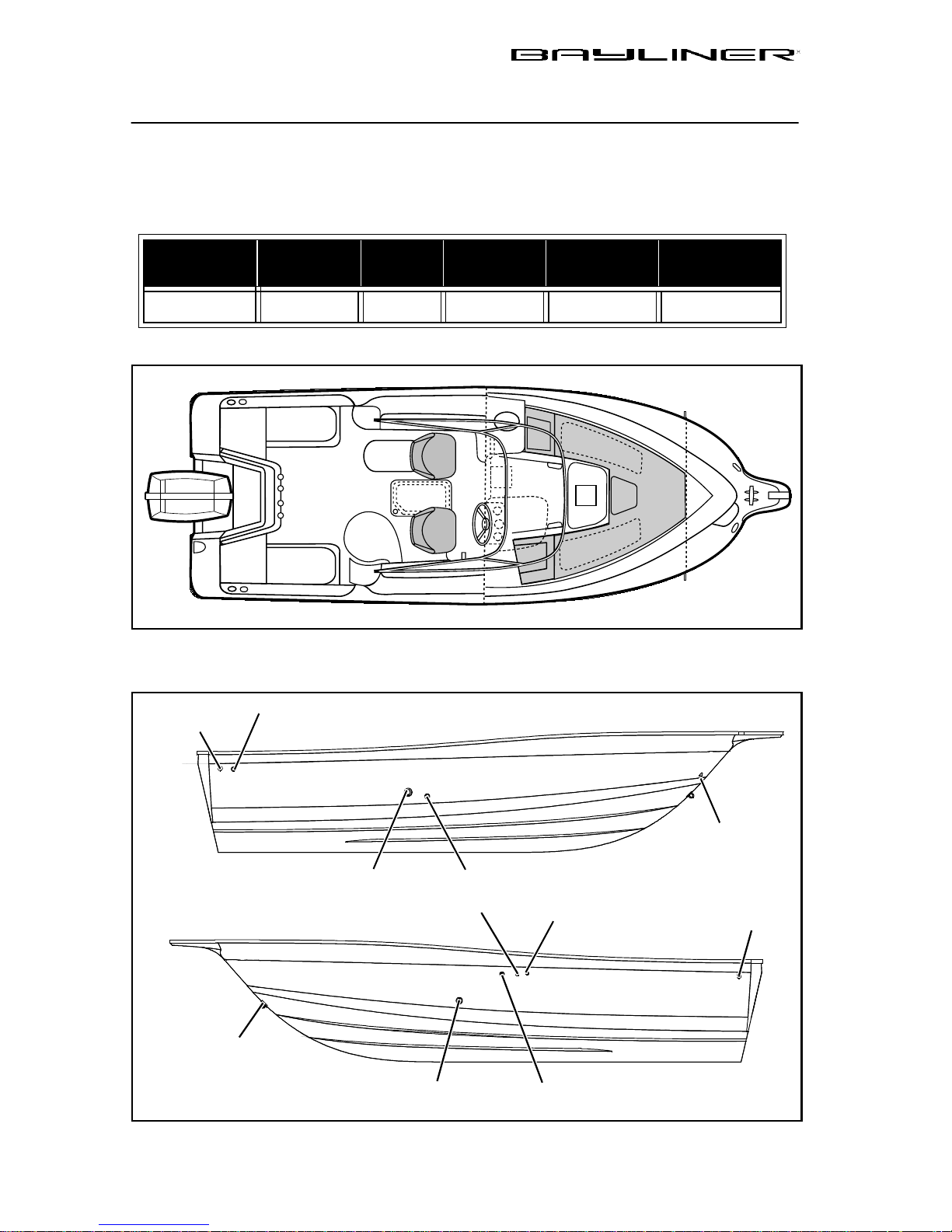

Chapter 2: Specifications & Features

2302FP

Dimensions and Tank Capacities

Layout View

Hull Exterior Drains & Hardware

Overall

Length Bridge

Clearance Beam Draft

(Drive Up) Water

Capacity Fuel Tank

Capacity

23’5" 7’11" 8’5" 1’7" 8 gal. 101 gal.

fish lockerfish well

bucket

seat

bucket

seat

stepstep

rope

locker

rope

locker

bucket

seat

bucket

seat

fish lockerfish well

storage

table

stepstep

live

well

bait

well

cooler

galley

fuel

fill

fuel

fill

coaming caps

jump

seat

jump

seat

jump

seat

jump

seat

BILGE PUMP

DRAIN FISHWELL

DRAIN

BAITWELL DECK

DECK

FISHWELL

DRAIN

WASTE TANK

VENT (OPTION)

WATER TANK

VENT

DRAIN SINK

DRAIN

DRAIN DRAIN

BOW

EYE

ANCHOR

LOCKER

DRAIN

Other manuals for 2302 DXILX

This manual suits for next models

Table of contents

Other Bayliner Boat manuals

Bayliner

Bayliner Trophy 1703FS User manual

Bayliner

Bayliner 300 CRUISER Configuration guide

Bayliner

Bayliner Capri Configuration guide

Bayliner

Bayliner 4788 User manual

Bayliner

Bayliner Capri 16' Configuration guide

Bayliner

Bayliner Ciera User manual

Bayliner

Bayliner 255 Cruiser User manual

Bayliner

Bayliner 1995 3288 User manual

Bayliner

Bayliner Lateriser Instruction Manual

Bayliner

Bayliner 305 User manual

Bayliner

Bayliner 1994 4788 Motoryacht User manual

Bayliner

Bayliner 288 Classic User manual

Bayliner

Bayliner 1995 Ciera User manual

Bayliner

Bayliner 249 Configuration guide

Bayliner

Bayliner E21 User manual

Bayliner

Bayliner 2252 Clasic Cruiser User manual

Bayliner

Bayliner 197 User manual

Bayliner

Bayliner 3488 User manual

Bayliner

Bayliner DX2000 User manual

Bayliner

Bayliner 3388 Configuration guide

Bayliner

Bayliner 212 Runabout Configuration guide

Bayliner

Bayliner 185 User manual

Bayliner

Bayliner 185 User manual

Bayliner

Bayliner 285 Cruiser User manual

Popular Boat manuals by other brands

Raymarine

Raymarine ST70 Instrument User reference handbook

Pro-Line Boats

Pro-Line Boats Pro Line 19 Sport owner's manual

Jeanneau

Jeanneau CAP CAMARAT 8.5 CC owner's manual

Tiara Yachts

Tiara Yachts C49 2024 owner's manual

Monterey Boats

Monterey Boats Sport Yacht 330 owner's manual

J 105 owner's manual

PURSUIT

PURSUIT OS 335 owner's manual

Boston Whaler

Boston Whaler CONQUEST 345 owner's manual

Jeanneau

Jeanneau SUN ODYSSEY 41 DS owner's manual

Meridian

Meridian 490 Pilothouse owner's manual

Advanced Elements

Advanced Elements AdvancedFrame Expedition AE1009 owner's manual

Robo Marine Indonesia

Robo Marine Indonesia GEOMAR user manual

Swallow Boats

Swallow Boats BayRaider owner's manual

Intex

Intex Excursion 5 Set manual

X SHORE

X SHORE EELEX 8000 owner's manual

ISLAND PACKET

ISLAND PACKET 370 owner's manual

Sea Ray

Sea Ray 175 Sport owner's manual

Regal

Regal 2300 owner's manual
