Baumatic P37SS User manual

P37SS

Cooker Hood

User Manual for your Baumatic

P37SS

Cooker Hood

90cm Cooker Hood

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 17/04/13

Contents Page

Environmentalnote 4

IMPORTANT SAFETY INFORMATION 5 – 7

Specifications of your cooker hood 8 - 9

Using your Baumatic cooker hood 9 - 10

Thecontrolpanel 9

Switching the cooker hood on and setting the fan speed 9 - 10

Thecutofftimer 10

Cleaning your Baumatic cooker hood 11 - 12

The grease filters 11 - 12

Maintenance 12 - 15

Removing and cleaning the grease filter 12 - 13

Changingalightbulb 13-14

Fitting the carbon filter 15 - 16

Installation 16 - 25

Electricalconnection 17

Before beginning installation 18

Extraction mode or recirculation mode? 19

Installing your cooker hood 19 - 22

Connecting to external ducting 22

Fitting the chimney 23 – 25

Completing the installation 25

Troubleshooting 26 - 27

Contactdetails 28

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any

plug useless. Cut the cable off directly behind the appliance to

prevent misuse. This should be undertaken by a competent

person.

CONFORMITY TO W.E.E.E. DIRECTIVE

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Baumatic Advice Line.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

oThe hood must be installed in accordance with the installation

instructions and all measurements followed.

oIf the cooker hood is installed for use above a gas appliance then

the provision for ventilation must be in accordance with the Gas

Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural

Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &

Use) Regulations, the Building Regulations issued by the

Department of the Environment, the Building Standards

(Scotland) (Consolidated) Regulations issued by the Scottish

Development Department.

oIt is dangerous to alter the specifications or to modify this

product. Do not tamper with it or attempt to modify the

appliance in any way.

oWhen installing the hood, ensure that the following

recommended distances are observed between the highest point

on the hob top (including the burners) and the bottom of the

cooker hood:

Electric cookers: 700 mm

Gas cookers: 700 mm

Coal/ oil cookers: 800 mm

IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS

THAN 700mm ABOVE YOUR COOKER.

oWhen installed between adjoining wall cabinets, the cabinets

must not overhang the hob.

oThe edges of the cooker hood are sharp – be mindful of this as

you handle your appliance, especially during installation and

cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!

oIf the room where the cooker hood is to be used contains a fuel

burning appliance such as a central heating boiler then its flue

must be of the sealed or balanced flue type.

oIf other types of flue or appliances are fitted, ensure that there is

an adequate supply of air in the room.

oWhen the hood is being used in its extractor function, ensure

that the ducting is fire retardant and that there are no bends

sharper than 90 degrees as this will reduce the efficiency of the

hood.

oEnsure the ducting for the extractor function has the same

diameter as the outlet hole all the way through.

oKeep young children from using, playing with

or tampering with the cooker hood. Older

children and infirm persons should be

supervised if they are using the cooker hood.

oYour cooker hood is for domestic use only.

oPlease dispose of the packing material carefully – children are

especially vulnerable to it.

oDirty oil is an even greater fire risk.

oAlways put lids on pots and pans when cooking

on a gas cooker.

oThe manufacturer refuses to accept any responsibility for

damages arising to the hood or it catching on fire, from a failure

to observe the fire safety advice contained in this instruction

booklet.

oRemember that when in extraction mode, your cooker hood is

removing air from your room. Ensure that proper ventilation

measures are being observed.

oNote: Your cooker hood is designed to remove cooking

odours from the room and not steam.

oWarning - Always ensure that the cooker

hood has been disconnected from the

power supply before carrying out any work

on the hood, including replacing light bulbs.

oDo not connect the ducting system of this appliance to any

existing ventilation system which is being used for any other

purpose.

oDo not install above a cooker with a high level grill.

oNever leave frying pans unattended during use

as overheated fats and oils might catch fire.

oThe lights on this appliance should only be used during operation

of the cooker hood. They should not be left on permanently and

used as a lighting source.

oThe cooker hood should not be exposed to a direct heat source

from the cooking device underneath it, i.e. a naked flame from a

gas burner or heat from electric hob zones without a pan on

them.

oDo not attempt to use the cooker hood if it is damaged in any

way. Never attempt to use it without the grease filters fitted or

if the filters are excessively greasy!

oNever flambé cook under this cooker hood.

THE MANUFACTURER DECLINES ALL

RESPONSIBILITY IN THE EVENT OF FAILURE TO

OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR

INSTALLATION, MAINTENANCE AND SUITABLE

USE OF THE HOOD.

Specifications of your cooker hood

Congratulations on purchasing a Baumatic cooker hood!

PRODUCT DIMENSIONS

Height: 595 - 1075 mm

Width: 900 mm

Depth: 500 mm

DIMENSIONS OF CHIMNEY SECTION:

Width: 375 mm

Depth: 271 mm

Your cooker hood is fitted with:

oTouch control operation

o3 Speeds

o1 x Metallic grease filter

o2 x LED lights

oExtraction capacity: 1000 m³/hr

oOptional extras: 1 x pair S1 Carbon filters required for

recirculation

* If you are using the appliance in recirculation mode, then PLEASE

NOTE that some of the vent in the upper chimney section must be

exposed. You will have to take this into account when calculating the

minimum height of the cooker hood when installed.

Using your Baumatic cooker hood

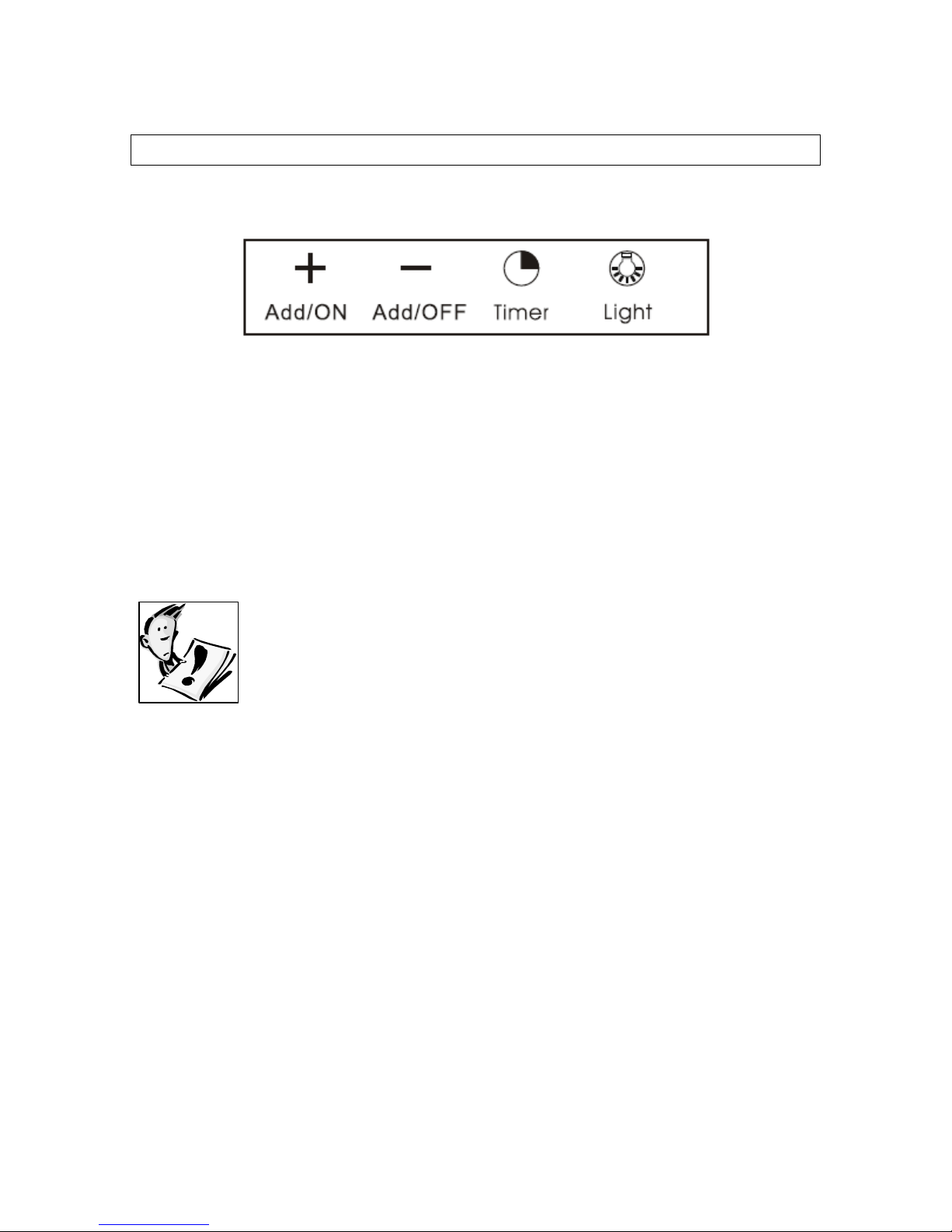

The control panel

oMake sure that it has been installed by a suitably qualified

person, as per the information contained in Baumatic’s

installation instructions.

oFind the control panel, which is located in the middle of the

canopy.

oThere are several buttons on the control panel, which perform

separate functions.

IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR

HOOD TEN MINUTES BEFORE YOU START TO COOK.

OR AT THE VERY LEAST WHEN YOU BEGIN COOKING.

YOU SHOULD ALSO RUN YOUR HOOD FOR TEN

MINUTES AFTER YOU HAVE FINISHED COOKING.

Switching the cooker hood on and setting the fan speed

oWhen the cooker hood is connected to the power supply, it will

enter stand-by mode.

oTo switch the lights on, press the Light button.

oIf you press the Add/ON button, the cooker hood will switch on

and the motor will run on low speed.

oTo increase the speed that the motor is running at, press the

Add/ON button.

oThe cooker hood has three operating speeds, low, medium and

high.

oTo decrease the speed that the motor is running at, press the

Add/OFF button.

oTo switch the lights off, press the Light button again.

oTo switch the cooker hood off, press the Add/OFF button several

times until the motor stops running.

The cut off timer

oWhilst the cooker hood is in use, if you press the timer button

once the hood will run for 5 minutes and then cut off.

oIf you press the timer button twice, then the hood will run for 10

minutes and then cut off.

oIf you press the timer button three times, then the hood will run

for 15 minutes and then cut off.

oIf you continue to press the timer button, then the cooker hood

will cycle through the three countdown times again.

oIt is useful to use this feature when you have finished cooking.

You can press the timer button and the hood will run on to

extract any remaining odours and then switch itself off without

you needing to return to the kitchen.

IMPORTANT: IDEALLY YOU SHOULD SWITCH ON

YOUR HOOD TEN MINUTES BEFORE YOU START TO

COOK, OR AT THE VERY LEAST WHEN YOU BEGIN

COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR

TEN MINUTES AFTER YOU HAVE FINISHED COOKING.
