Bathology Spectrum 510 User manual

BATHOLOGY

Spectrum 510

Color Bathing Experience

Installation and Operation Manual

rediscover bathing

Spectrum 510

ContentsContents

Installation ConsiderationsInstallation Considerations ---------------------------------------------

Installation - OverivewInstallation - Overivew --------------------------------------------------

Installation - DMX Driver / Power SupplyInstallation - DMX Driver / Power Supply ----------------------------

Installation - Touch InterfaceInstallation - Touch Interface ------------------------------------------

Installation - Brilliance Light FixtureInstallation - Brilliance Light Fixture -----------------------------------

OperationOperation ----------------------------------------------------------------

Product CareProduct Care -------------------------------------------------------------

Replacement PartsReplacement Parts -------------------------------------------------------

SpecificationsSpecifications ------------------------------------------------------------

TroubleshootingTroubleshooting ---------------------------------------------------------

NotesNotes ---------------------------------------------------------------------

1010

1414

1616

1818

2121

BATHOLOGY

Carefully review all

installation options and instructions

before proceeding.

For safety purposes, use

safety goggles at all times.

Before wiring to power

supply, turn off electricity at the fuse or

circuit breaker box.

Check for piping /

electrical before cutting or drilling.

Some electrical

components are not waterproof.

If there is any risk of

uninsulated electrical connections in

your wall / ceiling area, use insulating

gloves.

All wiring must be done in

accordance with National Electric Code

and local building code.

Prior to installation,

consider the placement carefully, taking

into account the location of electrical,

plumbing, and other fixtures.

Touch Interface can be

installed outside of a wet environment,

on a vertical wall, convenient for user

operation. It can be installed a dry

bathing environment 48” above the

floor maximum. It must also avoid

elements such as direct water and

steam emissions.

Installation ConsiderationsInstallation Considerations

Please read this manual in its entirely prior to installationPlease read this manual in its entirely prior to installation

! IMPORTANT

Spectrum 510

Installation - OverviewInstallation - Overview

Package Includes

Item Quantity Description

A 1 DMX Driver

B 1 Touch Interface

C 1 Power Supply, 12VDC

D 1 Power Supply Connector, 50’

E 1 DMX IN Cable, 50’

F 1 Cat6 Cable, 1’

Item Quantity Description

G 1 RJ-45 Splitter

H 1 Cat6 Cable, 25’

I 1 Brilliance 410 Light Fixture

J 1 16” Location Templates

K 1 DMX Power Supply, 48VDC

1Silicone Sealant, 1 oz tube

DMX Driver

Accessible, Dry Location Desired Interface

Location

Desired Light Locations

Touch Interface

16” Location

Templates

Cat6 Cable, 1’

RJ-45

Splitter

Cat6 Cable,

25’

Power Supply,

12VDC

Ground 120VAC, 15

Amp Duplex Outlet

NOTE: Do not install Touch Interface

inside wet environment.

NOTE: Both ends of splitter must be

used, if a splitter is used. Lights are in

series and will not illuminate if a Splitter

port is left open. Exclude Splitter and

Cat6 Cable, 1’ if only one light will be

used in a particular zone / port.

Power Supply

Connector, 50’

DMX IN

Cable, 50’

Brilliance 410

Light Fixture

DMX Power

Supply, 48VDC K

NOTE: It is recommended that all electrical

equipment be tested prior to installation.

NOTE: Do not hot swap any electrical

components. Fully disconnect system from

power source before swapping electrical

components.

1 2

BATHOLOGY

DMX Driver

DMX Power

Supply

Port 2

Port 3

48VDC

DMX Out

48VDC

DMX In

DMX First Power

Supply Input

DMX Second Power

Supply Input

120VAC Power In

Port 1

Port 4

DMX IN

Installation for 1-24 Lights Dip Switches

Installation - DMX Driver / Power SupplyInstallation - DMX Driver / Power Supply

Brilliance lights run on 350mA. Ensure

that Dip switch 1 and 2 are both in the

down position at 350mA.

1 12 2

200mA

250mA

300mA

350mA

1. Determine best location for

DMX Driver (A) and DMX Power

Supply (K), making note of cord

lengths.

2. Using a screwdriver fully loosen

the 48VDC Output + and – on

power supply (K) and 48VDC

Input + and – on the DMX driver

(A).

3. Connect the Red wire to the +

Output on the power supply (K)

and the other end to the + Input

on the DMX driver (A).

4. Connect the Black wire to the -

Output on the power supply (K)

and the other end to the - Input

on the DMX driver (A).

1 2

Spectrum 510

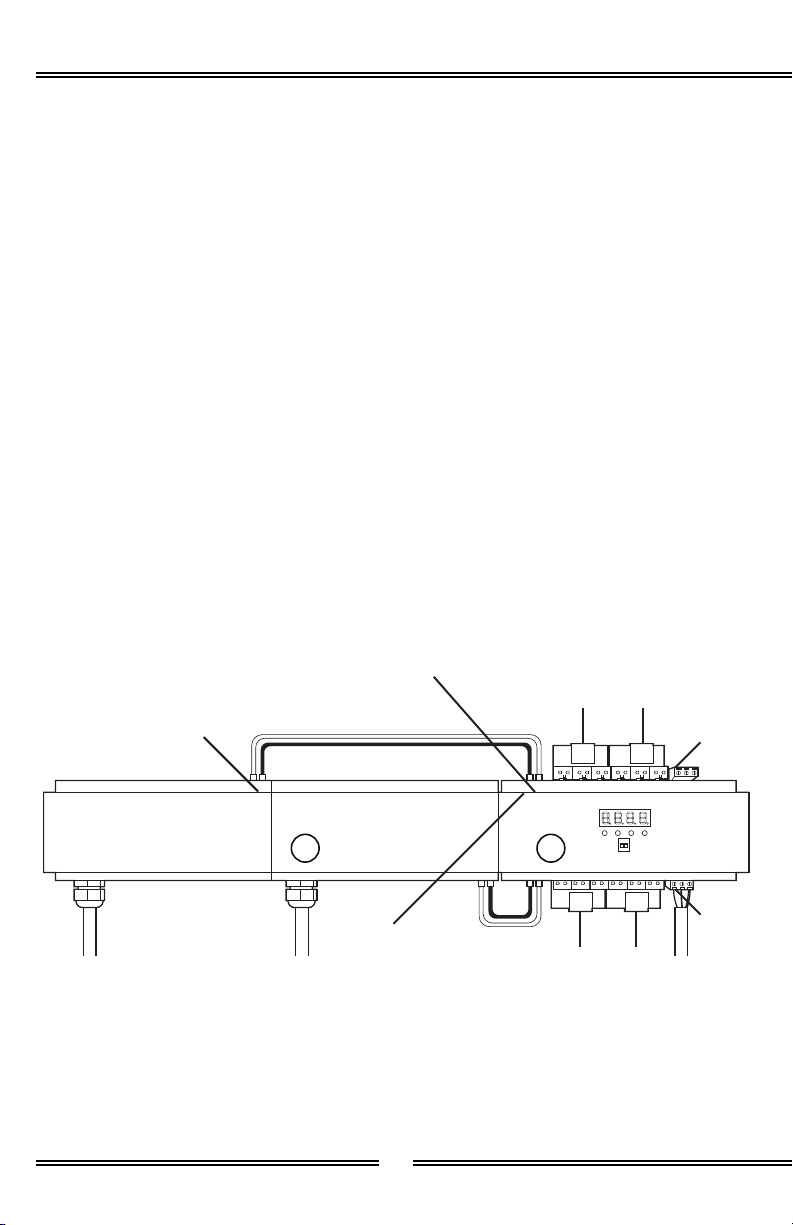

Additional Power Supply for 25 - 48 Lights

Installation - DMX Driver / Power Supply (Continued)Installation - DMX Driver / Power Supply (Continued)

DMX Driver

DMX Power

Supply

Port 2

Port 3

48VDC

DMX Out

48VDC

DMX In

DMX Second Power

Supply Input

120VAC Power In

Port 1

Port 4

DMX IN

1. Follow and complete installation

for 1-24 lights.

2. Mount power supply (K) next to

first power supply (K).

3. Using a screwdriver fully loosen

the 48VDC Output + and – on

power supply (K) and 48VDC

Input + and – on the DMX driver

(A).

4. Connect the Red wire to the +

Output on the power supply (K)

and the other end to the + Input

on the DMX driver (A).

5. Connect the Black wire to the -

Output (K) on the power supply

and the other end to the - Input

on the DMX driver (A).

BATHOLOGY

Touch Interface

Screwdriver

Loosen

Orange 4 Screw

Terminal Block

6 Screw

Terminal Block

Silicone after

wiring

Tape

Installation - Touch InterfaceInstallation - Touch Interface

1. Determine the desierd location

for the Touch Interface (B),

making note of the cord lenghts.

2. Cut a 1-1/2”W x 2-13/32” H

hole in desired location for the

Touch Interface (B).

3. Install a standard single gang

electrical box in an accessible

dry location.

4. Run a grounded 120VAC

from the power supply to

the accessible dry location’s

electrical box.

5. Run the DMX IN Cable (E) wires

and the Power Supply Connector

(D) wires to the Touch Interface’s

(B) hole cutout.

6. Remove orange 4 screw terminal

block and 7 screw terminal block

from respective pin terminals.

7. Using a screwdriver, fully loosen

the “GND”, “D-”, and “D+”

sections of the orange 4 screw

terminal, and “GND”, and “V in

+” of the 7 screw terminal.

8. Connect the DMX IN Cable (E)

GND to the “GND” orange 4

screw terminal block.

9. Connect the DMX IN Cable (E)

Red D- to the “D-” orange 4

screw terminal block.

10. Connect the DMX IN Cable (E)

Black + to the “D+” orange 4

screw terminal block.

Spectrum 510

11. Connect the Power Supply

Connector (D) White - to the

“GND” 7 screw terminal block.

12. Connect the Power Supply

Connector (D) Black + to the “V

in +” 7 screw terminal block.

13. Using a screw driver, tighten

the “GND”, “DMX -”, “DMX +”,

sections of the 4 screw terminal,

and “GND”, and “V in +” of the

7 screw terminal.

14. Insert orange 4 screw terminal

block and 7 screw terminal

block into their respective pin

terminals.

15. Remove DMX Driver’s (A) DMX

IN screw terminal block from pin

terminal.

16. Connect the DMX IN Cable (E)

Ground to the DMX Driver’s (A)

DMX IN screw terminal block’s

“GND”.

17. Connect the DMX IN Cable (E)

Red to the DMX Driver’s (A) DMX

IN screw terminal block’s “D-”.

18. Connect the DMX IN Cable (E)

Black to the DMX Driver’s (A)

DMX IN screw terminal block’s

“D+”.

19. Using a screwdriver, tighten the

“GND”, “D-”, and “D+” sections

of the DMX IN screw terminal

block.

20. Insert DMX IN screw terminal

block into its pin terminal.

Installation - Touch Interface (Continued)Installation - Touch Interface (Continued)

21. Test light system prior to

mounting Touch Interface (B)

to wall. Verify connections are

secure and working properly.

22. Apply a 1/8” bead of silicone

around the back of the Touch

Interface (B).

23. Peel off tape and mount Touch

Interface (B) to hole cutout area.

24. Apply a 1/8” of silicone around

the edge of the mounted Touch

Interface (B) as required to form

a water tight seal.

25. Allow silicone to cure for 24

hours before exposing product

to any source of moisture.

BATHOLOGY

Installation - Touch Interface (Continued)Installation - Touch Interface (Continued)

Touch Interface

DMX Out

Screw Terminal (Orange)

Power In

Screw Terminal

GND V+

V in +

GND

D+ R

D+ G

D- W

Black D+

Black +

Black D+D+

GroundGND

Red D-

White -

Red D-D-

Power Supply

Connector, 50’

DMX IN

Cable, 50’

Ground

Spectrum 510

Installation - Brilliance Light FixturesInstallation - Brilliance Light Fixtures

1. Determine number of lights per

port. Limit 12 lights per port.

2. Construct light assembly using

the diagrams on the next page.

3. Repeat steps 1 and 2 for

additional zones.

4. Determine desired Brilliance

Light Fixture (I) location.

Warning:Warning: The Splitters (G) should be

kept in an accessible location when

installed. Only use the Splitters (G)

when assembling the Brilliance Light

Fixtures (I) and ocmponents of this kit.

Important:Important: Driver has 4 ports. Each

port operates 1212 lights max. Take this

into consideration when planning light

installation.

RJ-45

Splitter

OUT

IN Supports:

- Cable, 1’ (F)

(Comes from DMX Driver)

OUT Supports:

- Cable, 1’ (F)

- Cable, 25’ (H)

(Goes toward Lights)
