Barco MDCG-5121 User manual

Coronis 5MP

User Guide

MDCG-5121

B4100592/03

05/08/2014

Barco nv

President Kennedypark 35, 8500 Kortrijk, Belgium

Phone: +32 56.23.32.11

Fax: +32 56.26.22.62

Support: www.barco.com/esupport

Visit us at the web: www.barco.com

PrintedinBelgium

1. Welcome!

1. WELCOME!

1.1 About the product

Overview

The high-grade Coronis 5MP display system offers unsurpassed ﬁlm-like images with ultra-high resolution,

luminance and contrast . The 21.3” LCD provides unequaled image quality without pixelization, a wide

viewing angle and perfect geometry.

Building on proven technology, Coronis 5MP provides ultimate precision and performance while main-

taining the highest brightness and contrast. The advanced 10-bit architecture ensures accurate image

representations with 1024 simultaneous shades of gray out of a palette of 4096.

CAUTION:Read all the important safety information before installing and operating your

Coronis 5MP. Please refer to the dedicated chapter in this user guide.

1.2 What’s in the box

Overview

Your Coronis 5MP comes with:

• the display

• a system tilt and swivel foot

• this Coronis 5MP user guide

• a system CD

• a DisplayPort cable

•aDVIcable

•anUSBcable

•anACpowercord

• an external power supply

If you ordered a Barco display controller, it’s also in the box together with its accessories. A dedicated

user guide is available on the system CD.

Keep your original packaging. It is designed for this display and is the ideal protection

during transport and storage.

B4100592 CORONIS 5MP 05/08/2014 1

1. Welcome!

2B4100592 CORONIS 5MP 05/08/2014

2. Parts, controls and connectors

2. PARTS, CONTROLS AND

CONNECTORS

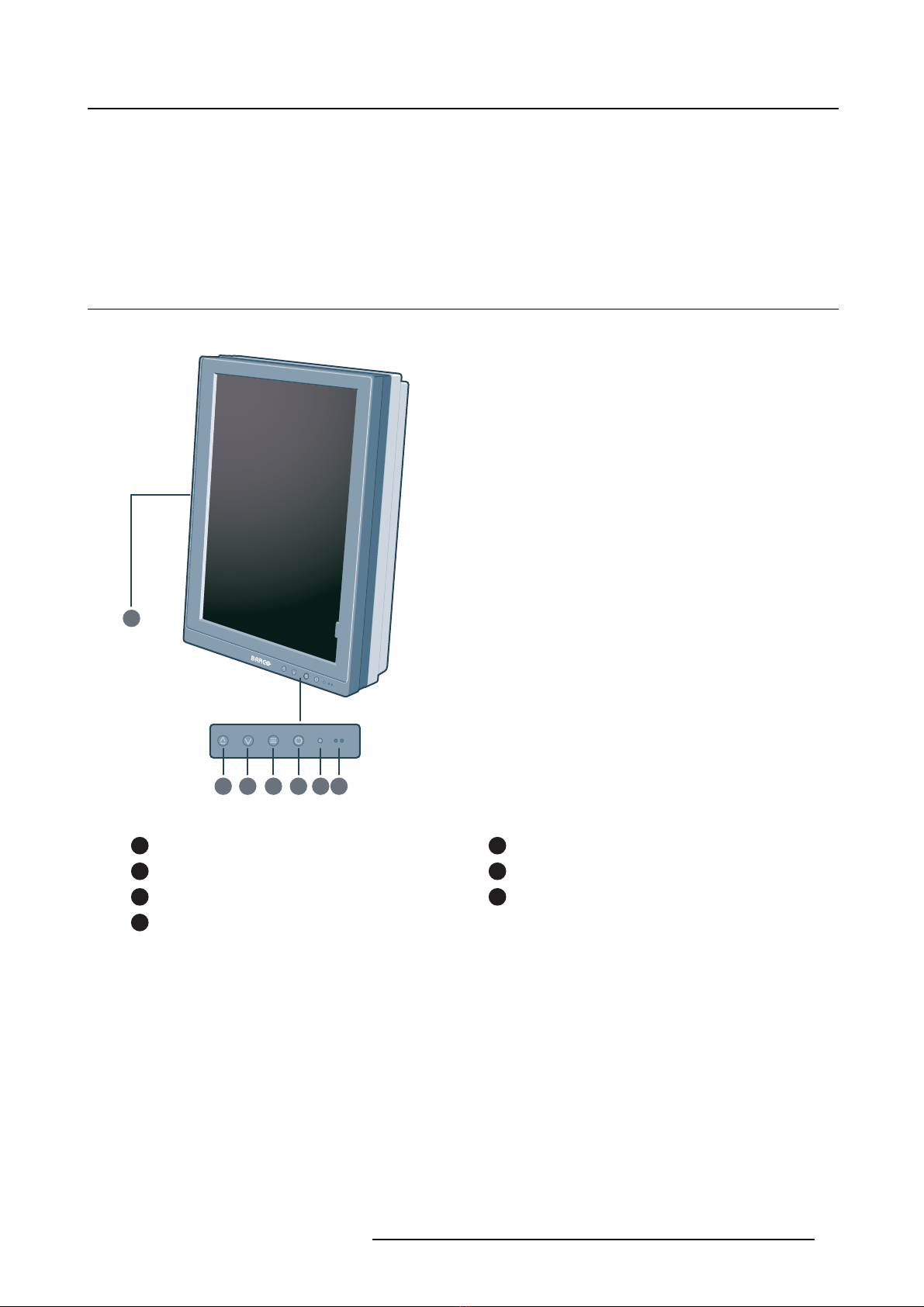

2.1 Display front view

Overview

1 2 3 4 5 6

Image 2-1

Front view

1I-Luminate/Left key 2Right key

3Menu key 4Power on/off key

5Ambient light sensor 6Power LEDs

7Side downstream USB 2 & 3

B4100592 CORONIS 5MP 05/08/2014 3

2. Parts, controls and connectors

2.2 Display rear view

Connector compartment cover closed

12 3

Image 2-2

Rear view cover closed

1Connector compartment cover 2Display release button for portrait position

3Mounting anchor 4Display release button for landscape position

Connector compartment cover open

Image 2-3

Rear view cover open

524 Vdc power input 6+5 Vdc, 0.5 A power output

7Display Port video input 8DVI video input

9Ethernet connection (see note below) 10 USB upstream

11 USB downstream 1

4B4100592 CORONIS 5MP 05/08/2014

2. Parts, controls and connectors

The Ethernet connection is used for maintenance purposes and is not supported for

user application.

2.3 Foot

Single foot

Image 2-4

1Tilt & Swivel neck cover 2Cable duct covers

Dual foot

Image 2-5

Dual tilt and swivel foot

1Cable cover 2Left & right arm cover

3Foot lock clip (behind cable cover) 4Display positioning sliders

B4100592 CORONIS 5MP 05/08/2014 5

2. Parts, controls and connectors

6B4100592 CORONIS 5MP 05/08/2014

3. Display installation

3. DISPLAY INSTALLATION

Prior to installing your Coronis 5MP and connecting all necessary cables, make sure to

have a suitable display controller physically installed in your computer. If you are using

a Barco display controller, please consult the user guide delivered with it to do this.

3.1 Mounting the displays

WARNING:Do not change the display orientation by turning the panel when it is

mounted on its stand.

To change from landscape to portrait or the other way around, remove the panel from

its stand and use the appropriate mounting hooks as described above.

Using the single tilt & swivel foot (portrait orientation)

1. Unpack the single tilt & swivel foot and place it on a solid surface.

2. Unpack the display.

3. Hook the top gaps in the rear of the panel over the top anchors of the stand attachment plate (1).

4. Push the bottom of the panel ﬁrmly towards the stand so that the bottom anchors clip in the bottom

gaps (2).

5. Check that the panel is ﬁrmly attached to the stand.

6. Tilt and swivel the panel to the desired position and angle.

B4100592 CORONIS 5MP 05/08/2014 7

3. Display installation

Using the single tilt & swivel foot (landscape orientation)

1. Follow the same steps as for the portrait installation but hold the display in landscape position to hook

the panel on the foot.

To release the panel from the display foot:

1. Push the push-button (3) at the rear of the panel.

8B4100592 CORONIS 5MP 05/08/2014
