Barco TLD User manual
BARCOPROJECTION
TLD (1.2:1) LENS KIT
R9840770
INSTALLATION MANUAL
20062002 R5976220/01
Barco nv Intelligent Displays
Noordlaan 5, 8520 Kuurne
Phone: +32 56.36.82.11
Fax: +32 56.35.86.51
E-mail: [email protected]
Visit us at the web: www.barco.com
Printed in Belgium
Copyright ©
All rights reserved. No part of this document may be copied, reproduced or translated. It shall not otherwise be recorded, transmitted or
stored in a retrieval system without the prior written consent of BARCO.
Changes
Barco provides this manual “as is” without warranty of any kind, either expressed or implied, including but not limited to the implied war-
ranties or merchantability and fitness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the
program(s) described in this publication at any time without notice.
This publication could contain technical inaccuracies or typographical errors. Changes are periodically made to the information in this
publication; these changes are incorporated in new editions of this publication.
Trademarks
Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their respective holders.
All brand and product names mentioned in this manual serve as comments or examples and are not to be understood as advertising for
the products or their manufactures.
Revision Sheet
To:
Barco nv Intelligent Displays
Noordlaan 5, 8520 Kuurne
Phone: +32 56.36.82.11, Fax: +32 56.35.86.51
From:
Date:
Please correct the following points in this documentation (R5976220/01):
page wrong correct
R5976220 TLD (1.2:1) LENS KIT 20062002
Table of contents
TABLE OF CONTENTS
1. TLD (1.2:1)Lens Kit................................................................................................ 3
1.1 KitContents............................................................................................................................ 3
1.2 Removingtheinstalled lens ........................................................................................................... 3
1.3 Installingthenewlens................................................................................................................. 4
1.4 Focusingthelens...................................................................................................................... 5
1.5 Lens Formulas ......................................................................................................................... 6
1.6 Cleaning the lens....................................................................................................................... 7
R5976220 TLD (1.2:1) LENS KIT 20062002 1
Table of contents
2R5976220 TLD (1.2:1) LENS KIT 20062002
1. TLD (1.2:1) Lens Kit
1. TLD (1.2:1) LENS KIT
1.1 Kit Contents
Kit Contents
Contents
• TLD (1.2:1) Lens.
• Installation Manual.
• TorayseeTM Cloth.
1.2 Removing the installed lens
What has to be done?
Removing the installed lens on the SLM series projector.
Necessary Tools
No tools necessary.
Risk of personal injury. Instructions for lens installation must be followed thoroughly.
How to remove the installed lens?
To remove the lens, follow the next procedure:
1. Support the lens with one hand. (image 1-1)
2. Move the handle of the lens anchor system to the left. (image 1-2)
3. Take the lens unit out of the lens block. (image 1-3)
Image 1-1
Support the lens with one hand
R5976220 TLD (1.2:1) LENS KIT 20062002 3
1. TLD (1.2:1) Lens Kit

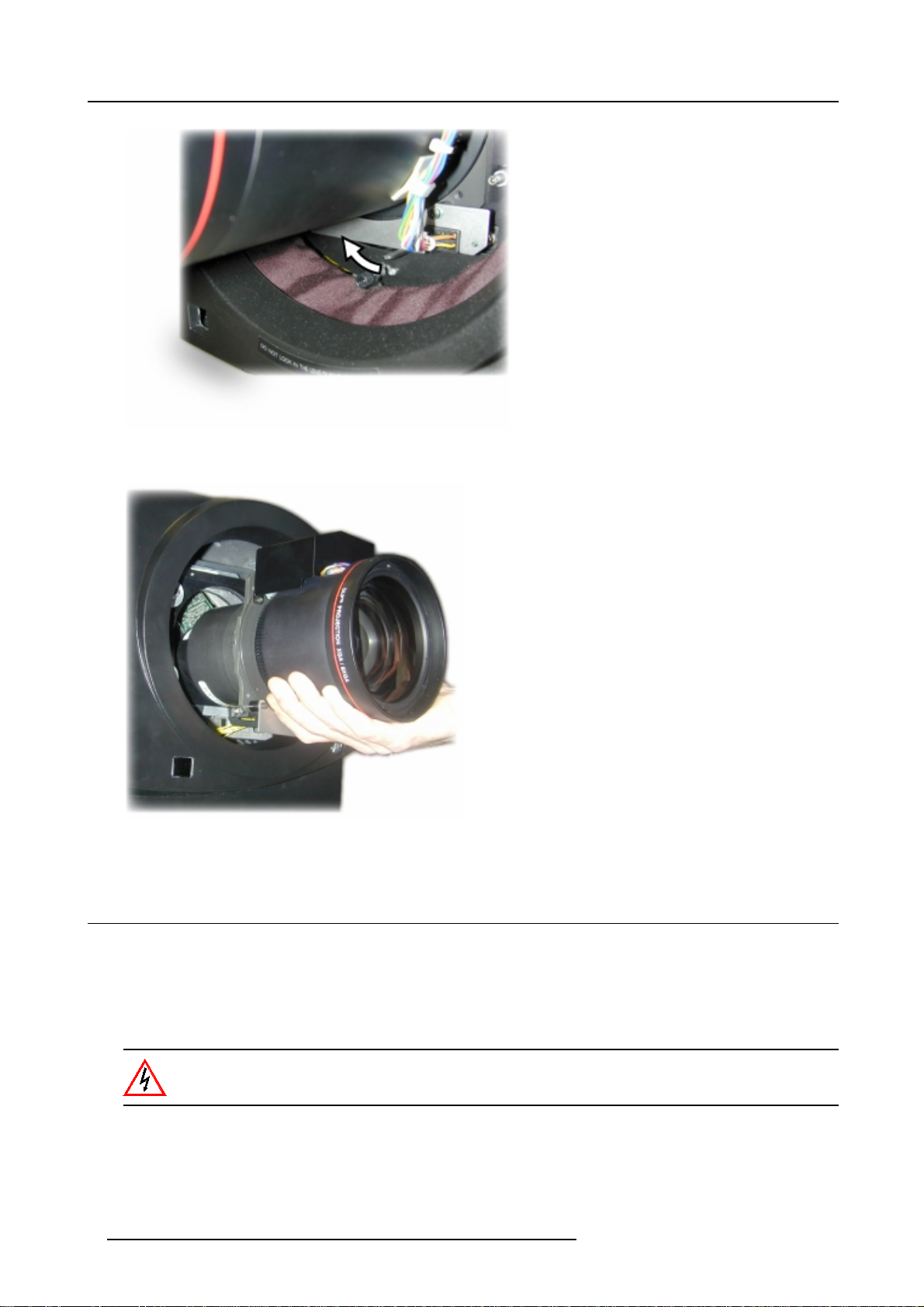

Image 1-2
Move the handle of the lens anchor system to the left
Image 1-3
Take the lens out of the lens block
1.3 Installing the new lens
What has to be done?
This new lens has to be installed on the SLM series projector.
Necessary Tools
No tools necessary.
Risk of personal injury. Instructions for lens installation must be followed thoroughly.
4R5976220 TLD (1.2:1) LENS KIT 20062002
