D-Fly Programming Guide

©Baracoda™ - June 07

BD-Fly – Programming Guide

June 07 2

SUMMARY

SUMMARY 2

INTRODUCTION 4

1. GENERAL CONFIGURATION 5

1.1. GENERAL DEFAULT SETTINGS 5

1.2. BARACODA ADVANCED FEATURES 6

1.2.1. SWITCH ON DELAY 6

1.2.2. SHUTDOWN TIMERS 6

1.2.3. NO DATA LOSS MODE AND BARACODA HEADER 7

1.3. READING MODE 8

1.4. OPERATING MODE 9

1.4.1. REAL TIME MODE 9

1.4.2. REAL TIME MODE WITH “NO DATA LOSS MODE” 9

1.4.3. REAL TIME WITHOUT “NO DATA LOSS MODE” 9

1.5. BUZZER AND LED SETTINGS 10

1.6. BLUETOOTH COMMANDS 11

1.6.1. BLUETOOTH NAME 11

1.6.2. SNIFF PERIOD SETTINGS 12

1.6.3. SECURITY (CODE PIN) SETTINGS 13

1.7. PREFIX AND SUFFIX 14

1.7.1. GENERAL PREFIX 14

1.7.2. GENERAL SUFFIX 14

1.8. SET MIN OR MAX LENGTH OPTION 16

1.8.1. SCHEMA 16

1.8.2. SYMBOLOGY TABLE 17

1.9. SYMBOLOGY IDENTIFIER 18

1.10. VOTING 18

1.11. SET DECODER BARCODE LENGTH 19

2. SYMBOLOGY PARAMETERS 20

2.1. SYMBOLOGY DEFAULT SETTINGS 20

2.2. ENABLE/DISABLE ALL SYMBOLGY 20

3. CODABAR 21

3.1. ENABLE/DISABLE CODABAR 21

3.2. CODABAR START/STOP CHARACTERS 21

3.3. CODABAR CHECK DIGIT VERIFICATION (AIM RECOMMENDATION) 22

3.4. SET LENGTHS FOR CODABAR 22

4. CODE 11 SETTINGS 23

4.1. ENABLE/DISABLE CODE 11 23

4.2. CODE 11 CHECK DIGIT(S) VERIFICATION 23

4.3. TRANSMIT CODE 11 CHECK DIGIT(S) 24

4.4. SET LENGTH FOR CODE 11 24

5. CODE 39 SETTINGS 25

5.1.

ENABLE/DISABLE CODE 39 25

5.2.

ENABLE/DISABLE CODE 39 FULL ASCII 25

5.3.

ENABLE/DISABLE CODE 39 START/STOP 26

BD-Fly – Programming Guide

June 07 3

5.4. ACCEPTED CODE 39 CHARACTERS 26

5.5. CODE 39 CHECK DIGIT VERIFICATION 27

5.6. SET LENGTHS FOR CODE 39 27

6. 3.9/ CODE 93 SETTINGS 28

6.1. ENABLE/DISABLE CODE 93 28

6.2. SET LENGTHS FOR CODE 93 28

7. CODE 128 SETTINGS 29

7.1. ENABLE/DISABLE CODE 128/EAN 128 29

7.2. SET LENGTS DOR CODE 128/EAN 128 29

7.3. EAN 128: GROUP SEPARATOR 30

7.4. ENABLE/DISABLE AIM ID TRANSMISSION 31

8. INTERLEAVED 2 OF 5 SETTINGS 32

8.1. ENABLE/DISABLE INTERLEAVED 2 OF 5 32

8.2. INTERLEAVED 2OF 5 CHECK DIGIT VERIFICATION AND TRANSMIT 32

8.3. SET LENGTHS FOR INTERLEAVED 2 OF 5 33

9. MSI CODE SETTINGS 34

9.1. ENABLE/DISABLE MSI 34

9.2. MSI CHECK DIGIT VERIFICATION AND TRANSMIT 34

9.3. SET LENGTHS FOR MSI 35

10. STANDARD 2 OF 5 SETTINGS 36

10.1. ENABLE/DISABLE STANDARD 2 OF 5 36

10.2. STANDARD 2 OF 5 CHECK DIGIT VERIFICATION AND TRANSMIT 36

10.3. SET LENGTHS FOR STANDARD 2 OF 5 37

11. UPC/ EAN SETTINGS 38

11.1. ENABLE/DISABLE UPC/EAN 38

11.2. TRANSMIT EAN13 CHECK DIGIT 39

11.3. TRANSMIT UPC-E CHECK DIGIT 39

11.4. TRANSMIT EAN 8 CHECK DIGIT 40

11.5. TRANSMIT UPC-A CHECK DIGIT 40

11.6. TRANSMIT UPC NUMBER SYSTEM FOR UPC-E 41

11.7. UPC-A, UPC-E, EAN CONVERSIONS 41

BD-Fly – Programming Guide

June 07 4

Intro duction

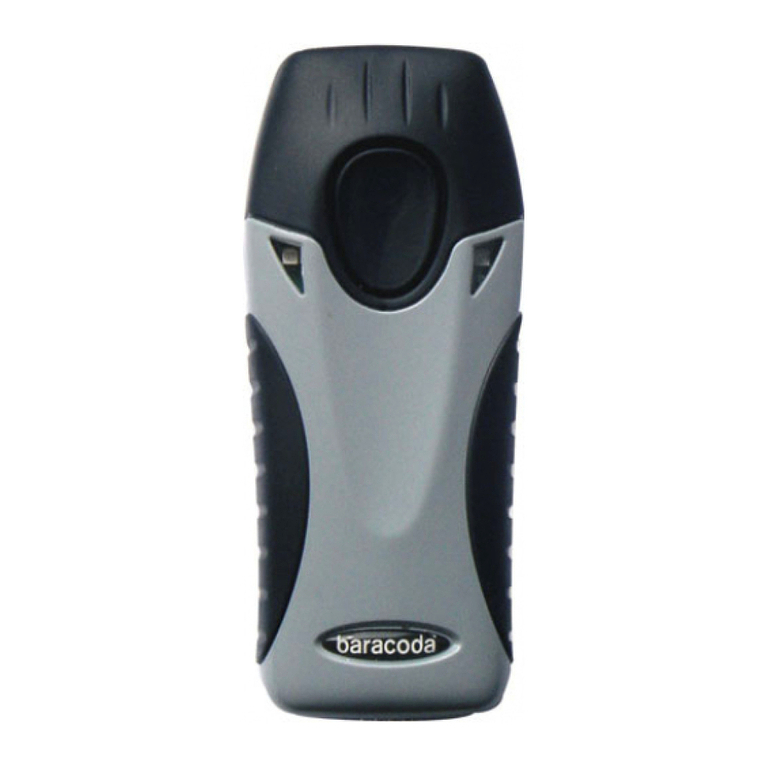

The Baracoda D-Fly scanners can be programmed by scanning barcode labels which contain commands

for the decoder.

Programming labels must be Code128, with specific starting and ending characters. These labels will

always be read, even if Code128 symbology is disabled.

The scanner will acknowledge a good and valid programming barcode label reading with two beeps and a

green enlightening of the led. It will give two other beeps (lower tone) and a red enlightening of the led for

either an invalid or bad reading.

Please do not read the programming barcodes while being connected to the Baracoda Manager.

Programmable options are divided into 2 groups. The first group includes the options that show the

general behaviour of the scanner. The second group sets the decoding parameters for each barcode

symbology.

BD-Fly – Programming Guide

June 07 5

General Configuration

1.1.

General default setting s

The reading of the "Reset to factory settings” label turns all the parameters of the scanner back to default

settings and switches it off.

Reset to factory settings

BD-Fly – Programming Guide

June 07 6

1.2.

Baracod a adv anced features

1. 2. 1.

Sw it c h on de l ay

In order to switch on the D-Fly in its standard mode, you should just press the trigger. You can set up the

scanner to be switched on only after keeping the trigger pressed for two (2) seconds by reading the

appropriate barcode.

Switch on delay : 2 seconds

Switch on delay : 0 second (*)

1. 2 .2 .

Sh ut do w n t ime r s

There are two different ‘shutdown timers’ :

- When connected timer : delay between the last scanned barcode and the switch off when the

scanner is connected to a host

- Not connected timer : delay between the last scanned barcode and the switch off when the

scanner is not connected to any host

It is possible to set those timers to ‘infinite’. In this case, the scanner will stay all the time ON.

Set shutdown timers to infinity

By default, timers value are :

when connected timer = 20 minutes

Not connected timer = 10 minutes

Set shutdown timers to defaults

BD-Fly – Programming Guide

June 07 7

1. 2 .3 .

No d at a lo s s m o de an d B a ra co d a H e a de r

Baracoda header:

It is a proprietary data encapsulation. It is necessary to activate it to use the Baracoda keyboard emulation

(Kemul) and Terminal.

The Baracoda header is enabled in default settings

No data loss mode:

Baracoda has developed a proprietary communication protocol in order to enhance the security of the

Bluetooth transmission.

Every barcode sent to the host must be acknowledged by the host (until then, the scanner will transmit it

again and again).

This acknowledgment is disabled in default settings. It is strongly recommended to set this protocol

acknowledgment on when using the scanner with the BaracodaManager.

Enable Baracoda header

+ “No Data loss mode” ON

Enable Baracoda header

+ “No Data loss mode” OFF (*)

Disable Baracoda header

+ “No data loss mode” OFF

BD-Fly – Programming Guide

June 07 8

1.3.

Reading Mode

• In trigger mode, pressing the trigger will activate the beam.

• The Aiming trigger mode has been developed for users who need to scan barcodes very close one

to another and they have to be sure to always read the correct one. Once in this mode, in order to read a

barcode user will have to press the trigger twice. Pressing it the first time will switch on the beam but will

not switch on the decoder (thus allowing user to aim at the correct barcode) while pressing the trigger the

second time will activate the decoder thus allowing the D-Fly to actually decode the barcode.

Trigger (*)

Aiming Trigger Mode

BD-Fly – Programming Guide

June 07 9

1.4.

Operating Mo de

Real Time mode (standard mode): barcodes are transmitted in real time to the remote host device/terminal

(with optional acknowledgment beep from the host to the scanner).

User can choose if the scanner, when not connected, should read, memorize and later automatically upload

the barcodes or shouldn’t read the barcodes (no beam).

Important reminder: if an ACK beep or buffer is needed, the scanner must be set in the “no data loss

mode” first. (See part 1.3.3.)

1. 4. 1.

R e al T im e m o de

Erases all codes in memory and forces the D-Fly in Real time mode. No other setting is changed.

Enable

1. 4 .2 .

R e al T im e m o de w it h “N o d at a l os s m o de ”

Forces the D-Fly in Real Time mode (with data acknowledgement). Erases all codes in memory. The D-Fly

should have been previously set in the “No data loss mode” ON.

Enable

1. 4 .3 .

R EAL TI M E w it ho ut “N o d at a lo s s m o de ”

Forces the D-Fly in Real Time mode (without data acknowledgement). Erases all codes in memory.

The D-Fly should have been previously set in the “No data loss mode” ON.

Enable

BD-Fly – Programming Guide

June 07 10

1.5.

Buzzer an d Led Setting s

You can use these options to enable or disable the buzzer and / or the Led.

LED ON (*)

LED OFF

Good read beep on (*)

Good read beep off

ACK beep on (*)

ACK beep off

Beep level volume = HIGH (*)

Beep level Volume = LOW
