B-Tech BT8380-FSB Instruction Manual
B-TECH AV MOUNTS
www.btechavmounts.com
BT8376
FREESTANDING CURVED VIDEOWALL STAND
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Stand
PLEASE KEEP THIS FOR FUTURE REFERENCE
• Universal design suitable for all videowall screens
• Suitable for videowall screens from 39" - 70"
• Max weight per screen: 50kg (110lbs)
• Designed for screens with VESA® & non-VESA
mounting patterns
• Tool-less micro-adjustments for seamless
screen alignment
• Easy to use angle adjustment with a range up to +/-45º
• Universal screen position spacer to speed up the
installation process
• Integrated cable management
• Safety screws help prevent unauthorised removal
of screens
FEATURES
INSTALLATION TOOLS REQUIRED
CONTENTS
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions........................................................................................................................8
Optional Accessories........................................................................................................ ..................6
B-Tech Contact Details.....................................................................................................................24
TM
Level Knife
Crosshead
screwdriver 10mm Spanner
Per Screen
70"
177cm
50kg
BT8376

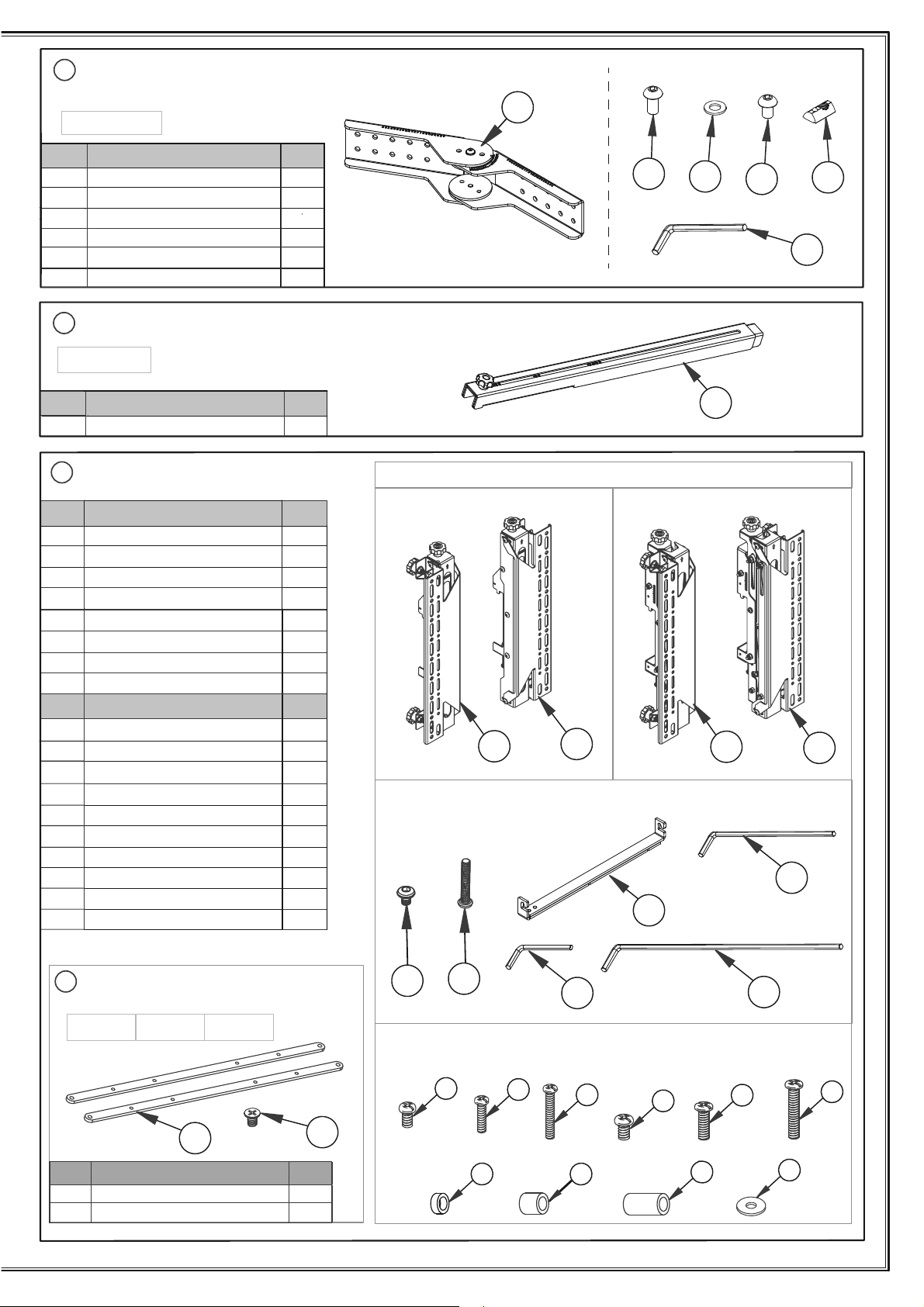

PARTS LIST
4
MOUNTING RAIL
COLUMN
JOINING PLATE
C
D
B
BASE
A
C2 C4
C3
Optional
*To fix shelves
to a column
B5 B6
PLEASE KEEP THIS FOR FUTURE REFERENCE
Due to the multiple installations available each option below
is dependent on the stand ordered.
BT8380-060
Height: 60cm
BT8380-180
Height: 180cm
BT8390-070
Length: 70cm
BT8390-150
Length: 150cm
BT8390-175
Length: 175cm
BT8390-050
Length: 50cm
BT8390-200
Length: 200cm
BT8380-JPK
1
8
A1
1
1
A2
4
A3
A4
A5
PART NAME
ITEM QTY
PER PACK
BASE
SUPPORT PLATE
HOLE CAP
M8 x 50mm SCREW
5AF HEX KEY
M8 SLIDING NUT*
M8 x 12mm SCREW*
1
B1
4
2
2
B2 1
B4
VERTICAL COLUMN
PLASTIC SLOT INSERT
END CAP*
4
B5
16
B6
B7
COLUMN JOINER**
GRUB SCREW**
B8
1
C1
8
C2
4
C3
JOINING PLATE
M8 SLIDING NUT
M8 x 12mm SCREW
C4 1
5AF HEX KEY
1
D1
2D2
MOUNTING RAIL
END CAP
PART NAME
ITEM QTY
PER PACK
PART NAME
ITEM QTY
PER PACK
PART NAME
ITEM QTY
PER PACK
BT8390-300
Length: 300cm
**Supplied with the BT8380-060
*Supplied with the BT8380-180
B3 3
CABLE COVER
C1
D1 D2
B7 B8 B9 B10
8
B9
M6 x 10mm HEX BOLT**
1
B10
3AF HEX KEY**
B2
**Column Extension Kit
B4
B3
B1
A1
BT8380-FSB
A2 A3
A4 A5
5
1
F1
PART NAME
ITEM
SPACER
INTERFACE KIT Screen Interface Arms
BT8390-VESA400MAF BT8390-VESA400MAP
G
M6 x 16mm SCREW
M6 x 40mm SCREW
M6 x 25mm SCREW
M8 x 25mm SCREW
M8 x 16mm SCREW
M8 x 40mm SCREW
13mm SPACER
5mm SPACER
24mm SPACER
A
B
C
D
4
E
4
F
SCREEN FIXING KIT
ITEM QTY
PER PACK
4
G
4
H
4
I
4
J
4
4
4
M6 WASHER
4
1
G1
1
G2
1
G3
2
2
G4
PART NAME
ITEM QTY
PER PACK
LEFT INTERFACE ARM
RIGHT INTERFACE ARM
ADJUSTABLE BRACE*
M6 x 35mm SCREW*
M5 x 6mm SCREW*
G5
1
G6
1
G7
1
G8
4AF HEX KEY*
3AF HEX KEY*
5AF LONG HEX KEY
*Only supplied with the BT8390-VESA400MAP
Please refer to individual parts list for more information
QTY
PER PACK
Interface Arm Kit
Screen Fixing Kit
OPTIONAL
INTERFACE ADAPTOR ARMS
C
B
ADEF
GHIJ
SPACER
F
BT8390-SP
BT7564 BT7565 BT7566
F1
G1 G2 G1 G2
G6 G8
G7
G3
H
2
H1
4H2
PART NAME
ITEM
ADAPTOR ARMS
M8 x 12mm SCREW
QTY
PER PACK
H1 H2
E6
E2 E5
E3 E4
E1
ANGLE
ADJUSTMENT CONNECTOR
E
BT8390-AAC
1
E1
4
E2
12
E3
ANGLE CONNECTOR
M8 x 16mm SCREW
M8 WASHER
8
E4
8
E5
M8 x 12mm SCREW
M8 SLIDING NUT
1
E6 5AF HEX KEY
PART NAME
ITEM QTY
PER PACK
11
G4 G5
6
INSTALLATION NOTES
When verifying the stability of the structure, consider the following external factors:
1. The strength of the floor.
2. Exposure to sudden and severe wind.
3. Danger arising from contact with people and / or objects.
(eg installations in passageways, emergency exits).
• Install stand on level ground • Minimum two person assembly
FLOORSTAND STABILITY
OPTIONAL ACCESSORIES
Attach the BT8390-CMC cable management clips
directly to item D1 to orgainse screen cables for
a neat and tidy installation.
BT8390-CMC
Cable Management Clip
BT7033
D1
Insert 2 x item B5 into item B1 front slots.
Mount a B-Tech Shelf (BT7032 / BT7033 /
BT7863) by fastening item B6 to item B5.
Use a BT8390-SA shelf adaptor
to mount shelves directly under
or over the horizontal mounting
rails. MOUNTING RAIL
BT7863
BT8390-SA
7
i. Insert items B7 halfway into the
non-threaded end of item B1.
The two joining bars with grub screws go in
the front of the column and the 2 joining
bars with hex bolts go in the back.
IMPORTANT: Joining bars should be
inserted into the non-threaded end of
the 180cm column.
x
THREADS
THREADED
B1
B7
OPTIONAL: EXTENDING THE COLUMNS
ii. The two joining bars with grub
screws (item B8) in the front of
the column.
The two joining bars with hex
bolts (item B9) in the rear of
the column.
B1
B1
B7
Tighten hex bolts by hand.
Finish tightening using a
10mm spanner.
Back of ColumnFront of Column
INSTALLATION INSTRUCTIONS
1
8
Attach Joining Plate to Column
i. Connect together four item C3 with item C2 onto each item C1 using item C4.
ii. Lay items B1 on the floor and slide two item C1 onto each item B1.
IMPORTANT:
Make sure the end with M8 threads
are at the bottom of the columns.
ii.
i.
C1
C2 C3
C4
C2
C1
C3
B1
C1
B1
C1
9
iii. Use item F1 to set the distance between items C1 on item B1 according to the screen size.
Once set, tighten item C3 with item C4.
F1
F1
C1
C1
B1
C1
Leave at least
a 5mm gap at
top of column
for item B2
ADJUSTMENT
KNOB
C4
C3
2Insert Sliding Nuts into Mounting Rails
Lay items D1 on the floor.
For each item C1 attachment insert 4 x item C2 into item D1. Two in the 2nd slot and
two in the bottom slot.
To attach item E1 to item D1, insert 4 x item E5 into the end of the rail. Two in each centre slot.
10
E5
C2
D1
C2
Column / Joining Plate
Assembly
Angle Adjustment Connector
Assembly
E5
