Aztech Singtel FG7009GR AC User manual
FG7009GR(AC)
WIRELESS ROUTER
Quick Installation Guide
Contents
STEP 1: Equipment Check
STEP 2: BroadBand Connection Settings for Fibre
STEP 3: Dual Band Wireless Connectivity via PC/Laptops
STEP 4: Dual Band Wireless Connectivity via Mobile Devices
Welcome to your free exPress Portal
Technical Support Contact Numbers
3
STEP 1: Equipment Check
Dear Customer, this guide has been prepared to help you to install
SingNet BroadBand service and mio Voice services.
The following items are pre-packaged in your Wireless Router.
Note: Existing Singnet BroadBand, mio Plan or mio Home subscribers
should already have these items connected to their Wireless Router.
STEP 2:
Connect the Wireless Router’s
“BROADBAND” Port to the ONT’s
“LAN 1” Port highlighted in Yellow
using the Ethernet Cable (RJ45).
Note: Switch off the ONT’s power before
you proceed to do the set up.
For mio TV Set-Top-Box, personal
computer or laptop, please connect
it to the “LOCAL ETHERNET” Port
highlighted in yellow.
2.1
2.2
2.3 Once the Power Adapter is connected,
follow the power up sequence below.
Power up the Optical Network Terminal
(ONT). Wait for “POWER” and “PON” LEDs
to turn to stable green light.
Power on the Wireless Router. Wait for the
“POWER”, “ETHERNET”, “BROADBAND”,
“INTERNET” and “IPTV” (if applicable) to
turn to stable green light.
Power up your mio TV Set Top Box and
your computer.
Note: For Fibre service, there is no need
to key in user ID and password. All service
credentials will be auto pushed down to
your Wireless Router.
BroadBand Connection Settings
for Fibre
1.
2.
3.
5
Please take note of two numerical codes which are your Network names
(for 2.4GHz and 5.0GHz) and Key with this diagram as a guide.
You may ll in these details on the box below for future reference.
Section A: Your 2.4GHz and 5.0GHz Wireless Bands
Network Name (SSID):
SINGTEL (5G) : _____________
SINGTEL : _____________
Network Key:
____________________
STEP 3:
Note: The default wireless encryption option is Mixed WPA2/WPA-PSK.
Write the last 4 numbers of your Network Name here
Write the 10 digit of your Wireless
Key here.
Dual Band Wireless Connectivity via
PC/Laptops
√For any changes in your wireless router, you will have to connect to
a new default SSID and Network Key (ie. Password) on your end
device.
√Do take note that your Dual Band Wireless Router will broadcast two
Wireless SSIDs (ie. for both 2.4GHz and 5.0GHz as seen above).
√Both the 2.4GHz and 5.0GHz will appear on the network list of your
device if it supports dual band.
Useful Tips
IMPORTANT!
You will need a wireless adapter (wireless PC card or wireless USB adapter)
or a wireless-enabled Notebook before you can proceed to the next section.
Please refer to your operating system’s respective instructions:
Section B. if you are using Window’s XP
Section C. if you are using Windows Vista
Section D. if you are using Windows 7
Section E. if you are using Windows 8
Section F. if you are using another wireless manager other than Windows
On the right hand corner of the task
bar, click on the wireless network
icon like the one on the left
You will see a window of the
available networks. Locate and
select your own wireless network
e.g. SINGTEL(5G)-8992
& SINGTEL-8992.
Note: Please refer to the sticker
pasted on your Wireless Router
if you are unsure of your Network
Name, or try refreshing your
network list if you do not see it.
Input your wireless network key
into the “Security Key” eld.
1
2
3
To connect to the 2.4GHz/5.0GHz Wireless Bands:
7
You will see the screen on the left if
the setup is successful.
5
Double click the Network Name
of your wireless network e.g.
SINGTEL(5G)-8992 and wait for
the network to be detected.
Note: Please refer to section A if you are
unsure of your Network Name and try
refreshing your Network List if you do not
see it.
Type the 10-Digit Network Key into
the “Network Key” and “Conrm
Network Key” elds. Click on the
“Connect” button to complete the
setup and wait for the network
address to be acquired.
Note: Please refer to section A if you are
unsure of your Network Key.
4
3
Section B: If you are using Windows XP
Double click on the wireless icon on
your task bar.
Youshouldseetheavailablewireless
networks, if you are prompted to use
another wireless manager, please
refer to section F.
2
1

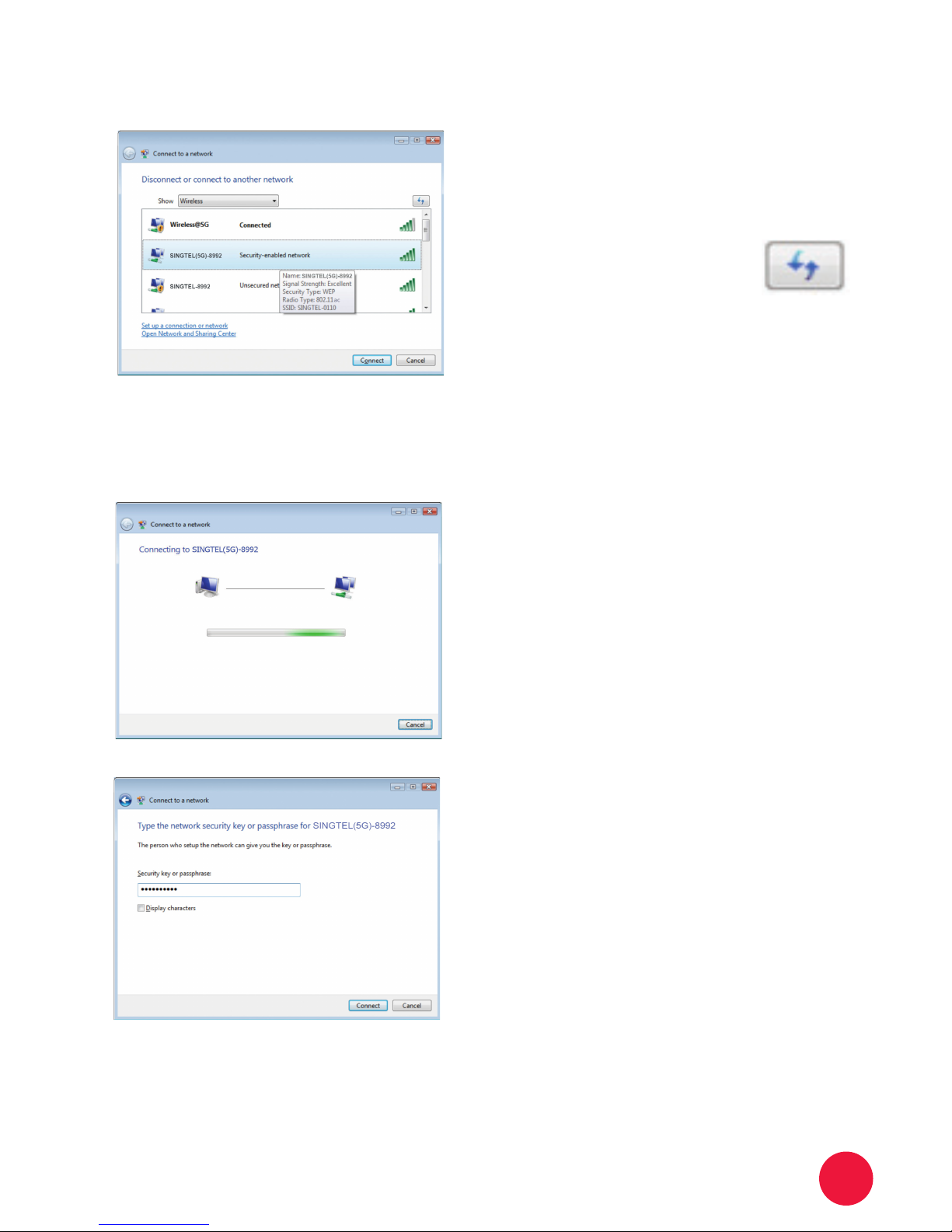

Section C: If you are using Windows Vista
In Windows Vista, Click on the Start
button.
1
Click on Connect To.
2
You will see the screen on the left.
3
Under the Show drop down list,
select “Wireless”.
4
9
Find the Network Name of your
wireless network e.g.
SINGTEL(5G)-8992.
5
Note: Please refer to section
A if you are unsure of
your Network Name or try
refreshing your Network list if
you cannot see it.
Click on the Connect button.
6
Please wait while your computer
tries to connect to the Wireless
Router.
7
You will now be prompted to enter
your Network Key.
8
Note: You will see this when
1. You are connecting to the Wireless
router for the rst time
2. You have unselected the option to
save the Network Key.
Type in your Network Key in the
“Security key or passphrase” eld.
9
Click on the Connect button.
10
Please wait while your computer
authenticates your wireless
network.
11
Your wireless connection is
succesfully congured when you
see the screen on the left.
12
Make sure that “Save this network”
is selected.
13
Note: This option will save your Network
Key. If you do not enable this option, you
will always be prompted to enter the key.
Ensure that you have “Start this
connection automatically” selected.
14
Note: This option will connect your
computer to the Wireless Router
automatically. If you do not enable this
option, you will be required to connect to
the wireless network manually.
You have successfully congured
your wireless connection on
Windows Vista.
15
Click on “Close” to exit the window.
16
