Awind WPS-820A User manual
Wireless Presentation System
User’s Manual
(Model Name:WPS-820A)
Version: 3.0
Date: Feb. 08, 2010
Table of Contents
1.
Overview
.....................................................................................................4
2.
Quick Start
.................................................................................................6
3.
Windows Client Utility
...........................................................................9
3.1
Starting Program
.................................................................................9
3.2
Login
......................................................................................................10
3.3
Main User Interface
..........................................................................10
3.4
Screen Projection
..............................................................................11
3.5
Magnifier Feature
..............................................................................11
3.6
Video/Music streaming Feature
..................................................12
3.7
Menu Description
..............................................................................13
3.7.1
Show Login Code
...........................................................................13
3.7.2
Open Admin Web Page
................................................................14
3.7.3
Searching Server
...........................................................................15
3.7.4
Magnifier Option
............................................................................15
3.7.5
Projection Quality
.........................................................................16
3.7.6
Projection Source
..........................................................................16
3.7.7
Connection Profile
.........................................................................17
3.7.8
Auto WiFi connect
.........................................................................19
3.7.9
Auto Power Manager
...................................................................19
3.7.10
Hide UI
..........................................................................................20
3.7.11
Advanced Screen Capture
......................................................20
3.7.12
Repeat
...........................................................................................21
3.7.13
Make PnS Token
........................................................................22
3.7.14
Copy Application to desktop
.................................................23
3.7.15
About
..............................................................................................23
3.7.16
Exit
..................................................................................................24
4.
WPS for PDA
............................................................................................25
5.
Mac Client Utility
...................................................................................26
5.1
Launch Application
...........................................................................26
5.2
Main User Interface
..........................................................................27
5.3
Screen Projection
..............................................................................27
5.4
Video/Music streaming Feature
..................................................28
6.
Web Management
.................................................................................29
6.1
Home Page
...........................................................................................29
6.2
Download Software
..........................................................................30
6.3
Conference Control
...........................................................................31
2
6.4
Login Web Admin
..............................................................................32
6.4.1
System Status
.................................................................................33
6.4.2
Network Setup
...............................................................................33
6.4.3
Projection Setup
............................................................................36
6.4.4
Change Passwords
........................................................................37
6.4.5
Reset to Default
.............................................................................37
6.4.6
Firmware Upgrade
........................................................................38
6.4.7
Reboot System
...............................................................................39
6.4.8
Logout
................................................................................................40
3
1.Overview
WPS is a must-have device for your meeting room! It turns your existing
"wired" projector into a "high-end wireless" projector. With the revolutionary
Plug-and-Show, 4-to-1 split screen and PDA wireless projection features, WPS
makes every of your presentation and meeting efficient and successful.
Plug & Show
With the accompanied Plug & Show USB Token, wireless presentation becomes
easy! Just link your PC/Laptop to WPS (through WLAN or Ethernet), plug the
token into a USB port, and in seconds, your screen will be wireless projected to
the connected projector!
4-to-1 Split Screen Projection
With this 4-to-1 split screen feature, up to four PC screens can be projected to
one projector in the same time. Thus you can easily do side-by-side
comparison from four PC / PDAs to increase meeting productivity!
PDA wireless Projection
You don't have to bring the laptop for business presentation anymore. Just
connect your PDA phone to WPS through WiFi, and start your professional and
stylish presentation right away!
Conference control
WPS supports Conference Control function for easily moderating the
conference. The conference moderator can control projection from connected
PCs through a web-based control page. So you can streamline your
meeting/presentation to be more fluent and in order.
Magnifier feature
WPS supports Magnifier feature for codec-free video clips watching experience.
By drag and drop the video into magnifier capture region, you will be able to
watch the video on big screen with best experience.
4
Macintosh(Mac) wireless Projection
WPS supports Mac client connected and projected wirelessly. By launching the
Mac client software that stored in accompanied USB token, WPS provide the
same experience to Mac user to utilize the wireless presentation feature.
Features
■Support Windows 7, Vista, XP, 2000 and Mobile 5/6
Support Macintosh(Mac) version 10.4 and above.■
■Plug and Show! No installation required … just plug in the
accompanied token to a USB port, and hassle free presentation can be
started in seconds.
■4-to-1 split screen projection! Turn one projector into four, increase
meeting productivity right away.
■PDA wireless projection! PC-less stylish presentation becomes
possible!
■Conference control! Allows moderators to streamline grand meetings.
■Provide session security login, wireless WEP/WPA key and Gatekeeper
function to protect presentation contents and keep good security to
office networks.
Provide magnifier feature to enlarge small video region to■playback
with full screen.
Provide■media playback feature, support music and video streaming.
5
2.Quick Start
1) Connect projector VGA cable to WPS box VGA connector and turn on
projector power.
2) Turn on WPS box.
When Projector shows the default menu on the screen as below, it
indicates the WPS box is ready now.
3) Make sure your PC WLAN is enabled already, and connect your PC with WPS
box.

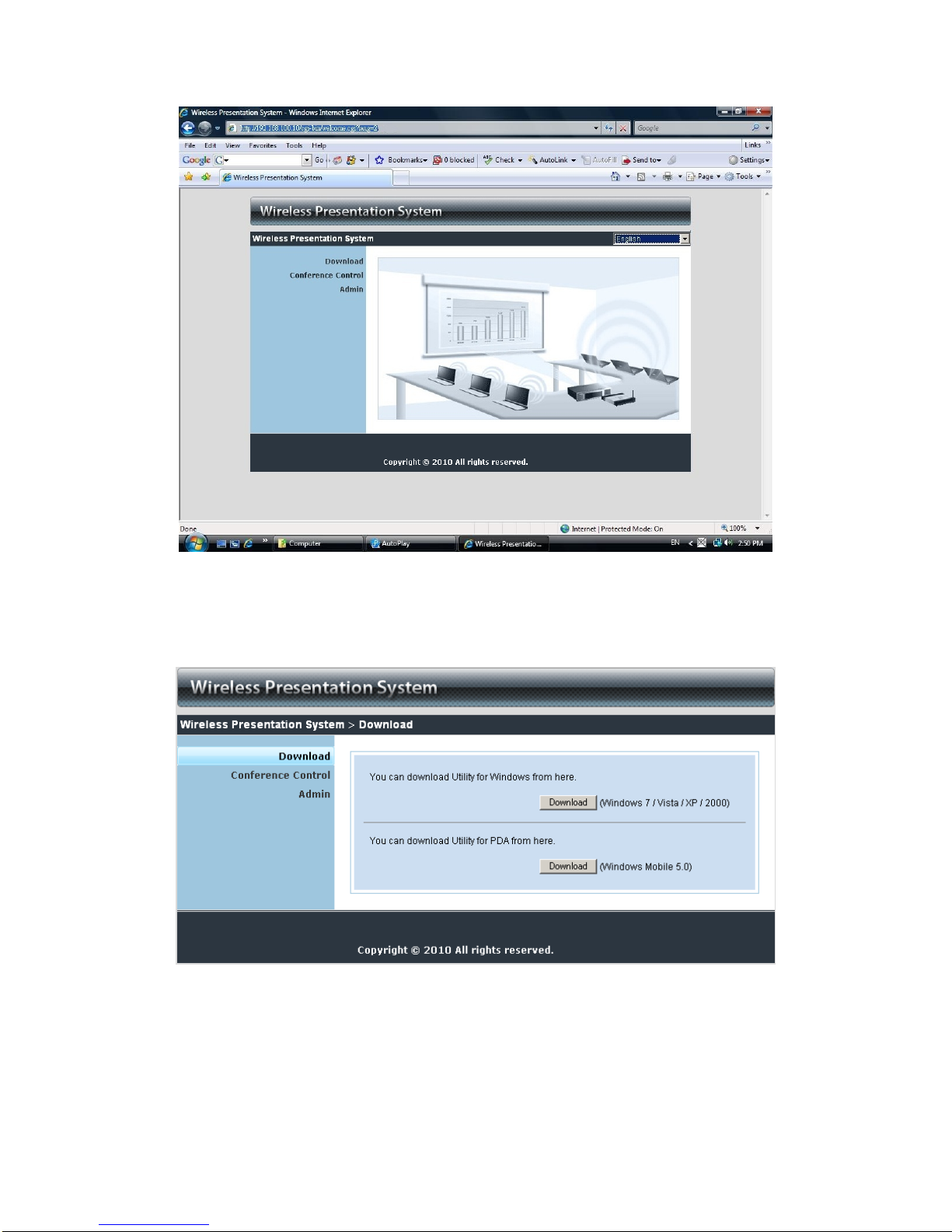

4) Open your browser and it will redirect to WPS main page automatically, or
you can enter the IP address to access the WPS web home page.
The default IP address of WPS is 192.168.100.10 or refers to the IP
address shown on the left corner of projector screen.
6
5) Download the client software. Please select the” Windows 7 / Vista / XP /
2000” or ”Windows Mobile 5.0” and execute the installation program.
♦After installing the program, you will see the WPS shortcut on the PC
screen.
7
6) Make sure your personal firewall allows WPS software to pass through.
7) Enter the LOGIN CODE and
You can see the login code on the projector screen
8) Click the “Play” button to start projection!
8
3.Windows Client Utility
3.1 Starting Program
After you download WPS Windows program via web page successfully, then
follow below steps to start.
1) Click WPS icon to execute the program.
2) Program start to search for WPS box automatically,
3) If WPS box founded then “Login Code” dialog box will be pop up on the PC
screen.
Searching for WPS box
WPS box is founded and enter login code to start.
9
3.2 Login
1) After “Login Code” dialog box shown, enter login code to start presentation.
2) You can see the login code shown on the projector screen.
3.3 Main User Interface
Menu Area
Screen
Projection Tab
Streaming
Tab
Control Area for Screen
Projection Feature
Status Indicator
Control Area for Streaming
Feature
10
