Avigo Mini Cooper S Assembly instructions
Owner’s Manual and Assembly Instructions
Model W466AV-R-F
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
Save this manual with your sales receipt.
Mini Cooper S
Introduction
Thank you for purchasing this vehicle from Aria Child. We hope the rider
enjoys it for miles to come. Please read this instruction guide carefully
before assembling and operating the vehicle.
Please contact Aria Child Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: 1-888-982-9309
Web: www.ariachild.com
Specifications:
BATTERY 6V 7AH
MOTOR 6V 15W
AGE 3 Years and Up
MAX WEIGHT 77 lbs. (35 kg)
PRODUCT SIZE 40.5 x 25.5 x 21.25 in. (102.9 x 64.8 x 53.9 cm)
SPEED 2.5MPH
RECHARGE TIME 8-12 Hours
TYPICAL RUN TIME 1-2 Hours
CHARGER OUTPUT DC 7.0V0.8A
Distributed by Toys “R” Us (Canada) Ltd.
2777 Langstaff Road
Concord, Ontario, L4K 4M5
Canada
Made in China
IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Call Customer Service if you need assistance or replacement parts. Please
have your model number and serial number ready before calling. Please
have proof of purchase. Keep your sales receipt or register your product at
www.ariachild.com as we may require proof of purchase.
1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.
This page is intentionally left blank.
5
Table of Contents
Safety..........................................................6
Parts ..........................................................8
Charging Instructions ...............................9
Assemble the Front Wheels....................10
Assemble the Left Rear Wheel...............11
Assemble the Right Rear Wheel ............12
Attach the Steering Wheel......................13
Attach the Speedometer/Windshield.....14
Attach the Spoiler/Mirrors ......................15
Attach the Seat ........................................16
Battery Removal ......................................17
Operating Instructions ............................18
Maintenance ............................................19
General Care ............................................20
Troubleshooting Guide............................21
FCC Information ......................................23
Service and Repairs ...............................24
Warranty ...................................................25
Product Registration ...............................27
6Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
rAlways use common sense and safe practices when using the vehicle. The user
must be at least 3 years old and weigh no more than 77 lbs.
rThis product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
rRiders must always wear a tted helmet that complies with U.S. Consumer
Product Safety Commission (CPSC) Standard CFR 1203.
rOnly sit on the seat in the vehicle.
rDo not allow more than one rider.
rDo not overload the vehicle. Do not remove the weight restriction decals.
rDo not pull the vehicle with another vehicle or similar device.
rKeep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
rAlways wear shoes in the vehicle.
rDo not operate near streets or motor vehicles.
rDo not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
rDo not operate near water, swimming pools or other uids.
rDo not operate in dangerous weather conditions such as rain or snow.
rDo not operate near loose dirt, mud, sand or ne gravel.
rDo not operate near ammable vapors (gasoline, paint thinner, acetone, etc.).
rAlways use the vehicle in a safe, secure environment with adult supervision.
7
Safety
(Continued)
WARNING: BATTERY SAFETY
rBattery posts, terminals and related accessories contain lead and lead compound
(asic) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
rContact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
ush immediately with cool water for 15 minutes. If the chemical is swallowed,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
rTampering with or modifying the electric circuit system may cause shock, re or
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT: Before using the vehicle for the rst time, the battery must be
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
rBefore using the vehicle, the rider must understand the vehicle controls and safety
issues.
rIt is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
rAn adult must ALWAYS directly supervise the use of this vehicle.
rNEVER leave a child unsupervised in the vehicle.
8Parts

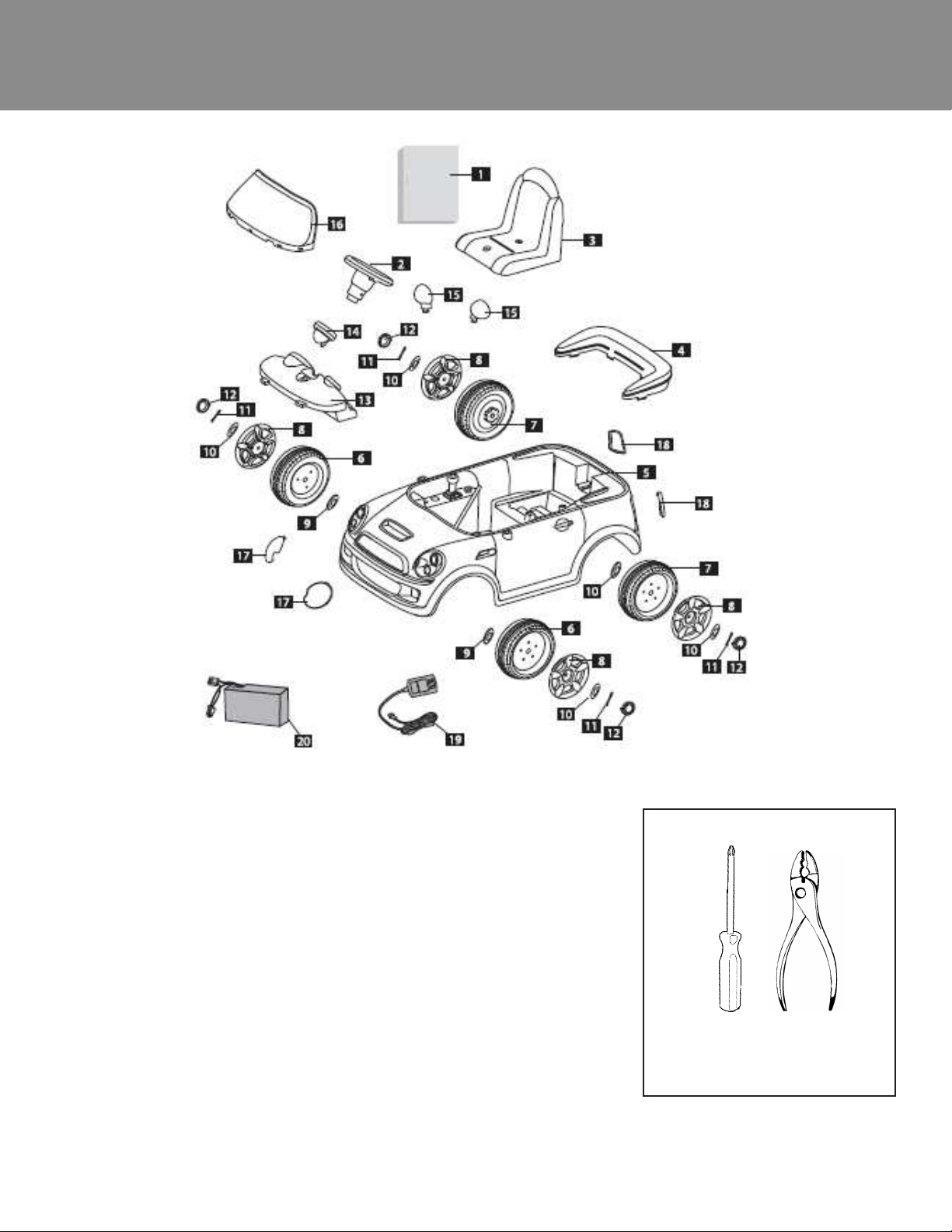

1. Manual
2. Steering wheel assembly
3. Seat
4. Rear Spoiler
5. Chassis
6. Front wheels (2)
7. Rear wheels (2)
8. Rim
9. Large Washer
10. Small Washer
11. Snap pins (4)
12. Hub cap
13. Dashboard
14. Speedometer
15. Wing mirror
16. Windshield
17. Front light cover
18. Rear light cover
19. Charger
20. Battery
rPhillips screwdriver
rPliers
Not Included:
9
Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.

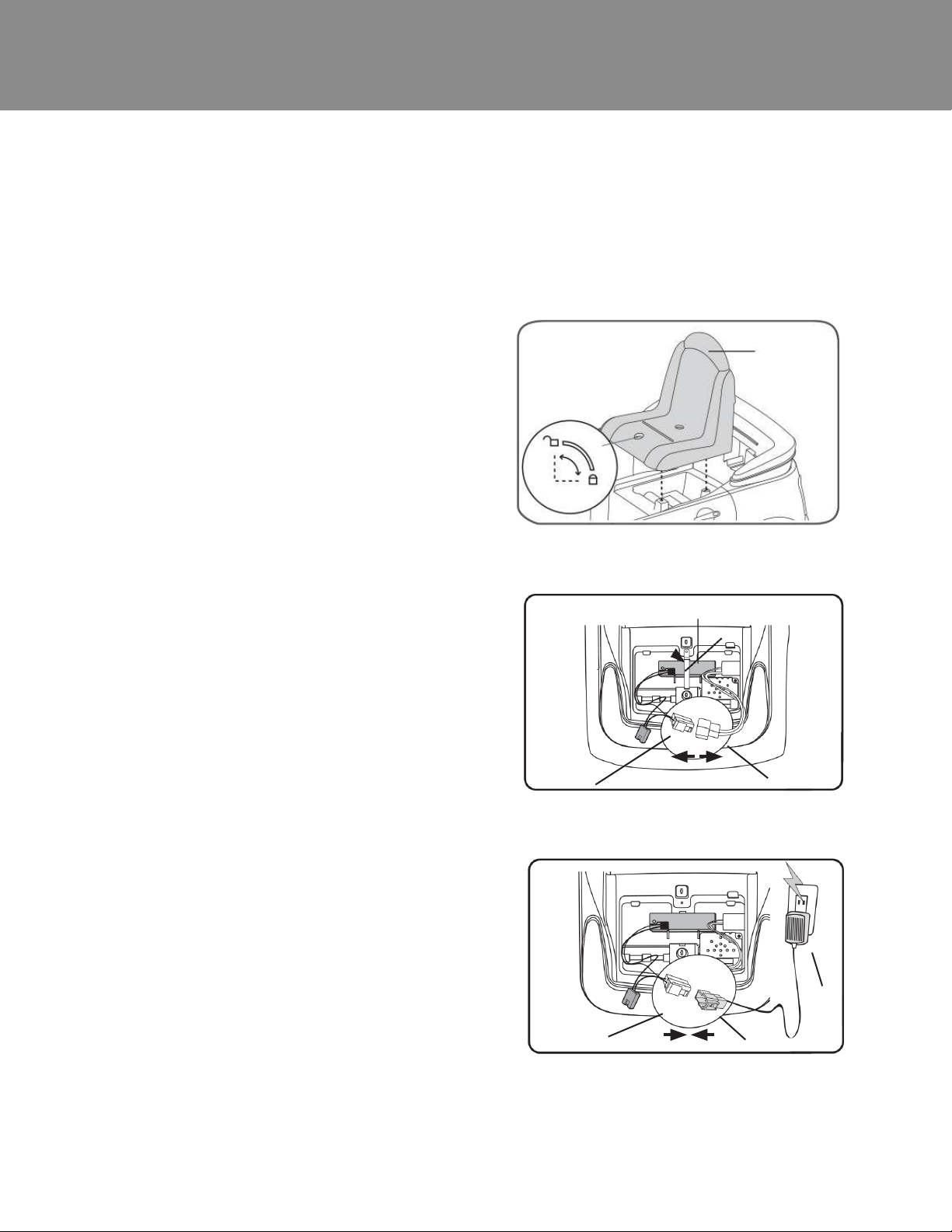

To Charge the Battery:
1. Ensure the car is stopped and the
power switch is turned off.
2. Unlock and remove the seat.
3. Unplug the red battery connector
(A) from the red engine connector
(B).
4. Connect the red battery connector
(A) to the red battery charger
connector (C) and plug (D) into a
120 V outlet.
To Unplug the Battery:
1. Unplug the battery charger (D)
from the outlet.
2. Unplug the red battery connector
(A).
3. Reconnect the red battery
connector (A) to the red engine
connector (B).
4. Replace the seat and tighten lock.
Note: It is not necessary to remove
the battery for charging. However, if
the battery does not reach the outlet,
it can be removed for charging. For
Battery Removal instructions, see
Page 17.
AC
Battery
A B
D
YOU MUST CHARGE THE BATTERY FOR 24
HOURS BEFORE THE FIRST USE!
Seat
10 Assemble the Front Wheels

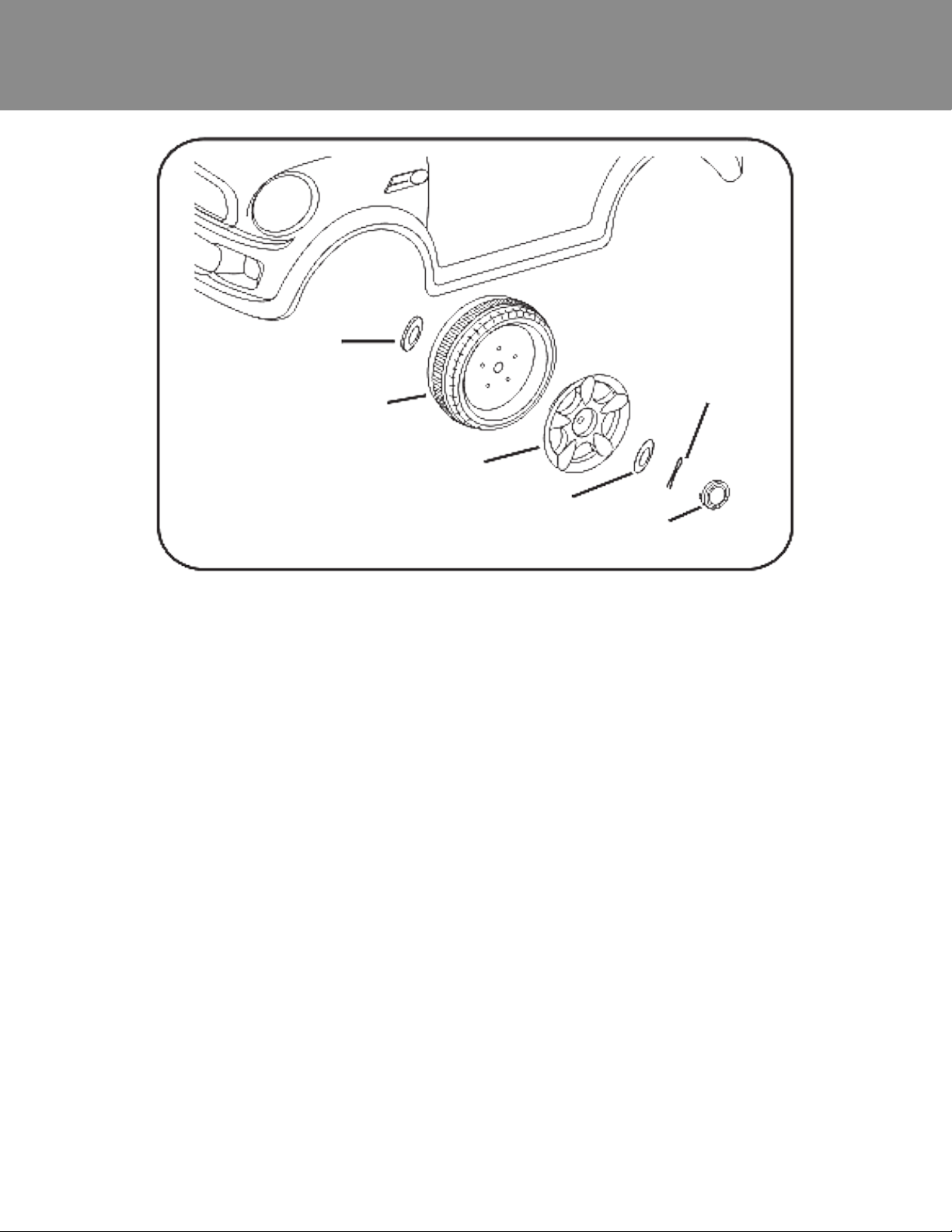

1. Slide the large washer (9) onto the front axle.
2. Slide the front wheel (6) onto the front axle.
3. Slide the wheel cover (8) onto the front axle.
4. Slide the small washer (10) onto the front axle.
5. Slide the snap pin (11) into the hole on the front axle until rmly
attached.
6. Finally cover the hub cap (12) to complete wheel assembly.
7. Repeat steps 1-6 for the remaining front wheel.
9
6
8
10
11
12
