Avermedia BA311 User manual
Quick Guide
Live Streamer ARM BA311
English Čeština
Deutsch Pусский
Français
Italiano 繁體中文
Español 简体中文
Nederlands 한국어
Polski 日本語
Disclaimer
All pictures contained in this documentation are example images only. The images may vary depending on the product and software version.
Information presented in this documentation has been carefully checked for reliability; however, no responsibility is assumed for inaccuracies.
The information contained in this documentation is subject to change without notice.
Copyright and Trademark Information
© 2021 by AVerMedia Technologies, Inc. All rights reserved. No part of this publication, in whole or in part, may be reproduced, transmitted,
transcribed, altered or translated into any language in any form by any means without the written permission of AVerMedia Technologies, Inc.
Information and specication contained in this manual are subject to change without notice and do not represent a commitment on the part of
AVerMedia.
For more information, please visit www.avermedia.com.
AVerMedia is a trademark or registered trademark of AVerMedia Technologies, Inc.
Headquarters
Address No.135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan
Website www.avermedia.com
Support www.avermedia.com/support
Telephone +886-2-2226-3630
US Oce
Address 4038 Clipper Ct., Fremont, CA 94538, United States
Website www.avermedia-usa.com
Europe Oce
Address Hanauer Landstrasse 291 B, 60314 Frankfurt Hessen, Germany
國際總部
地址 23585新北市中和區建一路135號
網址 www.avermedia.com
支援 www.avermedia.com/support
電話 +886-2-2226-3630
中国子公司
地址 上海市静安区武宁南路488号智慧广场1510室
网址 www.avermedia.com.cn
电话 +86-21-52987985
Japan Oce
Address 1-8 Akihabara, Taito-ku, Tokyo TOWA Akihabara Building 10th oor
Website www.avermedia.co.jp/
Support www.avermedia.co.jp/support
重要安全说明
1. 仔细阅读这些说明。
2. 妥善保存这些说明。
3. 遵守所有的指示。
4. 注意所有的警告。
5. 请勿将本产品安装于不平稳的表面。
6. 清洁前请拔除电源。仅使用干布清洁。
7. 请于规格温度范围32–104°F(0–40°C) 使
用本产品。
8. 请勿放置重物于本产品上。
9. 请勿安装于热源附近如暖器或火炉旁。
10. 仅使用制造商指定的配件及零件。
11. 请勿以任何方式改造或拆解本产品。
12. 如需维修请洽本公司客服人员。
13. 请勿当作家庭垃圾任意丢弃。请遵从当地
环境法规妥善处理。
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Follow all instructions.
4. Heed all warnings.
5. Do not use the apparatus on uneven or
unstable surfaces.
6. Unplug the apparatus before cleaning.
Clean only with a dry cloth.
7. Use the apparatus within ambient
temperatures 32–104°F (0–40°C).
8. Do not place heavy objects on the
apparatus.
9. Do not install near heat sources such as
radiators or stoves.
10. Only use the attachments and
accessories specied by the
manufacturer.
11. Do not modify or disassemble the
apparatus in any way.
12. Refer all servicing to AVerMedia
Customer Service.
13. Do not dispose the apparatus as general
household waste. Dispose in accordance
with local environmental laws.
重要安全說明
1. 仔細閱讀這些說明。
2. 妥善保存這些說明。
3. 遵守所有的指示。
4. 注意所有的警告。
5. 請勿將本產品安裝於不平穩的表面。
6. 清潔前請拔除電源。僅使用乾布清潔。
7. 請於規格溫度範圍32–104° F(0–40° C)
使用本產品。
8. 請勿放置重物於本產品上。
9. 請勿安裝於熱源附近如暖器或火爐旁。
10. 僅使用製造商指定的配件及零件。
11. 請勿以任何方式改造或拆解本產品。
12. 如需維修請洽本公司客服人員。
13. 請勿當作家庭垃圾任意丟棄。請遵從當地
環境法規妥善處理。
5
Inside the Box
These are what you'll nd in the box:
WasherCord Cover
( 7.5 cm/2.95 in x 4,
15.0 cm/5.90 in x 2)
Crosshead
Hex Key
C-Clamp
Live Streamer ARM
Quick Guide
Quick Guide
6
Parts and Ports
1 Tip Joint
5Middle Joint Friction Adjustment
Clockwise: Tighten Joint
Counterclockwise: Loosen Joint
9 C-Clamp
2 Attachment Screw 6 Base Joint 10 Locking Screw
3 Cord Channel 7 Arm 11 Crosshead Hex Key Holder
4 Middle Joint 8 Washer
2
1
3
4
5
6
7
8
9
10 11
7
Installation
1 2
3
4
3–4 5
Note: Make sure the
c-clamp sits ush on
the top, bottom, and
edge surfaces of
your desk. Improper
installation may lead
to injuries.
8
Connecting A Mic. & Applying A Cord Cover
1 32
9
Connecting A Mic. & Applying A Cord Cover Rotation Angles
360°
360°
135°
Note:
1. Rotate according to the specied angles to avoid excessive stress or damages on the joints. The tip and middle joints
also provide limit stripes (gray) and marks for making clear and safeguarded rotations.
2. Do not attach a device that exceeds the maximum hold weight (see specications).
3. It is recommended to position the lower arm horizontally with its cord channel facing upward before rotating the
upper arm.
4. The Live Streamer ARM has an internal spring system to provide additional tension, so make sure to use the ARM with
its cord channels facing upward/outward and tighten each joint as needed using the provided Crosshead Hex Key.
360°
180°
180°
10

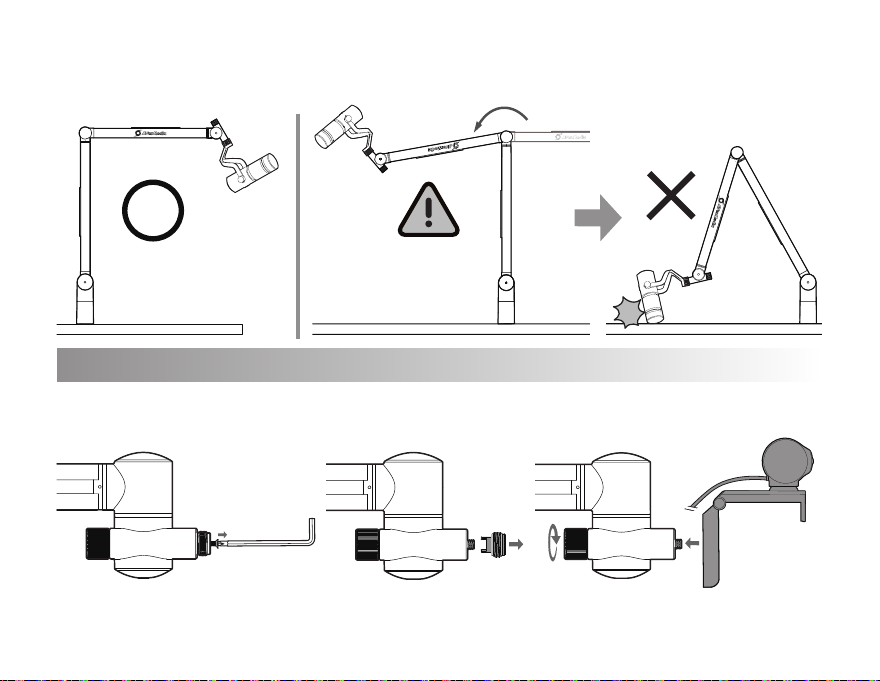

Connecting A Webcam
12 3
5. Be aware while adjusting the ARM from a position with its cord channels facing upward/outward to a position facing
downward/inward, as the lack of spring support may result in the ARM and mic tilting over and hitting the desk,
causing damages.
