Avenview C5-USB-200 User manual

USB Extender

Part #: C5-USB-200

www.avenview.com .

Description

This device is an extender between USB device and host computer with embedded connector

integrated circuits on both sides of the extender.

The USB extender with the chip inside is not a passive extender. It is an active device. The USB

signals going in and out of this extender in both directions are buffered to assure signal quality.

Unlike passive USB extender the IC prevents signal degradation. The embedded “intelligent”

integrated circuit cleans, amplifies USB signal and watches USB 1.1 protocol. Its Control State

Machine enables and disables USB and Cable transmitters inside the chip depending on USB

signals.

Features

Fully compliant with USB 1.1 specification.

Provides support for any full-speed (12 Mb/s) or low-speed (1.5 Mb/s) USB devices.

Allows a USB device to have its cable length extended up to 198 ft.

Embedded USB 1.1 Transceivers prevents signal loss.

Low cost in comparison with extension of cable using Hubs or other USB extenders.

No software driver required.

Compact size

USB LED extinguished when there is no sufficient drawn current to carry signals, using

optional power adapter for external power supply.

Plug & Play

www.avenview.com .

Applications

System Requirements

Web Camera

Surveillance Camera

Printer

Scanner

Mouse

Keyboard

MP3 Player

etc

Windows 98SE/Me/2000/XP/Vista

Mac OS 9.X/10.x

One available USB Port

Package Content

C5-USB-200

Local Unit with 1 Feet Cable attached

Remote Unit with LED indicator

Quick Start Guide

Specifications

Local Unit

Upstream Port

USB Type A Male

Downstream

Port

RJ45 Jack

Remote Unit

Upstream Port

USB Type A Female

Downstream

Port

RJ45 Jack

Built in Cable Length

1 Feet

Interconnect Cable

Standard Category 5/5e/6 Network Cable

Max Cable Length

198 Feet

Supply Current Drawn

20 mA

Operating

Temperature

0° C ~ 40° C

Storage Temperature

-40° C ~ 85° C

Features, availability and specifications are subject to change without notice.

Avenview Inc.

[email protected]

www.avenview.com

Other Avenview Extender manuals

Avenview

Avenview HBT-C6PLT-R User manual

Avenview

Avenview HDM-SHAREPRO-IP User manual

Avenview

Avenview HDM-C5SP-4 User manual

Avenview

Avenview HDSD FO-HDSDI-L-SET User manual

Avenview

Avenview FO-HDM2-T4K-SET User manual

Avenview

Avenview HDMI-C5-IR-SET User manual

Avenview

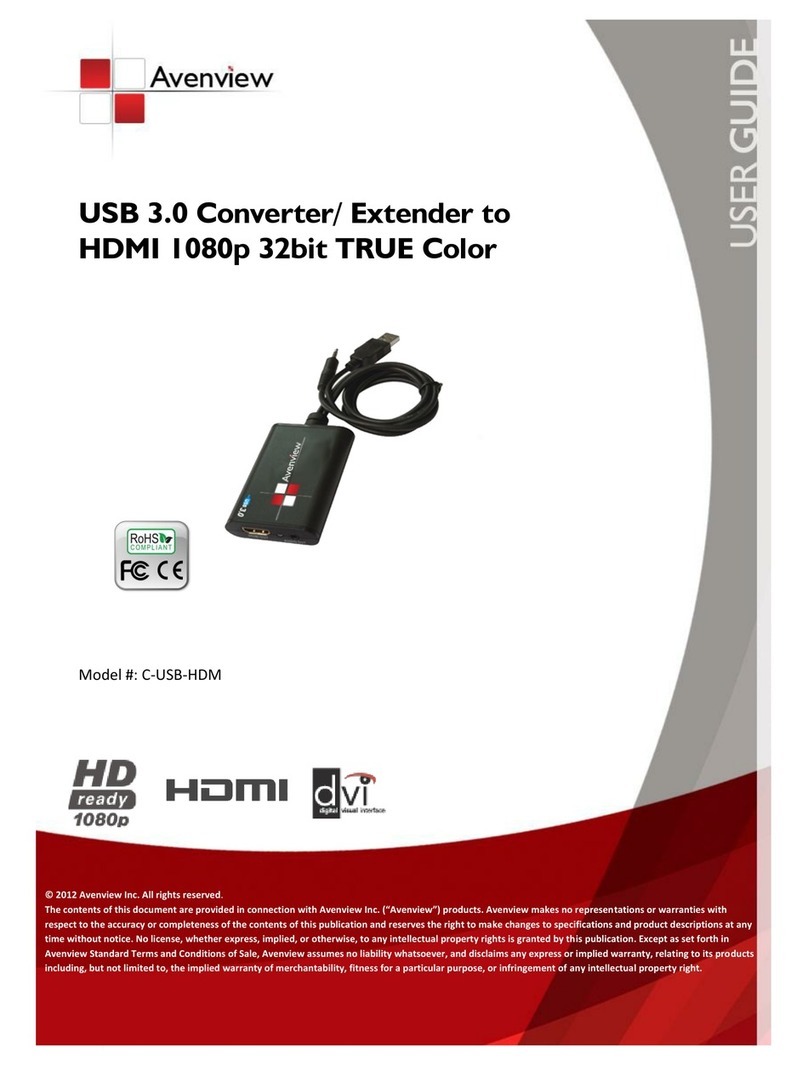

Avenview C-USB-HDM User manual
