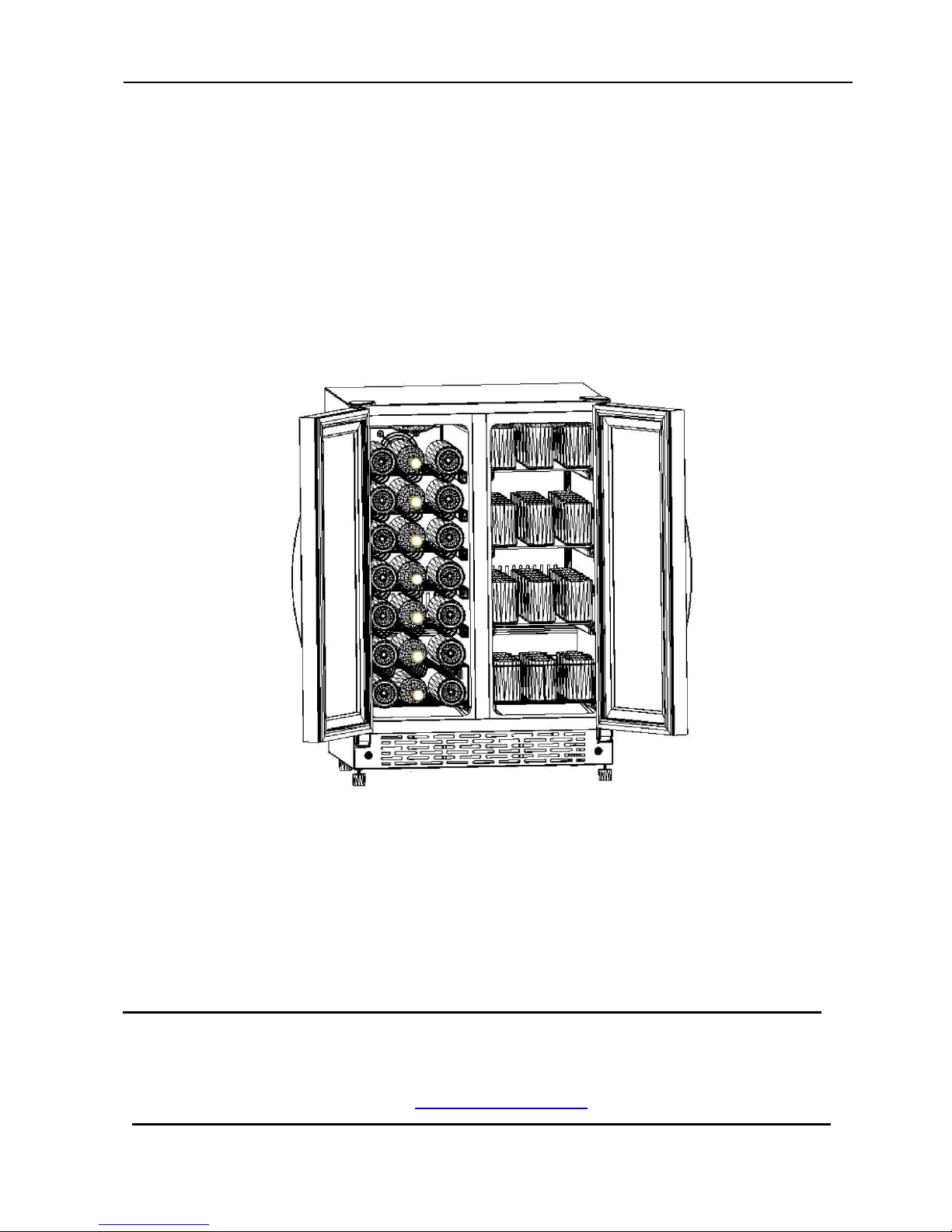

Avanti WBV21DZ User manual

WINE CHILLER

Model Number: WBV21DZ

SERVICE MANUAL

CAUTION

Before servicing, make sure to unplug the appliance.

Replace all part before operating the appliance.

Failure to do so could result in death, electrical shock or personal injury.

Avanti Products, A Division of the mackle Co.,Inc INC.

P.O.Box 520604 – Miami, Florida 33152 USA

www.avantiproducts.com

TABLE OF CONTENTS

1. SPECIFICATIONS……………………………………………………………………3

2. NAME OF PARTS……………………………………………………………………4

3. REFRIGERANT CYCLE DIAGRAM……………………………………………….5

4. WIRING DIAGRAM…………………………………………………………………..6

5. COMPRESSOR ROOM VIEW AND PARTS LIST……………………………….7

6. HOW TO REMOVE THE SHELVES………………….……………………………8

7. HOW TO REPLACE THE BOTTOM GRILLE……………………………….…..8-9

8. HOW TO REMOVE THE DOOR….………………….…………………………..9-11

9. RELACING THE CONTROL PANEL……………………………………….....11-12

10. REPLACE THE MAIN PCB………………….…………………...…………..…13-14

11. REPLACE REAR AIR DUCT THE EVAPORATOR FAN MOTOR…………15-16

12. REPLACE THE LED LIGHT ASSEMBLY…………………………..………...16-17

13. REPLACE THE CONDENSER FAN MOTOR, COMPRESSOR STARTER&

PROTECTOR........................................................................................................18-19

14. REPLACE THE DOOR GASKE, CHARCOAL FILTRATION………………....20

15. TROUBLESHOOTING…………………………………………………………...21-22

16. EXPLOSION VIEW & PARTS LISTS……………………………….….……...23-25

1. SPECIFICATIONS

1.1 WBV21DZ

Model No. WBV21DZ

Type BUILT-IN OR RECESSED OR FREE STANDING

Capacity

No. of Wine Bottles 21

Capacity Zone One - L 75

Zone Two - L 75

Zone Three - L N.A

Performance & Features

Ambient Temp. Rang

°C 16 ~ 38

Setting Temp. Range °C/°F Left side 7 ~ 18 / 45 ~ 65

ht side 1 ~ 7

34 ~ 43

Power Source V/Hz 115/60

Rated Input W170

Rated Current A2.2

Noise Level dB(A) Less than 45

Defrost Type Automatic

Temp. Control Electronic

Blowing Agent Cyclopentane

Refrigerating System

Cooling System Wind cooling

Compressor

Model No. AE1350Y/HYE55Y42

Type Hermetic

LRA 13.1

RLA 2.0

Overload Protecto

B60-125

PTC Starter QP2-22/*

Oil /

Condenser Fan Motor Model No. YJF610A-610-RX

Rating 110-120V, 60Hz

Evaporator Fan Motor Model No. PL92B12H

Rating 12 V, 0.2A

Expansion device Capillary (Ø0.6 x 1800 mm)

Refrigerant / Charged Volume R134a / 90g

Dimensions & Weights

Net Dimensions Width - mm 624

Height - mm 856

Depth - mm 595

Packing Dimensions Width - mm 655

Height - mm 906

Depth - mm 705

Weight Net / Gross - KGS 51/58

* Specifications are subject to change without prior notice.

2. Name of Parts

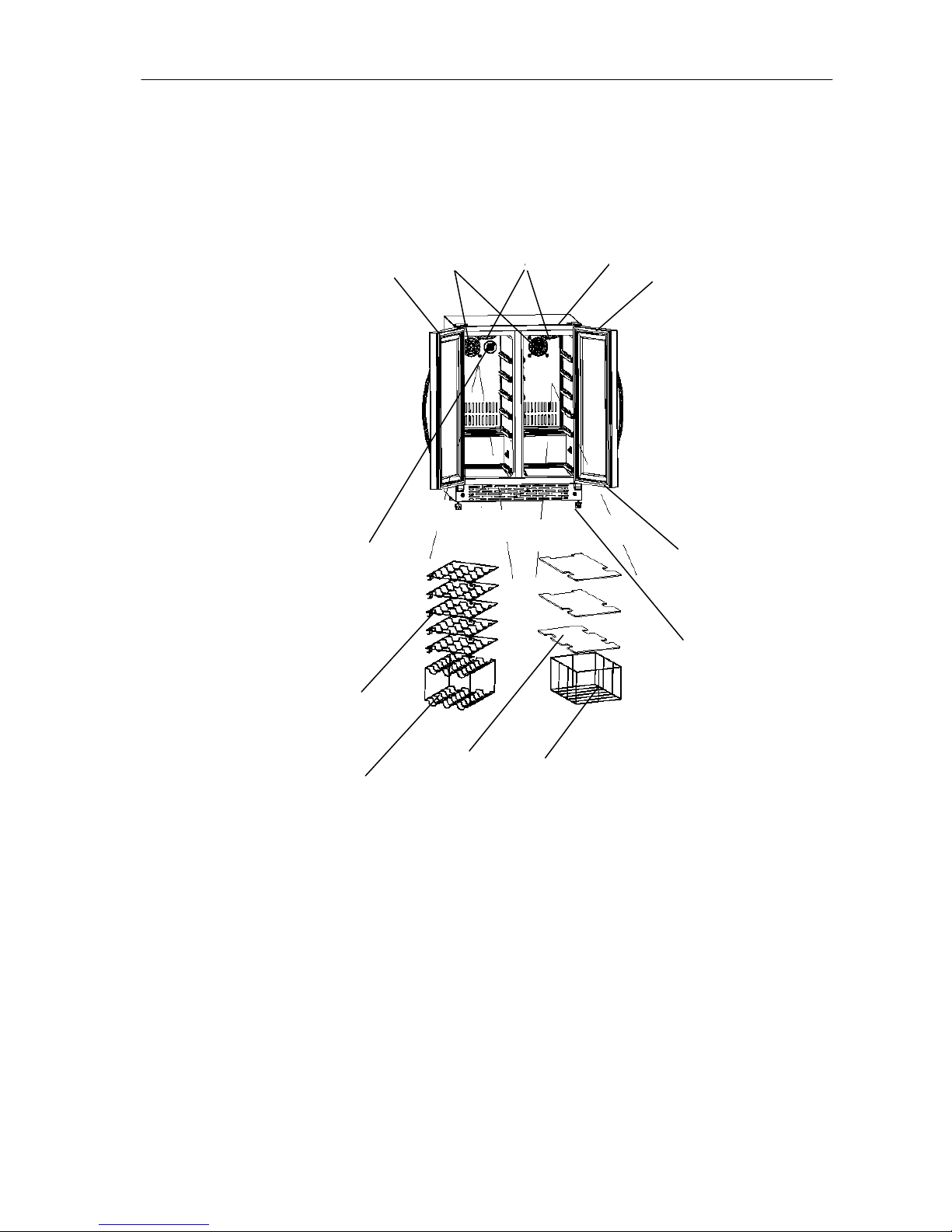

2.1 WBV21DZ

1. WINE CHILLER TEMPERATURE CONTROL PANEL

2. INTERIOR FAN

3. INTERIOR LIGHT

4. CABINET

5. BEVERAGE CENTER TEMPERATURE CONTROL PANEL

6. WINE BOTTLE SHELVES

7. WINE BOTTLE STORAGE RACK / BASKET

8. BEVERAGE SHELVES

9. STORAGE BASKET

10. LEVELING LEGS

11. LOCK

12. CHARCOAL FILTER

234

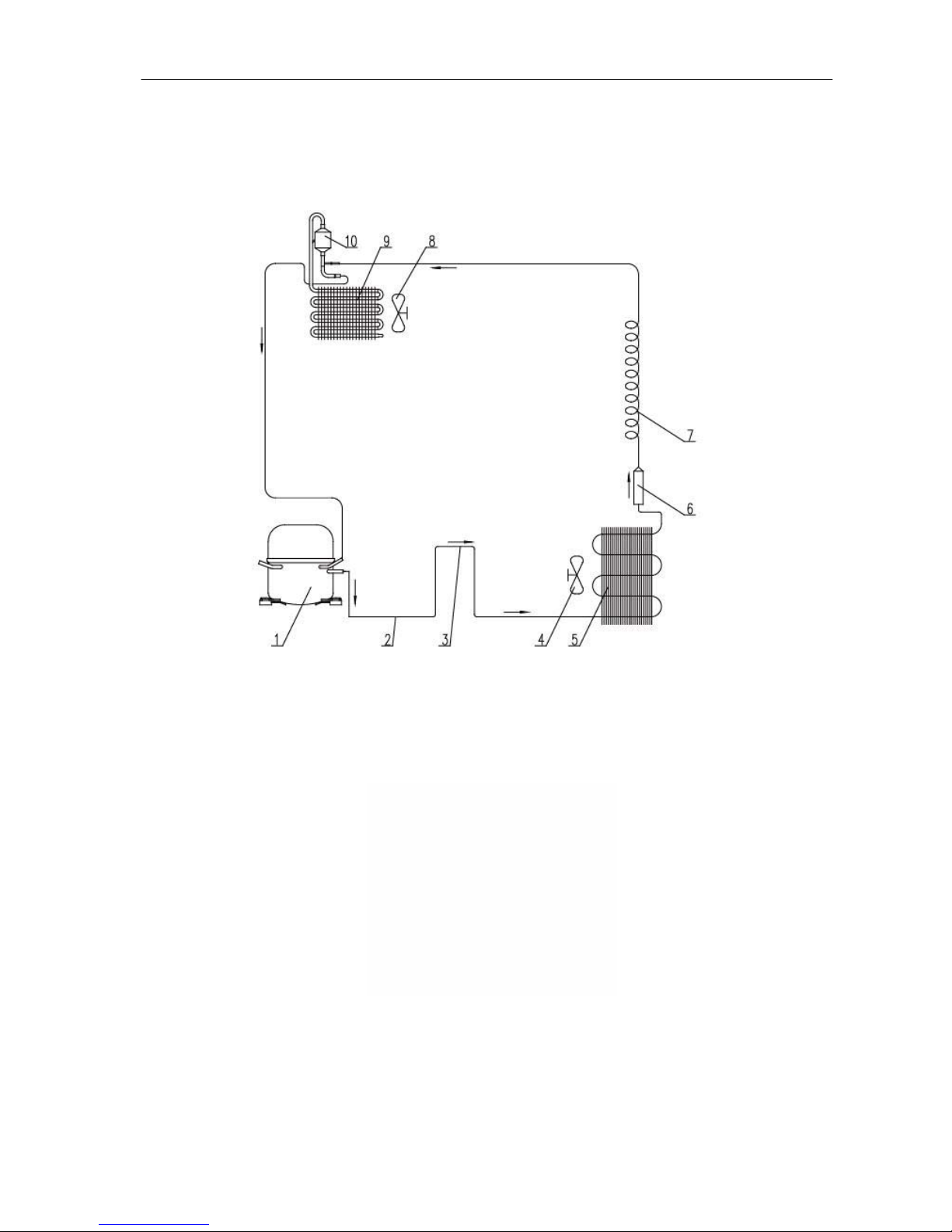

3. REFRIGERANT CYCLE DIAGRAM

1. Compressor

2. Hot Pipe

3. Condenser (Internal)

4. Condenser Fan

5. Condenser (External)

6. Dry Filter

7. Capillary

8. Evaporator Fan

9. Evaporator

10. Accumulator

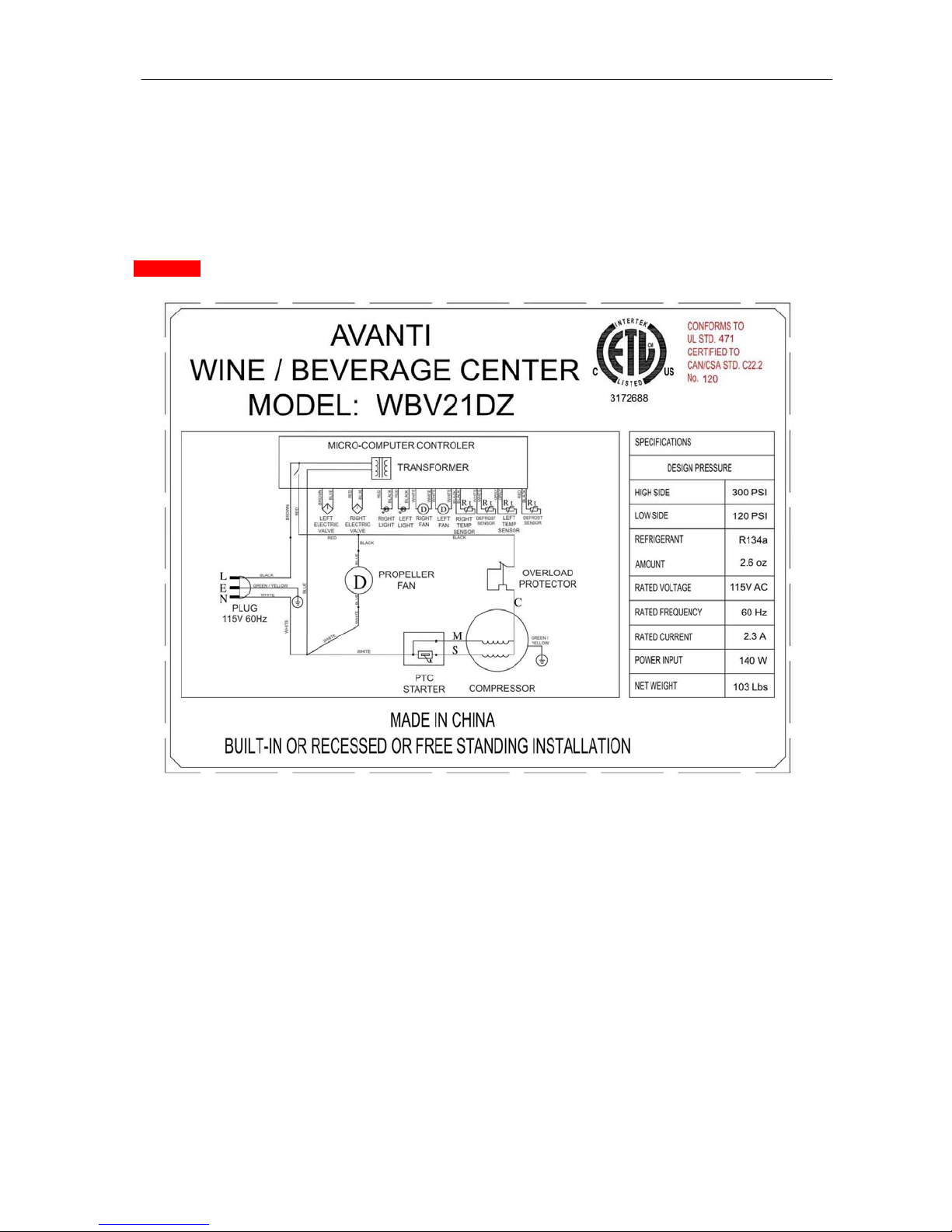

4. WIRING DIAGRAM

4.1 WBV21DZ

***********

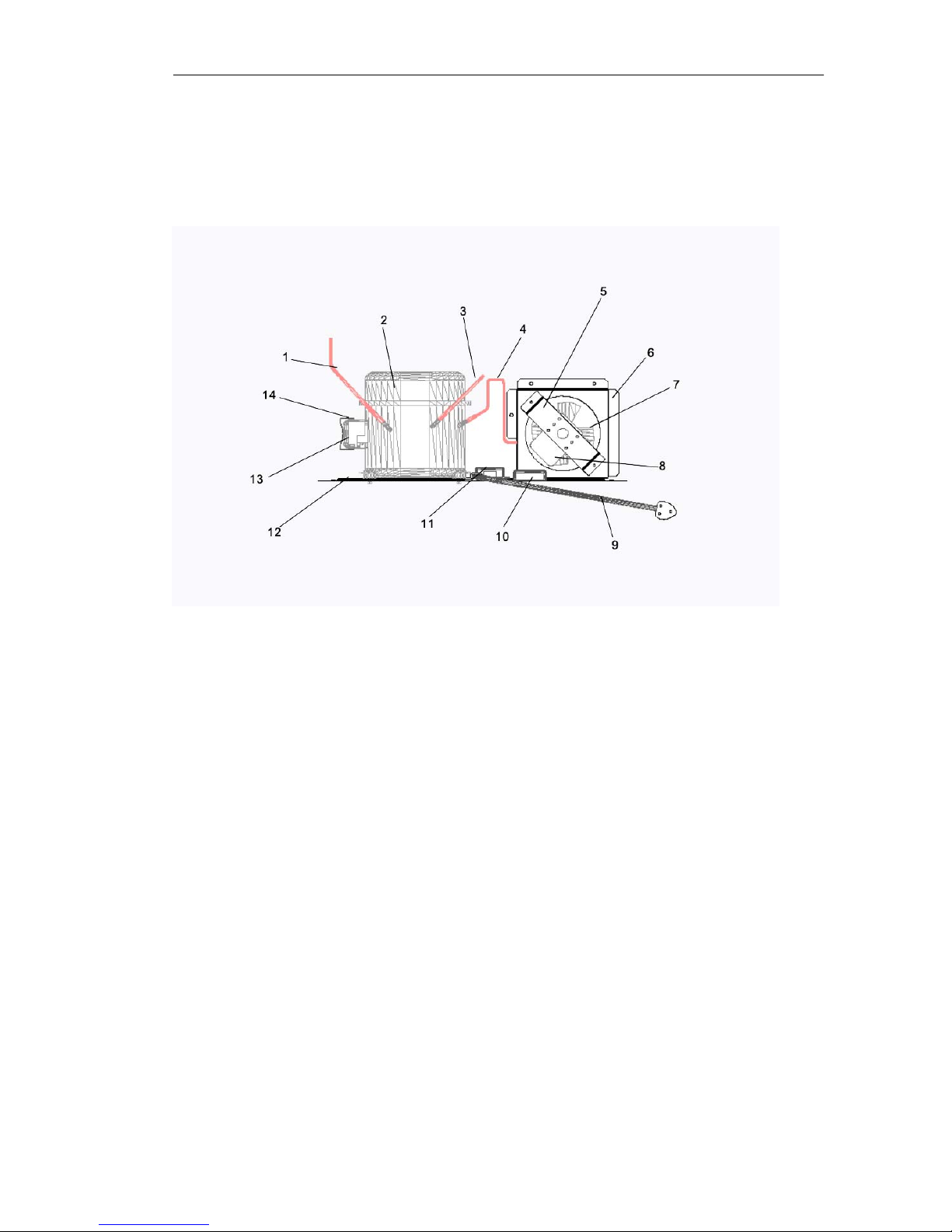

5. COMPRESSOR VIEW AND PARTS LIST

1. Suction Pipe

2. Compressor

3. Process Pipe

Outlet Pipe of Condenser

4. Discharge Pipe

5. Condenser Fan Supporter

6. Condenser Fan Cover

7. Condenser Fan

8. Condenser Fan Motor

9. Power Supply Cord with Plug

10. Junction Box

11. Electrical Box of Compressor

12. Compressor Base

13. Compressor Junction Box

14. Compressor Junction Box supporter

6. HOW TO REMOVE THE SHELVES

The appliance is equipped with the wired shelves and beverage shelves. You can move the

shelves out and in smoothly.

•To prevent damaging the door gasket, make sure to have the door all the way opened when

pulling the bottom shelf out of the rail compartment.

•For easy access to the storage content, you must pull the shelf approximately 1/2 out of the rail

compartment, however this unit was designed with a plastic post on each sides of the shelf track

to prevent bottles from falling.

•When removing the shelf out of the inner rail, make sure to remove all items first. Then move the

shelf to the position where the notch of shelf is exactly under the plastic post and lift the shelf. In

order to replace the shelf, repeat steps described above in reverse.

Wire shelf Beverage shelf (glass shelf)

7 REPLACING THE BOTTOM GRILLE

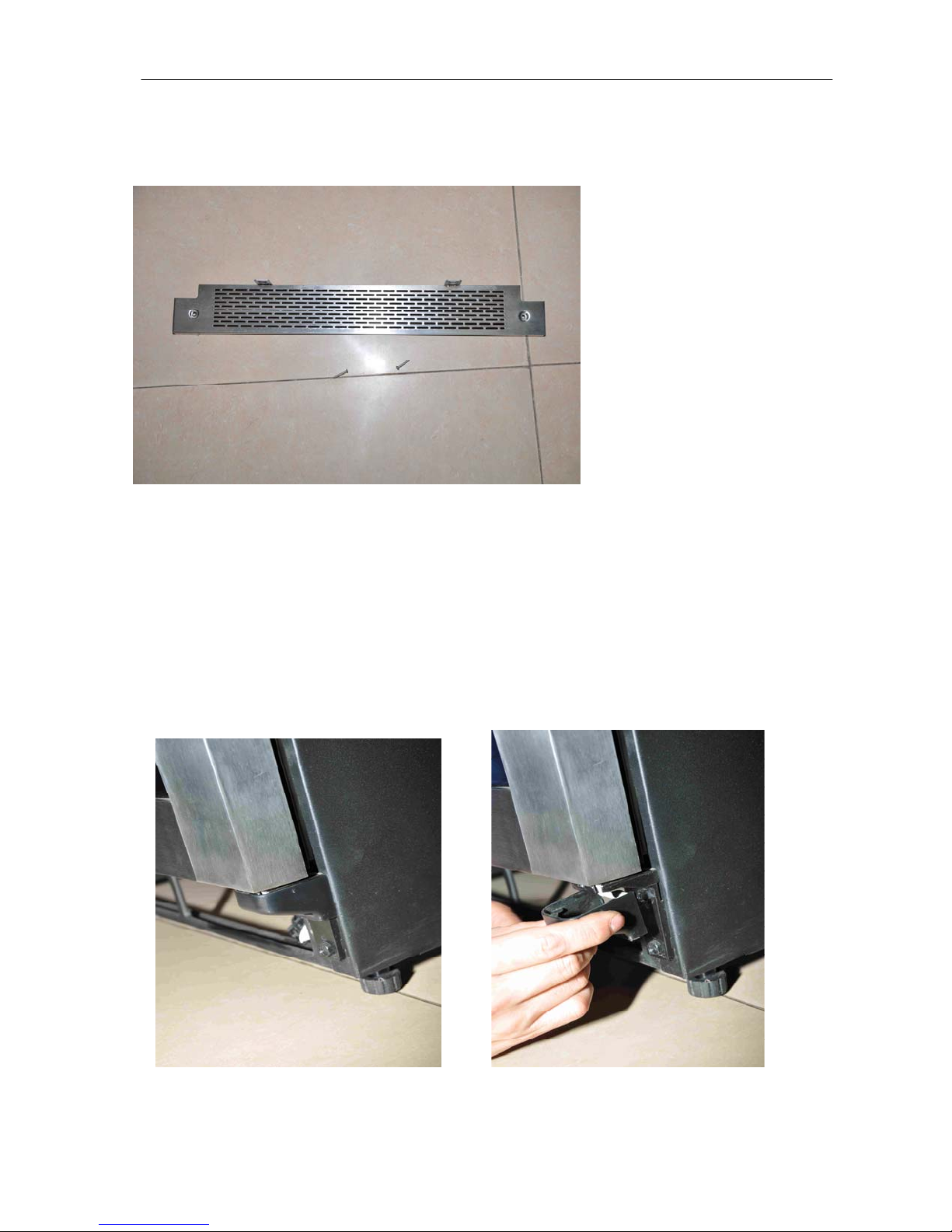

1．Remove two screws that are used to fix the bottom grille with the cabinet.

1. The bottom grille is shown as below.

8. HOW TO REMOVE THE DOOR

Note: All parts removed must be saved to do the reinstatement of door.

1. Remove the bottom grille according to “Replacing the Bottom Grille”.

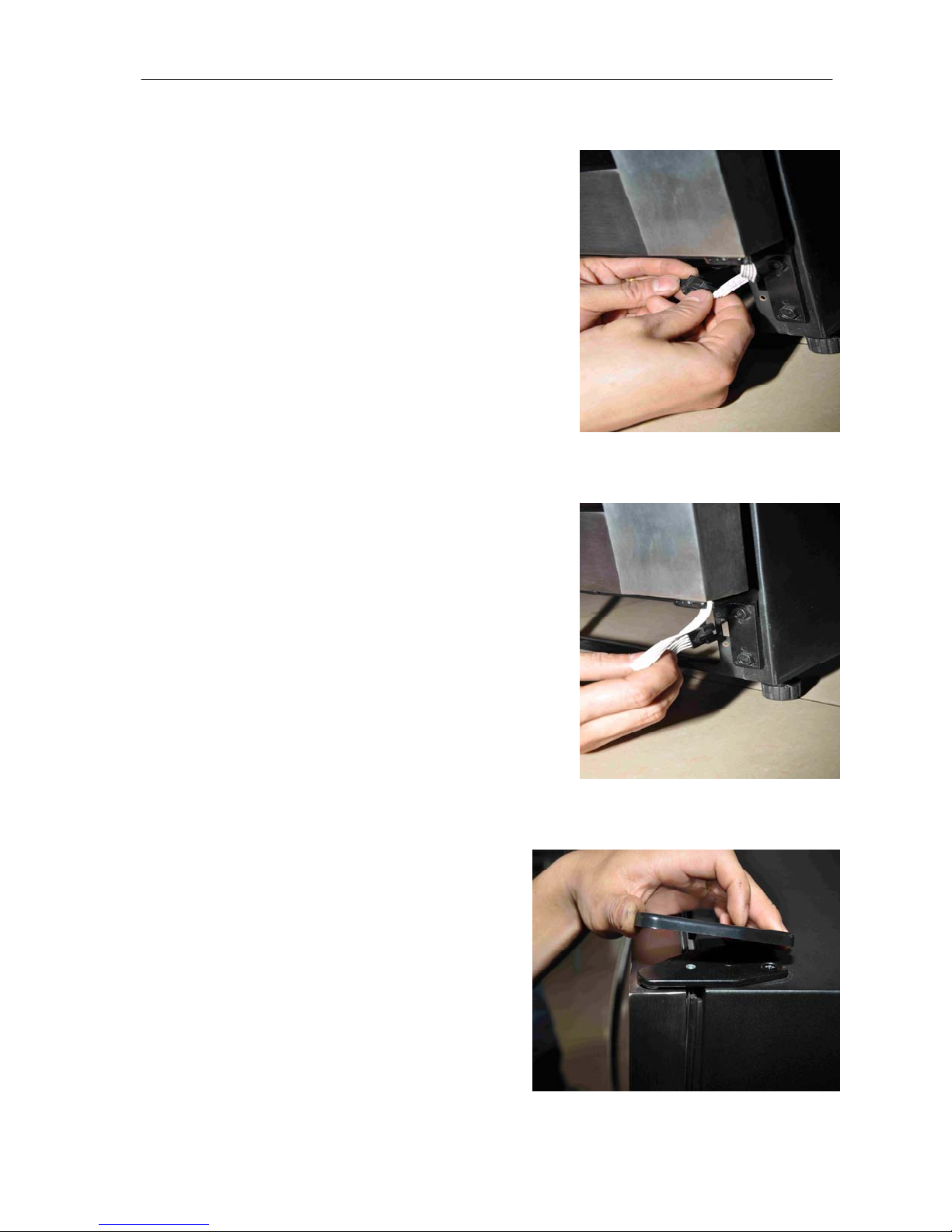

2. Pull out and remove the lower hinge cover.

3. Disconnect the communication cable between the door and the cabinet.

4. Pull out the wire from the cabinet.

5. Remove the upper hinge cover from the top right of the door
