Avanti BCA-4560W User manual
B

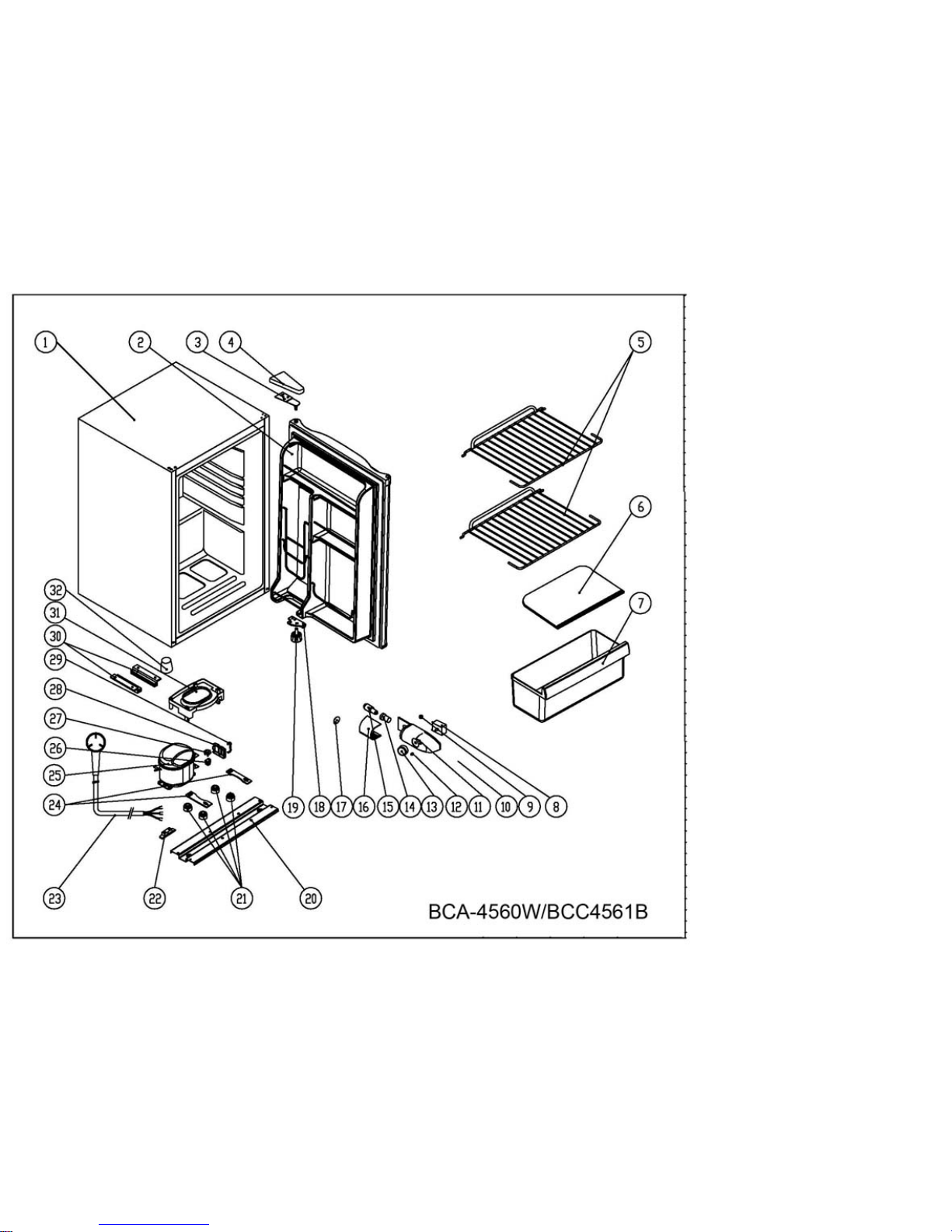

CA4560W/BCA4561B Parts and Price Lis
t
POS Part Name Qty(Pcs) Part No.
1 Cabinet (BCA4560W)-WHITE 1 4560001
Cabinet (BCA4561B)-BLACK 1 4561001
2 Door Assembly (BCA4560W)-WHITE 1 4560002
Door Assembly (BCA4561B)-BLACK 1 4561002
3 Upper hinge 1 4560003
4 Upper hinge cover (BCA4560W)-WHITE 1 4560004
Upper hinge cover (BCA4561B)-BLACK 1 4561004
5 Wire shelf 2 4560005
6 Crisper Glass cover 1 4560006
7 Crisper 1 4560007
8 Thermostat 1 4560008
9 Thermostat hook 1 4560009
10 Lamp switch 1 4560010
11 Thermostat box ASS'Y 1 4560011
12 Indication piece 1 4560012
13 Thermostat Knob 1 4560013
14 Lamp holder 1 4560014
15 Bulb 1 4560015
16 Lamp cover 1 4560016
17 Fix ring 1 4560017
18 Bottom Hinge 1 4560018
19 Adjustable Foot (BCA4560W)-WHITE 1 4560019
Adjustable Foot (BCA4561B)-BLACK 1 4561019
20 Compressor plate 1 4560020
21 Compressor cushion 4 4560021
22 Power cord clipper 1 4560022
23 Power cord 1 4560023
24 Compressor Fixing plate 2 4560024
25 Compressor 1 4560025
26 Compressor PTC Starter 1 4560026
27 Compressor Overheat Protector ASS'Y 1 4560027
28 Junction box cover 1 4560028
29 Lock 1 4560029
30 Insulation Board holder 2 4560030
31 Insulation Board 1 4560031
32 Front foot (BCA4560W)-WHITE 1 4560032
Front foot (BCA4561B)-BLACK 1 4561032
This manual suits for next models
