Audiovox FRS-WP1 User manual
Customer Service
1-800-290-6650
Model FRS-WP1
Two Way Family Radio
with Headset and
Boom Microphone
Owner’s Manual
PUSH TO
TALK
CALL
VOL VOX
HI
OFF
LOW
Your FRS-WP1 Family Radio is a portable, easy to use, two-way radio that
you can carry almost anywhere. It is skillfully constructed to give you reliable
communications and FM radio listening enjoyment. It is intended for use with
the supplied headset assembly with PTT switch. When used in this manner,
the FRS-WP1 is ideal for hands-free use around the house, in your boat, on
hunting and camping trips, on the ski slopes or at the mall. Some of the
FRS-WP1 features are:
No Air Time Fees and No License Required
Up to 2 Mile Range
Carry-Clip for Hands-Free Operation
14 Channels
FM Radio Receiver
VOX Capability with Two Sensitivity Settings
LCD Display
Call/Ring Button
FEATURES
-2-
-3-
Your transceiver will achieve its maximum operating range when communi-
cating with other transceivers in a flat open area with no trees or buildings
obstructing its signal. Range may be up to two miles under such conditions.
Obstacles such as buildings, trees or mountains will tend to reduce the
transceiver’s effective range.
FCC WARNING
Replacement or substitution of transistors, diodes or other parts of a unique
nature, with parts other than those recommended by the manufacturer, may
cause a violation of the technical regulations of Part 15 of FCC Rules.
SAFETY INFORMATION
Your wireless portable transceiver contains a low power transmitter. When
the headset PTT button is pushed, or the VOX mode is in effect, it sends out
radio frequency (RF) signals. The device is authorized to operate at a duty
factor not to exceed 50%.In August 1996, the Federal Communications
Commissions (FCC) adopted RF exposure guidelines with safety levels for
hand-held wireless devices.
Important: To maintain compliance with the FCC’ s RF exposure guidelines,
use the Audiovox supplied carry clip for belt attachment to ensure
that the antenna is at least 1 inch (2.5 centimeters) from your
body when transmitting. If you choose to hold the unit, maintain
the same antenna distance from your body as indicated above.
Unauthorized antennas, modifications, or attachments could
damage the transmitter and may violate FCC regulations.
PERFORMANCE
-4-

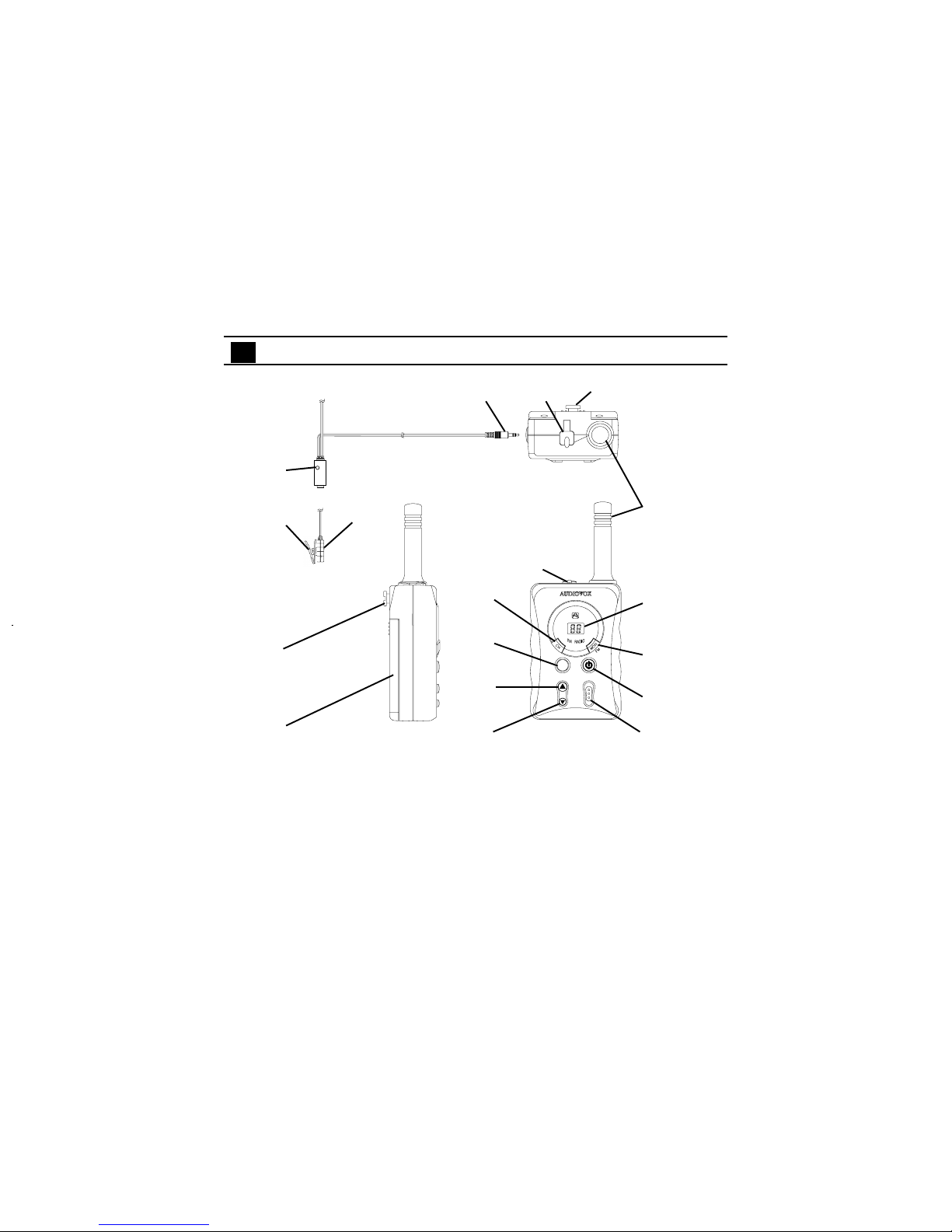

FUNCTION AND LOCATION OF THE CONTROLS
1. Battery Compartment Cover: Four (4) AAA batteries acces-
sible when cover is removed.
2. Carry Clip Stud: Attaches to carry clip.
3. Headset PTT Switch: With unit VOX switch set to OFF, press
to transmit; release to receive.
SPK
MIC
PUSH TO
TALK
CALL
VOL VOX
HI
OFF
LOW
1
2
3
4
3
REF
TO
HEADSET 56
2
REF
7
8
9
10
11
12
13
14
15
6
REF
-5-
4. Lapel/Clothes Clip: Attaches headset PTT switch to convenient area.
5. Headset Microphone/Speaker Plug: Connects headset assembly
to SPK/MIC jack on radio.
6. Headset SPK/MIC (CHG) Jack: For use with the supplied Audiovox
headset assembly; accepts headset connector plug (5). Also accepts
wall charger (sold separately) DC input for battery charging.
7. Antenna
8. LCD Display: Displays the current FRS channel number as well as
various control function indications.
9. Monitor/FM (MON/FM) Button: Momentarily press to bypass the
squelch and listen to channel activity. Press and hold to access the FM
radio mode.
10. Power Button ( ): Press and hold this button for 2 seconds to
turn the transceiver on or off.
11. VOX HI/LOW/OFF Switch: Enables VOX mode in the HI or LOW
sensitivity position.
12. Down Button ( ): Press this button to decrease the volume or chan
nel setting.
13. Up Button ( ): Press this button to increase the volume or channel
setting.
14. Call Button (CALL): Momentarily press this button to send a ringing
sound to other radios tuned to the same channel.
15. Channel (CH) Button: Press this button to access the FRS channel
select function.Press this button to access the FM radio search (SE)
function when the FM radio mode is active.
POWERING THE TRANSCEIVER
Your FRS-WP1 radio transceiver operates on four AAA batteries. Alkaline
batteries will provide slightly better performance than rechargeable batteries
and will ensure optimum performance for the FRS-WP1.
Batteries
There are three methods of powering the FRS-WP1:
1.Alkaline Batteries.
WARNING: Do not attempt to recharge Alkaline batteries.
2.Audiovox Rechargeable Ni-MH Batteries - (Rechargeable NiMH
batteries (P/N FRSRBAT) and Charging Adapter (Model No.
YKA3515-08010) sold separately.) Use only Audiovox approved
rechargeable batteries and charger when charging batteries internal
to the unit. For additional optional equipment and accessories for the
FRS-WP1, visit the Audiovox web site at www.audiovox.com, or
call Customer Service at 1-800-290-6650
NOTE: To extend battery life, avoid overcharging the batteries.
3. Various Brands of Rechargeable Batteries - Use of the supplied
Audiovox charger with other brands of rechargeable batteries is
not recommended, as battery charging times will vary with different
brands of batteries. Refer to the manufacturer’s instructions for
charging other brands of batteries.
Installing the Batteries:
Battery installation is made more convenient when the carry clip is removed.
To do this, release the spring latch securing the clip to radio and slide the clip
downward and away from the mounting stud.
-6-
1.Press down on the spring latch securing the clip to radio and slide the
clip downward and away from the mounting stud.
2.At battery cover, press downward with thumb on embossed arrow and
slide battery cover down and off the radio.
3.Insert four “AAA” batteries. Position batteries according to polarity
markings. Reverse the procedure outlined in steps 1 and 2 to reas-
semble.
NOTE: Make sure the battery + and - terminals are aligned as shown.
Your FRS-WP1 requires four “AAA” cells. Alkaline batteries will provide the
best performance from your transceiver.
CAUTION: Incorrect battery installation can damage the unit.
Never attempt to charge alkaline batteries.

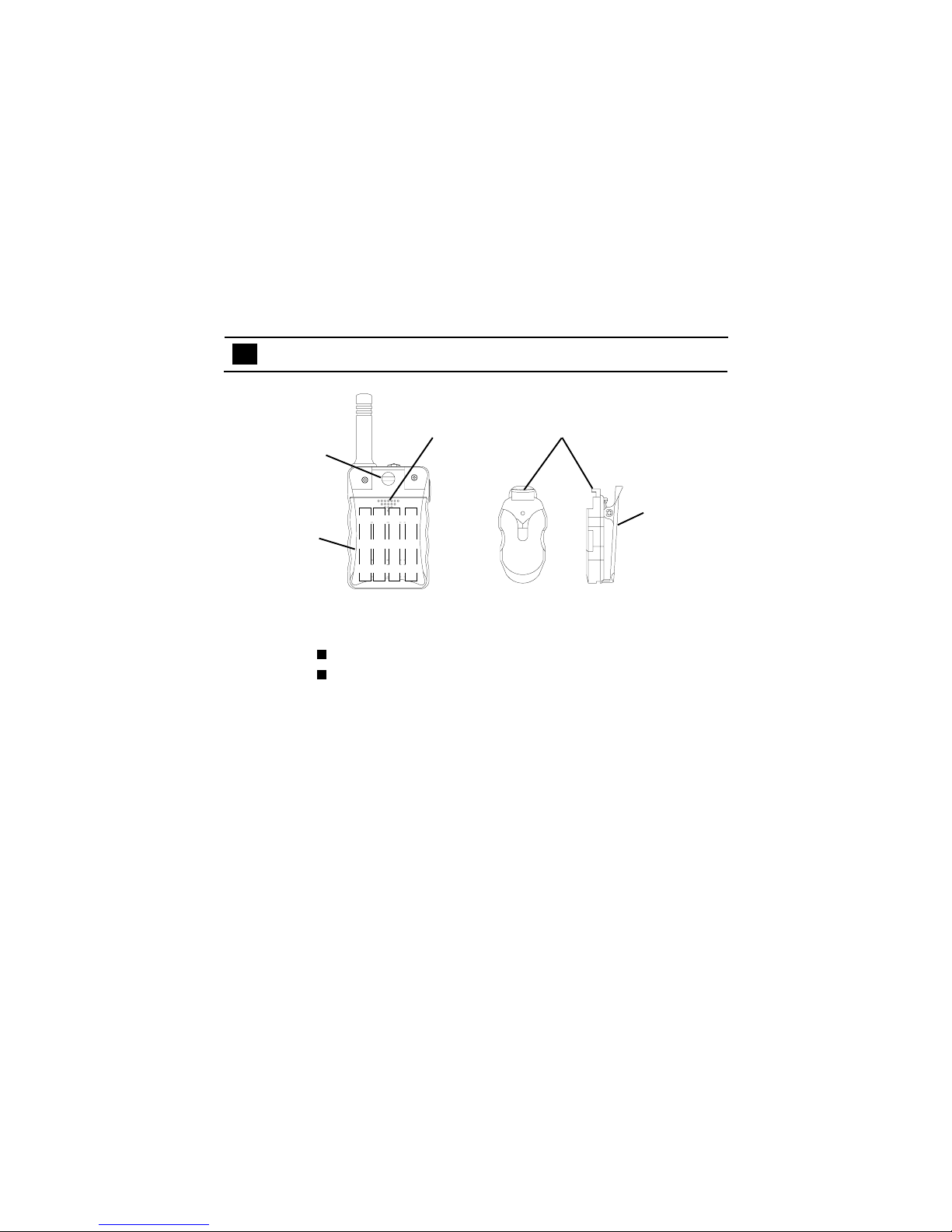

BATTERY INSTALLATION
-7-
CARRY CLIP
MOUNTING
STUD
BATTERY
COVER
SPRING
LATCH
CARRY
CLIP
++
+
+
EMBOSSED
ARROW
-8-
The following guidelines will improve performance and provide longer operat-
ing times for the FRS-WP1:
1. Do not mix old and new batteries.
2. The use of alkaline-type batteries is recommended to provide the
longest operating time.
3. Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries.
4. If the unit is not to be used for an extended period of time, remove
the batteries. Old or leaking batteries can cause damage to the
unit and will void the warranty.
AUDIO OX
L
U
E203081
65NM
LISTED
L
U
C

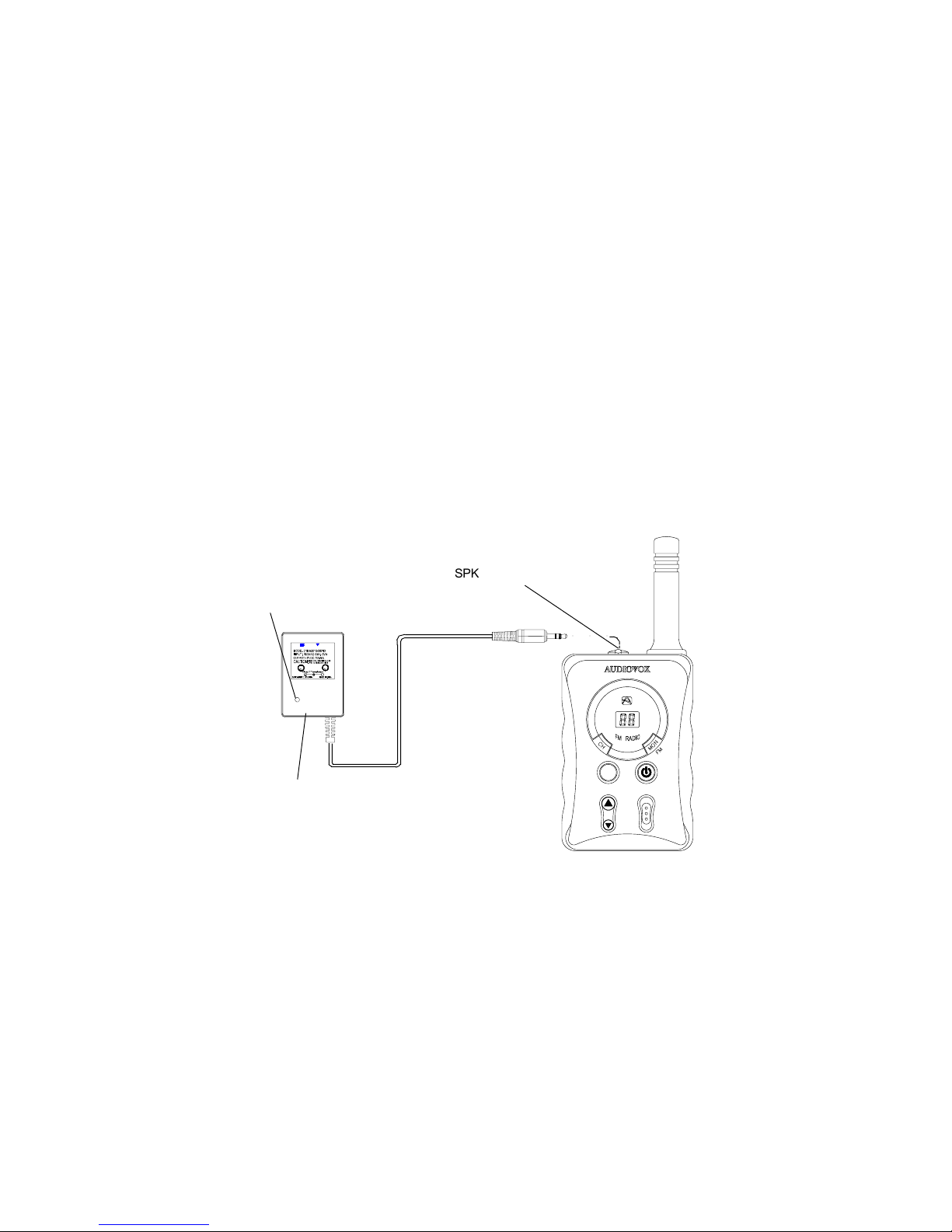

Direct Plug-In Transformer Unit
+
○○○
SPK/MIC (CHG) JACK
AC WALL CHARGING
ADAPTER, MODEL
YKA3515-08010 (SOLD
SEPARATELY)
INPUT: 120 VAC
OUTPUT: 8 VDC
CALL
VOL VOX
HI
OFF
LOW
RED CHARGE
LED
NOTE: Only Audiovox
approved rechargeable
batteries (P/N FRSRBAT)
can be recharged in the
radio transceiver.
-9-
Turning the Transceiver On and Off ( )
Pressing the Power button (10) for 2 seconds will activate the unit and the
self-test display momentarily appears followed by the frequency standby
display. The headphones will sound a short melody to confirm the transceiver’s
activation and the LCD backlight will come on for about 2 seconds. To turn
the unit off, simply press and hold the power button for 2 seconds then
release it; a short tone will be heard as the unit powers off.
Volume Level
Audio reception volume is controlled by the Up (13) and the Down (12) channel/
volume buttons. Momentarily pressing either button will increase or decrease
the volume level, with each step accompanied by a beep tone whose volume
increases or decreases accordingly. The display will indicate U1 (lowest
setting) to U7 (highest setting).
Call Button (14)
When the call button is pressed, the FRS-WP1 will transmit a 3-second
ringing sound to other transceiver’s tuned to the same channel. This
feature can be used to signal other parties that voice communication is
desired. The LCD backlight comes on for about 3 seconds, indicating the
call transmission has been initiated.
Low Battery Alert
When the battery level becomes low, the LCD channel display will flash at a
1-second rate, indicating that the batteries should be changed.
Monitor/FM (MON/FM) Button (9)
You can monitor channel activity by momentarily pressing the Monitor (MON)
button (9). If pressed for more than 2 seconds, the FM function is accessed,
whereby Fr appears momentarily on the display. You can now use the CH
button (15) to search (SE) the FM band for a desired station.
USING YOUR FRS-WP1
-10-
Channel Selection
Momentarily press the CH button so the two-digit channel display flashes.
Press the VOL Up ( ) or Down ( ) button to select the desired channel
(01–14).
VOX Function
This feature enables you to have hands-free conversation.
To enter the VOX mode:
1.With the headset plugged into the SPK/MIC jack on the radio, from the
FRS standby mode, position the VOX switch to the HI or LOW
position from the OFF position.
2. When using the headset microphone, your voice signal is detected and
is automatically transmitted by the radio; the LCD backlight comes on
while VOX transmission occurs and goes off 3 seconds after the last
voice transmission. The reply audio is received by the radio and is
transferred to the headset.
VOX Sensitivity Level
The VOX sensitivity level can be set to the high or low position on the radio.
A HI VOX sensitivity is the most sensitive, and should be used in a relatively
quiet surrounding. A LOW sensitivity is the least sensitive and should be
used in a noisy surrounding.
FUNCTIONS
