IMPORTANT NOTICE

It is unlawful in most jurisdictions for a person to drive a

motor vehicle which is equipped with a video monito

viewer or screen that is located in the motor vehicle a

any point forward of the back of the driver’s seat, or tha

is visible, directly or indirectly, to the driver while

operating the vehicle. In the interest of safety, the

VOH1041DL should never be installed where it will be

visible, directly or indirectly, by the operator of the moto

vehicle.

-2-

Congratulations on your purchase of the Audiovox

VOH1041DL drop down Video Monitor. The

VOH1041DL has been designed to give you and you

family many years of video entertainment in the mobile

environment. Please read the directions that follow to

familiarize yourself with the product and to ensure tha

you obtain the best results from your equipment.

NOTE: Installation options vary. See the individual

Owner’s Manuals for each component in your system to

obtain a full understanding of each component’s

operation.

SAFETY PRECAUTION

For safety reasons, when changing Video Media it is

recommended that the vehicle is not in motion, and that

you do not allow children to unfasten seat belts to

change Video Media or make adjustments to the

system. System adjustments can be accomplished

using the Remote Control while seat belts remain

fastened. Enjoy your Audiovox entertainment system

but remember safety of all passengers remains the

number one priority.

FEATURES

• 10.4” TFT (Thin Film Transistor) Active Matrix LCD

(Liquid Crystal Display) Monitor

• OSD (On Screen Display) For Control Of Picture

Quality And Functions

• Full Function Remote Control

• Remote Sensor Eye

• Two Audio / Video Inputs

• Speaker Amplifier

• Back-Lit Controls For Low Light Operation

• Infrared Wireless Headphone Transmitter

• Dual Dome Lights

• RF Transmitter jack (for use with optional RF

Transmitter) ( Part # WTXRF01)

FRONT PANEL FEATURE

Figure 1

-3-

PICTURE MENU VOLUME

12 3 456 7899

–+

-4-

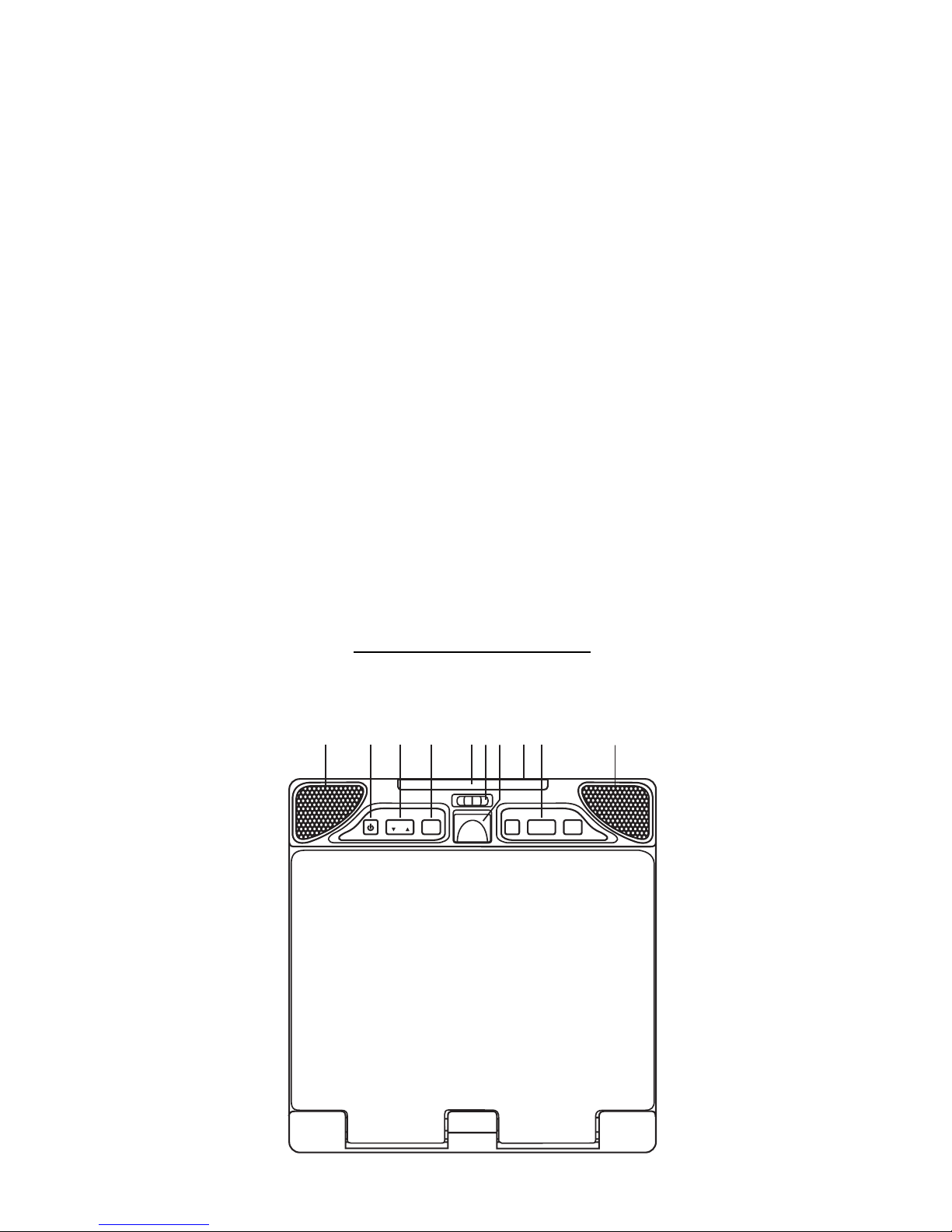

FRONT PANEL FEATURES – See Figure 1

1. Power Button – (Bright red when system is ON,

dim when system is OFF).

2. Picture Up/Down – Press these buttons to make

adjustments in the picture select mode and to

change sources in input Select mode.

3. Menu – Press the MENU button. The MENU

display appears. Use the MENU button to

highlight the desired function.

4. Sensor Eye – Allows remote control of the

VOH1041DL’s OSD system (On Screen Display)

and for control of Video Media Player and othe

accessories.

5. Three Position Dome Light Switch

• Auto – Automatically switches on the dome lights

in conjunction with the vehicle’s interio

illumination.

• Off – The Dome lights will not turn on in this

position.

• On – Turns on the Dome lights.

6. Screen release – Slides in the direction of the

arrow to release the drop down screen.

7. Volume Up/Down – Controls volume to external

Speakers or headphone jacks if connected.

8. Infrared Transmitter – Used to transmit audio to

Wireless Headphones.

9. Dome Lights – Provide additional interio

illumination.

-5-

REMOTE CONTROL OPERATION

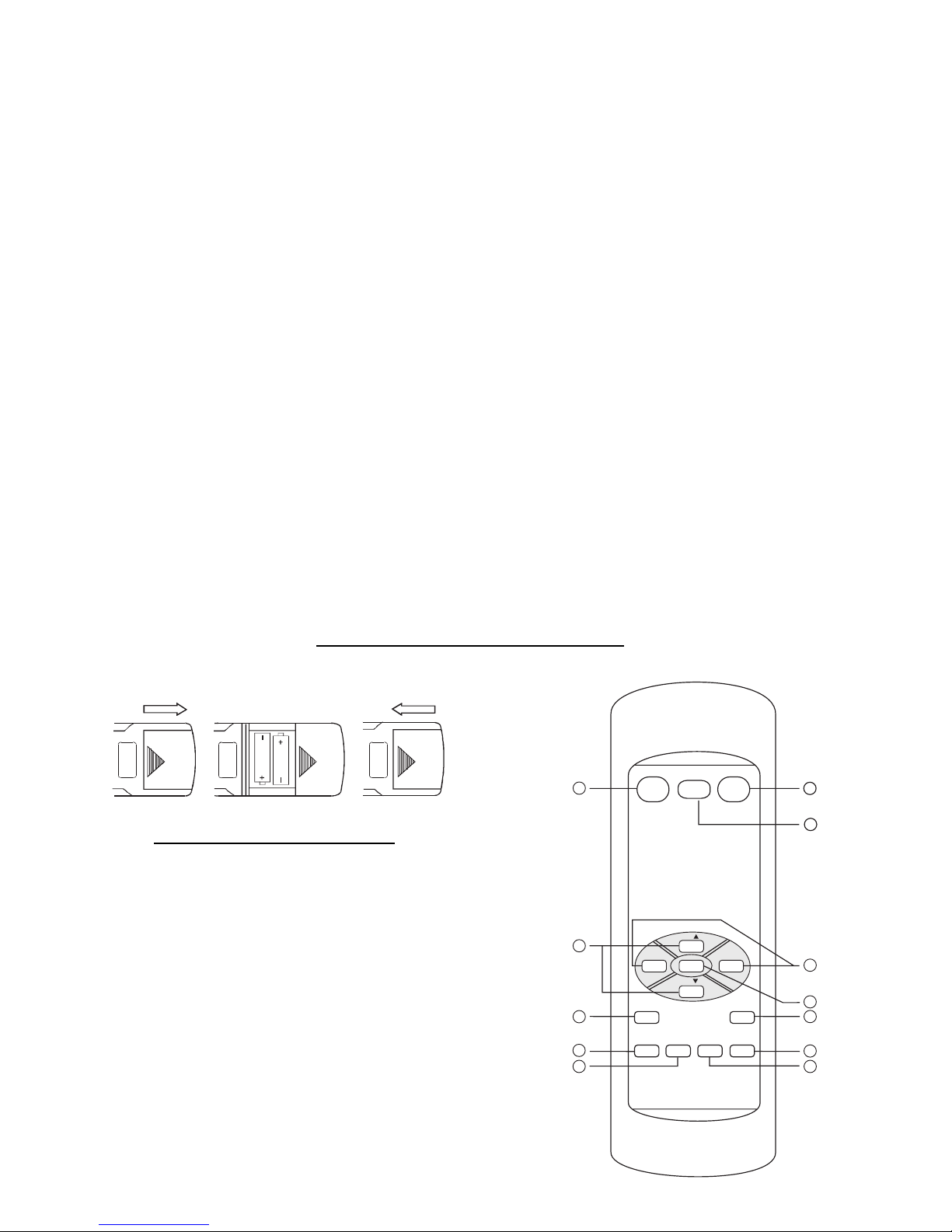

BATTERY INSTALLATION

Before attempting to operate the Remote Control,

install the batteries as described below.

1) Turn the Remote Control face down. Press

down on the ridged area of the battery cover, and

slide it off.

2) Install Two “AAA” batteries as shown. Make sure

that proper polarity (+ or -) is observed.

3) Slide the cover back until it clicks into position.

The Remote Control will operate the VOH1041DL,

and Audiovox VCP’s. It is not a universal remote

control and will not control equipment from othe

manufacturers.

If a universal Remote Control is used with the

VOH1041DL, choose the remote control encoding

scheme for Audiovox Televisions when

programming the remote.

POWER MUTE

VCP POWER PLAY

REW F.FWD REPLAY STOP

PIC

VOL. +VOL. –

PIC

SOURCE

-6-

REMOTE CONTROL OPERATION

Monitor Controls :

1. POWER

Press this button to turn on the set. Press the

button again to turn the VOH1041DL off.

2. PICTURE UP/DOWN BUTTONS

Use these buttons to make adjustment in the

picture select mode and AV source select.

3. VOLUME UP/DOWN BUTTONS

Use these buttons to raise or lower the volume

level of the External Speakers or headphone jacks

if installed.

4. MENU Button

Press the MENU button. The MENU displa

appears. Use the MENU button to highlight the

desired function.

5. MUTE Button

Press this button to turn the TV sound off. Press

the button again to restore the sound to the

previously set level. MUTE may also be released

by pressing the VOLUME +/–.

6. SOURCE Button

Press this button to select AV1 or AV2.

VCP Controls

7. VCP POWER BUTTON

This button is used to turn an optional

AUDIOVOX VCP ON and OFF.

8. “REW” REWIND BUTTON*

If this button is pushed while the tape is

stopped, the tape will rewind. If this button is

pushed while the tape is playing, the VCP will

go into rewind search mode.

9. PLAY BUTTON*

Press this button to activate play mode while a

Video Tape is loaded into the VCP. This button

may also be used to disengage search and

pause modes. For more information, consul

the VCP owner’s manual.

10 “FFWD” FAST FORWARD BUTTON*

If this button is pushed while the tape is

stopped, the tape will fast forward. If this

button is pressed while the Video Tape is

playing, the VCP will go into fast forward

search mode.

11. STOP BUTTON*

Press this button to stop the Video Tape.

12. REPLAY BUTTON*

Pressing this button will rewind the Video Tape

and immediately begin playback when the

Video Tape is fully rewound.

*Consult the VCP owner’s manual for more

information.

-7-

ADJUSTING THE PICTURE

When watching the VOH1041DL, the quality of the

picture can be adjusted to suit your taste.

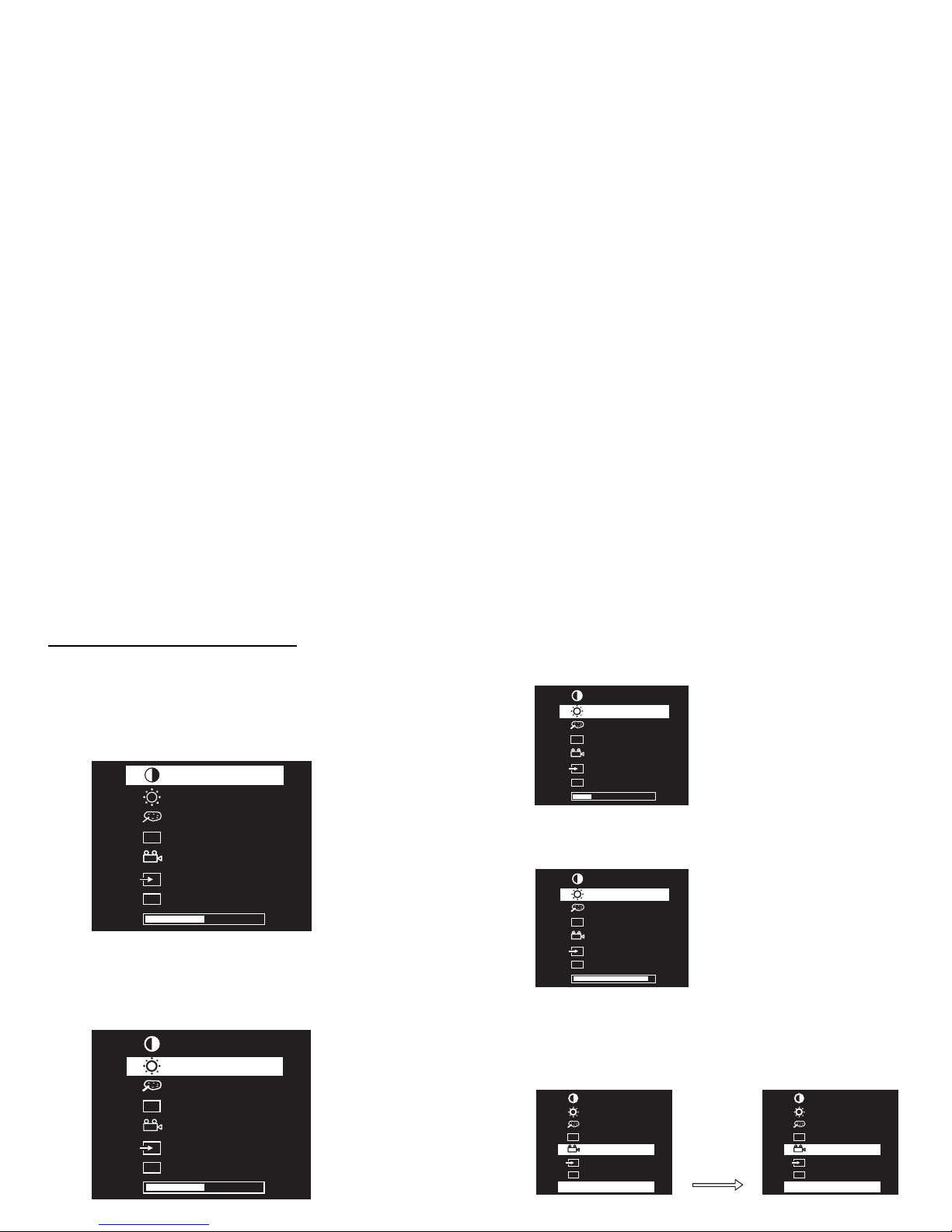

1. Press MENU. The menu appears as below.

2. Select the item to adjust. For example :

To adjust brightness, press MENU until the

highlight bar is on BRIGHTNESS.

3. Adjusting the level :

a) Press PICTURE ▼to decrease the brightness.

b) Press PICTURE ▲to increase the brightness.

4. To select INPUT SELECT, press MENU until the

highlight bar is on INPUT SELECT, press

PICTURE ▲or ▼to select either AV1 or AV2.

EXIT

–+

CONTRAST

BRIGHTNESS

TINT

COLOR

INPUT SELECT

RESET

EXIT OSD

EXIT

–+

CONTRAST

TINT

COLOR

INPUT SELECT

RESET

EXIT OSD

BRIGHTNESS

EXIT

–+

CONTRAST

TINT

COLOR

INPUT SELECT

RESET

EXIT OSD

BRIGHTNESS

EXIT

–+

CONTRAST

TINT

COLOR

INPUT SELECT

RESET

EXIT OSD

BRIGHTNESS

EXIT

CONTRAST

BRIGHTNESS

TINT

COLOR

RESET

EXIT OSD

INPUT SELECT

AV1

EXIT

CONTRAST

BRIGHTNESS

TINT

COLOR

RESET

EXIT OSD

INPUT SELECT

AV2

Press either


or to select

AV2

▲

▼

-8-

Description Of Adjustment Items :

ITEM Adjustment

Press PICTURE ▲

▲▲

▲to Press PICTURE ▼

▼▼

▼to

CONTRAST Decrease picture contrast for

soft color

Increase picture contrast for

vivid color

BRGHTNESS Darken the picture Brighten the picture

TINT Make skin tones becomes

Reddish

Mark skin tones becomes

Greenish

COLOR Decrease color intensity Increase color intensity

To restore the factory settings

Select picture while the main menu is displayed. Then

highlight “RESET” and press either PICTURE ▲or ▼.

All the picture functions (CONTRAST, BRIGHTNESS,

TINT, COLOR) will go back to the factory settings.

TURNING THE VOH1041DL ON AND OFF

1. Sliding the screen release lock forward will

unlock the screen and it will drop down slightly.

(Pivot the screen downward until a comfortable

viewing angle is reached). After the unit has

been turned on and is displaying a picture,

adjustment to the viewing angle can be made by

pivoting the screen to optimize the picture quality.

The internal friction detent will hold the screen in

position while the system is in use.

2. Pressing the power button on the pod or remote

will alternately turn the system on or off. When in

use the internal back lighting will illuminate the

controls.

3. Remember to turn the unit off and pivot the

display screen to the locked position when not in

use.

5. To adjust other items, repeat all of the above.

Note : The menu display disappears from the

screen if you do not press any key within a few

seconds.

-9-

REMOTE INFRARED SENSOR/REPEATER

The VOH1041DL incorporates a Infrared Sensor which

relays the signals from the Remote Control to allow the

VOH1041DL to be controlled simply by pointing it’s

Remote Control at the remote sensor. This provides

control of auxiliary equipment such as an Audiovox

VCP or DVD Player. The Remote Infrared Sensor can

relay signals from most manufacturers Remote Control

to its respective component connected to the Video 1

and 2 inputs. In this case you must use the Remote

Control supplied with the other manufacturers

component.

OPERATION

OVERHEAD DOME LIGHTS

A three-position slide switch controls the Dome

Lights on the VOH1041DL. Sliding the switch to the

ON position will turn the Dome Lights ON. The OFF

position will prevent the Dome Lights from turning on

at all times and the auto position will allow the Dome

Lights to turn ON and OFF with the vehicle’s interior

lighting. Do not leave the vehicle unattended with

the Dome Lights switch in the ON position, as this

could result in a discharged battery.

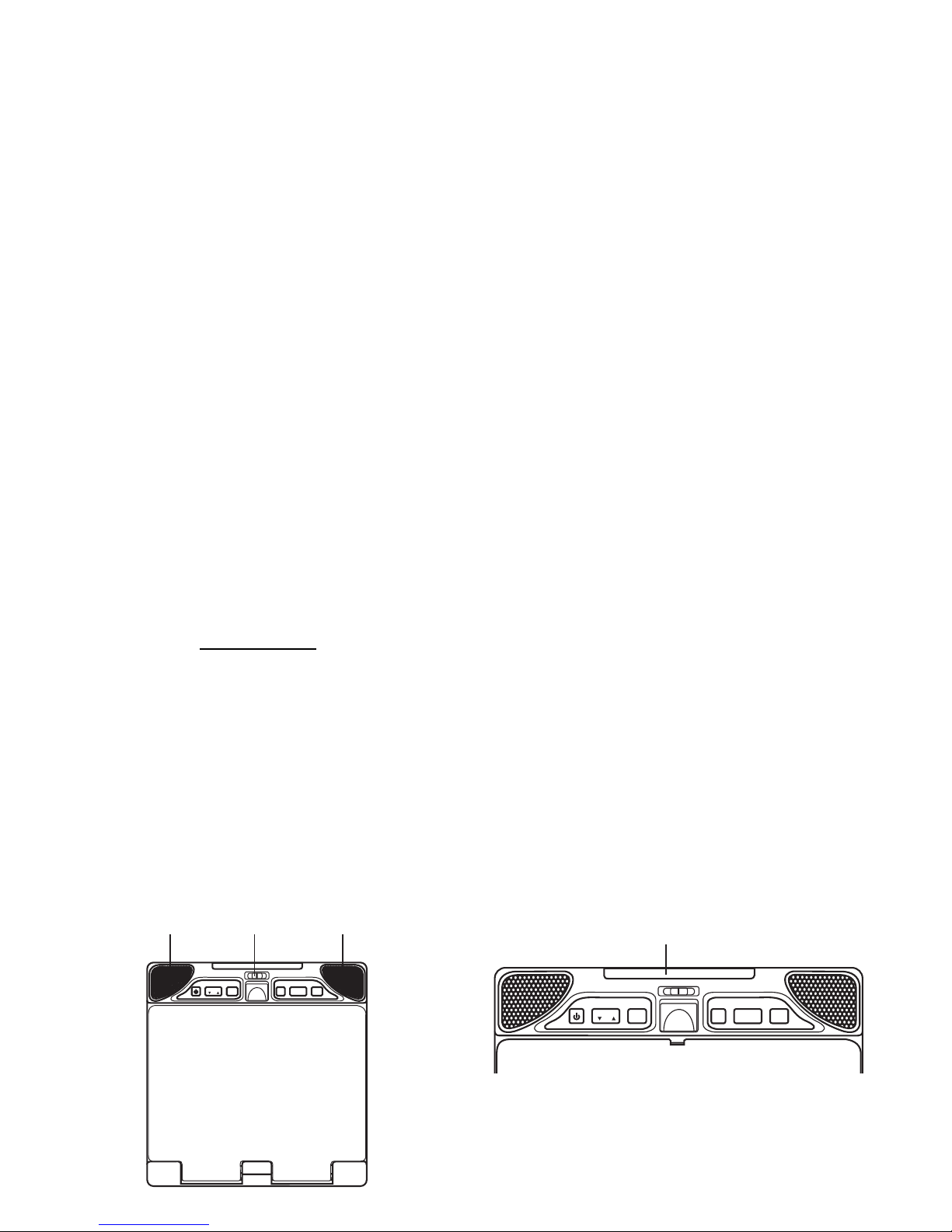

PICTURE MENU VOLUME

–+

Dome Light Dome Light Switch Dome Light

PICTURE MENU VOLUME

–+

Remote Infrared Sensor
