Audiovox LCM1502TV User manual

LCM1502TV

Owner’s Manual

Audiovox Specialized Applications, LLC

www.asaelectronics.com

US PATENT # D467, 234

-1-

Important Notice

It is unlawful in most jurisdictions for a person to drive a

motor vehicle which is equipped with a television viewer

or screen that is located in the motor vehicle at any point

forward of the back of the driver’s seat, or that is visible,

directly or indirectly, to the driver while operating the

vehicle. In the interest of safety, the LCM1502TV should

never be installed where it will be visible, directly or

indirectly, by the operator of the motor vehicle.

Please note that the state of Rhode Island forbids the

Installation of such a device in a motor vehicle.

Television Reception

This entertainment system is designed primarily for

viewing pre-recorded movies or playing video games.

Television reception in a moving vehicle will be limited

and in some areas will not be possible due to weak and

variable signal strength. Television viewing in a

stationary vehicle will result in an improvement, but may

still be marginal due to strength. The quality of the

picture will not be consistent with home TV reception.

Reception may be affected by the weather and distance

from the TV station.

weak signal may cause the

picture to roll, be snowy, or cause some color loss.

-2-

Congratulations on your purchase of the Flexvision

LCM1502TV drop down TV/Video Monitor. The

LCM1502TV has been designed to give you and your

family many years of video entertainment in the mobile

environment. Please read the directions that follow to

familiarize yourself with the product and to ensure that

you obtain the best results from your equipment.

NOTE: Installation options vary. See the individual

Owner’s Manuals for each component in your system to

obtain a full understanding of each component’s

operation.

SAFETY PRECAUTION

For safety reasons, when changing Video Media it is

recommended that the vehicle is not in motion, and that

you do not allow children to unfasten seat belts to

change Video Media or make adjustments to the

system. System adjustments can be accomplished

using the Remote Control while seat belts remain

fastened. Enjoy your Flexvision entertainment system

but remember safety of all passengers remains the

number one priority.

FEATURES

•15” TFT (Thin Film Transistor) Active Matrix LCD

(Liquid Crystal Display) Monitor

•OSD (On Screen Display) For Control Of Picture

Quality And Functions

•Full Function Remote Control

•3 A/V inputs with TV Tuner as a fourth source

•IR repeater for control of Flexvision DVD/VCP

through a source component harness.

•Direct single cable connection to Flexvision DVD/

VCP products

•Variable Audio output for wired headphone or

external speaker connections

•Back-Lit Controls For Low Light Operation

•49MHz RF Transmitter

•Dual Dome Lights

•A/V outputs for connection to a second monitor

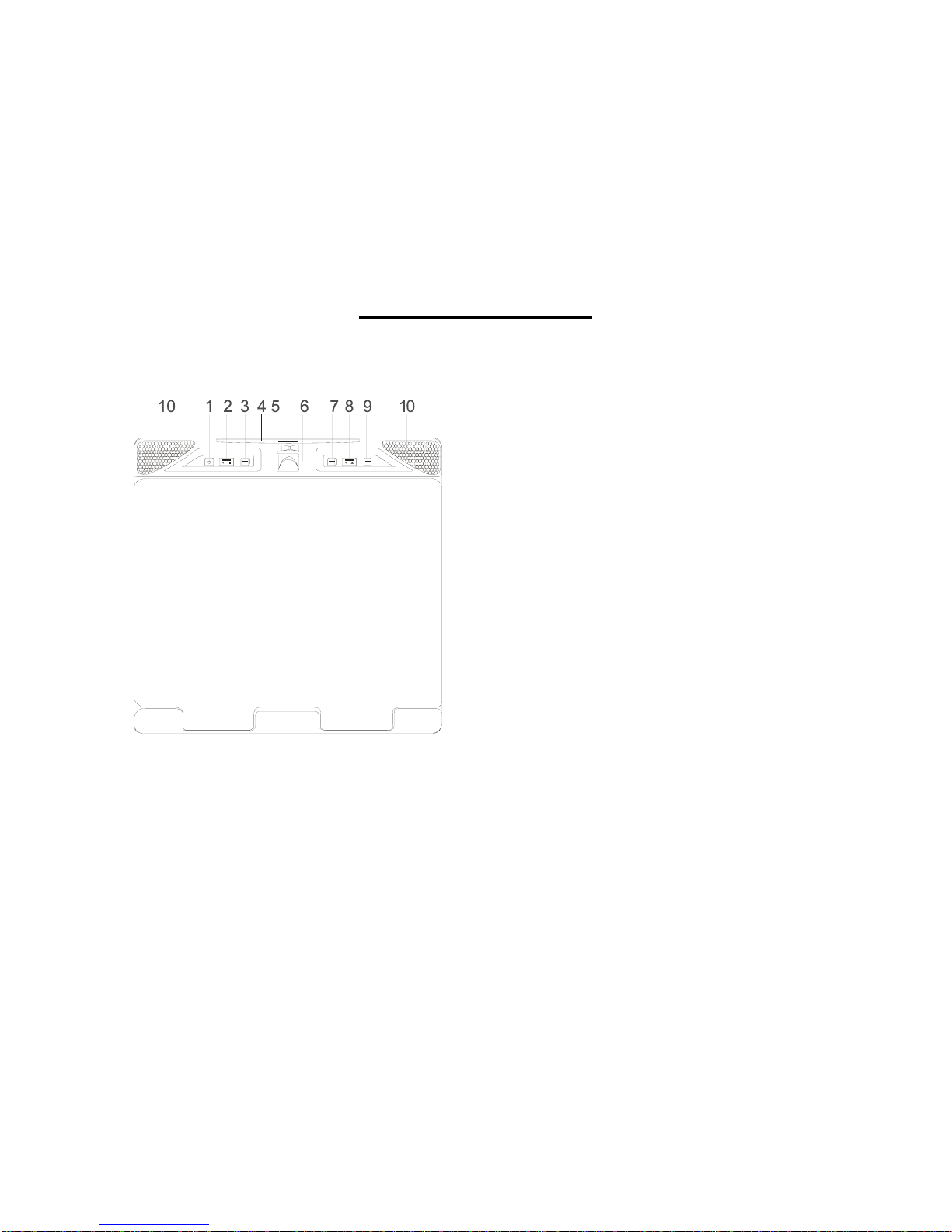

FRONT PANEL FEATURE

Figure 1

-3-

1. POWER

2. VOLUME Up and Down

3. TV/AV

4. SENSOR EYE

5. THREE POSITION DOME LIGHT

SWITCH

6. SCREEN RELEASE

7. MENU

8. CHANNEL Up and Down

9. ENTER

10. DOME LIGHT

-4-

FRONT PANEL FEATURES – See Figure 1

1. Power Button – (Bright red when system is ON,

dim when system is OFF).

2. Volume Up/Down – Controls volume to

external Speakers if connected. Also, used to

adjust the picture control setting when

“contrast”, “bright”, “sharpness”, “color” or “tint”

is displayed on the screen.

3. TV/AV –

ny video equipment connected to the

UDIO/VIDEO inputs can be used with the TV

by pressing this button. Each time the button is

pressed the Audio/Video source will change in

the following sequence TV, AV1, AV2 and AUX.

4. Sensor Eye – Allows the remote control to

operate the LCM1502TV’s OSD system (On

Screen Display), volume to Wired Headphone

Jacks (and optional external speakers), and for

control of Video Media Player connected

through a source component harness.

5. Three Position Dome Light Switch

•Auto – Automatically switched on the dome lights

in conjunction with the vehicle’s interior

illumination.

•Off – The Dome lights will not turn on in this

position.

•On – Turns on the Dome lights.

6. Screen release – Slides in the direction of the arrow

to release the drop down screen.

NOTE : For safety, hand hold the screen before you

slides the screen release to drop down screen.

7. Menu Button – Gives you access to the OSD Main

Menu.

8. Channel Up/Down – Changes the TV channel.

9. ENTER Button – Use this button to end the choice

on the menu.

10. Dome Lights – Provide additional illumination.

REMOTE CONTROL OPERATION

-5-

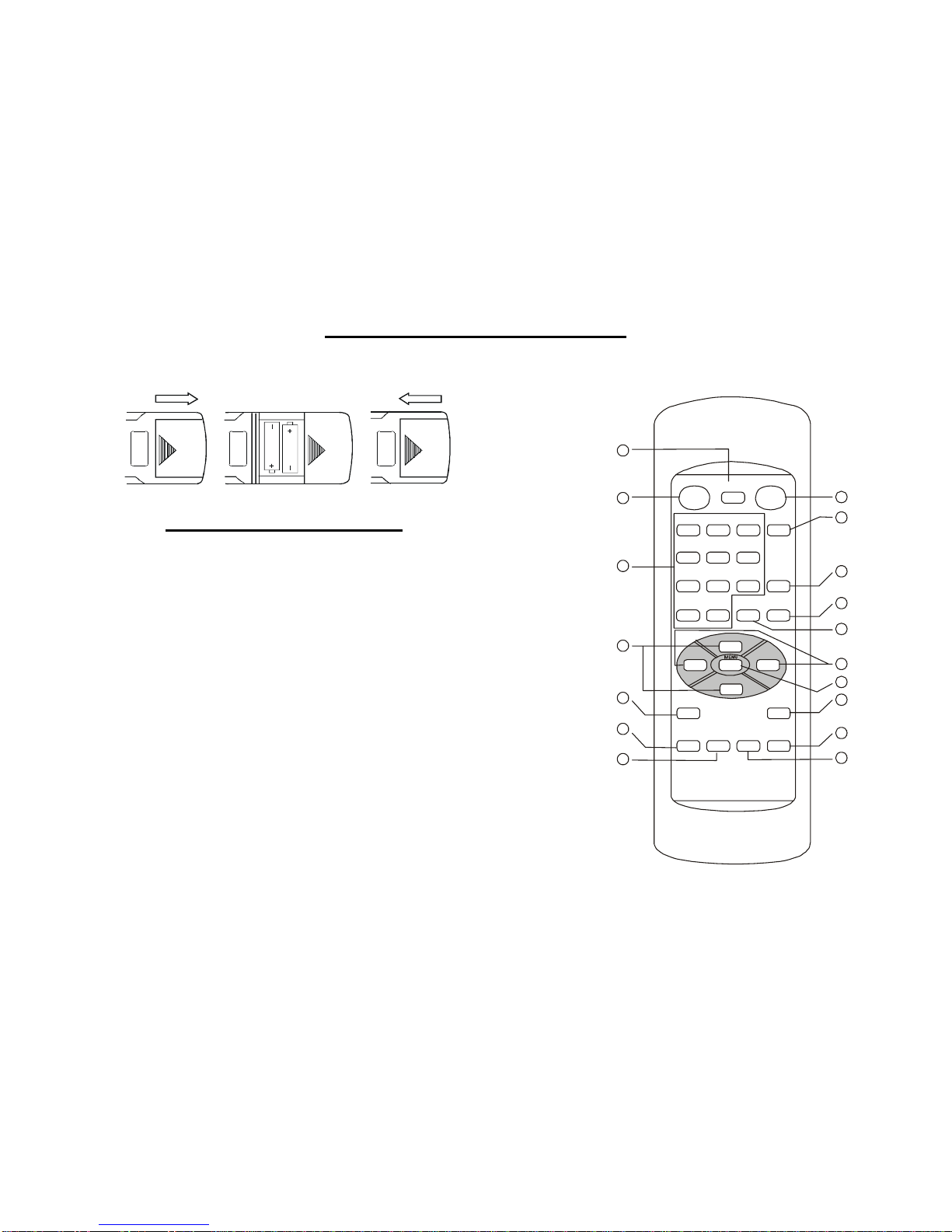

BATTERY INSTALLATION

Before attempting to operate the Remote Control,

install the batteries as described below.

1) Turn the Remote Control face down. Press

down on the ridged area of the battery cover, and

slide it off.

2) Install Two “AAA” batteries as shown. Make sure

that proper polarity (+ or -) is observed.

3) Slide the cover back until it clicks into position.

The Remote Control will operate the LCM1502TV,

Flexvision Televisions and Video Media Players. It

is not a universal remote control and will not control

equipment from other manufacturers.

If a universal Remote Control is used with the

LCM1502TV, choose the remote control encoding

scheme for Flexvision Televisions when

programming the remote.

456

01-

TV POWER TV/ VI DEO MUTE

PI C TURE

SELECT EN TER

PLAY

REW F. FWD REPLAY STOP

VCP POWER

VOL . +

VOL. –

ERASE/

ADD

AUTO

PROG RAM

15 17

-6-

REMOTE CONTROL OPERATION

1. TV Controls:

1. TV POWER

Press this button to turn on the set.

Press the button again to turn the set off.

2. Direct Access (0-9,1--) Number Buttons

Use these buttons to select a channel. The channel number chosen will be displayed on the screen for

about four seconds. To select channels 0-99, press two number buttons. For example, to select

channel 8, press 0,8. To select channels above 100, press the 1—button, then the number buttons for

the last two digits of the channel. For example, to select channel 115, press 1--, 1, 5.

3. CHANNEL Up and Down

Use these buttons to select pre-programmed channels or two select channels up or down. (also used

to select desired function on the menu).

4. VOLUME Up and Down

Use these buttons to raise or lower the volume level of the Wired Headphones or External Speakers if

installed. They are also used to make adjustments in the picture select mode.

NOTE: These buttons will not affect the volume of wireless headphones or a wired RF modulator.

When using these devices the volume must be adjusted with the headphone volume control or with

your radio’s volume control.

5. MENU Button

Press the MENU button. The MENU display appears. Use the Channel up and down buttons to select

desired function, then press ENTER button to end the choice.

-7-

6. TV/VIDEO Button

Press this button to access the AUDIO/VIDEO input jacks, on the front and rear of the TV. As the

button is pressed, the on screen display will cycle as follows:

TV AV1 AV2 AUX

7. MUTE Button

Press this button to turn the TV sound off. Press again to restore sound to the previously set level.

MUTE may also be released by pressing the VOLUME +/–.

8. ERASE/ADD Button

When tuned to a channel press this button to store or erase the channel from memory. The stored

channel numbers are display in GREEN on the screen and the no stored channel numbers are in

RED.

-8-

9. AUTO PROGRAM Button

Select the regular channel broadcast TV or CABLE TV for AUTO PROGRAM. All the channel

numbers for TV or CABLE TV will be scanned. The broadcasting signals will be detected and

automatically stored.

10. ENTER Button

Use this button to end the choice on the menu.

11. PICTURE SELECT Button

Each time this button is pressed the on-screen picture adjustment display cycles through

“adjustment screens” as follows:

BRIGHTNESS CONTRAST COLOR SHARPNESS TINT

-9-

2. VCR Controls:

12. VCP POWER Button

This button is used to turn the unit on and off.

13. ”REW” REWIND Button

If this button is pushed while the tape is stopped, the tape will rewind. If this button is pushed while

the tape is playing, the VCP will go into rewind search mode. For more information on search feature

of the VCP, consult VCP owner’s manual.

14. PLAY Button

Press this button to activate play mode while a tape is loaded into the VCP. This button may also be

used to dis-engage search and pause modes. For more information, consult the VCP owner’s

manual.

15. ”F.FWD” FAST FORWARD Button

If this button is pushed while the tape is stopped, tape will fast forward. If this button is pushed while

the tape is playing, the VCP will go into fast forward search mode. For more information on search

feature of the VCP, consult the VCP owner’s manual.

16. STOP Button

Press this button to stop the video tape.

17. REPLAY Button

Press this button will rewind the video tape and immediately begin playback when the video tape is

fully rewind.
