Audiovox PAV-9 User manual
OWNER’S MANUAL
PAV-9
MOTORIZED 7””
IN-DASH
LCD COLOR MONITOR
WITH AM/FM STEREO RADIO
Any changes or modifications in construction of
this device that is not expressly approved by the
party responsible for compliance could void the
user’s warranty.
WARNING
The exclamation point within an equilateral triangle and“WARNING”are intended to alert
the user to the presence of important operating instructions. Failure to heed the
instruction will result in severe injury or death
DO NOT WATCH VIDEO WHILE DRIVING
Watching the video may distract the driver from looking ahead of the vehicle and cause
and accident.
DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM
SAFELY DRIVING YOUR VEHICLE
Any function that requires your prolonged attention should only be performed after coming
to a complete stop. Always stop the vehicle in a safe location before performing these
functions. Failure to do so may result in an accident.
DO NOT DISASSEMBLE OR ALTER
Attempts to disassemble or alter may lead to an accident, fire and/ or electric shock.
KEEP SMALL ARTICLES OUT OF THE REACH OF CHILDREN
Store small articles (screws etc.) in places not accessible to children. If swallowed,
consult a physician immediately.
USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES
Replace fuses only with fuses of the same ampere rating. Failure to do so may result in a
fire and / or damage to the vehicle.
HALT USE IMMEDIATELY IF A PROBLEM APPEARS
When problems appear, stop using the system immediately and contact the dealer from
whom you purchased the equipment.
1
CAUTION
2
The exclamation point within an equilateral triangle and“CAUTION””are intended to alert
the user to the presence of important operating instructions. Failure to heed the
instruction can result in injury or material damage.
DO NOT RAISE THE VOLUME EXCESSIVELY
Keep the volume at a level where you can still hear outside noises while driving. Driving
while unable to hear outside could cause an accident.
DO NOT USE THIS EQUIPMENT OUTSIDE THE VEHICLE
Do not use this equipment for purposes other than those listed for a vehicle. Failure to do
so may result in an electric shock or an injury.
KEEP FOREIGN OBJECTS OUT OF THE MONITOR COMPARTMENT
Keep foreign objects out of the monitor compartment. Also, avoid placing your hands in
the area where it might interfere with the monitor’s operation.
STOP THE VEHICLE BEFORE CARRYING OUT ANY OPERATION THAT COULD
INTERFERES WITH YOUR DRIVING.
If the operation of this unit (such as raising or lowering of the monitor, etc) interferes with
your driving, stop the vehicle in a safe location before attempting operation.
DO NOT MIX WITH BATTERIES WITH OLD BATTERIES. INSERT WITH THE
CORRECT BATTERY POLARITY
Do not mix new batteries with old batteries and do not replace with other than specified
batteries. When inserting the batteries, be sure to observe proper polarity (+ and - ) as
instructed. Battery rupture or chemical leakage can cause and injury or equipment
malfunctions.
CAUTION
3
The exclamation point within an equilateral triangle and“CAUTION””are intended to
alert the user to the presence of important operating instructions. Failure to heed the
instruction can result in injury or material damage.
Operation of some of the functions of this unit is very complex. Because of this, it was
deemed necessary to place these functions into a special SETUP screen. This will
restrict operation of these functions to times when the vehicle is parked. This ensures
the focus of the driver’s attention will be on the road and not on the unit. This has been
done for the safety of the driver and passengers.
TEMPERATURE
Be sure the temperature inside the vehicle is between +60 (+140 F) AND -5 C (+23F )
before turning your unit on.
FUSE REPLACEMENT
When replacing the fuses, the replacement must be the same amperage as shown on
the fuse holder. If the fuse(s) blow more than once, carefully check all electrical
connections for shorted circuitry. Also have your vehicle voltage regulator checked.
MAINTENANCE
If you have problems, do not attempt to repair the unit yourself. Return it to an
authorized dealer or service center.
INSTALLATION LOCATION
Make sure the unit will not be exposed to:
▶Direct sun & heat
▶High humidity
▶Excessive dust
▶Excessive vibrations
4
INTRODUCTION

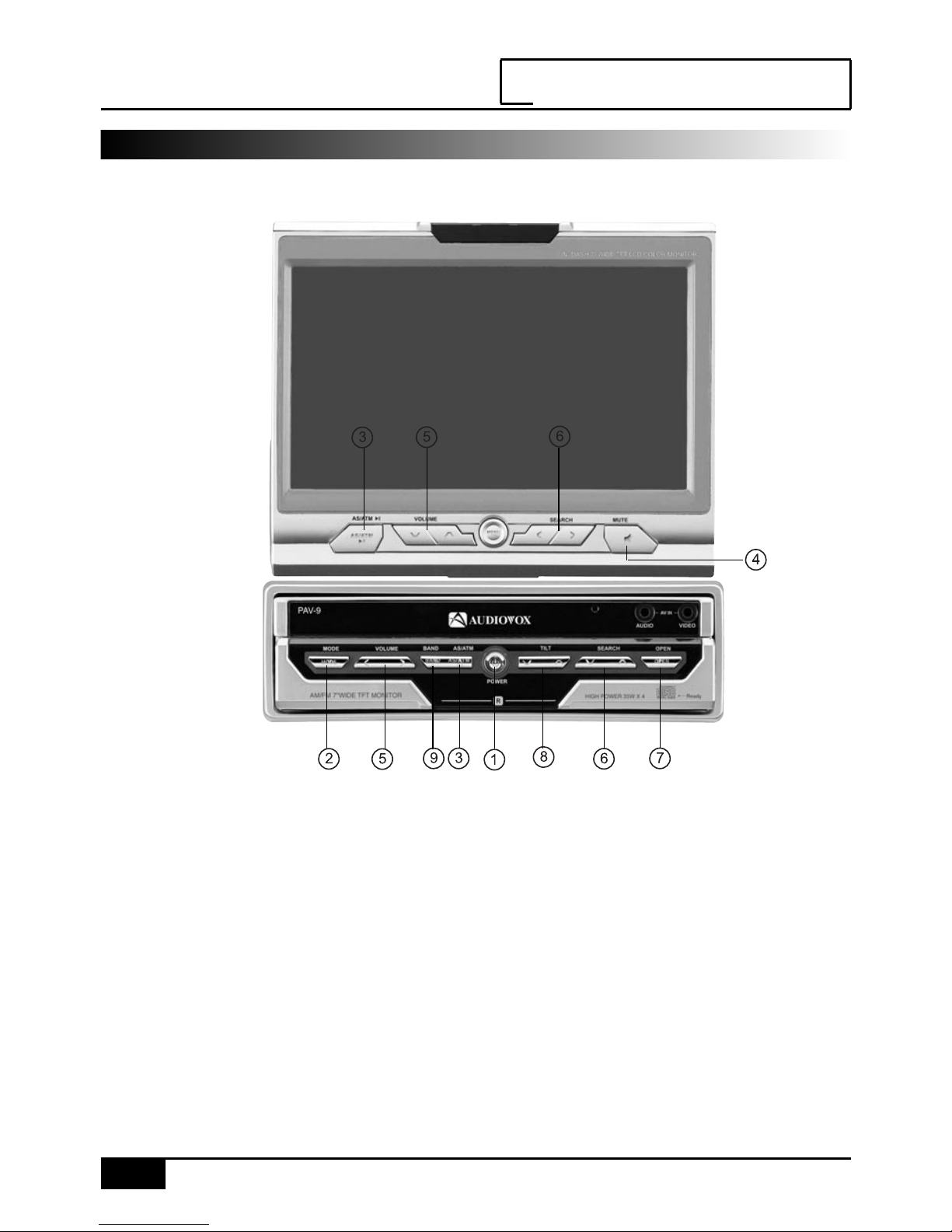

MONITOR
①POWER ON/ OFF BUTTON
②MODE SELECTION BUTTON
③AS/ATM BUTTON
④SOUND MUTE BUTTON
⑤VOLUME UP/DOWN ADJUST BUTTON
⑥SEARCH UP/DOWN BUTTON
⑦OPEN/CLOSE BUTTON
⑧TILT UP/DOWN BUTTON
⑨BAND SELECTION BUTTON
5

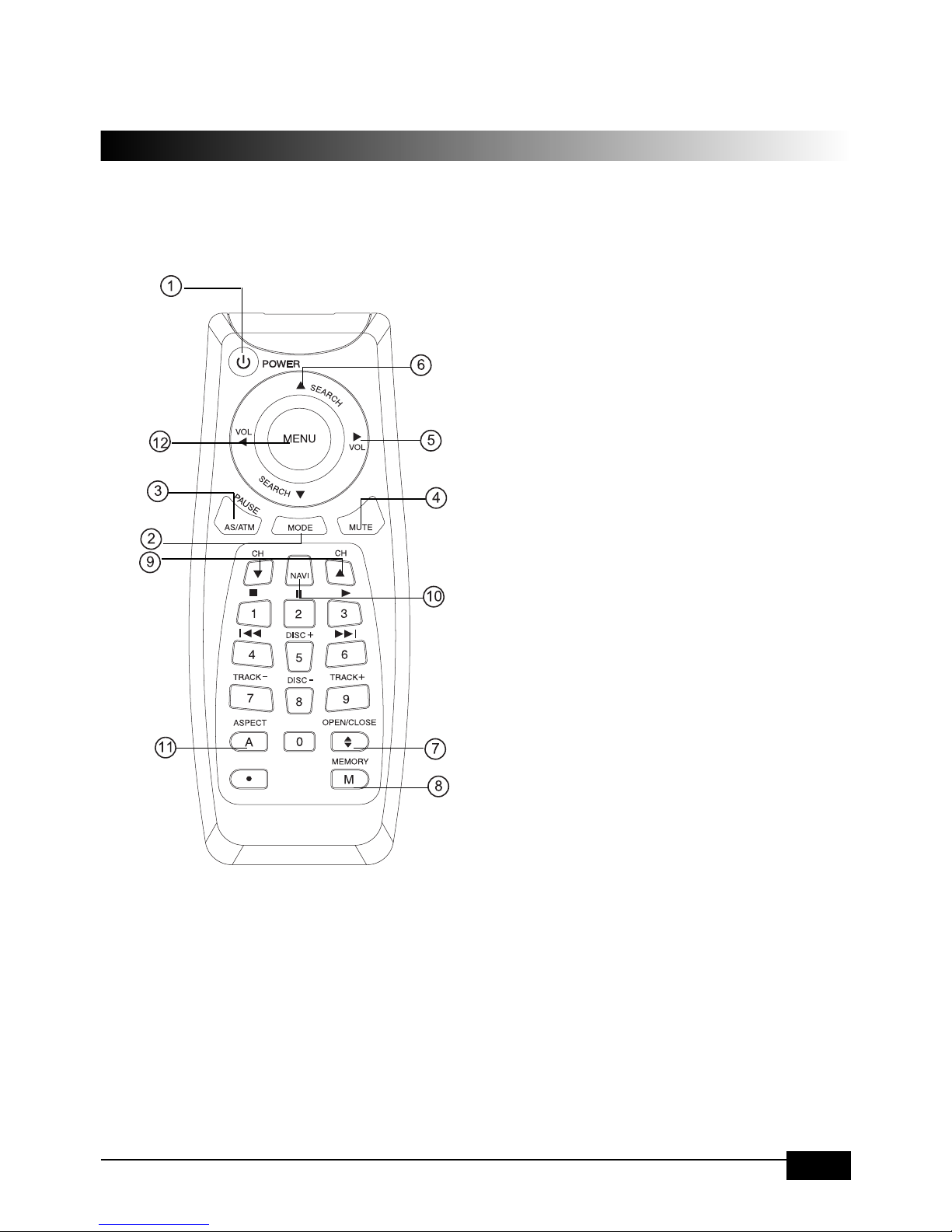

REMOTE CONTROL
①POWER ON/ OFF BUTTON
②MODE SELECTION BUTTON
③AS/ATM BUTTON
④SOUND MUTE BUTTON
⑤VOLUME UP/DOWN ADJUST BUTTON
⑥SEARCH UP/DOWN BUTTON
⑦OPEN/CLOSE BUTTON
⑧MANUAL MEMORY BUTTON
( MENU IN TV MODE)
⑨CHANNEL UP/DOWN BUTTON
⑩NAVIGATION BUTTON
⑪ASPECT BUTTON
⑫MENU SELECTION BUTTON
6
REMOTE CONTROL UNIT
Replacing battery
Applicable battery : Use two“AAA”sized dry batteries.

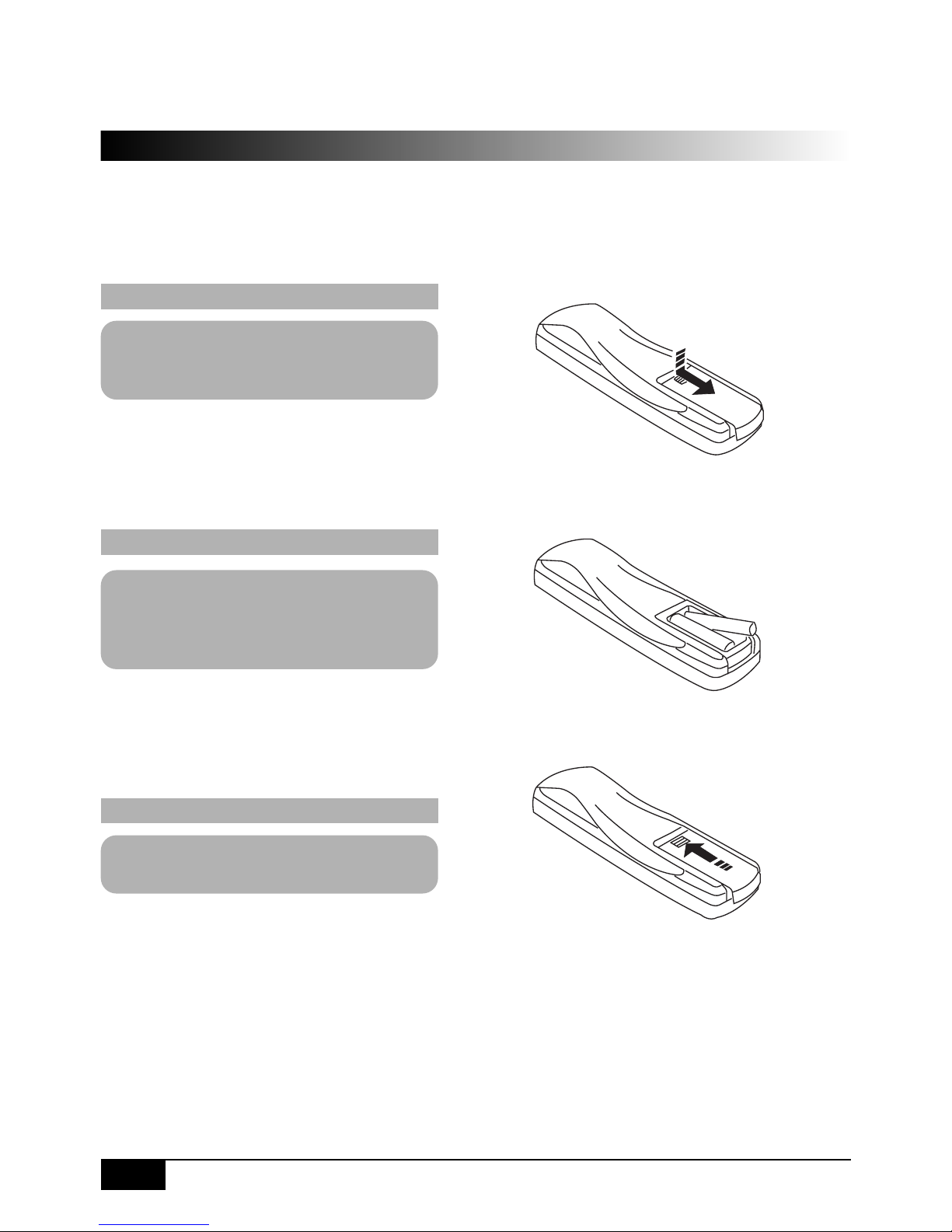

1. Opening the battery cover.
Push and slide the cover in the arrow
direction, and the cover will be
removed.
2. Replacing the battery.
Remove the old batteries. Insert new
ones matching the (+) and (-)
polarities as shown in the diagram
inside the unit.
3. Closing the cover.
Push the cover in the arrow direction
until a click is heard.
7
BASIC OPERATION
POWER ON / OFF
PASSWORD
1. POWER ON

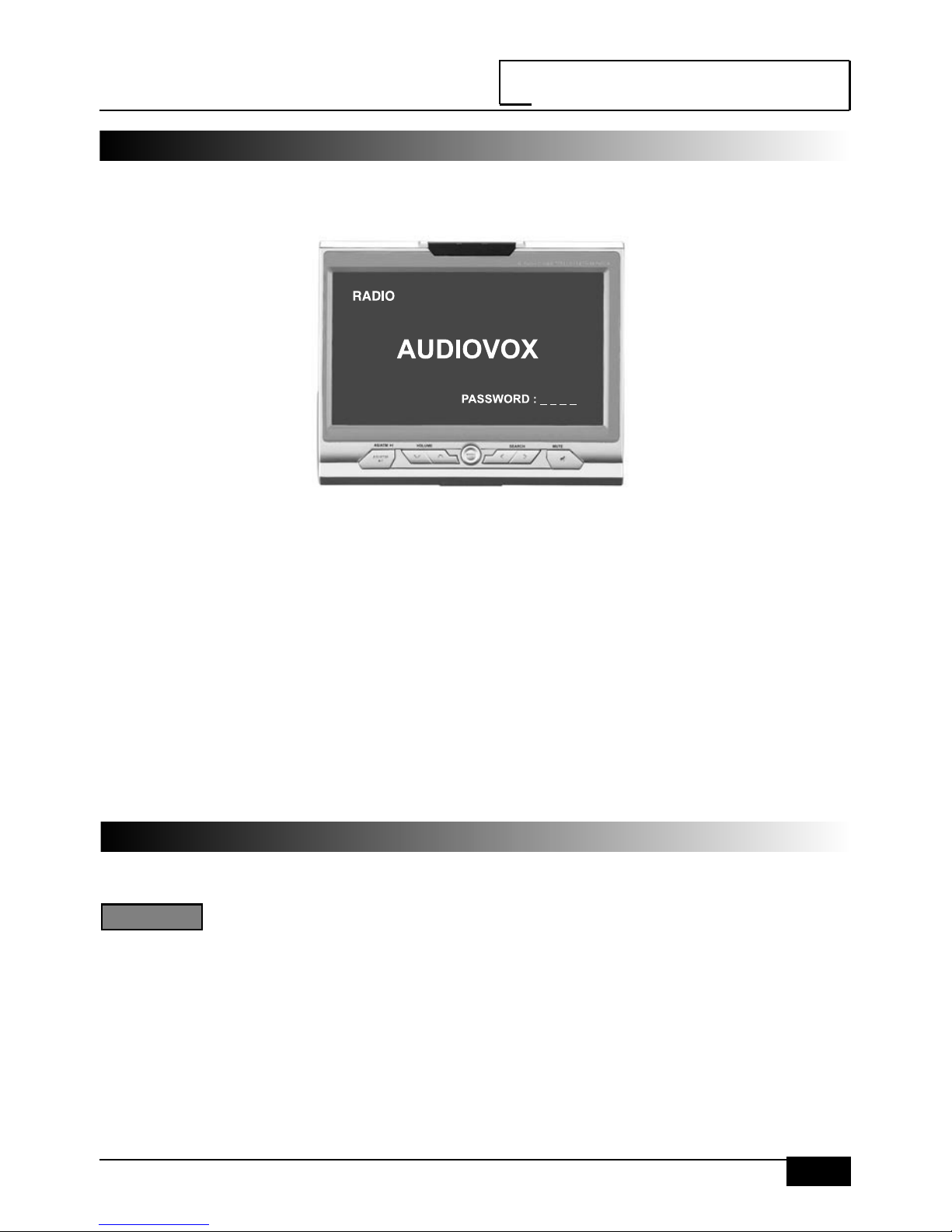

1) Press the POWER button to turn the power on and the monitor will open. When
the monitor is opened, it requires a password as pictured above. Press the number
button of the remote control to input“0000”and then the last mode will be displayed.
2) You can also turn the power on by pressing the OPEN/CLOSE button. The power will
turn on and the monitor will open.
2. POWER OFF
1) Press the POWER button again to turn the power off.
2) If you turn the power off by pressing the POWER button with the monitor open, the
monitor will close. If the car key is pulled out, or the OPEN/CLOSE button is pressed
the monitor will be automatically closed.
OPENING THE MONITOR
Press OPEN/CLOSE button or power button and then the monitor will open.
NOTE
If the OPEN/CLOSE button is pressed when the monitor is closed and the power is off, the
monitor will open and the power will turn on.
8
TO CHANGE PASSWORD

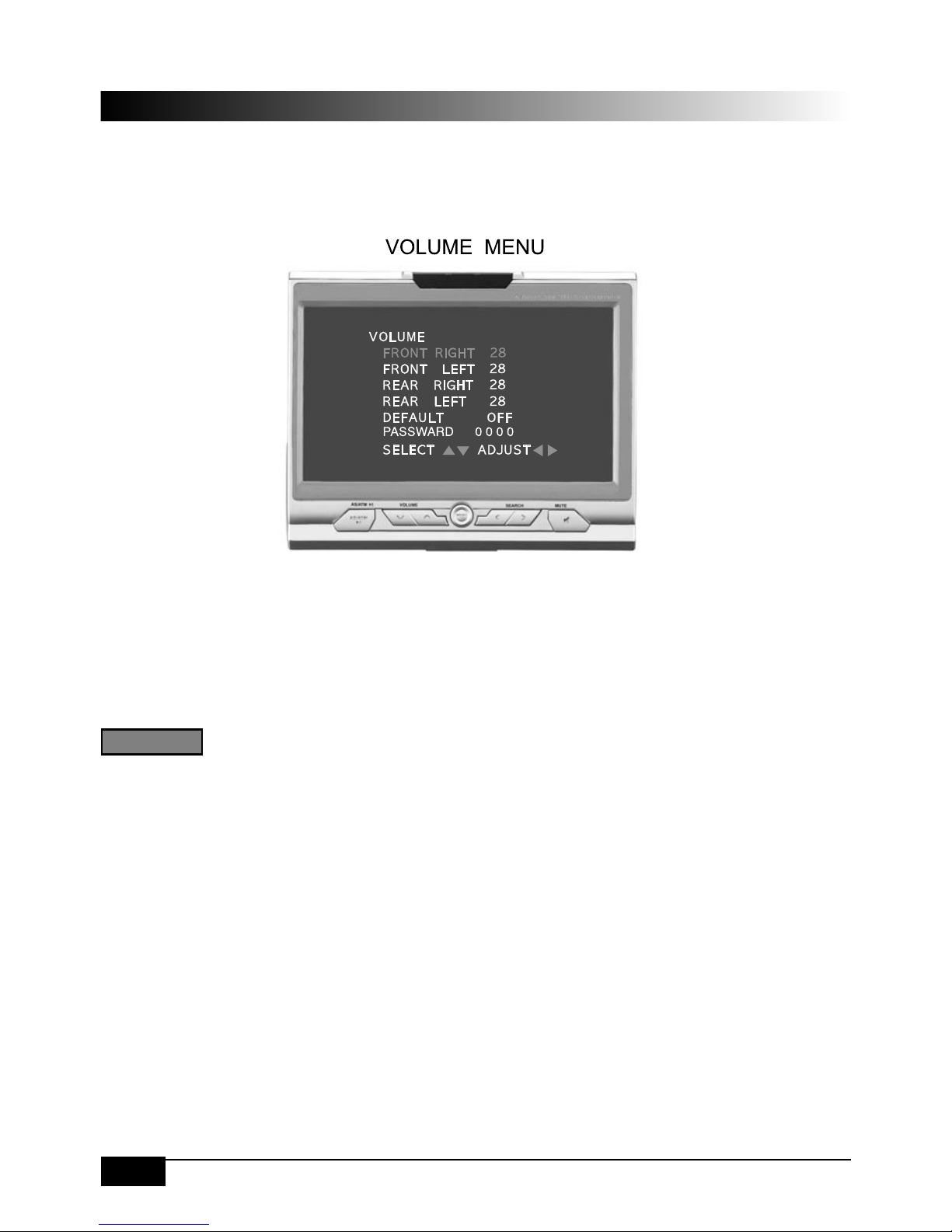

1. Press the menu button repeatedly while in radio mode or AV mode until the volume
menu is selected. The monitor displays following picture.
1. Press the search up/down button to select “password” to change the password.
2. Press the number buttons of the remote control to enter a new 4 digit password.
NOTE
If you forgot password, contact the dealer from whom you purchased the equipment.
