AudioBahn AW1051J User manual

PLEASE READ THIS MANUAL

BEFORE OPERATING THIS UNIT.

RETAIN FOR FUTURE REFERENCE.

AW1051J / AW1251J / AW1571J

OWNER’S MANUAL

To bring the product to market that excites the consumer through sound and

vision from an orientation of integrity and customer service. We make you look as

good as you sound. We strive to take car audio to an extreme the world has never

seen, and a world that never stops evolving.

Audiobahn was established in 1997 with one long-term goal in mind, “Build

it Bigger, Badder, & Better, and the people will take notice!” We back this statement

with an engineering team that has brought home several Innovations, Design &

Engineering Showcase Awards, and a marketing team from around the world that

spends countless hours developing our no compromise products to satisfy the most

discriminating enthusiasts.

Our global manufacturing facilities feature ISO9002 ratings (the highest level

of quality control awarded in the electronics manufacturing industry), fully robotic as-

sembly lines and a state of the art, California based R & D laboratory.

Our Technical Department and entire staff look to strive above and beyond

the rest of the pack by going that extra mile to help you out. Whether you happen to

be a veteran competitor, or a beginner car audio enthusiast who does not know a

voice coil from a spider. We are all her to help you get the best system you can with

what you have.

Judge for yourself, and remember what it’s all about, “If it’s not Bigger, Bad-

der & Better, it’s not Audiobahn.” If audio is your life, Audiobahn is the brand for you!

We make you look as good as you sound. People never stop trying to get the best

product, so we will never stop making it.

The Audiobahn Way

Introduction___________________________________________________ 3

Woofer Introduction_____________________________________________ 4

Woofer Features________________________________________________ 5-6

Thiele / Small Parameters_________________________________________ 7

Box Parameters_________________________________________________ 8

Graphical Response Curves_______________________________________ 9-11

Enclosures and Setup___________________________________________ 12

Troubleshooting________________________________________________ 13

Warning and Disclaimer__________________________________________ 14

Warranty______________________________________________________ 15-16

Notes_________________________________________________________ 17-18

TABLE OF CONTENTS

Dear Customer,

Congratulations on your purchase of the worlds nest brand of car audio products. Here at

Audiobahn Inc. we are devoted to making our musical reproduction the vert best, and we

are pleased you have chosen our product. Through years of engineering expertise, hand

craftsmanship, and critical testing procedures, we have created a wide range of products

that reproduce music with all the clarity and richness you deserve.

For maximum performance we recommend you have your Audiobahn product installed by

an Authorized Audiobahn Dealer, as we provide specialized training through our Audiobahn

Installer Training Programs. Please read your warranty, keep your receipt, and original

carton for possible future use.

To get a free brochure on Audiobahn products in the US call (714) 452-1476 or e-mail us at

[email protected].

WARNING

Continuous exposure to sound pressure levels over 100dB may cause permanent

hearing loss. High powered autosound systems may produce sound pressure levels

well over 135dB. Need we say more! Use common sense.

If after reading this manual you still have questions regarding your product, we recom-

mend that you see your nearest Audiobahn Dealer. A list of Authorized Audiobahn

Dealers can be found on our web page. If you need further assistance, feel free to call

us at (714) 452-1476 and ask for the Technical Department. Be sure to have the model

number, date of purchase, and invoice number available when you call.

The model number can be located on the outside of the carton. Record this in the space

provided below along with the date of purchase. It is a good idea to keep your receipt

with this as you will need it in the case of needing a warranty, repair service or ex-

change.

Date of Purchase: _____________________Model Number:___________________

INTRODUCTION

Woofer Introduction

Audiobahn woofers are a low frequency driver designed primarily for use in small sealed or

vented enclosures depending on the model of sub. Please check the specications in this

manual, our website at www.audiobahn.com. As specications and parameters are subject

to change, we highly advise always checking our website or calling us for the most current

information. By utilizing the latest materials and construction design and techniques, we

are able to offer a sub woofer with optimized low frequency response..

Woofer Content

Audiobahn Dual 4 Ohm Coil Natural Sound Sub

Audiobahn Sticker

Installation & Owner’s Manual

Wipe Towel

Registration and Warranty Card

Technical Design Features

Dual 4 Ohm Voice Coils (Can be run in either a 2 or 8 ohm load per driver depending on

wiring method) Stamped Steel Chrome Flame Basket

Stamped Steel Chrome Flame Basket

KM3 Paper Cone

J-type Surround

Dual Lug Terminals

2” 4 Layer AVS Voice Coil

Woofer Specifications

Aluminum Voice Coil Former

The voice coil former is black, anodized aluminum for highly efcient thermal transfer. This

allows winding high temperature copper wire in multiple layers for improved efciency. This

allows improved power handling by effectively dissipating heat.

Extended Pole Piece

The pole piece has been extended to provide a more linear magnetic eld for the opera-

tion of the woofer. This lowers distortion and provides the woofer with better low frequency

response.

Vented Oversized Back Plate

The back plate has been stepped deeper to allow the woofer more excursion without bot-

toming out. Additionally, the back plate is vented with a radius aerodynamic back vent

which efciently and quickly circulates cool air around the voice coil. This allows for more

excursion and higher power handling without damaging the sub.

Voice Coil

The 4-Layer, edge wound voice coil design of the speaker allows for a variety of impedance

loads to be congured when matched with multiple subs. Please continue to the wiring

diagram portion of this manual for possible congurations you can run. The Natural Sound

subs have a dual 4 ohm voice coil operation.

Woofer Features

Flat Spider

The speaker linear compliance is balanced trough the use of a at spider design. A at spi-

der provides symmetrical control of the voice coil through it’s cone excursion. Linear cone

excursion reduces harmonic distortion for improved sound quality. This allows for reduced

mechanical distortion for better sound quality.

Chrome Finish

Chrome has long been an industry standard in terms of durability in protective metal n-

ishes. We have spared no expense in this area and not only is it a protective nish, but it is

also a great addition to any plexi style enclosure.

Parameters

J J J

Box Parameters

Model # AW1051J AW1251J AW1571J

Ported

Air Space (Cu. Ft.) 0.65 1.3 1.7

Port Size (Inches) 2 x 6.5 3 x 6.75 3 x 7

Port Vel. (%) 33.45 27.15 28.15

-3dB (Hz) 40 44 40

Tune Freq. (Hz) 40 40 35

Sub Disp. (Cu. Ft.) 0.1 0.15 0.21

Port Disp.(Cu. Ft.) 0.01 0.024 0.025

Total Vol. (Cu. Ft.) 0.75 1.5 2

Ported

Air Space (Cu. Ft.) 1.4 2.3 2.65

Port Size (Inches) 3 x 6.75 4 x 9 4 x 7.5

Port Vel. (%) 16.75 14.18 16.74

-3dB (Hz) 31 35 35

Tune Freq. (Hz) 39 35 35

Sub Disp. (Cu. Ft.) 0.1 0.15 0.21

Port Disp.(Cu. Ft.) 0.024 0.06 0.048

Total Vol. (Cu. Ft.) 1.5 2.5 3

Ported

Air Space (Cu. Ft.) 2.4 3.15 3.55

Port Size (Inches) 4 x 6.8 (2) 4 x 12 (2) 4 x 11.25

Port Vel. (%) 9.96 7.56 8.69

-3dB (Hz) 30 30 31.5

Tune Freq. (Hz) 39 36 35

Sub Disp. (Cu. Ft.) 0.1 0.15 0.21

Port Disp.(Cu. Ft.) 0.04 0.166 0.152

Total Vol. (Cu. Ft.) 2.5 3.5 4

EBP

44 42 51

Model # AW1051J AW1251J AW1571J

Sealed

Minimum (Cu. Ft.) 0.75 1 1.25

Maximum (Cu. Ft.) 2 2 3.5

SPL (dB) 83.8 88 89.2

All sealed boxes already include the displacment for the subwoofer. NR = (Not Recommended)

Audiobahn Box Specifications

Remember to build your box to the total volume, not just air space, as total volume includes all displacement.

An EBP of less then 45 is SUGGESTED for only a sealed box and greater then 65 for a ported box.

The larger a sealed box is, the lower the sub will play, but the less power it will handle. The smaller a sealed box is,

the higher the frequency the sub will play, and the more power it will handle.

All ports listed are circle ports unless otherwise stated. Surface area of a circle port = (3.14) X (radius) (squared)

Ultimate SPL Bass Box

Everyday Bass Performer

A port velocity of 20% or under is good for everday use and 5% or under for SPL competition . Port velocity

translates to port noise, so the lower the number, the less port noise you will incur.

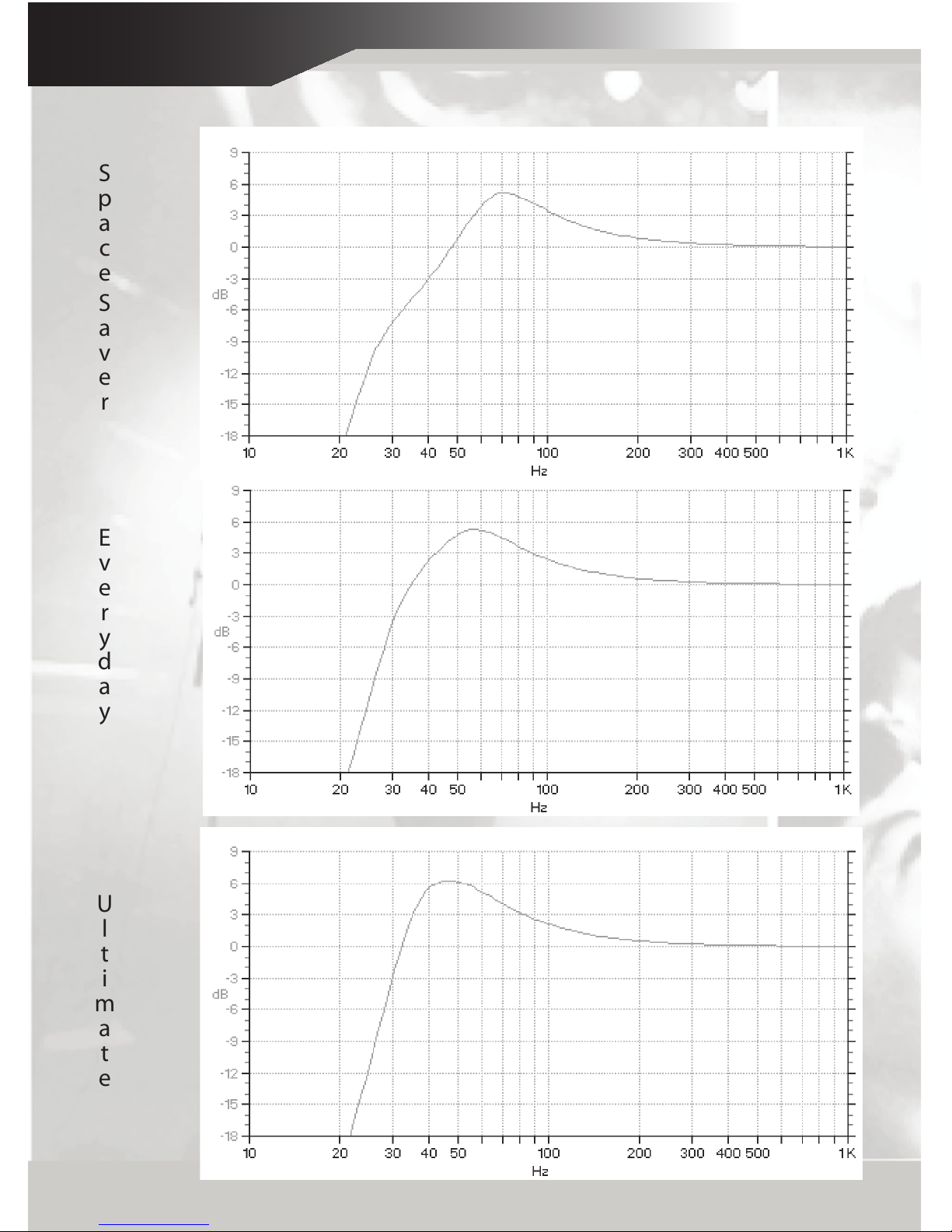

AW1051J CURVES

Space

Saver

Everyday

Ultimate
