Audio Technica ES947C/FM3 User manual

ES947C/FM3

Cardioid Condenser Boundary Microphone

User Manual

English

Safety precautions

Cautions for the product

Notes on use

Using the product

Included accessories

How to mount the product

Table/ceiling hole size (when using isolators)

Table/ceiling hole size (when not using isolators)

Example: Mounting on a table

Switch setting and functions

LED color

Connection procedure

Dimensions

Specifications

Polar pattern/Frequency response

Polar pattern

Frequency response

Although this product was designed to be used safely, failing to use it correctly may result in an accident. To ensure

safety, observe all warnings and cautions while using the product.

Cautions for the product

• Do not subject the product to strong impact to avoid malfunction.

• Do not disassemble, modify or attempt to repair the product.

• Do not handle the product with wet hands to avoid electric shock or injury.

• Do not store the product under direct sunlight, near heating devices or in a hot, humid or dusty place.

Safety precautions

• Do not swing or pull with the cable connected to the microphone to prevent the microphone from becoming

disconnected or damaged.

• Do not wind the cable around the rack or allow the cable to become pinched.

• The microphone should be placed on a flat, unobstructed mounting surface.

• Placing any object on a surface (such as a conference table) before its finish is fully cured may result in damage

to the finish.

Notes on use

Using the product

Included accessories

1Rubber isolator (1)

2Rubber isolator (2)

3Nut

Using the product

How to mount the product

Table/ceiling hole size (when using isolators)

ø23.5

(Unit: mm)

Table/ceiling hole size (when not using isolators)

ø20.5

(Unit: mm)

Using the product

Example: Mounting on a table

1Front-of-mic indicator

Rubber isolator (1)

Rubber isolator (2)

Nut

Table

Using the product

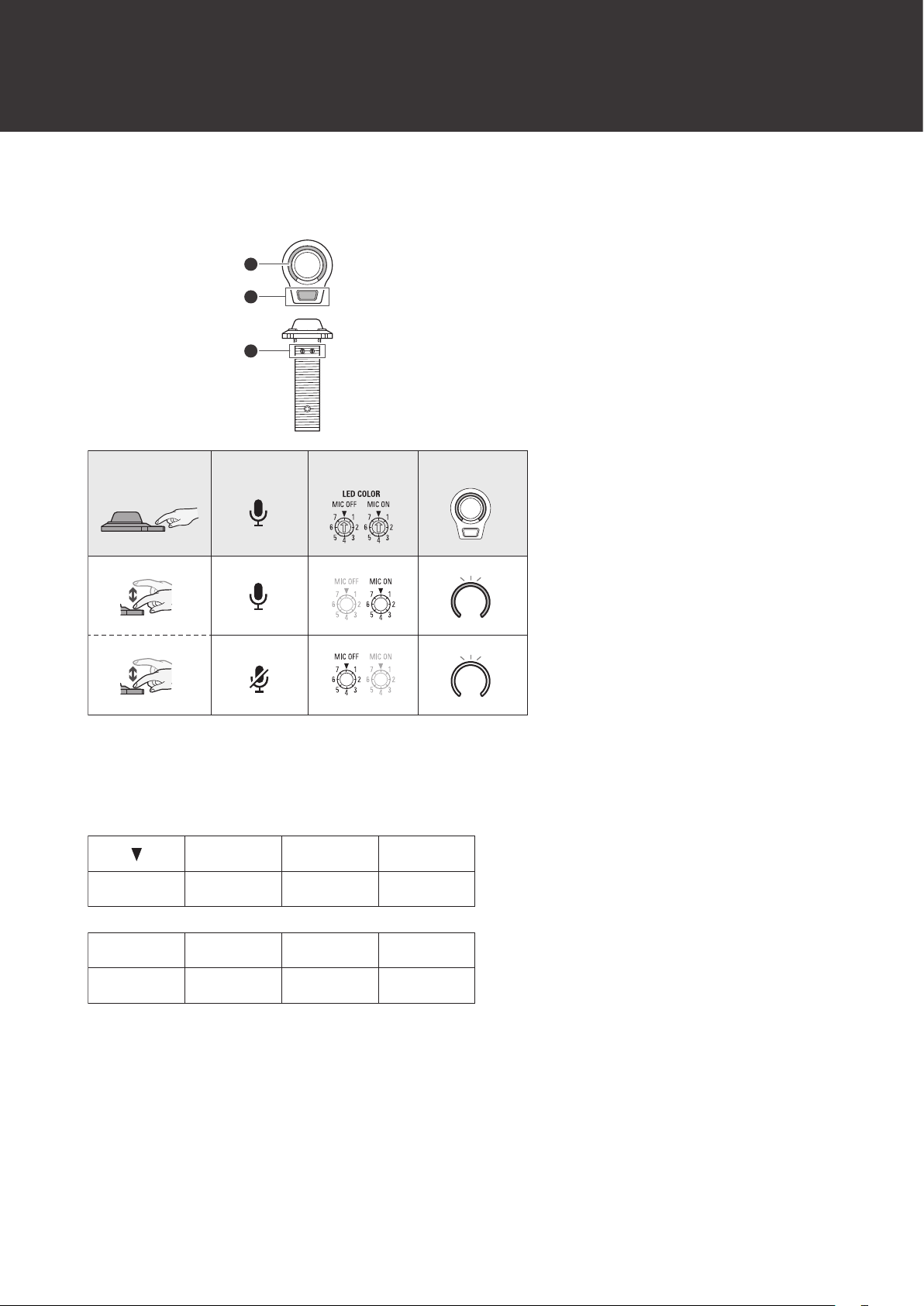

Switch setting and functions

1. Action

2. Audio status

3. LED color

4. LED status

LED color

OFF

RED

GREEN

YELLOW

BLUE

MAGENTA

CYAN

WHITE

Using the product

Connection procedure

The output connector is an XLR-M type with polarity as shown in the figure below.

PIN1 (ground)

2PIN2 (hot)

3PIN3 (cold)

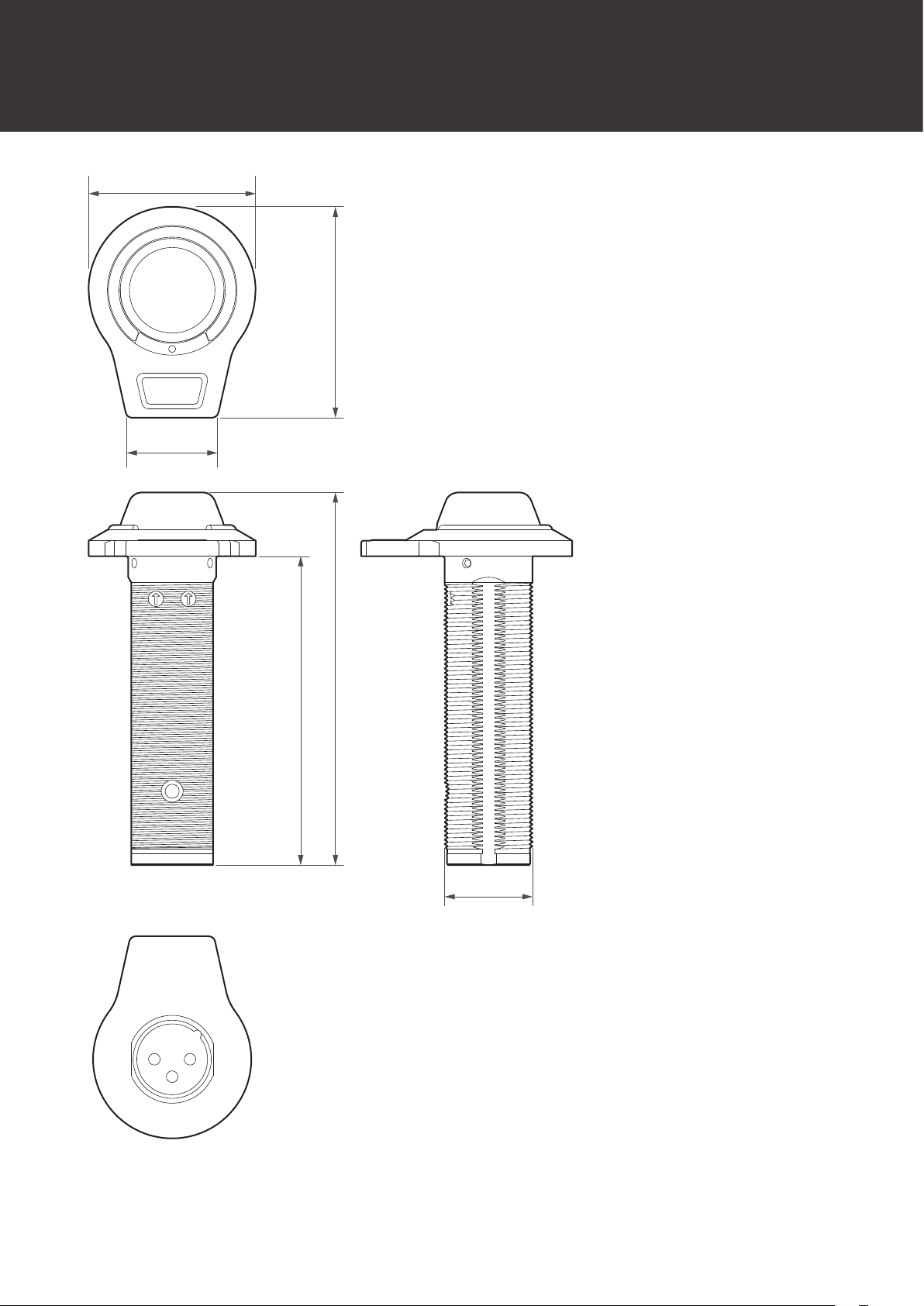

Dimensions

4884.8

70.3

(Unit: mm)

20.6

M20 P=1

Element Fixed-charge back plate, permanently polarized condenser

Polar pattern Cardioid

Frequency response 70 to 15,000 Hz

Open circuit sensitivity -37 dB (0 dB = 1 V/Pa, 1 kHz)

Impedance 60 ohms

Maximum input sound level 134 dB SPL (1 kHz at 1% THD)

Dynamic range 110 dB (1 kHz at Max SPL)

Signal-to-noise ratio 70 dB (1 kHz at 1 Pa, A-weighted)

Phantom power requirements 11-52 V DC, 7.5 mA

Weight 59 g (2.1 oz)

Dimensions 38 mm (1.50”) × 48 mm (1.89”) × 84.8 mm (3.34”) (W × D × H)

Output connector Integral 3-pin XLR-M type

Included accessories Rubber isolator (2 types), Nut

• 1 Pascal = 10 dynes/cm2= 10 microbars = 94 dB SPL

• For product improvement, the product is subject to modification without notice.
