Audio Technica ATW-1701 Manual

Audio Technica ATW-1701 Wireless Mic System –Assembly & Setup

In the box you should have the following:

•Belt Pack Transmitter

•Wireless Receiver

•Bracket

•XLR to Mini Jack Cable

•USB charging cable

•HT Aeromic

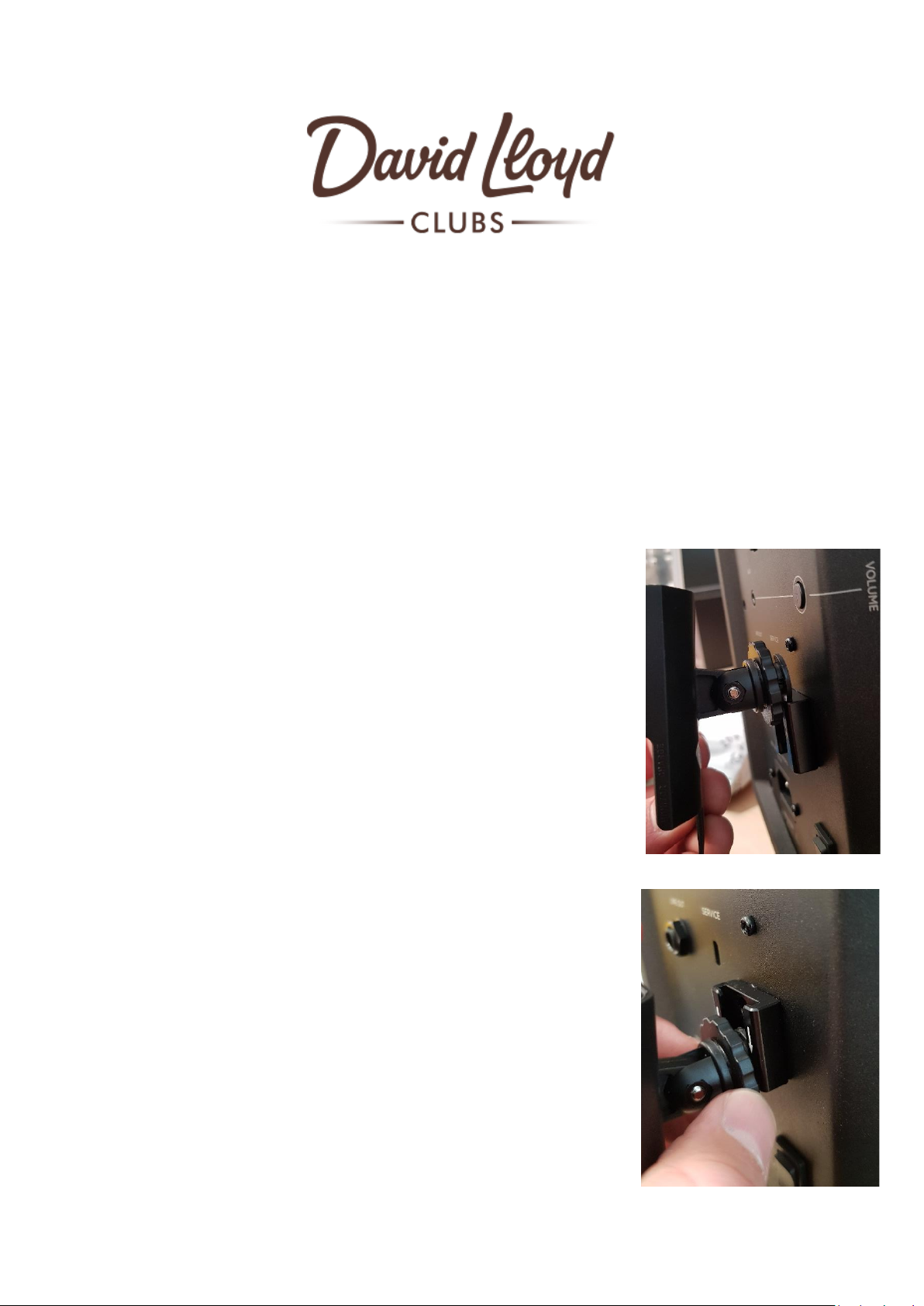

1. Slide the bracket’s clip into the mount on the side of the Bose

system, noting the directional arrows on the bracket.

2. Tighten the circular screw using thumb and fore finger, until the

clip feels secure, being careful not to over tighten.

3. Clip the receiver into place.

4. Connect the mini jack end of the XLR to mini jack cable

into the ‘OUTPUT’ socket on the receiver.

5. Connect the XLR end of the cable to the input socket on

the top channel. (Tone match switch should be set to mic

symbol)

6. Connect the microphone plug to the socket atop the

beltpack receiver, paying close attention to the grooves

in each, so as not to damage the pins.

7. A satisifying click will be heard when the plug is

succesfully connected.

8. Hold the power button down on the receiver until the

light is green.

9. Repeat Step 8 on the beltpack/transmitter.

10. From the included manual: Press the System ID button

on the receiver to choose an ID number from 1 to 8.

The receiver’s display will show your new ID and begin

to blink. Within 15 seconds, press and hold the Pair

button on the receiver for about one second. The Pair

light will begin to blink green. The receiver is now in

Pair Mode. Note: If the receiver Pair button is not

pressed within 15 seconds, the system ID number will

revert to its previous setting. Open the transmitter

and press and hold its Pair button within 30 seconds of

entering Pair Mode. The transmitter display will now

show the System ID number you have chosen on the

receiver. The receiver’s Pair light will glow steady,

indicating you have successfully paired your system.

11. Turn on the BOSE unit and turn up the channel

volume to the desired level.

12. To use Bluetooth on the BOSE speaker, press and hold

the Bluetooth button to pair from your phone or

device.

N.B. The devices should be set up prior to dispatch, though please check the switches on the

receiver are in this position before opertation.
