ATOMSTACK MAKER AC1 User manual

ATOMSTACK MAKER AC1 User Manual

English

F03-0107-0AA1

Version: A

Table of contents

1. Declaration

2. Precautions

3. Assembly steps

4. Preparation (installation and debugging)

5. Calibrate Camera Lens

6. Calibrate Camera Alignment

7. How to use positioning

8. How to record video

5-6

7-8

1 Declaration

2 Precautions

ATOMSTACK MAKER AC1 camera functions need to be controlled by LightBurn, please download the ocial version of LightBurn

software. LightBurn is a third-pay software, so ATOMSTACK seice is not responsible for any loss caused by the operation of LightBurn,

the rmware of ATOMSTACK has been tested in detail by ATOMSTACK, and the situation of incompatibility with software or hardware is

still possible occur. If an error occurs due to incompatibility, you can contact our customer depament seice for technical suppo.

suppo@atomstack.com

1. Do not collide or move the camera during the calibration process.

2. Do not collide or move the camera after the alignment of the calibration camera is completed. If the camera is collided and the camera

is shifted left and right, the camera lens and camera alignment need to be recalibrated.

3. Cardboard and dot cards need to be at.

3 Assembly steps

4. Preparation (installation and debugging)

4.1 Place the 100mm*100mm cardboard atly in the working area of the engraving machine, x the focus, and then return the laser to

the origin of the machine to engrave a pattern of 400*400mm.

4.2 Fix the assembled camera on the machine (Picture 1), Pay attention to keep the position of the machine and the paper unchanged;

adjust the position of the camera so that the distance between the working plane and the camera lens is 420mm (Picture 2), and make the

center of the camera lens align with the cross position as much as possible (Picture 3).

Picture 1 Picture 2 Picture 3

420mm

400*400

5 Calibrate Camera Lens

5.1 Check camera control in the Window drop-down menu 5.2 Select the camera in the camera control window.

5.3 Right-click in the camera control window and

click Calibrate Camera Lens.

5.4 Click Update Overlay, select the Camera name, Standard Lens, and

None - do full calibration in the pop-up window.

5.5 Click to close Honeycomb check enabled.

5.7 Place the dot card in ve positions, left, right, top, bottom, and middle, and capture 5 times. If the captured result Score≤1 and the

pattern is slightly deformed or not deformed, click Next; if the pattern cannot be captured, repeat step 2 Fine-tune the lens or move the

position of the dot card to capture again (the recommended order of dot card placement is left, right, top, bottom, and middle) until the

capture is successfully completed.

5.6 Obsee whether the xed focus plate in the preview window is tilted or not.

If it is tilted, adjust the knob to ne-tune the camera lens so that the cross mark

is in the center of the eld of view, and the top, bottom, left, and right are as

symmetrical as possible.

Adjustment knob

left right top bottom middle

5 Calibrate camera lens

6 Calibration Camera Alignment

6.1 Take away the xed focus card, click on the "Camera

Alignment" window, if this inteace is closed, please click

"Camera Control" -> "Camera Alignment" -> "Camera" ->

6.2 Set the engraving parameters (refer to the laser parameter table),

and set the Scale value according to the actual positioning size, see

the table below

6.3 Click Frame to see if there is a collision, if there is a

collision, you need to set a smaller Scale value, or recalibrate

the camera

6.4 Click Sta and make a positioning mark

Scale

100

150

200

200*200

300*300

400*400

mm^2

Size

6.5 After the engraving is complete, click the button in the red

box to move the laser to the upper position so as not to block

the engraved pattern, click Capture Image, and then click Next.

6.6 First zoom in on the pattern at position 1, double-click the cross

point, and click the cross point position in the order of numbers 1-4. If the

double-clicked cross has obvious deviation, you can click Undo Last or a

blank position, and then double-click to re-select the cross point.

6.7 Remove the cardboard when nished and click Update Overlay

Intersection

6 Calibration Camera Alignment

7 How to use positioning

7.1 Place the engraving or cutting material within the engraving range,

and x the focus, click "Home" to return the laser to the machine origin,

click Update Overlay, and move the engraving pattern to the position

you want to engrave.

7.3 The engraving is completed, the eect is shown below

7.2 Set the parameters of engraving and click sta

Table of contents

Languages:

Other ATOMSTACK Engraver manuals

ATOMSTACK

ATOMSTACK A 5 Pro User manual

ATOMSTACK

ATOMSTACK A5 M50 Pro User manual

ATOMSTACK

ATOMSTACK P7 Series User manual

ATOMSTACK

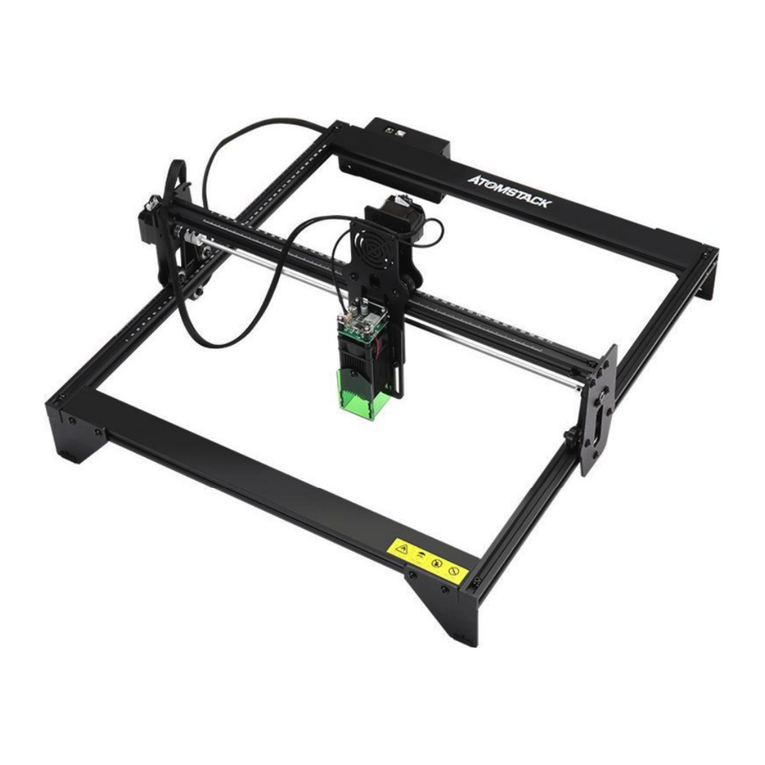

ATOMSTACK A5 User manual

ATOMSTACK

ATOMSTACK X7 Pro Series User manual

ATOMSTACK

ATOMSTACK A5 10W User manual

ATOMSTACK

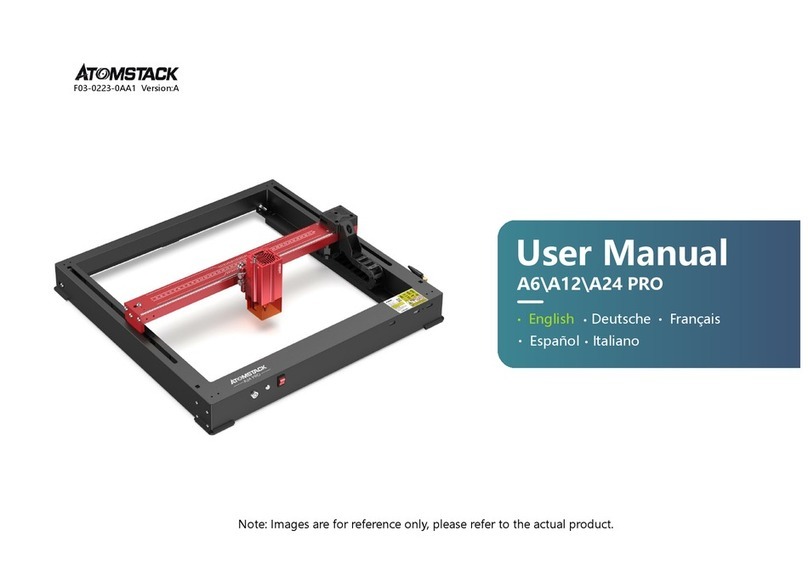

ATOMSTACK A6 PRO User manual
