Atlona AT-HDVS-150-TX Technical manual

1

Atlona Technical Support: +1 877.536.3976 option 1

Update Instructions

AT-HDVS-150-TX / TX-PSK

The following procedure is used for both the AT-HDVS-150-TX and the AT-HDVS-150-TX-PSK. The rmware le for

the AT-HDVS-150-TX is used for both models.

Requirements

• AT-HDVS-150-TX or AT-HDVS-150-TX-PSK

• Firmware le: AT-HDVS-150-TX_[version].bin

• USB Type A to Mini-USB Type B cable

• Computer with USB port

1. Download the latest rmware from the Atlona web site.

2. Disconnect the power to the AT-HDVS-150-TX by disconnecting the Ethernet cable from the HDBaseT OUT port

on the AT-HDVS-150-TX.

3. Press and hold the DISPLAY ON/OFF button.

4. While pressing the DISPLAY ON/OFF button, connect the USB cable from the computer to the FW port on the

AT-HDVS-150-TX. When the USB cable is connected, the PWR LED indicator will glow solid green.

5. After a few seconds, a folder with the name USB UPDATER, will be displayed. Release the DISPLAY ON/OFF

button.

FW port

2

Atlona Technical Support: +1 877.536.3976 option 1

Update Instructions

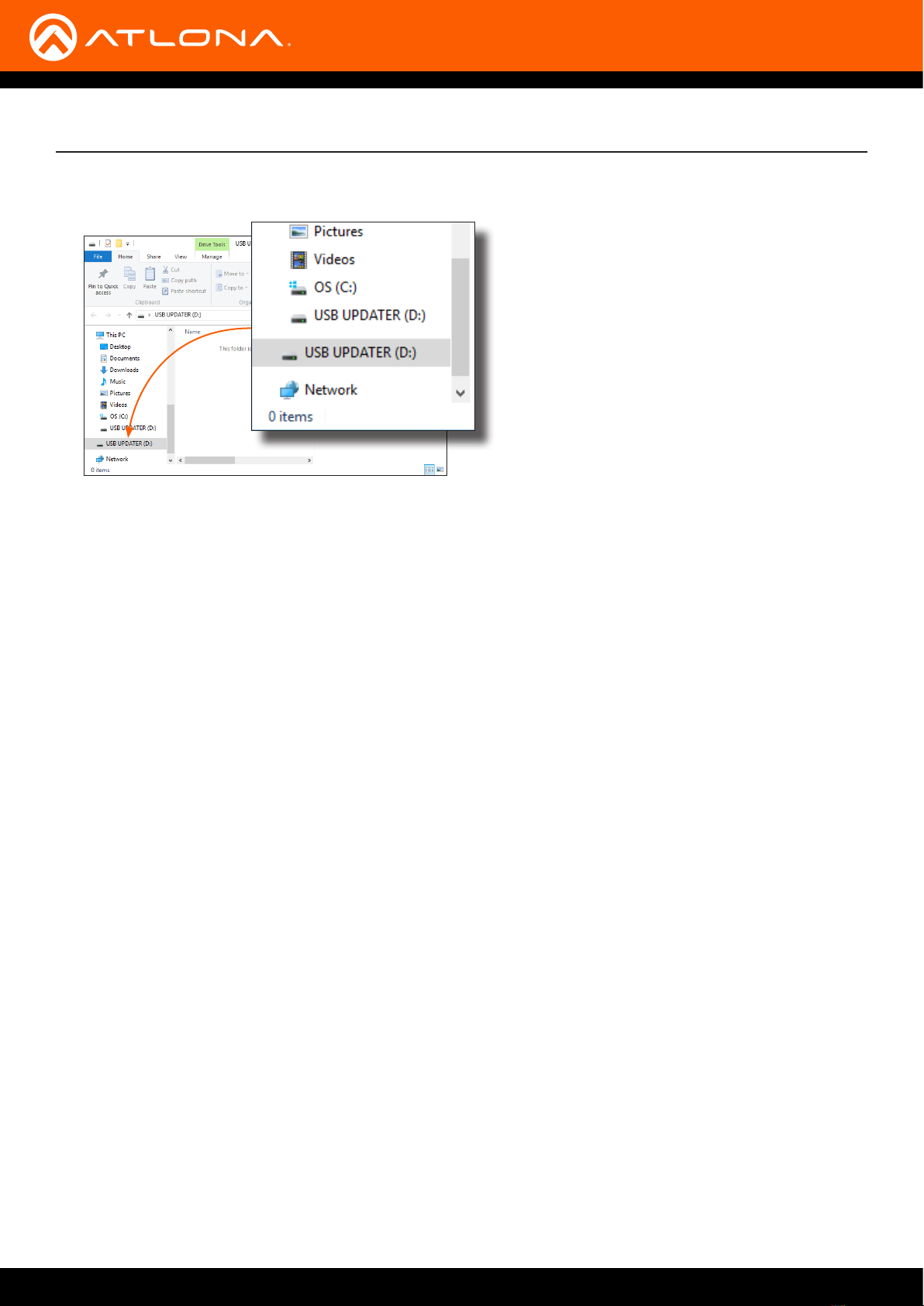

If the folder is not displayed, open Windows Explorer and locate the drive named USB UPDATER.

7. Delete all les from the USB drive, if any are present.

8. Drag-and-drop the AT-HDVS-150-TX_[version].bin rmware le to the drive.

9. After the le has been copied, disconnect the USB cable from both the computer and the AT-HDVS-150-TX.

10. Reconnect the Ethernet cable to the HDBaseT OUT port on the AT-HDVS-150-TX.

11. The update process is complete.
