Atlona AT-VGA0505 User manual
AtlonA
AT-VGA0505
5x5 VGA/YPbPr/CVBS Matrix Switcher
with Audio
User Manual
TABLE OF CONTENTS
1. Introduction .................................................. 1
2. Features .................................................. 1
3. Package Contents .................................................. 2
4. Technical Specications .................................................. 2
5. Panel Descriptions .................................................. 3
5.1. Front Panel .................................................. 3
5.2. Rear Panel .................................................. 3
6. RS-232 Serial Port Control ....................................... 4
7. RS232 commands .................................................. 6
8. IR codes .................................................. 7
9. Remote Control .................................................. 8
10. Hardware Installation .................................................. 9
11. Safety .................................................. 10
12. Warranty .................................................. 11
Introduction
This AT-VGA0505 receives and amplies up to 5 VGA inputs, perfectly switches
the desired input to a VGA equipped monitor or receiver. This matrix enables the
broadcast of multiple computers’ audio and video outputs to multiple displays.
Any one of the inputs can be broadcasted to any or all of the outputs without
introducing noticeable video quality distortion.
The matrix switcher supports VGA video bandwidth up to 450MHz ( resolution
up to 1920x1200 @60Hz ) and also supports YPbPr component, S-Video, and
Composite signals. The re-transmitted video quality is guaranteed to have minimal
lose and the longest transmission is up to 65 meters 210 feet. This unit can easily
be controlled thought IR remote, RS232 or front panel push buttons.
Features
• Broadcasts the audio and video outputs from ve computers to ve monitors and
speakers
• Up to 5 Graphics/Video Inputs*
• Any one of the inputs can be broadcasted to any or all of the outputs
• Built-in video signal amplier for up to 210 feet long transmission
• 3.5mm audio outputs to drive either speakers or earphones
• Push buttons, IR remote or RS232 controllable
• Supports video bandwidth up to 450 MHz
• Input connectors: (5) HD15 Female and (5) 3.5mm stereo jacks
• Output connectors: (5) HD15 Female and (5) 3.5mm stereo audio jacks
• Resolution up to 1920x1200 @60Hz
1
Package Contents
• 1x AT-VGA0505
• 1x Power adapter
• 1x IR remote
• 1x User Manual
• 1x Rack mounts
• 1-10x YPbPr-to-VGA adapter (optional accessory)
• Input connector ….................................................. 5x 15 pin VGA DSUB
• Output connector …............................................... 5x 15 pin VGA DSUB
• Video Bandwidth ……………………………………. 450MHz
• Power Supply ……………………………................. 5V DC
• Operation temperature ........................................... 0°C~ 55°C (32°F~131°F)
• Dimensions ………… 187mm x 125mm x 43mm (7.4”x4.9”x1.7”) (L x W x H)
• Weight ………………………………………………… 890g (31.4oz)
Technical Specifications
2
Panel Descriptions
FRONT PANEL
1 2 3 4 5 6 7 8
1. Input Indicator 5. Output Ch Decrease
2. Input Ch Increase 6. Output Indicator
3. Input Ch Decrease 7. IR Receiver
4. Output Ch Increase 8. Power Indicator
REAR PANEL
9 10 11 12 13 14
9. Audio Inputs
10. Audio Outputs
11. Video Inputs
12. Video Outputs
13. Power
14. RS-232 control port
2 3
RS-232 Serial Port Control
1
2
3
4
6
5
1

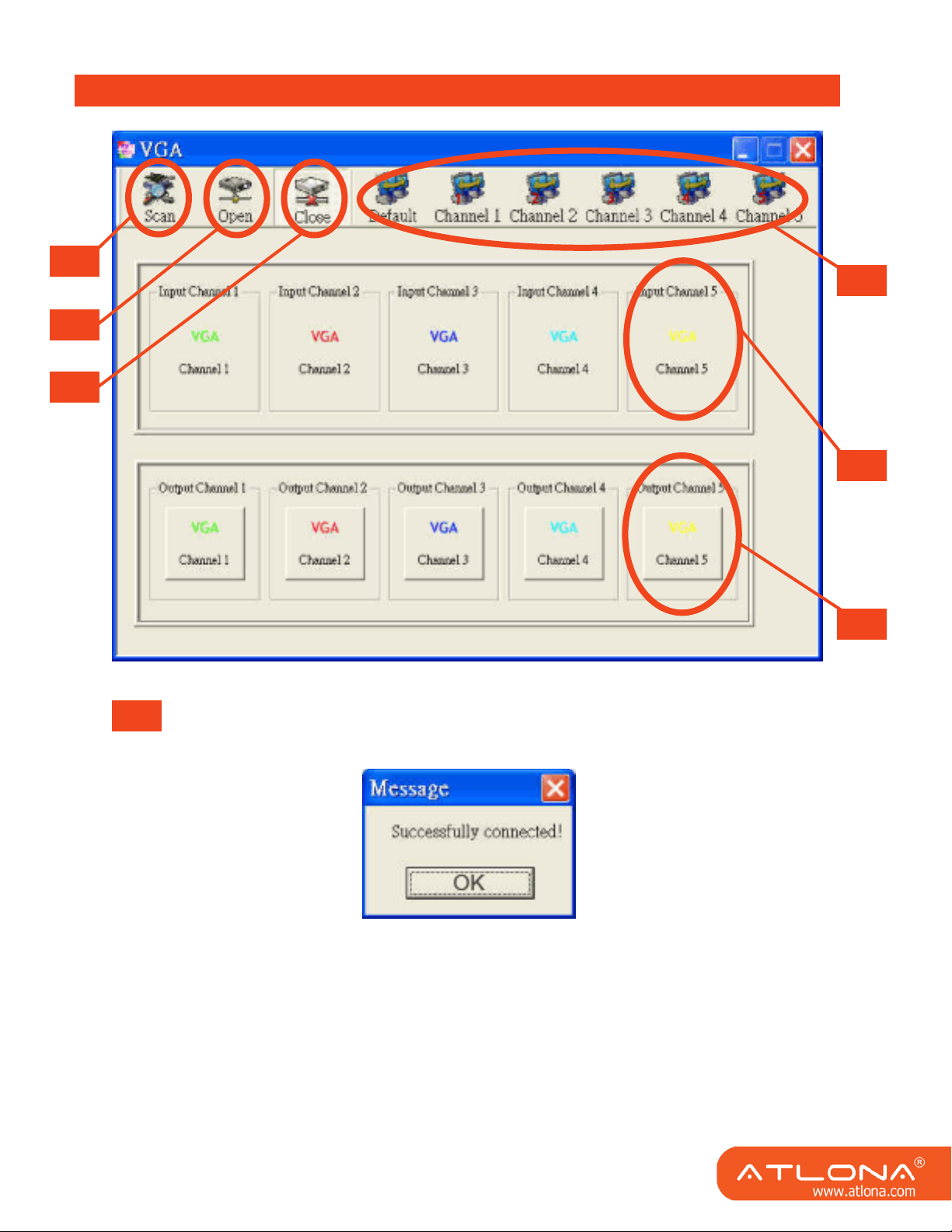

Scan: This button will trigger the automatic search over all the available COM ports
(1-255). If the matrix is detected, a message window below will show up.
Otherwise, an error message below shows up to indicate there is no legal device
found. Notice that successful connection is only established if there is at least one
available COM port.
4
2
Open: Open the COM port after scan to establish the
connection between PC and the matrix..
Close: Release the COM port after scan.
Quick Setup Buttons: Provide fast setup between inputs and outputs of the matrix.
“Default” button makes input 1, 2, 3, 4, 5 mapped to output 1, 2, 3, 4, 5 respectively.
“Channel 1” makes all outputs see input1. The same applies to the rest of the buttons.
Output Channel Setup: Click on this button, a quick selection table of inputs will show
up. Users can then easily select the input video for each output.
Input Channel Setup: The button will bring up the setup window for the inputs as below.
3
4
5
6
A
B
C
Input Channel: Select the input channel
to do bitmap and label change.
Bitmap Path: Select the gure for each
channel. Notice that only pictures in
BMP format are supported.
Description: Channel description.
4 5
RS232 commands
* RS-232 transmission format:
Baud rate: 9600 bps
Data bit: 8 bits
Parity: None
(a)Set command:
(B)Status commend:
(C)Appendix:
Command code Response Description
Command code Response Description
DATA *CHECK SUM ACK SET
DATA *CHECK SUM GET STATUS *CHECK SUM STATUS
0x07 0x4d 0x41 0x90
0x55 0x05 *0x01 0xFE
0x09 0x4d 0x41 0x90
0x55 *0x01~0xFE 0x02
0x04 0x4d 0x4f 0x44
0x06 0x4d 0x41 0x90
0x55 0x04
0x08 0x4d 0x41 0x90
0x55 *0x01~0xFE 0x01
0x06 0x4d 0x41 0x90
0x55 0x03
0xa8
0x7e
0xe4
0x7d
0x7a
0x7c
0xaa
0xaa
0xaa 0x4d 0x41
0x90 0x55
0xaa 0x04
*0x01~0xFE
0xaa 0x04
*0x01~0xFE
0xaa *0xAC
SET AT-VGA0505 DEVICE ID
SET AT-VGA0505 OUTPUT
GET DEVICE TYPE (AT-
VGA0505)
GET AT-VGA0505
DEVICE ID
GET AT-VGA0505
OUTPUT CHANNEL
GET AT-VGA0505 INPUT
CHANNEL STATE
0x1d
0xaf
0xb0
0x1d
Check sum : Check sum = (Data value sum)%256
0x01 ~ 0xFE: This data is device ID . The Device ID saved in the device , if the device ID of the controlled
device is 0xff , the device will ignore its own ID and carry out the commanded actions.
0xAC : Bit 0: Channel 8 , Bit 1: Channel 7 , Bit 2: Channel 6 , Bit 3: Channel 5 , Bit 4: Channel 4 , Bit
5: Channel 3 , Bit 6: Channel 2 , Bit 7: Channel 1 [1/0 w/wo signals]
6
IR codes
14H
16H
19H
0FH
05H
18H
0DH
1CH
1FH
1BH
1EH
13H
0CH
06H
6 7
Remote Control
: Reserved
: CH Increase
: Reserved
: CH Decrease
: CH Increase
: CH Decrease
: Input CH Change
: Output CH Change
: All Outputs see CH1
: All Outputs see CH2
: All Outputs see CH3
: All Outputs see CH4
: All Outputs see CH5
: CHx sees CHx
8
