Atlona AT-VGA0505 User manual

AtlonA

5x5 Professional VGA with Audio Matrix Switch

MODEL: AT-VGA0505

User’s Manual

Rev.0912

TABLE OF CONTENTS

1. Introduction ......................................................................... 1

2. Features ........................................................................ 1

3. Package Contents ........................................................................ 1

4. Specifications ........................................................................ 2

5. Panel Description ......................................................................... 3

5.1 Front Panel ......................................................................... 3

5.2 Rear Panel ........................................................................ 4

6. Channel Control ........................................................................ 5

6.1 Software Control ........................................................................ 5

6.2 ASCII Code Control ........................................................................ 7

6.3 IR Remote Control ........................................................................ 8

7. Installation ....................................................................... 10

8. Safety Information ....................................................................... 11

9. Warranty ....................................................................... 12

10. Atlona Product Registration ...................................................................... 13

INTRODUCTION

FEATURES

PACKAGE CONTENTS

Atlona Technologies AT-VGA0505 is an 5 input 5 output commercial VGA with audio matrix switcher.

The AT-VGA0505 is one of the world's advanced matrix switchers. It is capable of being controlled

though RS-232 via software included or via a third party control system. Switcher is designed to

handle any resolution up to 1920x1200 or 1080p without any signal degradation.

This device is mainly used in broadcast rooms, multi council-chambers, television teaching rooms,

command centers and IT server rooms.

Power-fail protection, allows switcher to restore previous settings

RS-232 communication control input, allows to control switcher via included advanced control

software or third party control system

IR remote control

Inputs: 5 x VGA female15-pin HD, 5 x 1/8'' (3.5mm) mini audio

Outputs: 5 x VGA female 15-pin HD, 5 x 1/8'' (3.5mm) mini audio

Connectors: 15-pin HD (could be used for PC resolutions up to WUXGA —1920x1200 or HDTV

up to 1080p)

Compatible formats: RGB, YPbPr or RGBHV

Rack mountable

1x AT-VGA0505 unit

1x IR remote control

1x Installation CD

2x 1RU rack-mount ears

1x 5V DC power supply unit

1x User's manual

SPECIFICATIONS

Model Name AT-VGA0505

Technical

Role of usage 5x5 true matrix switcher

Supported input/output VGA / Component / S-video / Composite*

Video bandwidth 400MHz

Video support 1080p60, WUXGA [1920x1200@60] & UXGA [1600x1200@60]

Transmission HD [720p/1080i] – 65m [210ft]

Audio support Analog stereo

Input 5x VGA [component/s-video/composite]*

5x 3.5mm analog stereo audio

1x RS-232

Output 5x VGA [component/s-video/composite]*

5x 3.5mm analog stereo audio

VGA connector HD-15 [15-pin D-sub female]

RS-232 connector DE-9 [9-pin D-sub female]

3.5mm connector Earphone jack for analog stereo audio

Input selection IR remote control / push button / RS-232 control

IR remote control Electro-optical characteristics: τ= 25°/ Carrier frequency: 36-40kHz

Mechanical

Housing Metal enclosure

Dimensions

[L x W x H]

Model 1RU – 440 x 96 x 44mm [1’5" x 3.8" x 1.7"]

Package 490 x 225 x70mm [1'7" x 8.9" x 2.8"]

Carton 510 x 380 x 252mm [1'8" x 1'3" x 1']

Weight Model 890g [2.0 lbs]

Package 2.1kg [4.6 lbs]

Fixedness 1U rack-mount with ears

Power supply 5V 4A DC

Power consumption 13 Watts [max]

Operation temperature 0~40°C [32~104°F]

Storage temperature -20~60°C [-4~140°F]

Relative humidity 20~90% RH [no condensation]

*Component and composite inputs/outputs can be done by using VGA-to-component breakout

cables to connect to the VGA sockets. For S-Video inputs/outputs, please find a VGA-to-S-video

adapter to connect to the VGA sockets.

PANEL DESCRIPTION

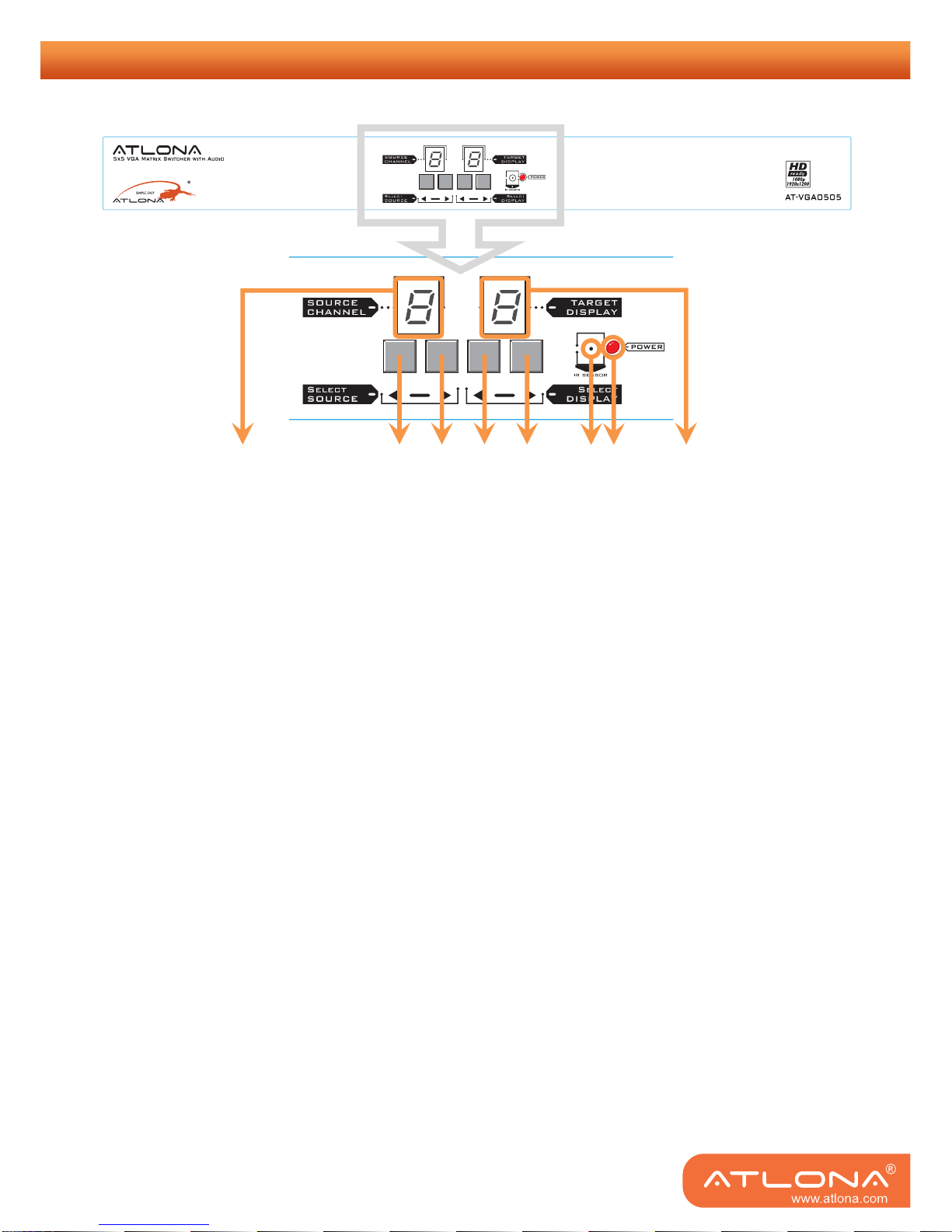

Front Panel

1. SOURCE CHANNEL: Display of selected input source channel

2. W: press the Wbutton to select input source channel in descending sequence

3. X: press the Xbutton to select input source channel in ascending sequence

4. W: press the Wbutton to select output display channel in descending sequence

5. X: press the Xbutton to select output display channel in ascending sequence

6. IR SENSOR: Receive IR commands from the IR remote control

7. Power ON/OFF indicator

8. TARGET DISPLAY: Display of selected output display channel

1 2 34567 8

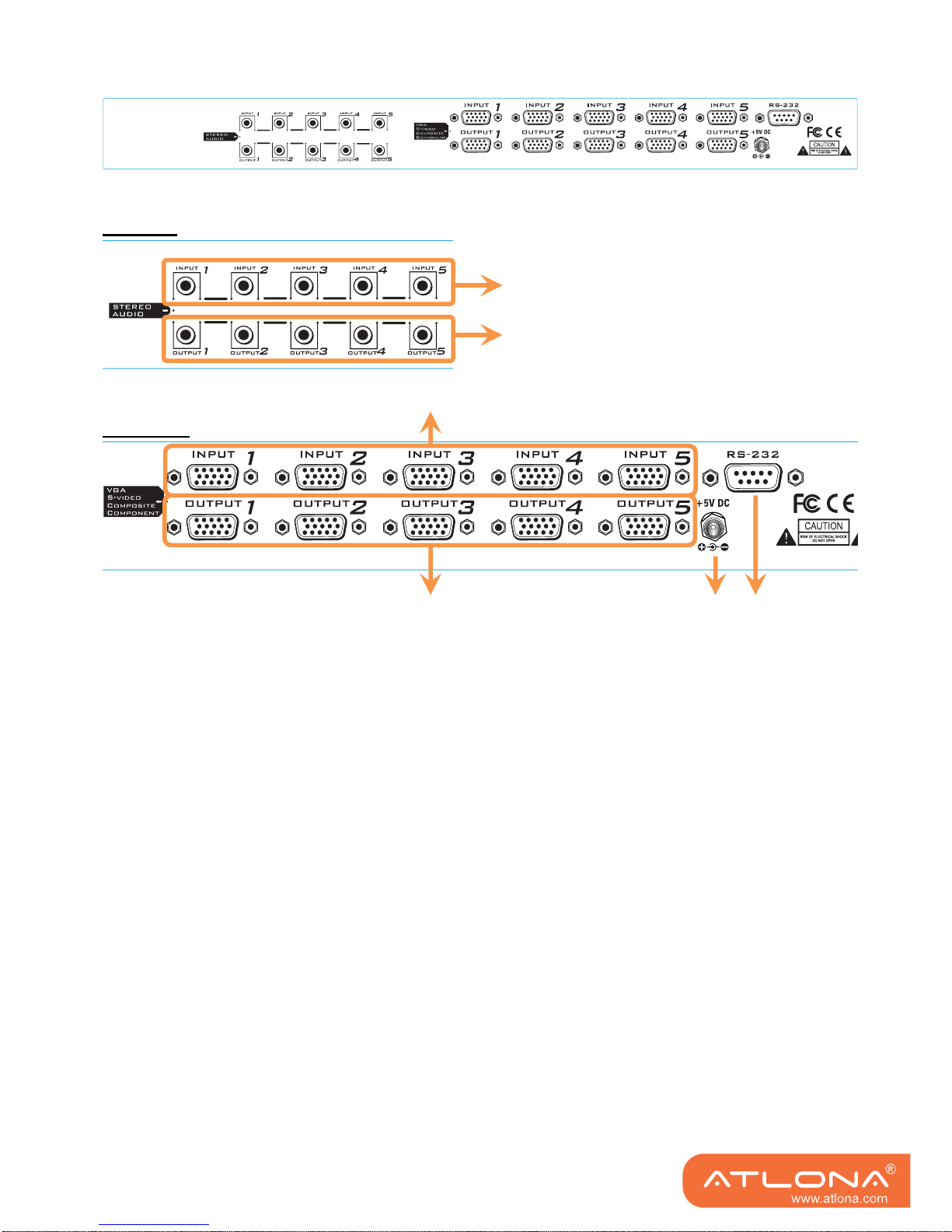

Rear Panel

Left Side

Right Side

9. INPUT1 —INPUT5: Stereo audio input channels

10. OUTPUT1 —OUTPUT5: Stereo audio output channels

11. INPUT1 —INPUT5: Analog video input channels

12. OUTPUT1 —OUTPUT5: Analog video output channels

13. +5V DC: Connect to 5V DC power supply unit

14. RS-232: Connect to a PC for software operation or firmware update

12 13 14

CHANNEL CONTROL

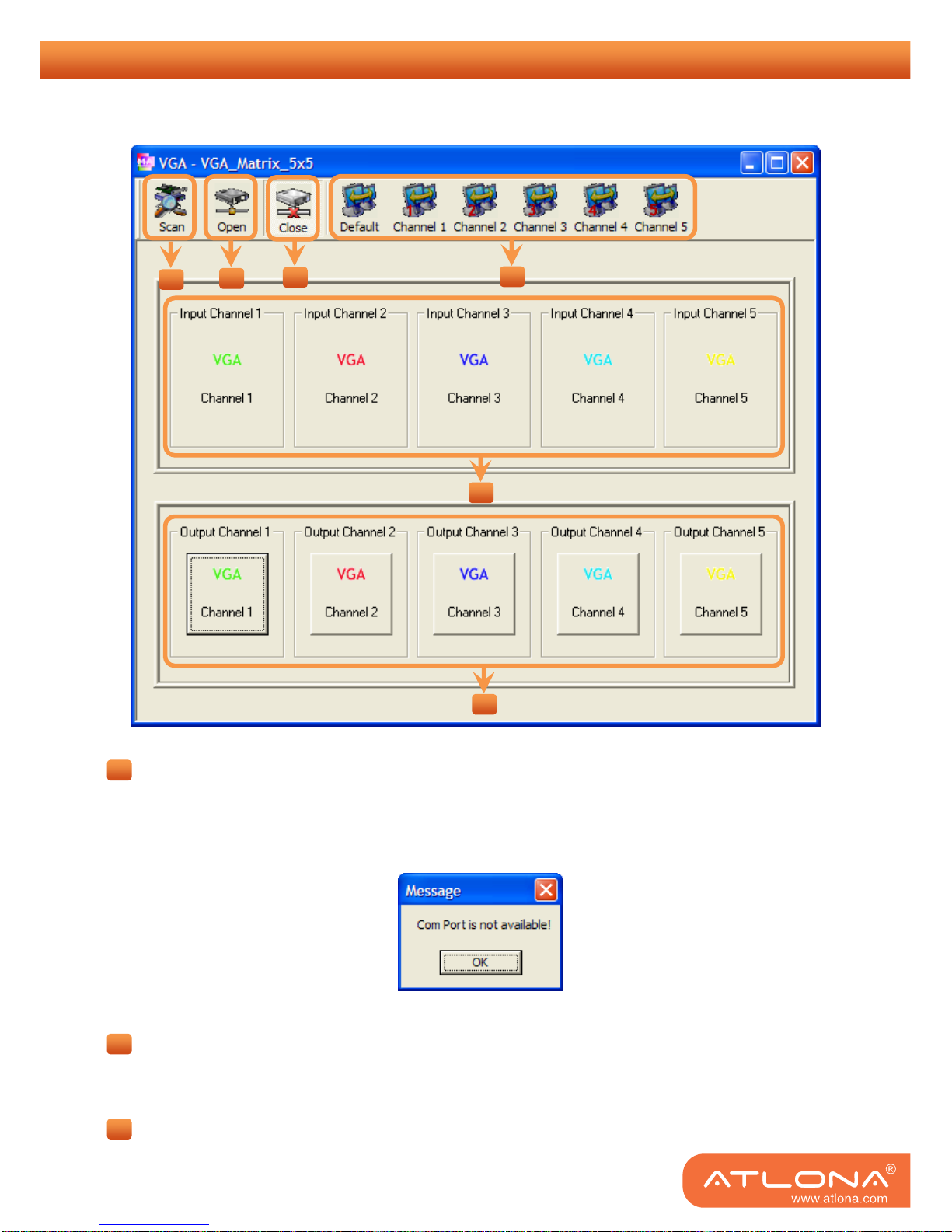

Method A: Operation by Control Software via RS-232 serial port

Scan

This button will trigger the automatic search over all the available COM ports (1-255). If the matrix

is detected, a successful message window will show up. Otherwise, an error message will show

up (see below). Please keep in mind that a successful connection can be established only if there

is at least one COM port available.

Open

Open the COM port after scan to establish the connection between PC and the matrix.

Release the COM port after scan.

1 2 34

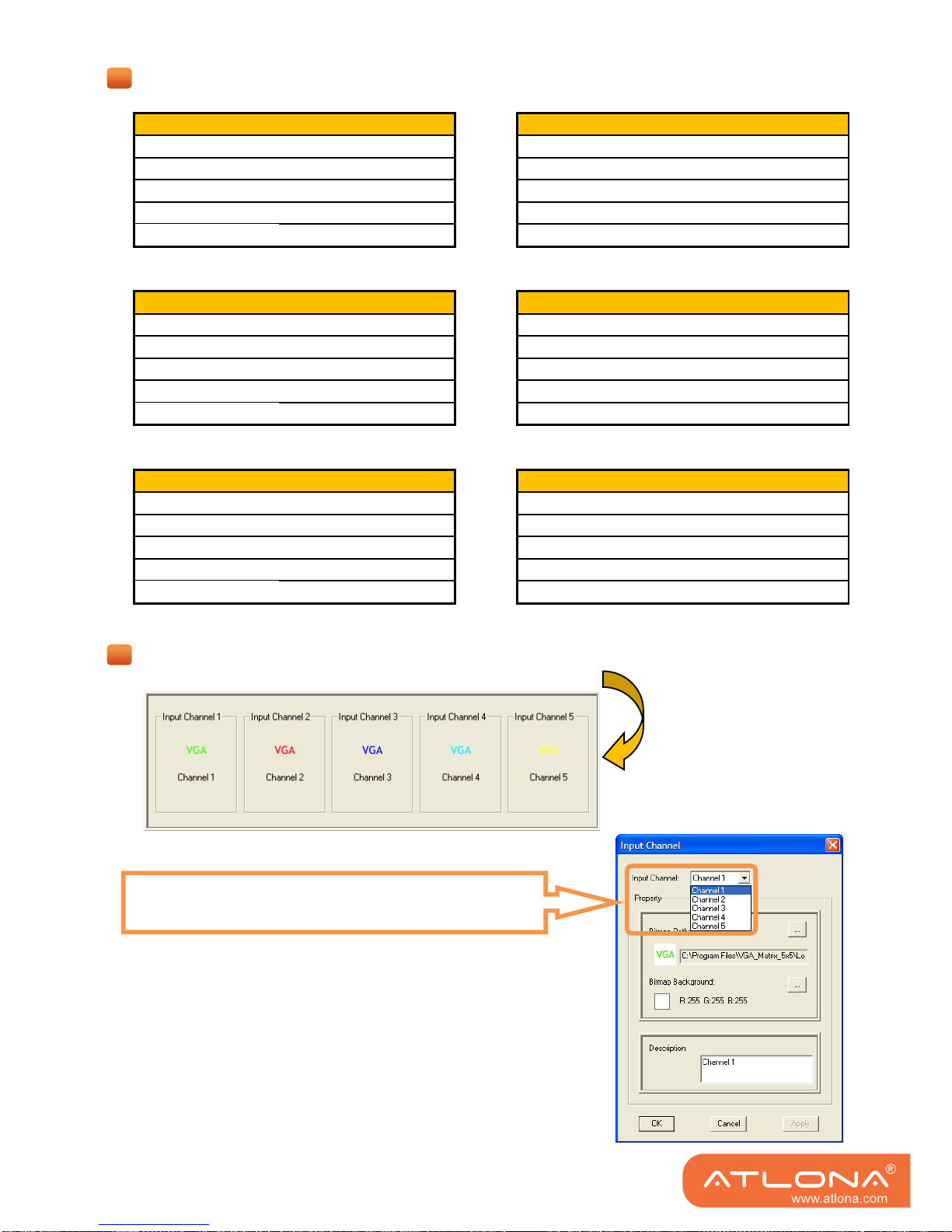

Quick Setup Buttons —Provide fast channel setup for the matrix.

Default Channel 1: Input channel 1 on all outputs

Source Channel ÎDisplay Channel Source Channel ÎDisplay Channel

Input 1 ÎOutput 1 Input 1 ÎOutput 1

Input 2 ÎOutput 2 Input 1 ÎOutput 2

Input 3 ÎOutput 3 Input 1 ÎOutput 3

Input 4 ÎOutput 4 Input 1 ÎOutput 4

Input 5 ÎOutput 5 Input 1 ÎOutput 5

Channel 2: Input channel 2 on all outputs Channel 3: Input channel 3 on all outputs

Source Channel ÎDisplay Channel Source Channel ÎDisplay Channel

Input 2 ÎOutput 1 Input 3 ÎOutput 1

Input 2 ÎOutput 2 Input 3 ÎOutput 2

Input 2 ÎOutput 3 Input 3 ÎOutput 3

Input 2 ÎOutput 4 Input 3 ÎOutput 4

Input 2 ÎOutput 5 Input 3 ÎOutput 5

Channel 4: Input channel 4 on all outputs Channel 5: Input channel 5 on all outputs

Source Channel ÎDisplay Channel Source Channel ÎDisplay Channel

Input 4 ÎOutput 1 Input 5 ÎOutput 1

Input 4 ÎOutput 2 Input 5 ÎOutput 2

Input 4 ÎOutput 3 Input 5 ÎOutput 3

Input 4 ÎOutput 4 Input 5 ÎOutput 4

Input 4 ÎOutput 5 Input 5 ÎOutput 5

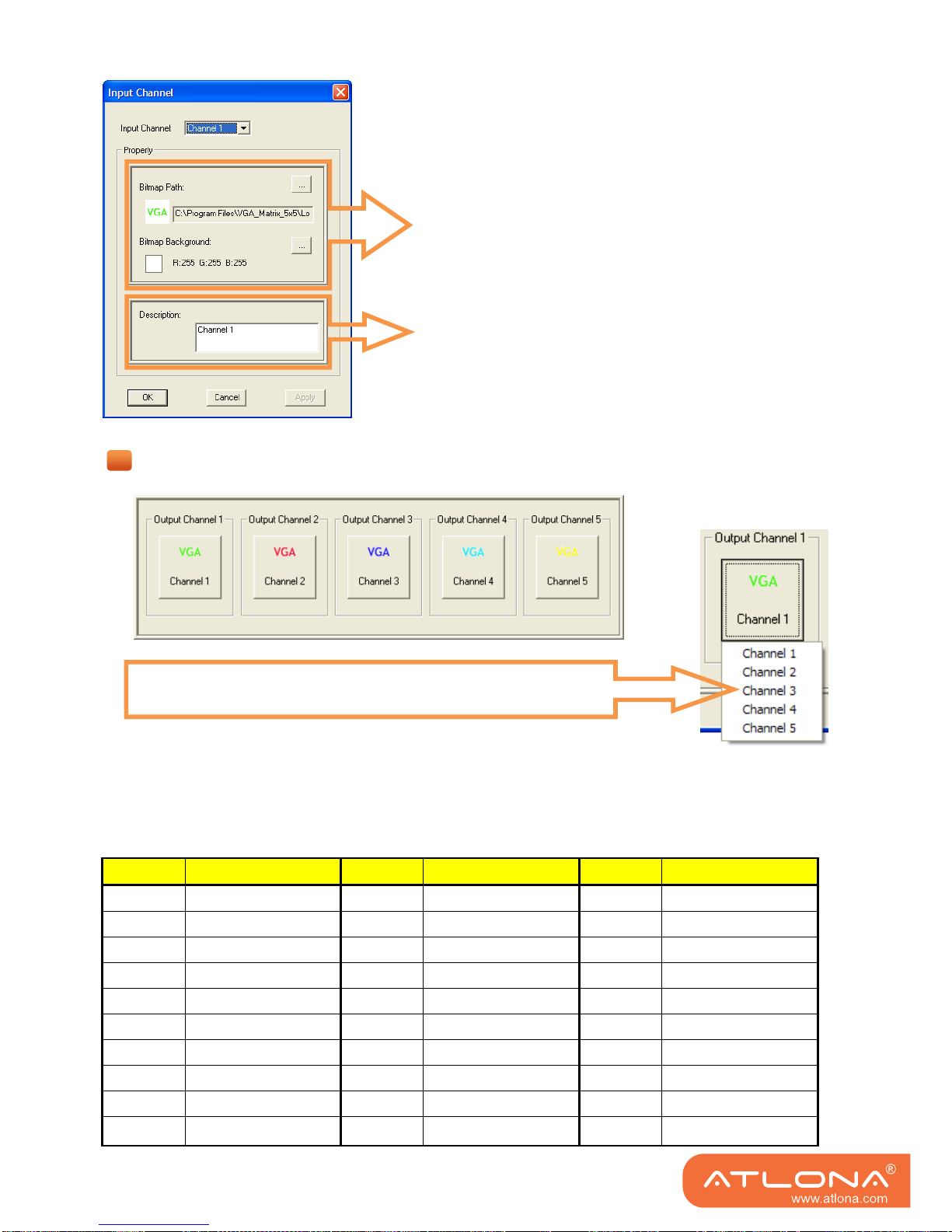

Input Channel Selection

Click on the Input Channel 1-5 buttons to select the input channel.

Then a pop-up menu will show up on the selected input

channel for you to choose the desired output channel.

Select the input channel to do bitmap and label change.

Bitmap Path:

Select the icon for each channel. Please notice that only

pictures in BMP format are supported.

Description: Channel description.

Output Channel Selection

Click on the Output Channel 1- Output Channel 5 buttons to select the output channel.

Then a pop-up menu will show up on the selected output channel

for you to choose the desired input channel.

Method B: Operation by ASCII codes via RS-232 serial port

Command Set for Windows Super Terminal:

COMMAND ACTION COMMAND ACTION COMMAND ACTION

A1 Input 1 ÎOutput 1 C1 Input 1 ÎOutput 3 E1 Input 1 ÎOutput 5

A2 Input 2 ÎOutput 1 C2 Input 2 ÎOutput 3 E2 Input 2 ÎOutput 5

A3 Input 3 ÎOutput 1 C3 Input 3 ÎOutput 3 E3 Input 3 ÎOutput 5

A4 Input 4 ÎOutput 1 C4 Input 4 ÎOutput 3 E4 Input 4 ÎOutput 5

A5 Input 5 ÎOutput 1 C5 Input 5 ÎOutput 3 E5 Input 5 ÎOutput 5

B1 Input 1 ÎOutput 2 D1 Input 1 ÎOutput 4

B2 Input 2 ÎOutput 2 D2 Input 2 ÎOutput 4

B3 Input 3 ÎOutput 2 D3 Input 3 ÎOutput 4

B4 Input 4 ÎOutput 2 D4 Input 4 ÎOutput 4

B5 Input 5 ÎOutput 2 D5 Input 5 ÎOutput 4

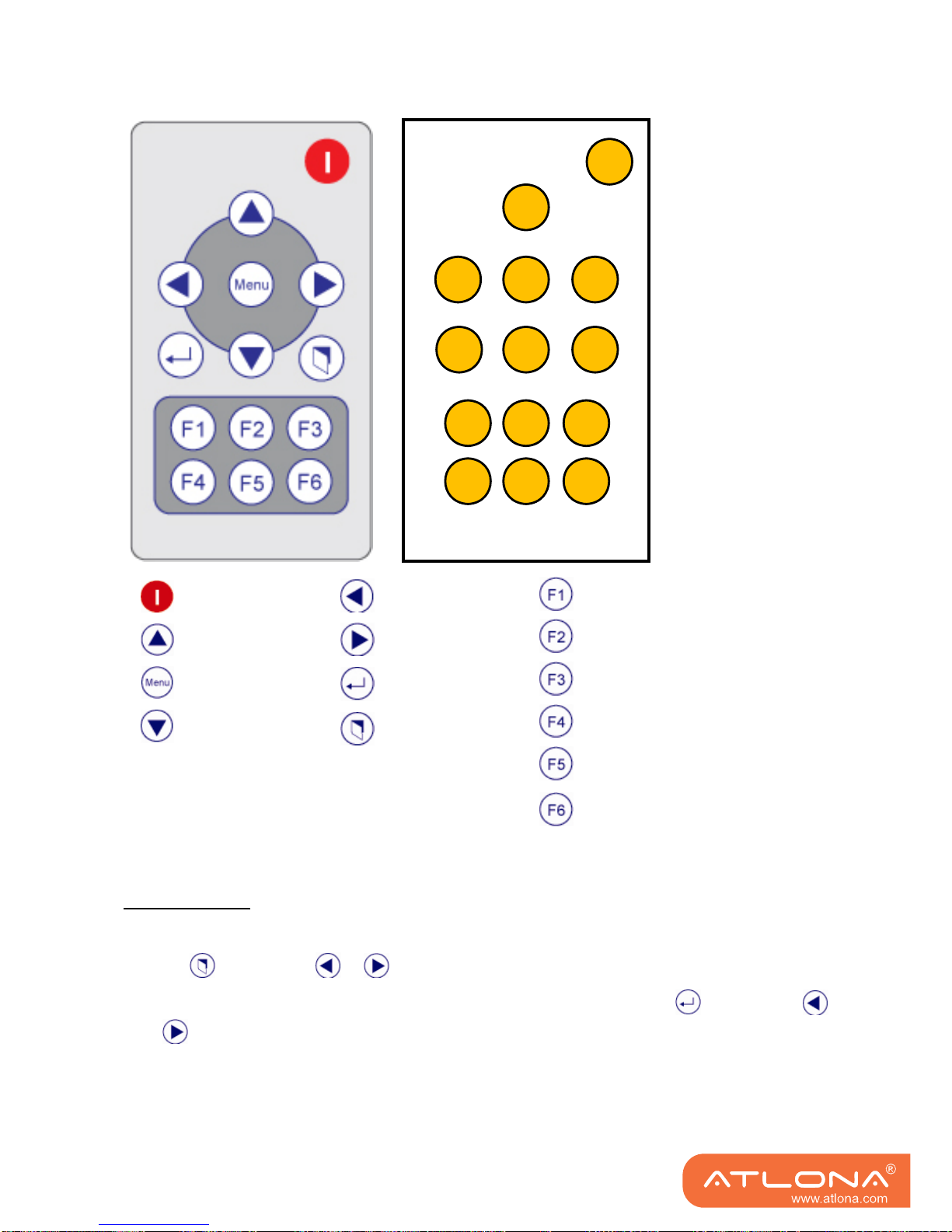

Method C: Operation via IR Remote Control with IR Discrete Code

How to operate

Method A: Assign ouput X to play input Y

1. Press first then use or to select the output channel "X".

2. Once you see the LED displays the desired output channel "X" then press and then use

or to select the input channel "Y".

3. Once you reach the desire input & output channel setting, wait for 2 seconds and it'll be done.

: Not in use

: Decrease CH

: Increase CH

: Change Input CH

: Change Output CH

: Mapping CH1 to all 5 outputs

: Mapping CH2 to all 5 outputs

: Mapping CH3 to all 5 outputs

: Mapping CH4 to all 5 outputs

: Mapping CH5 to all 5 outputs

: Default mapping

16H

14H

0FH

0DH

1BH

0CH

05H

1CH

1EH

06H

19H

18H

1FH

13H
