Atlona AT-COMP150SR User manual

AtlonA

Component Video with Stereo Audio Extender

MODEL: AT-COMP150SR

User’s Manual

Rev.1004

TABLE OF CONTENTS

1. Introduction ....................................................................... 1

2. Features ....................................................................... 1

3. Package Contents ....................................................................... 2

4. Specifications ....................................................................... 2

5. Panel Description ....................................................................... 3

6. Audio Mode ....................................................................... 5

7. Installation ....................................................................... 6

8. Notice ....................................................................... 6

9. Safety Information ..................................................................... 7

10. Warranty ...................................................................... 8

11. Atlona Product Registration .................................................................. 9

12. Performance Guide ...................................................................... 9

INTRODUCTION

FEATURES

Atlona Technologies AT-COMP150SR can easily extend component (YPbPr) or composite (CVBS)

video with stereo audio over only one CAT5/6 cable. The AT-COMP150SR lets you extend signals

to cover the distance up to 330m (1,000ft). The devices are composed of a transmitter and a

receiver. The transmitter is installed near the video signal source, and the receiver is placed near

the desired display, up to impressive 330m (1,000ft) away for composite (CVBS) video and analog

stereo audio. The AT-COMP150SR does not need external power supply which is easier for

installation.

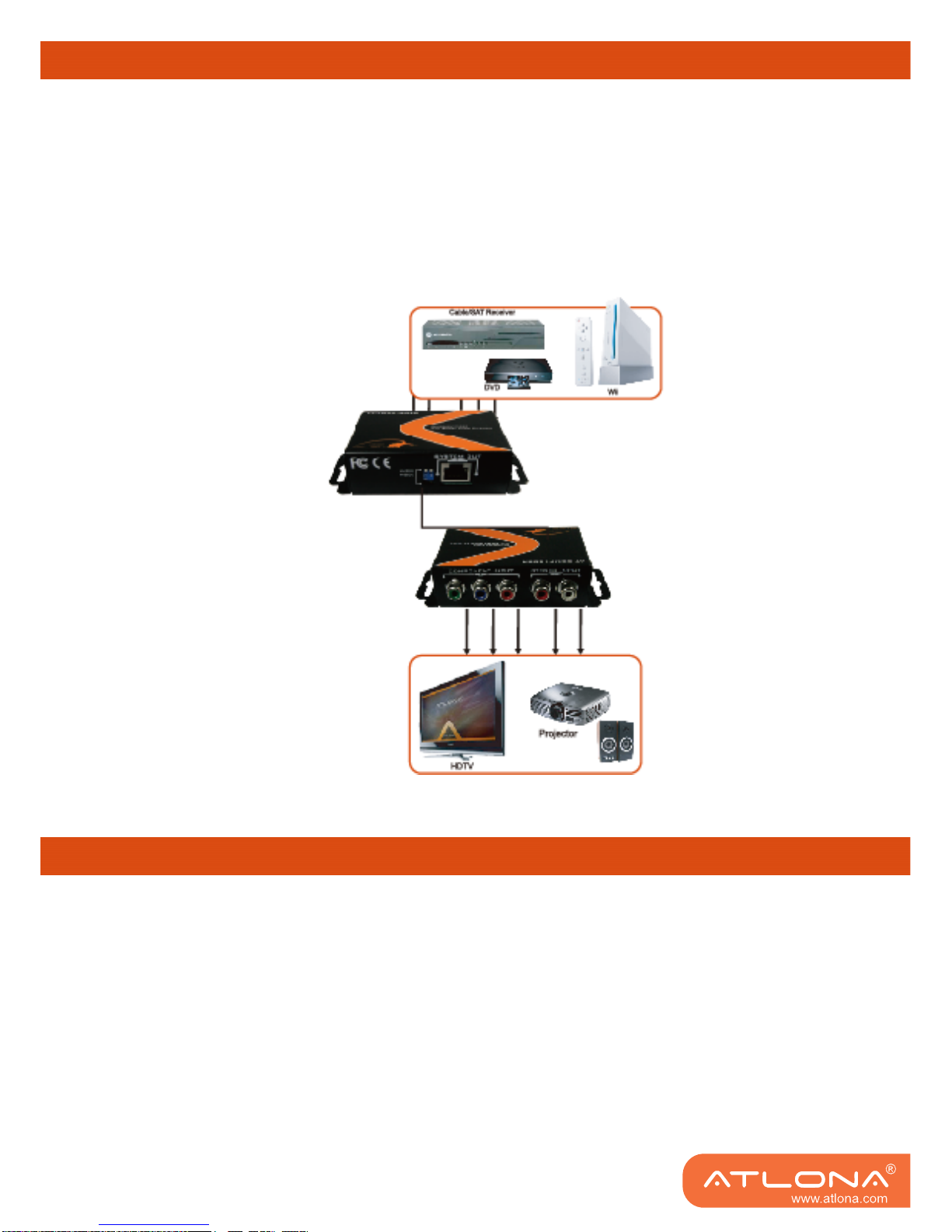

Diagram:

Passive and no power required

Supports component (YPbPr) and composite (CVBS) video and L/R stereo audio

Supports resolutions up to 720p/1080i (NTSC/PAL)

Transmission range up to 1,000 feet

Wall mountable

Note: The length depends on the characteristics and quality of the cables. Higher

resolutions and longer transmission distances require low skew cables (<25ns/100m)

for best performance. Unshielded CAT6 with metal RJ45 connectors is recommended

PACKAGE CONTENTS

SPECIFICATIONS

1x AT-COMP150SR (Sender unit and Receiver unit)

1x User's manual

Model Name AT-COMP150SR

Technical

Role of usage Sender (TX) Receiver (RX)

Video support Up to 720p60, 1080i60, 1080p30

Audio support L/R stereo analog audio

Transmission HD 720p/1080i – 185m (600ft)

480i – 330m (1,000ft)

Input 5x RCA 1x RJ45

Output 1x RJ45 5x RCA

RCA connector 75Ωfemale

RJ45 connector WE/SS 8P8C

Mechanical

Housing Metal enclosure

Dimensions

[L x W x H] Model [TX/RX] 54 x 85 x 26mm [2.1" x 3.3" x 1"]

Package 141 x 198 x 74mm [5.5" x 7.8" x 2.9"]

Weight Model [TX/RX] 170g [6oz]

Package 750g [1.7 lbs]

Fixedness Wall-mount case with screws

Power supply None

Power consumption 0.1 Watt [max]

Operation temperature 0~40°C [32~104°F]

Storage temperature -20~60°C [-4~140°F]

Relative humidity 20~90% RH [no condensation]

PANEL DESCRIPTION

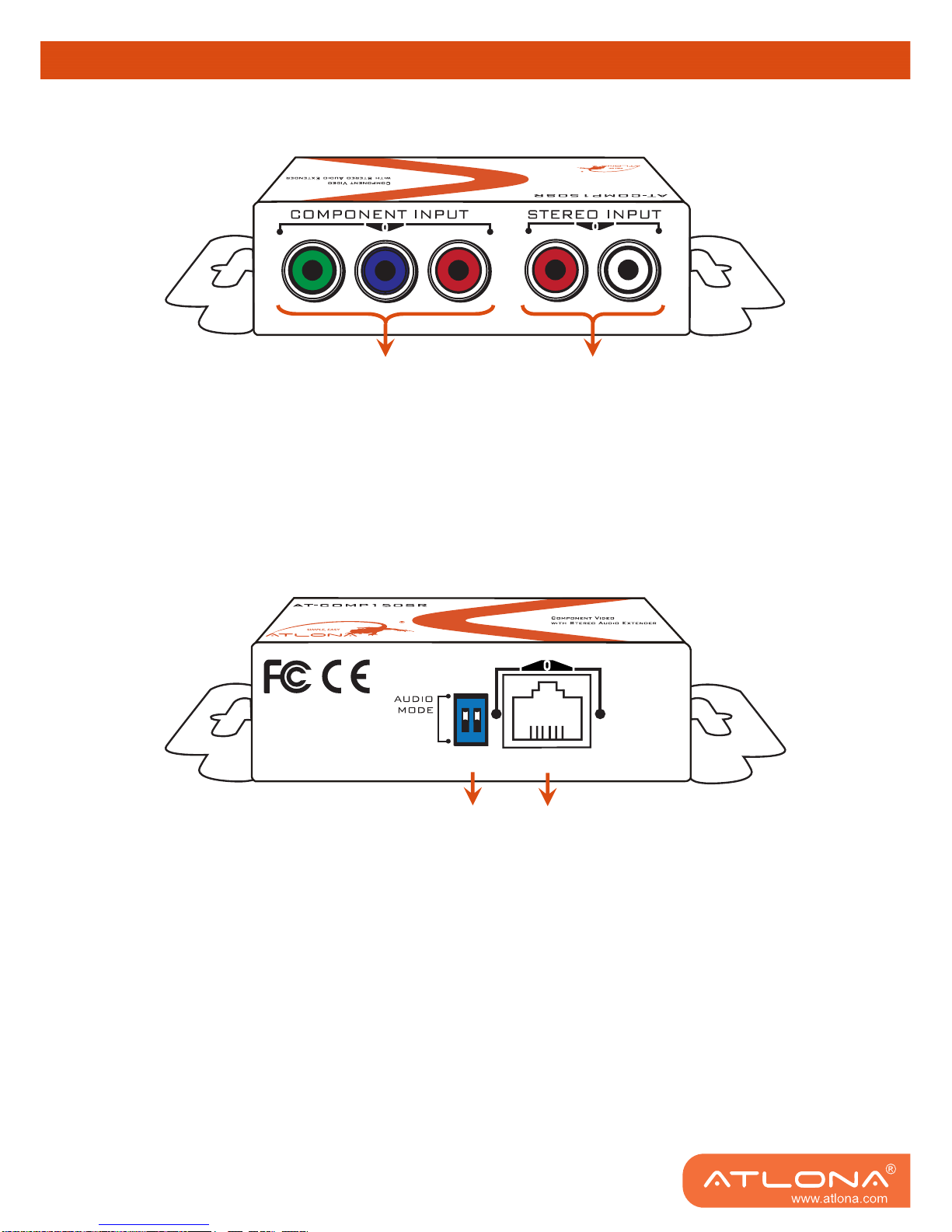

Sender Unit: AT-COMP150S

Input Panel

1. COMPONENT INPUT: Conennet to one component video or three composite video sources.

2. STEREO INPUT: Connect to an analog stereo audio source.

Output Panel

3. AUDIO MODE: See next section for more detail.

4.SYSTEM OUT: Connect a CAT5e/6 cable and link to the SYSTEM IN port on the Receiver unit.

1 2

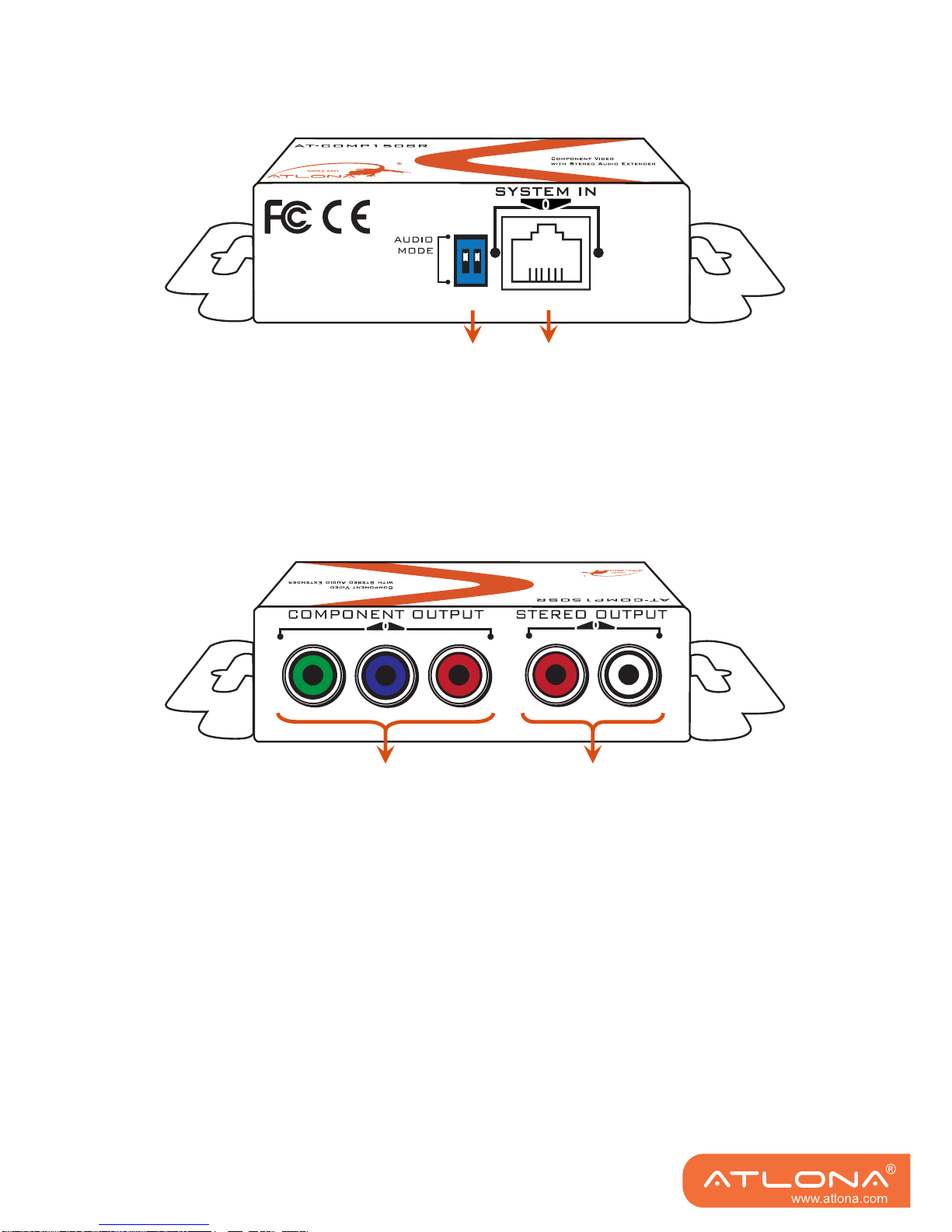

Receiver Unit: AT-COMP150R

Input Panel

5. AUDIO MODE: See next section for more detail.

6. SYSTEM IN: Connect a CAT5e/6 cable and link to the SYSTEM OUT port on the Sender unit.

Output Panel

7. COMPONENT OUTPUT: Conennet to one component or three composite video displays.

8. STEREO INPUT: Connect to analog stereo audio speakers.

7 8

AUDIO MODE

DIP Switch Position Audio Description

Pin 1 Pin 2

ON [ª] ON [ª] Mono

Set both Sender unit and Receiver unit at this position to get

mono Left channel audio with Right channel grounded to get

better audio clarity

OFF [©] OFF [©] Stereo

Set both Sender unit and Receiver unit at this position to get

stereo Left and Right channel audio.

1. Use shielded or even double shielded cables to get better audio quality

2. Even though the mono sound is sent by setting the DIP switch to ON-ON [ªª]position on the

Sender unit, you still can hear stereo-alike sound by setting the DIP switch at OFF-OFF [©©]

on the Receiver unit. The key reason to set the DIP switch on the Sender unit at ON-ON [ªª]

position is to lower the interferences between wires in CAT5e/6 cable and this may result in

better audio and video qaulity especially for long range applications.

INSTALLATION

NOTICE

1. Switch off all devices, including monitors.

2. Connect the Sender unit of AT-COMP150SR to the video and audio sources.

3. Connect the Receiver unit of AT-COMP150SR to component or composite display(s) and

stereo speakers.

4. Power on the displays and speakers.

5. Power on the audio and video sources.

1. All component/composite over CAT5 transmission distances are measured using Belden

1583A CAT5e 125MHz UTP cable and ASTRODESIGN Video Signal Generator VG-859C.

2. The transmission length is largely affected by the type of category cables. The testing result

shows solid UTP cables (usually in the form of 1000ft bulk cables) can transmit a lot longer

signals than stranded UTP cables (usually in the form of fixed length patch cords). A solid UTP

CAT5e cable shows longer transmission length than stranded STP CAT6 cable. For long

extension users, solid CAT5e/6 cables are your only choice.

3. EIA/TIA-568-B termination (T568B) for CAT5e/6 cables is recommended.

4. To reduce the interference among the unshielded twisted pairs of wires in UTP cable, double

shielded STP cables are better suit than unshielded UTP cables to improve EMI problems,

which is worsen in long transmission.

5. Because the quality of the CAT5e/6 cables has the major effects in how long transmission

distance will be made and how good is the received display, the actual transmission length is

subject to the choice of your CAT5e/6 cables.

6. Increase in distance and resolution will generally result in loss of image sharpness or drop in

video sync.

SAFETY INFORMATION

Safeguards

To reduce the risk of electric shock, do not

expose this product to rain or moisture.

If the wall plug does not fit into your local

power socket, hire an electrician to replace

your obsolete socket.

Do not modify the wall plug.

Doing so will void the warranty and safety

features.

This equipment should be installed near the

socket outlet and the device should be easily

accessible in case it requires disconnection.

Precautions

FCC Regulations state that any unauthorized

changes or modifications to this equipment

not expressly approved by the manufacturer

could void the user’s authority to operate this

equipment.

Operate this product using only the included

external power supply. Use of other power

supplies could impair performance, damage

the product or cause fires.

In the event of an electrostatic discharge, this

device may automatically turn off. If this

occurs, unplug the device, and plug it back in.

Protect and route power cords so they will not

be stepped on or pinched by anything placed

on or against them. Be especially careful of

plug-ins, or cord exit points from this product.

Avoid excessive humidity, sudden temperature

changes or temperature extremes.

Keep this product away from wet locations such

as bathtubs, sinks, laundries, wet basements

and swimming pools.

Use only accessories recommended by ATLONA

to avoid fire, shock or other hazards.

Unplug the product before cleaning. Use a

damp cloth for cleaning. Do not use cleaning

fluid or aerosols, which could enter the unit and

cause damage, fire or electrical shock. Some

substances may also mar the finish of the

product.

Never open or remove unit panels or make any

adjustments not described in this manual.

Attempting to do so could expose you to dan-

gerous electrical shock or other hazards. It may

also cause damage to your AT-COMP150SR.

Opening the product will void the warranty.

Do not attempt to service the unit. Instead

disconnect it and contact your Authorized

ATLONA reseller or contact ATLONA directly.

WARRANTY

ATLONA PRODUCT REGISTRATIONWARRANTY

1. LIMITED WARRANTY

Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in

accordance with the accompanying written materials for a period of 3 years from the date of receipt

and (b) that the Product will be free from defects in materials and workmanship under normal use

and service for a period of 3 years. In the event applicable law imposes any implied warranties, the

implied warranty period is limited to 3 years from the date of receipt. Some jurisdictions do not

allow such limitations on duration of an implied warranty, so the above limitation may not apply to

Customer.

2. CUSTOMER REMEDIES

Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at

Atlona Technologies’ option, either return of the price paid for the Product, or repair or replacement

of the Product that does not meet this Limited Warranty and which is returned to Atlona

Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the

Product has resulted from accident, abuse, or misapplication. Any replacement Product will be

warranted for the remainder of the original warranty period or 3 year, whichever is longer.

3. NO OTHER WARRANTIES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES

AND ITS SUPPLIERS DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT AND ANY

RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES CUSTOMER SPECIFIC

LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE

JURISDICTION.

4. NO LIABILITY FOR DAMAGES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL

ATLONA TECHNOLOGIES OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES

WHATSOEVER (INCLUDING WITHOUT LIMITATION, SPECIAL, INCIDENTAL, CONSEQUEN-

TIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS OF BUSINESS PROFITS,

BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER

PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT,

EVEN IF ATLONA TECHNOLOGIES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES. IN ANY CASE, ATLONA TECHNOLOGIES’ AND ITS SUPPLIERS’ ENTIRE

LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT SHALL BE LIMITED TO THE

AMOUNT ACTUALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JURISDICTIONS

DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR

INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

ATLONA

1293 Mountain View Alviso Rd. Suite A

Sunnyvale, CA 94089

Toll Free: 1-877-536-3976

International: 408-962-0515

FAX: 408-743-5622

Website: www.atlona.com

E-MAIL: [email protected]

Other manuals for AT-COMP150SR

Table of contents

Other Atlona Extender manuals

Atlona

Atlona AT-UHD-EX-70-KIT User manual

Atlona

Atlona AT-DVITX-RSNET User manual

Atlona

Atlona AT-SDI10SR-LC User manual

Atlona

Atlona AT-DVI60SRS User manual

Atlona

Atlona AT-HD-RG100SR User manual

Atlona

Atlona AT-HD-BIR40SR User manual

Atlona

Atlona AT-AV-SR User manual

Atlona

Atlona AT-HD4-V40SRS User manual

Atlona

Atlona AT-DVIF20SR User manual

Atlona

Atlona AT-UHD-EX-70C-KIT User manual

Atlona

Atlona AT-AVGA-SR User manual

Atlona

Atlona AT-HD4-SI40SR User manual

Atlona

Atlona RS232 User manual

Atlona

Atlona AT-HDVS-150-TX-WP User manual

Atlona

Atlona AT-COMP150SR User manual

Atlona

Atlona AT-DVI50S User manual

Atlona

Atlona AT-HD-RG100SR User manual

Atlona

Atlona AT-DVI40SRS User manual

Atlona

Atlona AT-DVI40SRS User manual

Atlona

Atlona AT-COMP300SL User manual

Atlona

Atlona AT-UHD-EX-100CE-TX User manual

Atlona

Atlona AT-DVI40SRS User manual

Atlona

Atlona AT-HDF20SR User manual

Atlona

Atlona AT-VGA180AR User manual

Popular Extender manuals by other brands

SY HDBT-60T installation guide

Appsys ProAudio

Appsys ProAudio ADX-16 user manual

IDK

IDK OPF-TH1000-A user guide

Enable-IT

Enable-IT 824WP quick start guide

Worx

Worx Landroid RadioLink WA0864 Get started

TP-Link

TP-Link TL-WA730RE user guide

Camplex

Camplex CMX-HDMI-SFPL user manual

SC&T

SC&T HE03-4K user manual

Marmitek

Marmitek MegaView70 user manual

Samsung

Samsung SCS-26UC4 user guide

Foxun

Foxun SX-GES24 operating instructions

MuxLab

MuxLab 500771 Operation manual

foxunhd

foxunhd SX-AEX01 operating instructions

TERK Technologies

TERK Technologies LFIRX2 owner's manual

Devolo

Devolo Audio Extender supplementary guide

Edimax

Edimax EW-7438RPn V2 instructions

Shinybow USA

Shinybow USA SB-6335T5 instruction manual

SECO-LARM

SECO-LARM ENFORCER EVT-PB1-V1TGQ installation manual
