Asus RT-AC66U User manual

Quick Start Guide

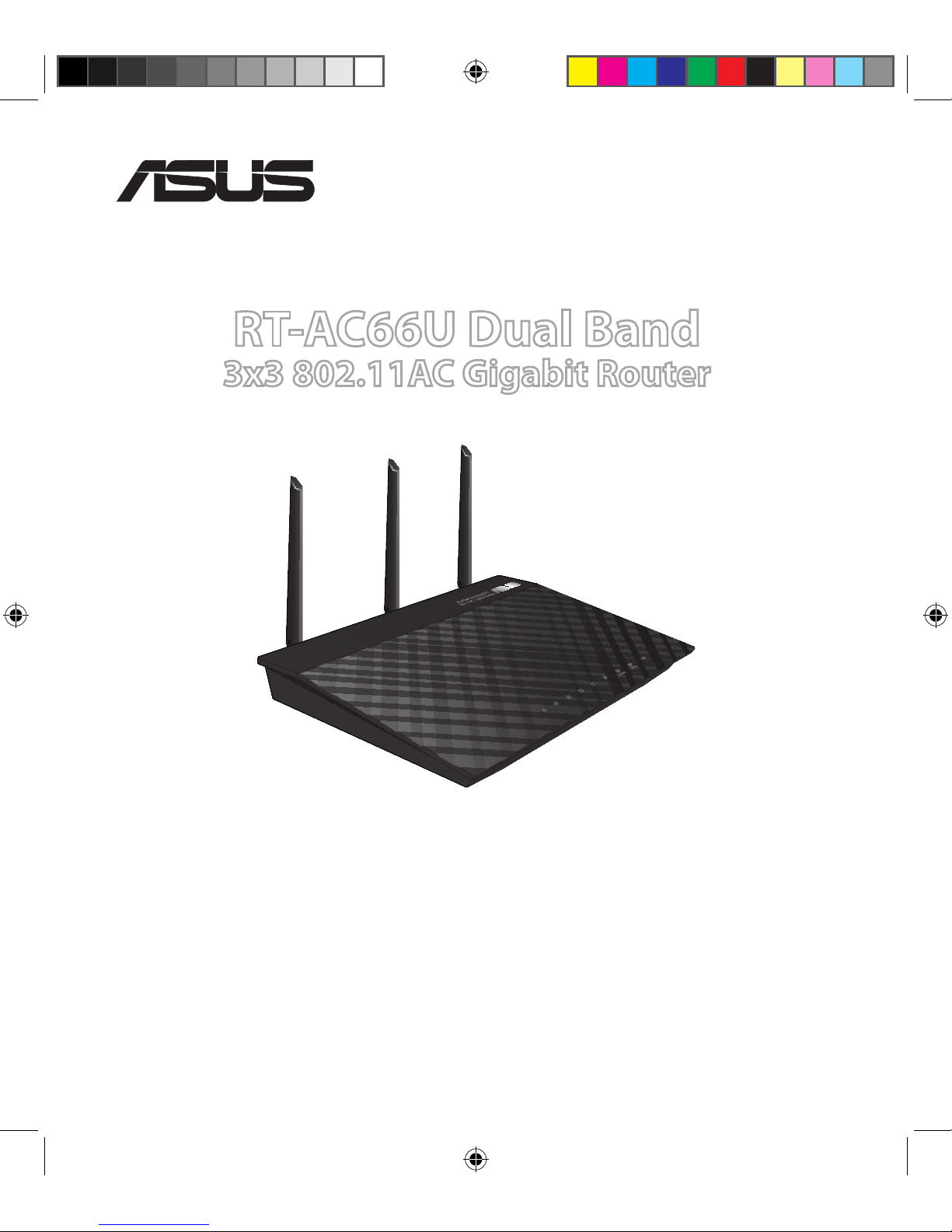

RT-AC66U Dual Band

3x3 802.11AC Gigabit Router

NA7417 / First Edition / May 2012

NA7417_RT-AC66U_QSG.indd 1 5/9/12 5:47:56 PM

Table of contents

English.............................................................................................4

繁體中文 ........................................................................................17

Français ...........................................................................................30

Português.......................................................................................43

Español............................................................................................56

NA7417_RT-AC66U_QSG.indd 2 5/9/12 5:47:56 PM

NOTE / <

注意

> / <REMARQUE> / <NOTA> / <NOTA>

• For more details, refer to the user manual included in

the support CD.

• 更多資訊，請參考請參考驅動程式與公用程式光碟中的使用

手冊。

• Pour plus de détails, consultez le manuel de

l'utilisateur contenu dans le CD de support.

• Para mais detalhes, consulte o manual do utilizador

incluído no CD de suporte.

• Para obtener más detalles, consulte el manual del

usuario incluido en el CD de soporte.

NA7417_RT-AC66U_QSG.indd 3 5/9/12 5:47:57 PM

English

Package contents

RT-AC66U AC adapter

Network cable Quick Start Guide

Support CD (User Manual/utilities) Warranty card

Stand

A quick look

1) Power LED 5) 5GHz LED 9) USB 2.0 ports

2) LAN LED 6) USB 2.0 LED 10) Reset button

3) WAN LED 7) Power (DC-IN) port 11) Internet & LAN ports

4) 2.4GHz LED 8) Power switch 12) WPS button

NOTE: If any of the items is damaged or missing, contact your retailer.

7 9 10 12

1 2 3

NA7417_RT-AC66U_QSG.indd 4 5/9/12 5:47:59 PM

English

NOTES:

• USB External HDD/Flash disk:

• The wireless router works with most USB HDDs/Flash disks up to

2TB and supports read-write access for FAT16, FAT32, EXT2, EXT3,

and NTFS.

• To safely remove the USB disk, launch the web GUI

(http://192.168.1.1), then in the Network Map page's upper right

corner, click the USB icon and click Eject USB 1.

• Incorrect removal of the USB disk may cause data corruption.

• For the list of le system and hard disk partitions that the

wireless router supports, visit http://event.asus.com/networks/

disksupport

• For the list of printers that the wireless router supports, visit

http://event.asus.com/networks/printersupport

NA7417_RT-AC66U_QSG.indd 5 5/9/12 5:47:59 PM

Positioning your wireless router

For the best wireless signal transmission between the wireless router and the

network devices connected to it, ensure that you:

• Place the wireless router in a centralized area for a maximum wireless coverage

for the network devices.

• Keep the device away from metal obstructions and away from direct sunlight.

• Keep the device away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz

computer peripherals, Bluetooth devices, cordless phones, transformers,

heavy-duty motors, uorescent lights, microwave ovens, refrigerators, and other

industrial equipment to prevent signal interference or loss.

• To ensure the best wireless signal, orient the three detachable antennas as

shown in the drawing below.

• For optimum performance, adjust the internal cooling system. Refer to the user

manual for details.

• Always update to the latest rmware. Visit the ASUS website at

http://www.asus.com to get the latest rmware updates.

450

900

English

NA7417_RT-AC66U_QSG.indd 6 5/9/12 5:48:01 PM

Mounting to the stand

• Align and insert the stand’s mounting hooks

to the wireless router’s mounting holes.

Before you proceed

1. Unplug and disconnect the wires/cables from your existing modem setup

and release your computer’s outmoded IP address.

a: Unplug the AC adapter from the power outlet and disconnect it from your

cable/ADSL modem.

b: Disconnect the network cable from your cable/ADSL modem.

c: Reboot your computer (recommended).

Modem

OFF!

English

NA7417_RT-AC66U_QSG.indd 7 5/9/12 5:48:02 PM

WARNING! Before disconnecting the wires/cables, ensure that your

cable/ADSL modem has been turned o for at least two minutes. If your

modem has a backup battery, remove it as well.

2. Set up your wireless environment.

a: Insert your wireless router’s AC adapter to the DC-IN port and plug it to a

power outlet.

b: Using the bundled network cable, connect your computer to your wireless

router’s LAN port.

IMPORTANT! Ensure that the WAN and LAN LEDs are blinking.

c: Using another network cable, connect your modem to your wireless router’s

WAN port.

d: Insert your modem’s AC adapter to the DC-IN port and plug it to a power

outlet.

English

RT-AC66U

Computer

Modem

LAN

Power

Wall Power Outlet

Power

WAN

NA7417_RT-AC66U_QSG.indd 8 5/9/12 5:48:04 PM

3. Disable some settings on your computer.

A. Disable the proxy server, if enabled.

B. Set the TCP/IP settings to automatically obtain an IP address.

C. Disable the dial-up connection, if enabled.

NOTE: For more details on disabling your computer settings, refer to

Frequently Asked Questions (FAQs).

1. Congure your wireless settings via the wireless router’s web graphics

user interface (web GUI).

a: Launch your web browser such as Internet Explorer, Firefox, Google Chrome,

or Safari.

Getting started

English

NA7417_RT-AC66U_QSG.indd 9 5/9/12 5:48:06 PM

NOTE: If QIS does not launch automatically, follow these steps to

manually launch QIS:

• On your web browser, key in http://192.168.1.1 and run the Quick

Internet Setup (QIS) Wizard again.

• Disable the proxy settings, dial-up connection, and set your TCP/IP

settings to automatically obtain an IP address. For more details, refer

to the FAQs section or use the Setup Wizard in the support CD for

auto-diagnosis.

b: The wireless router’s Quick Internet Setup (QIS) feature automatically detects

if your ISP connection type is Dynamic IP, PPPoE, PPTP, L2TP, and Static IP.

Key in the necessary information for your connection type.

IMPORTANT! Obtain the necessary information about your Internet

connection type from your Internet Service Provider (ISP).

NOTE: The auto-detection of your ISP connection type takes place

when you congure the wireless router for the rst time or when your

wireless router is reset to its default settings.

NOTE: You can assign a network name with up to 32 characters.

c: Assign the network name (SSID) and

security key for your 2.4GHz and

5GHz wireless connection. Click Ap-

ply when done.

d: Your Internet and wireless settings

are displayed. Click Next to con-

tinue.

e: Read the wireless network con-

nection tutorial. When done, click

Finish.

English

NA7417_RT-AC66U_QSG.indd 10 5/9/12 5:48:07 PM
