Asus WL-120 User manual

ASUS WLAN mini-PCI card

WL-120

User Manual

2ASUS WLAN mini-PCI card

No part of this manual, including the products and software described in it,

may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language in any form or by any means, except docu-

mentation kept by the purchaser for backup purposes, without the express

written permission of ASUSTeK COMPUTER INC. (“ASUS”).

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY

OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT

NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS

OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PUR-

POSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,

EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPE-

CIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUD-

ING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS

OF USE OR DATA, INTERRUPTION OF BUSINESSAND THE LIKE),

EVEN IFASUS HAS BEENADVISED OF THE POSSIBILITYOF SUCH

DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS

MANUAL OR PRODUCT.

Product warranty or service will not be extended if: (1) the product is re-

paired, modified or altered, unless such repair, modification of alteration is

authorized in writing by ASUS; or (2) the serial number of the product is

defaced or missing.

Products and corporate names appearing in this manual may or may not be

registered trademarks or copyrights of their respective companies, and are

usedonly foridentificationor explanation andtothe owners’benefit,without

intent to infringe.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS

MANUALAREFURNISHED FORINFORMATIONALUSE ONLY,AND

ARE SUBJECT TO CHANGEATANYTIME WITHOUT NOTICE,AND

SHOULDNOTBECONSTRUEDASACOMMITMENTBYASUS.ASUS

ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS

OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, IN-

CLUDING THE PRODUCTSAND SOFTWARE DESCRIBED IN IT.

Product Name: ASUS WLAN mini-PCI card (WL-120)

Manual Revision: 1 E1219

Release Date: March 2003

ASUS WLAN mini-PCI card 3

ASUSTeK COMPUTER INC. (Asia-Pacific)

Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112

General Tel: +886-2-2894-3447

General Fax: +886-2-2894-3449

General Email: [email protected]

Technical Support

MB/Others (Tel):+886-2-2890-7121 (English)

Notebook (Tel): +886-2-2890-7122 (English)

Desktop/Server: +886-2-2890-7123 (English)

Support Fax: +886-2-2890-7698

Support Email: [email protected]

Web Site: www.asus.com.tw

ASUS COMPUTER INTERNATIONAL (America)

Address: 44370 Nobel Drive, Fremont, CA 94538, USA

General Fax: +1-510-608-4555

General Email: [email protected]

Technical Support

Support Fax: +1-510-608-4555

General Support: +1-502-933-8713

Web Site: www.asus.com

Support Email: [email protected]

ASUS COMPUTER GmbH (Germany & Austria)

Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany

General Fax: +49-2102-442066

General Email: [email protected] (for marketing requests only)

Technical Support

Support Hotline: MB/Others: +49-2102-9599-0

Notebook (Tel): +49-2102-9599-10

Support Fax: +49-2102-9599-11

Support (Email): www.asuscom.de/de/support (for online support)

Web Site: www.asuscom.de

ASUS WLAN mini-PCI card 4

Quick Start Guide

Chapter 1

Welcome

TheASUS WLAN mini-PCI card is designed to be fully compliant with the

IEEE 802.11b wireless local area network (Wireless LAN) standard. The

ASUS WLAN mini-PCI card comes with two antenna connectors, which

are individually connected to the built-in antennas in your notebook. The

two antennas allow your notebook to have the best communication when

you are enjoying the wireless link.

Verifying the TCP/IP Protocol

Windows 98/Me

Right-click My Network Placeon the desktop and select properties.

Scroll down and look for "TCP/IP -> ASUS 802.11b Network Adap-

ter". Make sure that the TCP/IP protocal parameters (IP adress, gate-

way, and subnet mask) are set correctly.

Windows 2K/XP

Open the Control Panelthrough the Start menu. Double-click Network

Connection icon. Right click " ASUS 802.11b Network Adapter" and sel-

ect Properties. Look for "Internet Protocal (TCP/IP)". Make sure that

the TCP/IP protocal parameters (IP adress, gateway, and subnet mask) are

set correctly.

ASUS WLAN mini-PCI card 5

Quick Start Guide

Chapter 5

Installing the WLAN mini-PCI card Utilities

After you have installed the WLAN mini-PCI card driver, you can install

WLAN mini-PCI card utilities. Refer to the User's manual for detailed

information.

1. Insert the ASUS WLAN mini-PCI card support CD and an autorun

menu will appear. If your autorun is disabled, double click SETUP.EXE

in the root directory of the support CD.

2. From the autorun menu, click Install ASUS WLAN mini-PCI card

Utilities.

3. Follow the on-screen instructions to complete the installation.

Statement

This device is intended only for OEM integrators under the following

conditions:

1. The antenna must be installed such that 20 cm is maintained between the

antenna and users.

2. The transmitter module may not be co-located with any other transmitter

or antenna.

3. For laptop installations, the antenna must be installed to ensure that the

proper spacing is maintained in the event the device is used in held-on-

lap positions (i.e. positioning of antennas must be placed in the upper

portion of the LCD panel only to ensure 20 cm will be maintained if the

user places the device on their lap for use).

The card must cease to transmit with the lid shut to prevent transmission

in portable operating conditions.

As long as the conditions above are met, further transmitter test will not be

required. However, the OEM integrator is still responsible for testing their

end-product for any additional compliance requirements required with this

module installed (for example, digital device emissions, PC peripheral

requirements, etc.).

IMPORTANT NOTE: In the event that these conditions can not be met

(for example certain laptop configurations or co-location with another

transmitter), then the FCC authorization is no longer considered valid and

the FCC ID can not be used on the final product. In these circumstances,

the OEM integrator will be responsible for re-evaluating the end product

(including the transmitter) and obtaining a separate FCC authorization.

End Product Labeling

This transmitter module is authorized only for use in devices where the

antenna may be installed such that 20 cm may be maintained between the

antenna and users (for example access points, routers, wireless ADSL

modems, and similar equipment). The final end product must be labeled in

a visible area with the following: "Contains TX FCC ID:

MSQPCCWL120".

ASUS WLAN MiniPCI Card 6

Statement

Manual Information for End Users:

The end user must not have manual instructions to remove or install the

device. The user manual for end users must include the following

information in a prominent location

"IMPORTANT NOTE: To comply with FCC RF exposure compliance

requirements, the antenna used for this transmitter must be installed to

provide a separation distance of at least 20 cm from all persons and must

not be co-located or operating in conjunction with any other antenna or

transmitter."

ASUS WLAN MiniPCI Card 7

ASUS WLAN mini-PCI card 8

Reference

Chapter 3

Software Reference

1.Overview

The ASUS WLAN mini-PCI card software includes five groups of utili-

ties.

•Control Center – Makes it easy to launch applications and activate

network location settings.

•Wireless Settings –Allows users to control theASUS WLAN mini-PCI

card.

•Mobile Manager – A convenient tool to setup and manage network

location settings.

•Site Monitor – Measures the signal-to-noise (SNR) values of all wire-

less networks. This tool is used for determining the best placement of

Access Points to provide the most efficient coverage in a wireless net-

work.

•Live Update – Provides automatic driver and firmware update through

the Internet.

9ASUS WLAN mini-PCI card

Reference

Chapter 3

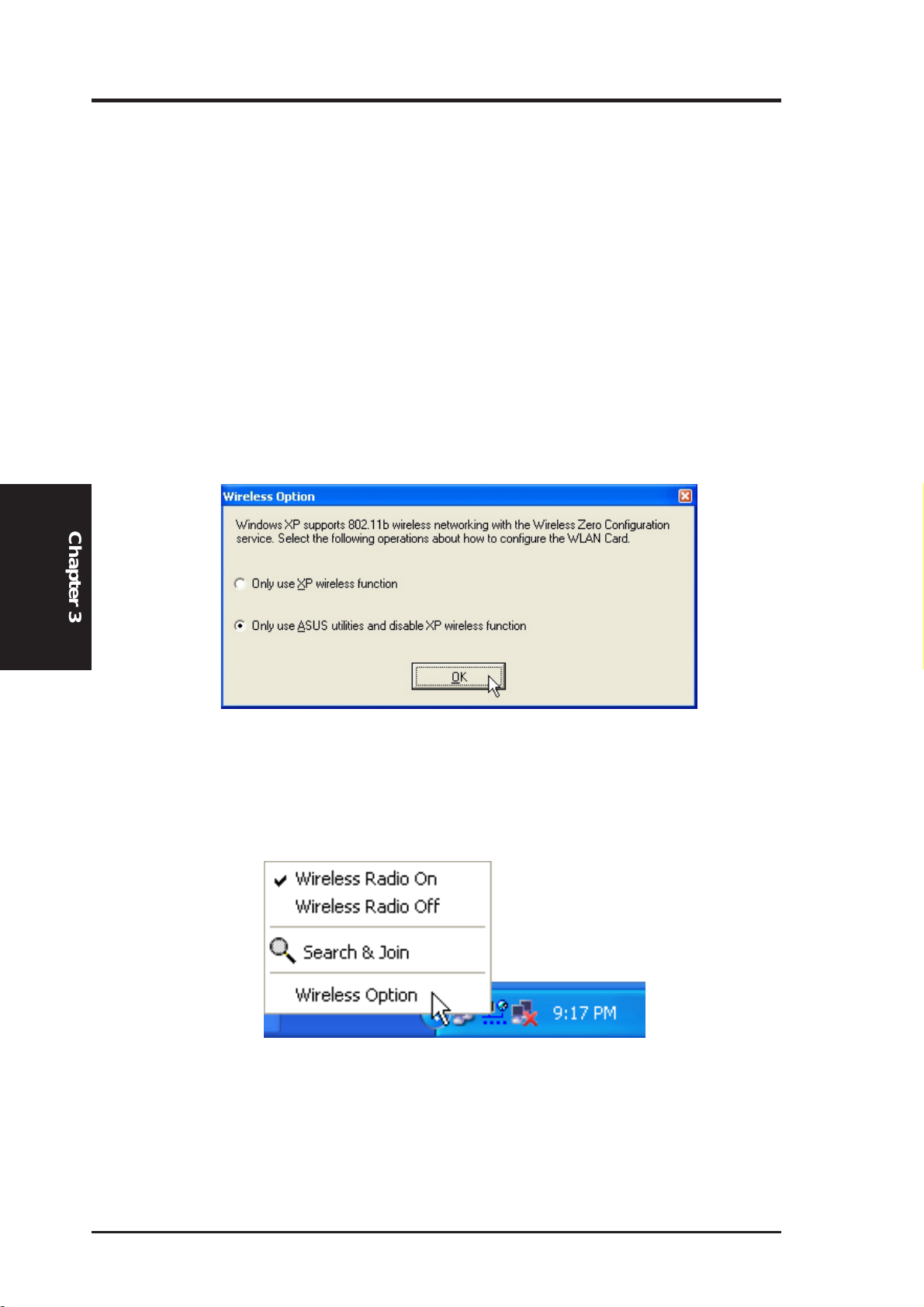

2.Windows XP Wireless Options

The wireless options shown below is only available for Windows XP. The

first time you run the Control Center utility, it will automatically show.

Select one of the radio buttons to decide your Windows XP wireless net-

working environment.

Only use XPwireless function – Only use Windows XPwireless network

settings to configure the ASUS WLAN mini-PCI card.

OnlyuseASUSutilitiesanddisable XPwirelessfunction– OnlyuseASUS

WALN mini-PCI card utilities to configure theASUS mini-PCI card.

You can return to the Wireless Option setting at any time by left clicking

the control center icon and choosing “Wireless Option”.

ASUS WLAN mini-PCI card 10

Reference

Chapter 3

3. Control Center

Control Center is an application that makes it easy to launch applications

and activate network location settings. Control Center starts automatically

when the system boots. Whenever Control Center is running, you will see

a Control Center icon displayed on the Windows taskbar.

Starting the Control Center manually

• Click the Windows Start button, select Programs, select ASUS Util-

ity, select WLAN Card, and click ASUS WLAN Control Center.

• Double click the Control Center icon on the desktop.

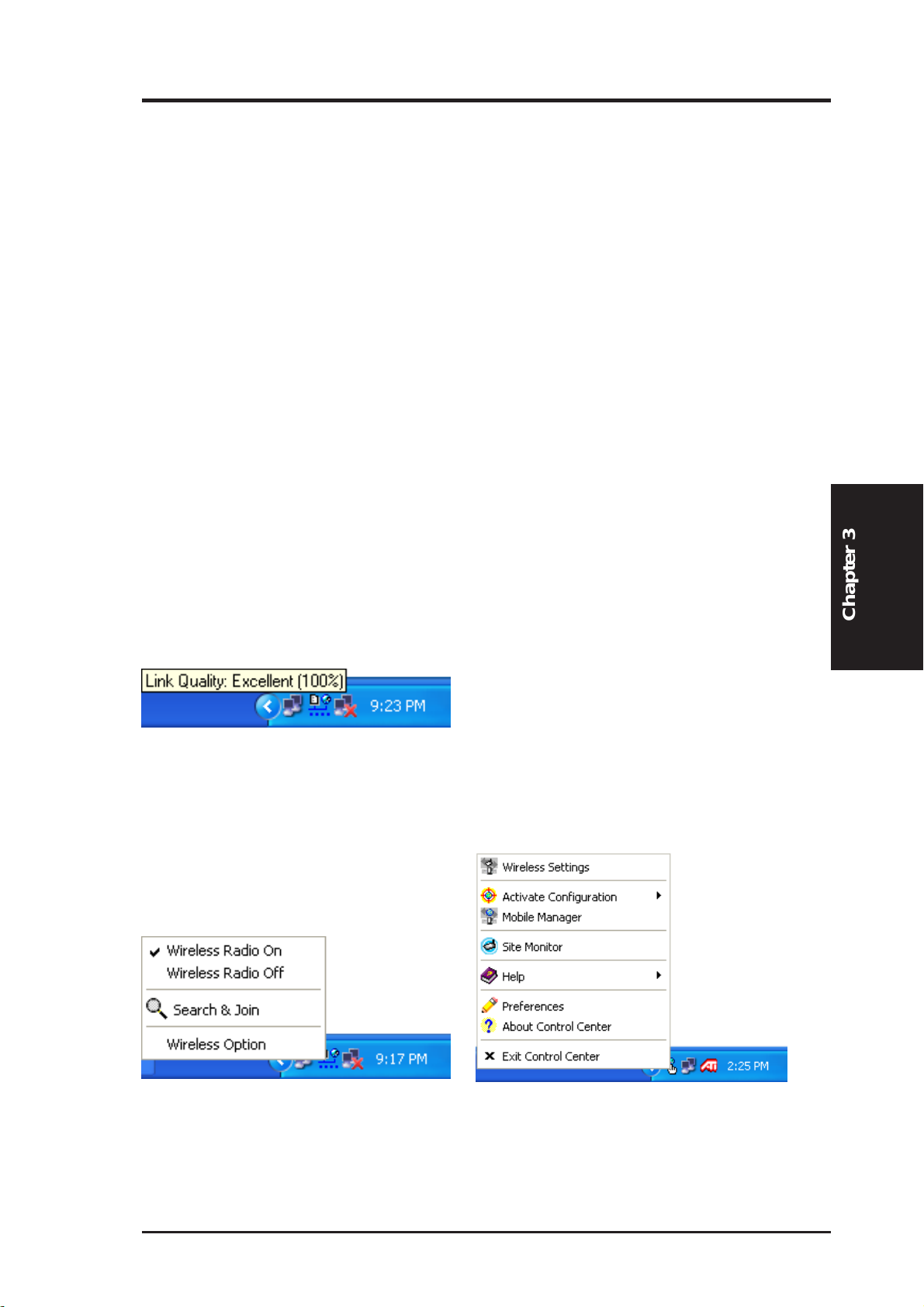

Using the Control Center Taskbar

1. The Control Center Taskbar menu display the following information:

•The link quality of the ASUS WLAN mini-PCI card (Excellent,

Good, Fair, Poor, Not Linked)

•Whether the ASUS WLAN mini-PCI card is connected to the In-

ternet (Blue: Connected, Gray: Not Connected)

Taskbar Right-Click Menu

Taskbar Icon and Status

Taskbar Left-Click Menu
