Asus ADD2 User manual

ASUS ADD2 HDMI/DVI card installation 1

ASUS ADD2 HDMI/DVI card installation

E3568

1. Productspecication

Product

Name

ADD2 HDMI/DVI

Chip Chrontel 7315B

Resolution HDMI 1080P

DVI up to 1600 x 1200

Connectors 1 x HDMI port

1 x DVI port

1 x S/PDIF In header

Motherboard

Support

P5KPL-VM, P5K-VM, P5K-V

* Refer to www.asus.com for the latest motherboard support list.

Interface PCI Express x16 (SDVO Bus)

Accessory 1 x S/PDIF cable

Remarks Supports HDCP and HDMI TV Display

Low-Prole Bracket (Figure 1)

High-Prole Bracket (Figure 2)

2. Productinformation

HDMI port

DVI port

Chrontel7315B S/PDIFInheader

Figure 1

HDMI port

DVI port

Chrontel7315B S/PDIFInheader

Figure 2

cardend

S/PDIFcable

motherboard

end

2 ASUS ADD2 HDMI/DVI card installation

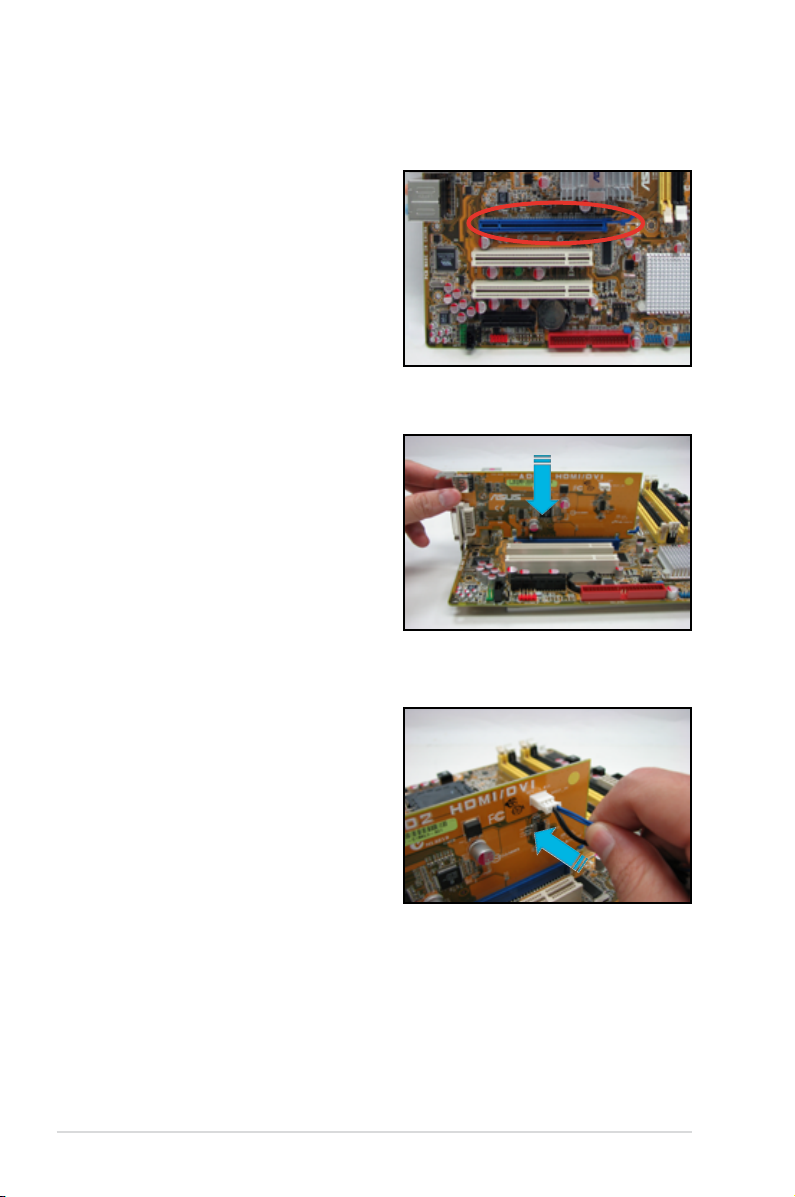

3. HardwareInstallation

3.1. Locate an empty PCI Express x16

slot on the motherboard.

3.2. Align the card connector with the

slot and press rmly until the card

sits on the slot completely.

3.3. Connect the white end of the

S/PDIF cable to the connector

labelled SPDIF_IN on the HDMI/

DVI card.

ASUS ADD2 HDMI/DVI card installation 3

3.4. Connect the black end of the

S/PDIF cable to the Digital audio

connector (4-1 pin SPDIF_OUT)

on the motherboard.

• The expansion slot layout differs depending on the motherboard model.

• You can use either the DVI port or the HDMI port for digital display output at

one time. Simultaneous output for DVI and HDMI is not supported.

3.5. Carefully and straight connect the

DVI cable or the HDMI cable to

the DVI port or the HDMI port on

the HDMI/DVI card.

4 ASUS ADD2 HDMI/DVI card installation

15G063977000

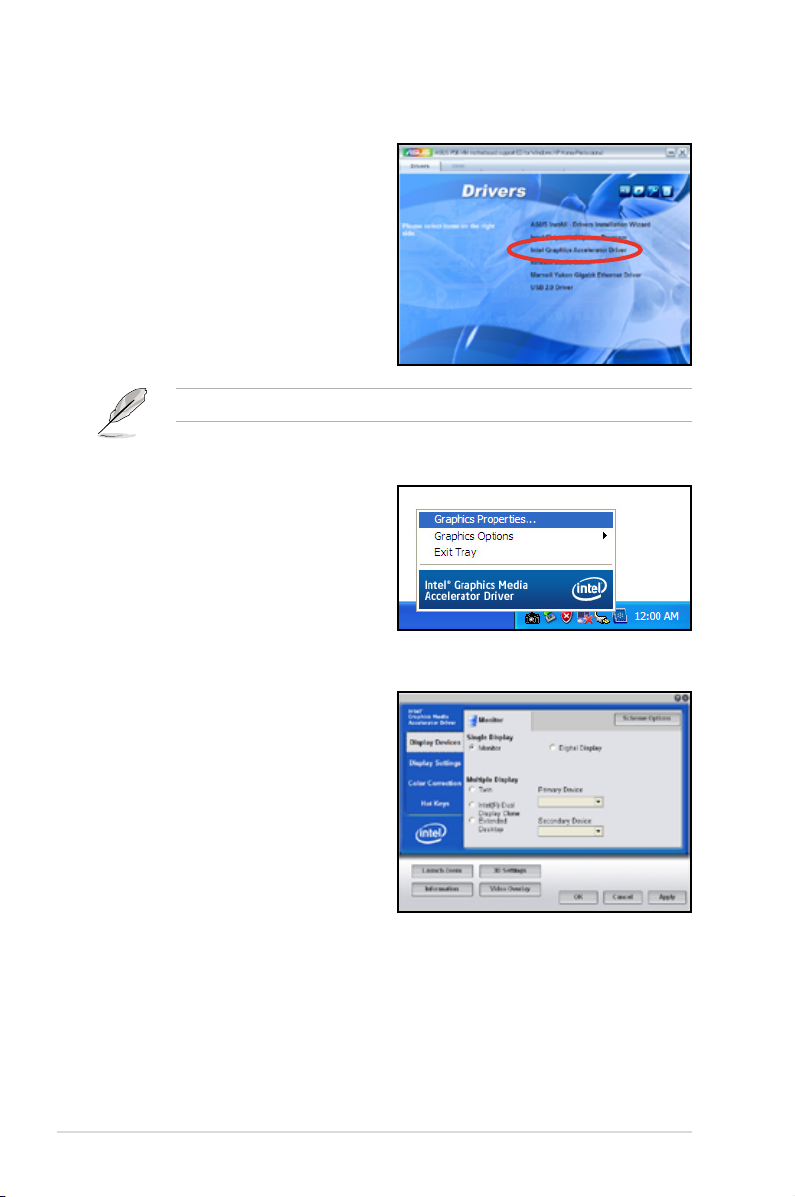

4. SoftwareInstallation

4.1. Place the motherboard support

CD to the optical drive.

4.2. The support CD automatically

displays the Drivers menu if

Autorun is enabled in your

computer. Click the Intel

GraphicsAcceleratorDriver to

install the HDMI/DVI card driver.

The Drivers screen differs depending on the motherboard.

4.3. When you nish installing the

driver, restart the computer.

4.4. Right-click the Intel®Graphics

MediaAcceleratorDriver icon

on the system tray and select

GraphicsProperties....

4.5. In the DisplayDevices tag,

select Twin, Intel(R)Dual

DisplayClone or Extended

Desktop to set your favorite

display mode.
