AST2 INVENT3D Installation instructions

INVENT3DPrinterKitDisassemblyInstructions 

AST2©10/26/161



INVENT3DPrinterKit

DisassemblyInstructions



Version6

 

INVENT3DPrinterKitDisassemblyInstructions 

AST2©10/26/162



I.GeneralDisassemblyInstructions

Usethecaselayerdrawingstoensurethatcomponentsarestoredintheappropriate

location



UsetheappropriatesizeAllenwrenchtoloosenthumbscrewsthataretootightto

loosenbyhand



Unless otherwise noted, printer kit components and subassemblies are not to be

disassembled;disassemblyshouldreturntheprinterkittothesameconditioninwhich

itarrived.



Screwsthatareblackanodizedshouldnotberemoved.



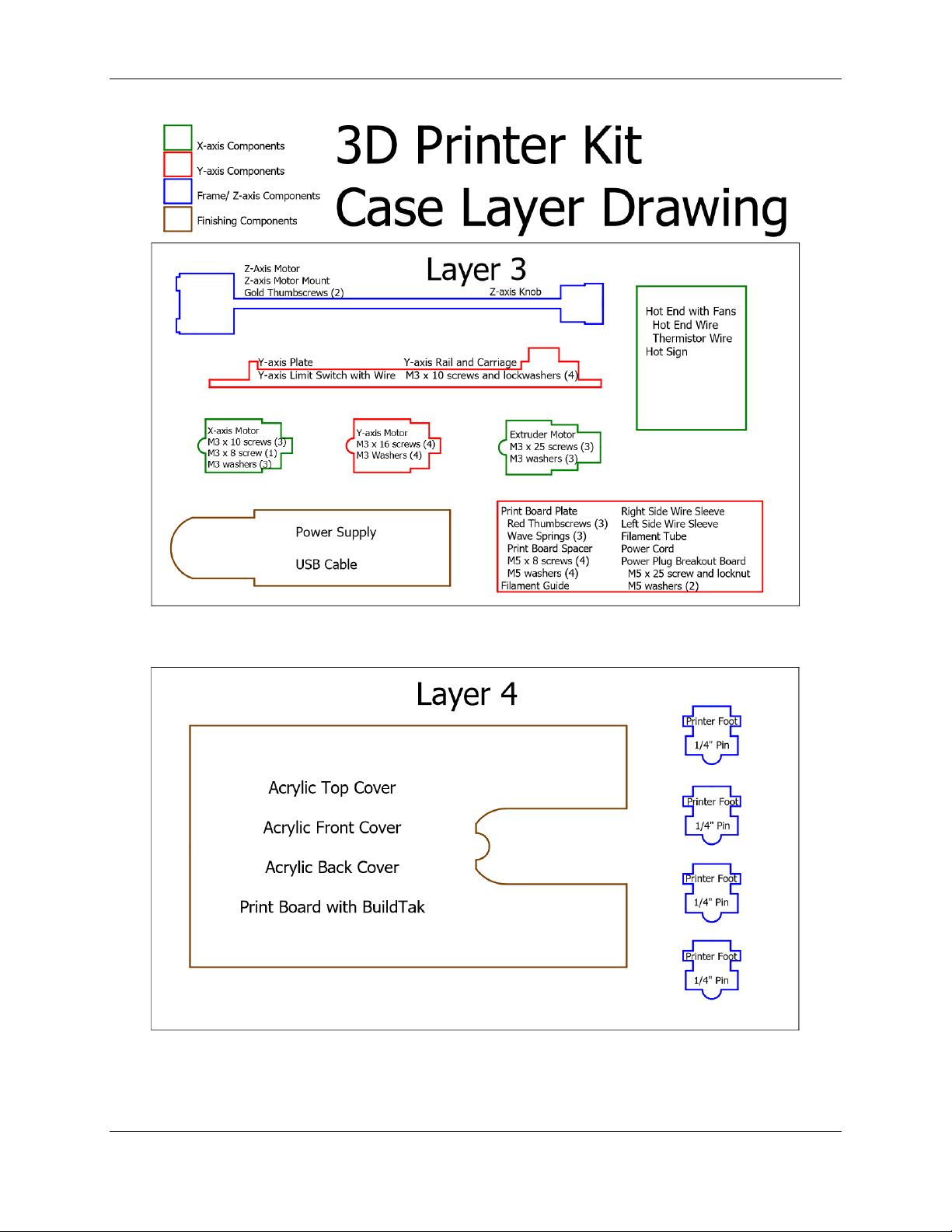

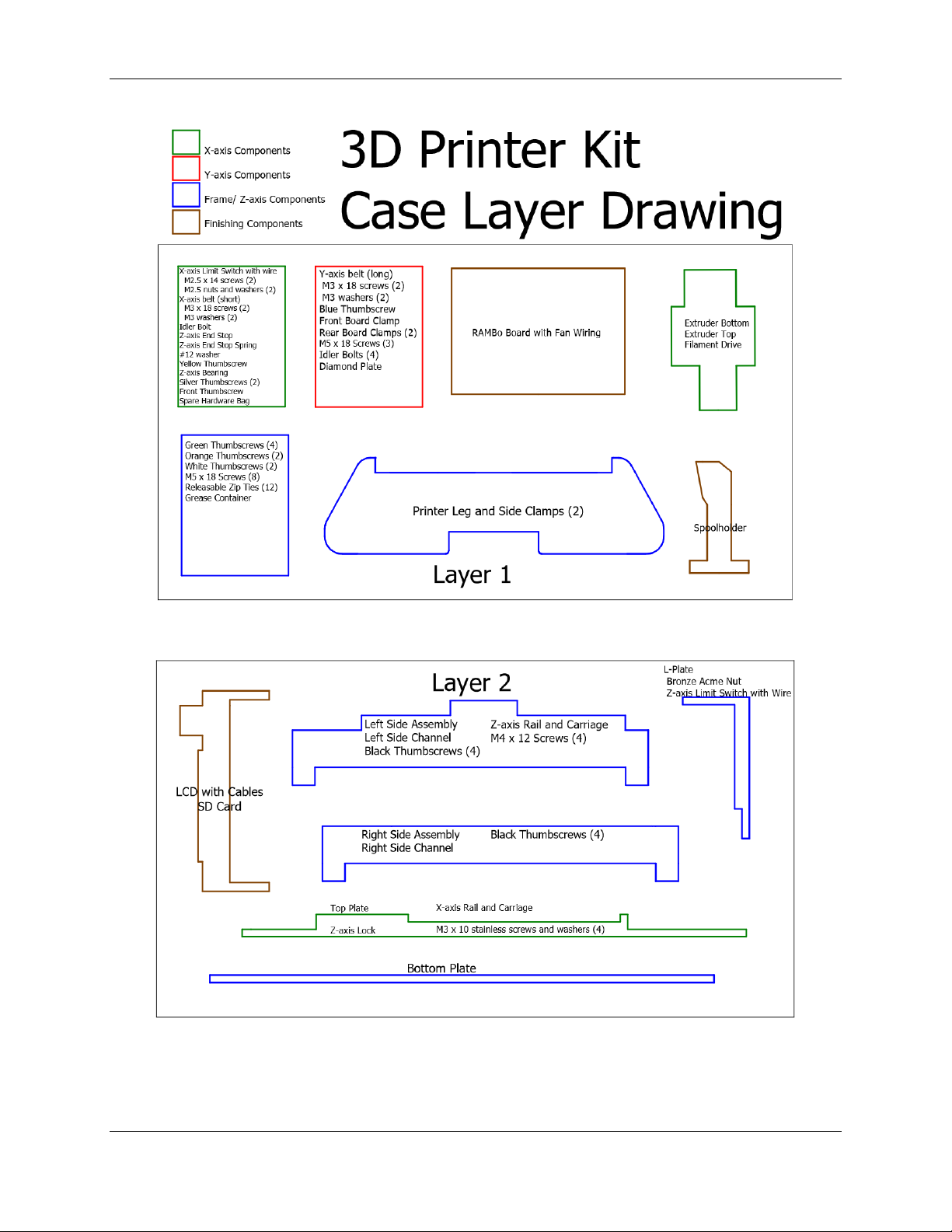

II.CaseLayerDrawings

ThefollowingCaseLayerDrawingsdepictthelayoutandcontentsofeachlayerofcomponents

withintheINVENT3Dprintercase.Thesedrawingsarelabeledfromthetopdownwithinthe

case,meaningLayer1isthetoplayerandLayer4isthebottomlayer.Pleasereviewthese

drawingspriortodisassemblyandreferencethesedrawingsthroughoutthedisassembly

processtoensurethatallcomponentsarestoredintheappropriatelocations.



INVENT3DPrinterKitDisassemblyInstructions 

AST2©10/26/163



INVENT3DPrinterKitDisassemblyInstructions 

AST2©10/26/164



 

INVENT3DPrinterKitDisassemblyInstructions 

AST2©10/26/165



III.DetailedDisassemblyInstructions

1. Backoutfilament.Refertoprocessforloadingandunloadingfilamentdescribedinthe

INVENT3DOperatingInstructions.



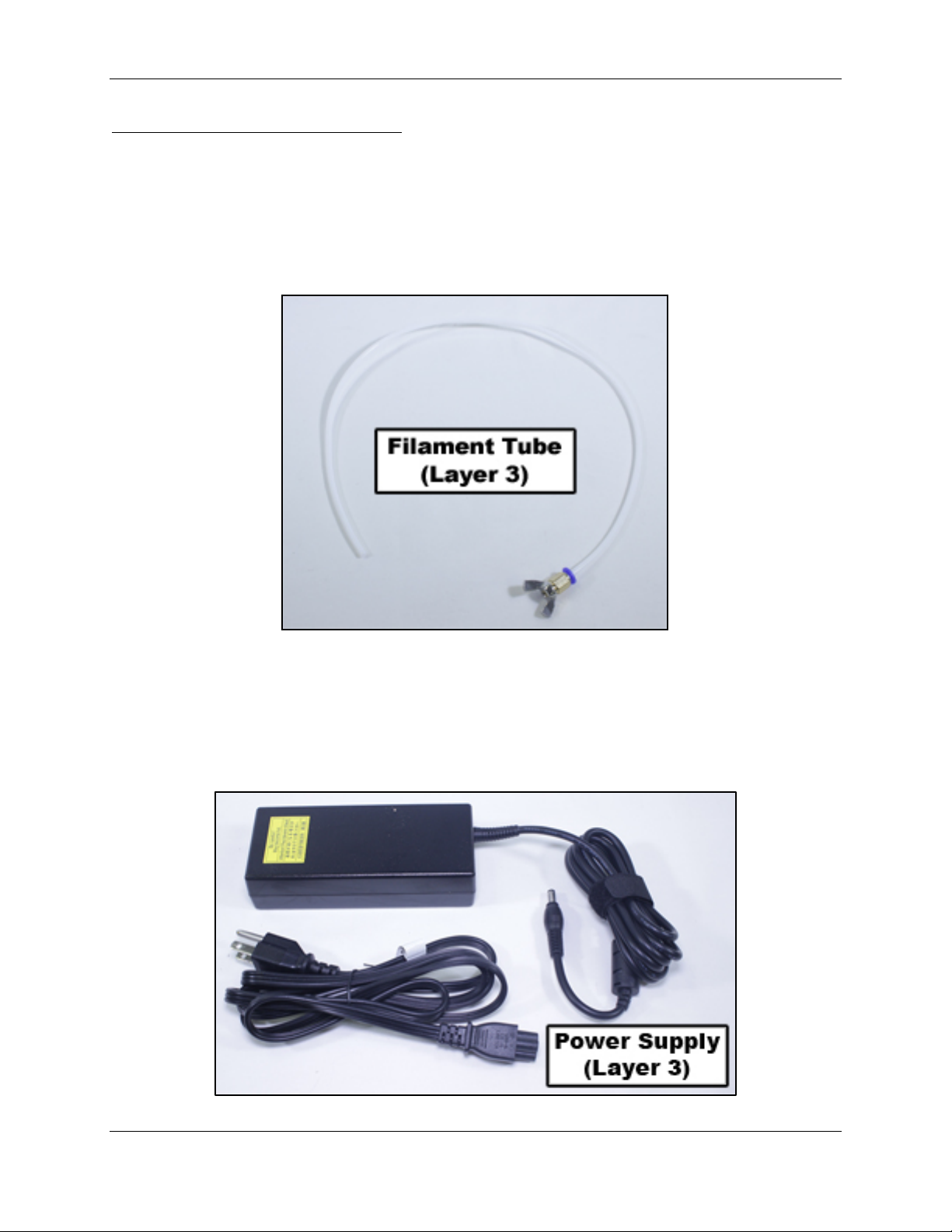

2. PlacethefilamenttubeandUSBcableintolocationasshowninCaseLayerDrawing3.



3. RemovepowersupplyandstoreinappropriatelocationasshowninCaseLayerDrawing

3.Thedetachablecordcanbestoredwhenthesecondlayerisplacedontop.



INVENT3DPrinterKitDisassemblyInstructions 

AST2©10/26/166



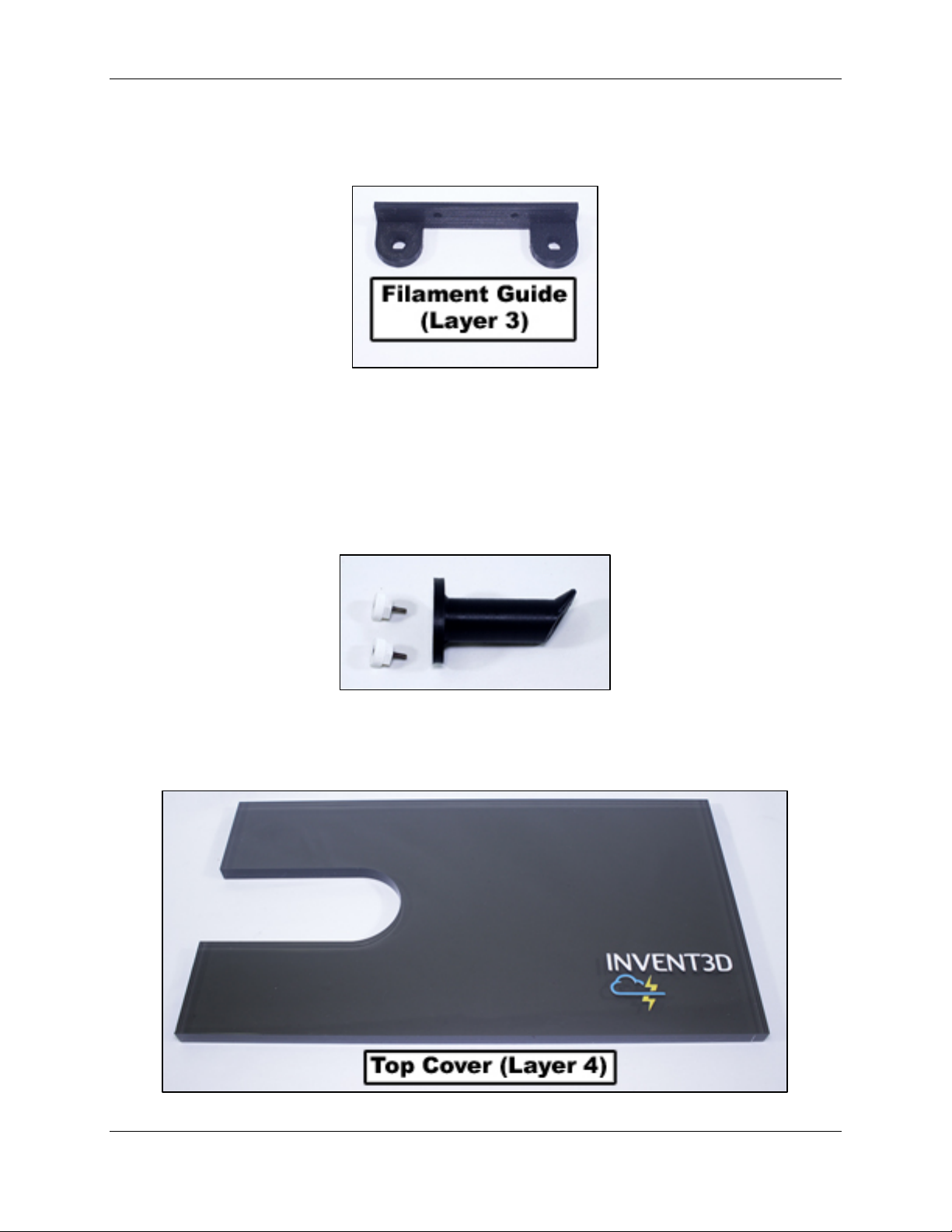

4. Removesidecoversandeightblackthumbscrewsandsetaside.Storefilamentguidein

locationasshowninCaseLayerDrawing3.



5. Removewhitethumbscrewsandspoolholderfromleftsidecover.Storespoolholderin

locationasshowninCaseLayerDrawing1.Placewhitethumbscrewsinz-axisand

framecomponentsboxasshowninCaseLayerDrawing1.



6. RemovetopcoverandstoreinlocationasshowninCaseLayerDrawing4.



INVENT3DPrinterKitDisassemblyInstructions 

AST2©10/26/167



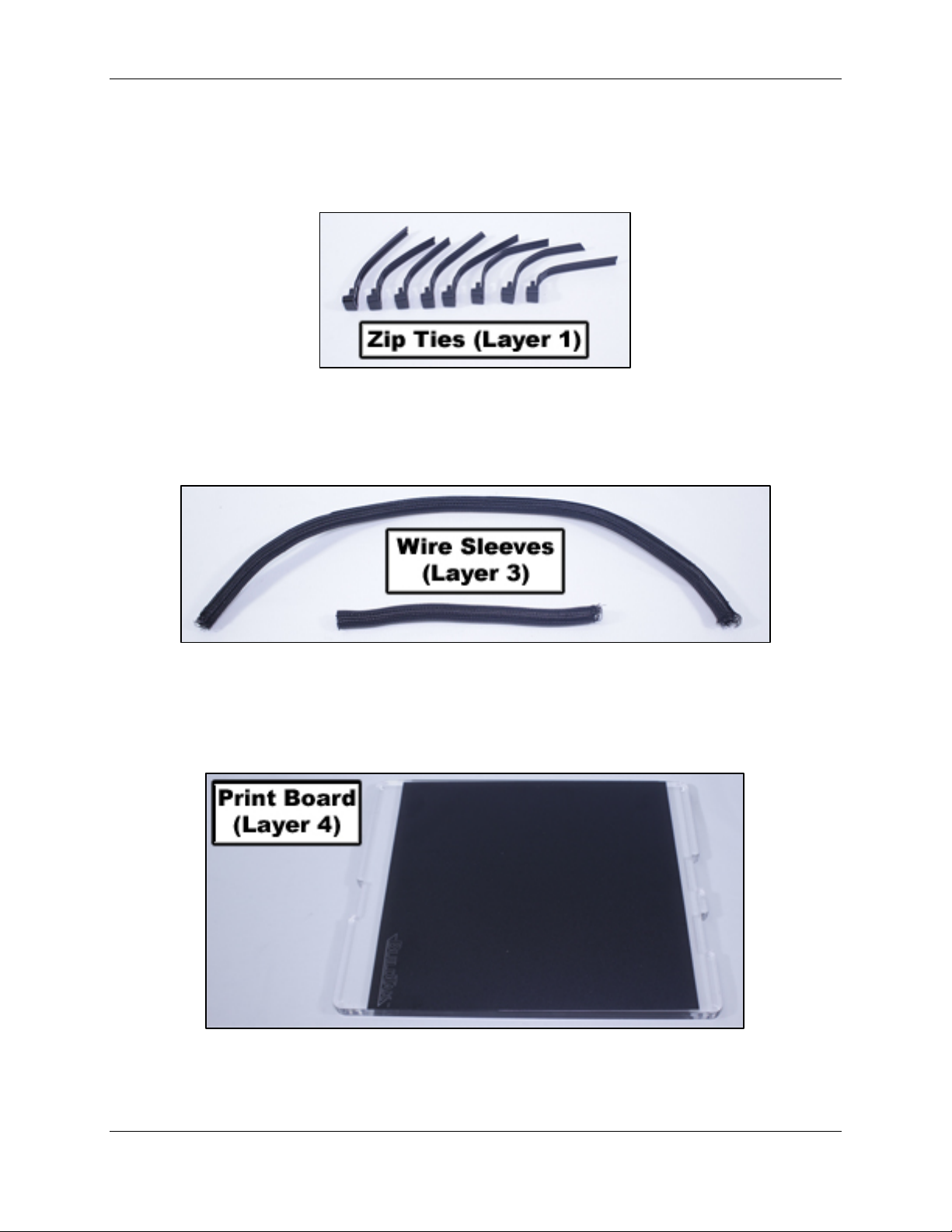

7. Removeallzipties.Useneedlenoseplierstoassistinremovingziptiesbyplacing

pressureonthelatchlightlywiththepliers.Straightenthelatchifbentafterremoving.

Storeziptiesinz-axisandframecomponentsboxasshowninCaseLayerDrawing1.



8. Removewiresleeves.PlacewiresleevesinlocationasshowninCaseLayerDrawing3.



9. Removeprintboard.StoreprintboardinlocationasshowninCaseLayerDrawing4.



INVENT3DPrinterKitDisassemblyInstructions 

AST2©10/26/168



10. CarefullyremoveallwiringfromRAMBoboardexceptforfanwiring.Besuretodepress

latchesforplugsthathavelatches–theplugsshouldbeeasytoremovewithlatches

depressed.



11. Removerearcover.Detachpowerplugbreakoutboardfromrearcoverbyremovingset

screw.Reattachsetscrewtopowerplugbreakoutboardclip.Storerearcoverin

locationasshowninCaseLayerDrawing4.Storepowerplugbreakoutboardinlocation

asshowninCaseLayerDrawing3.



12. Removeblackmini-thumbscrewandHOT!sign.StoretheHOT!signinplasticboxfor

hotendcomponentsasshowninCaseLayerDrawing3.Storetheblackmini-

thumbscrewintheplasticboxforx-axiscomponentsasshowninCaseLayerDrawing1.



13. Disconnectfanwiresfromhotend.Removeallwiresfromcircularcutoutsinleftand

rightframes.RememberthatthefanwiresstayattachedtotheRAMBoboard.



INVENT3DPrinterKitDisassemblyInstructions 

AST2©10/26/169



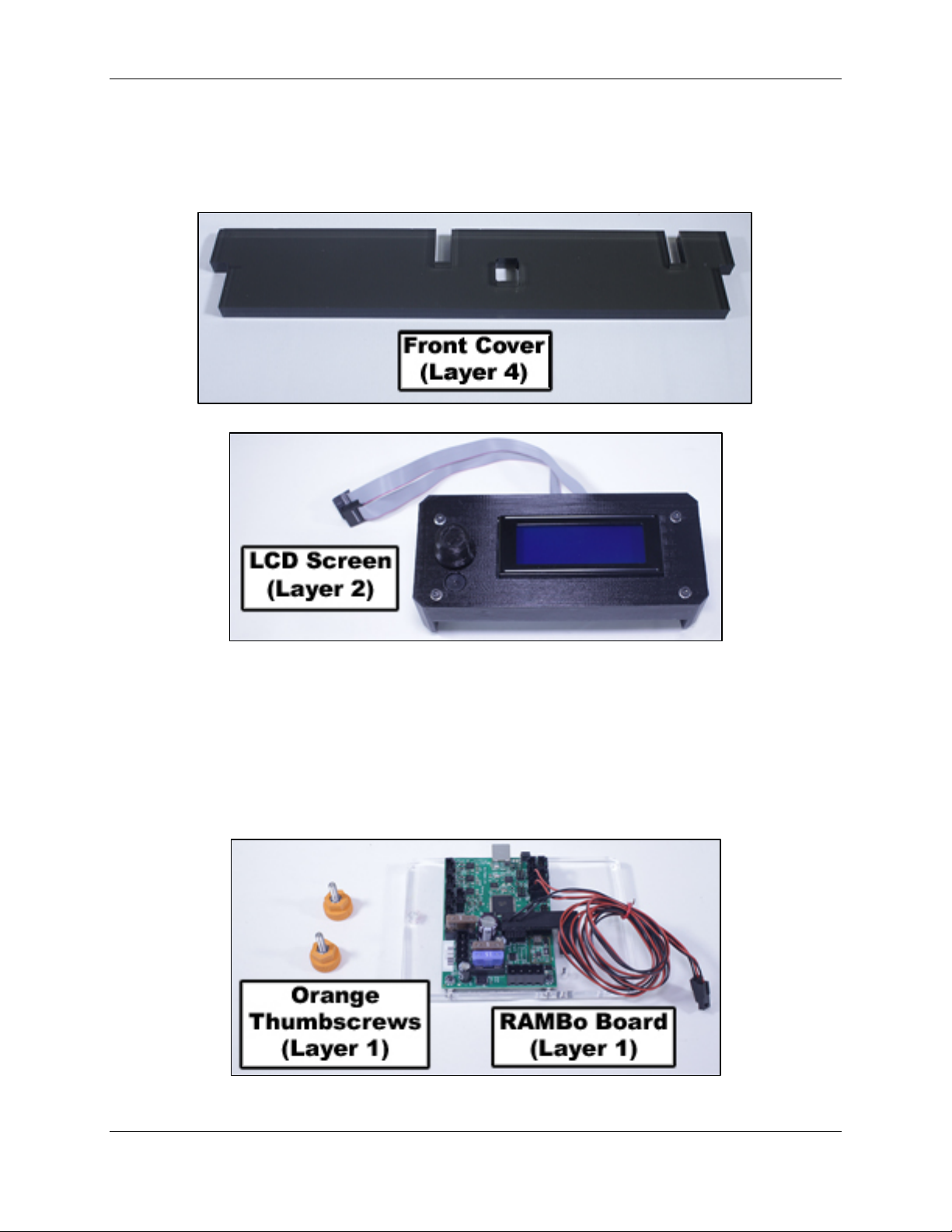

14. RemovefrontcoverwithLCDscreen.RemovetheLCDscreenfromthefrontcover.

StoretheLCDscreeninthelocationasshowninCaseLayerDrawing2.Placethefront

coverinthelocationasshowninCaseLayerDrawing4.



15. RemoveorangethumbscrewsandRAMBoboardfrombottomframeplate.Placethe

RAMBoboardinthelocationasshowninCaseLayerDrawing1withfanwiringcoiled.

Storetheorangethumbscrewsintheplasticcaseforz-axisandframecomponentsas

showninCaseLayerDrawing1.



INVENT3DPrinterKitDisassemblyInstructions 

AST2©10/26/1610



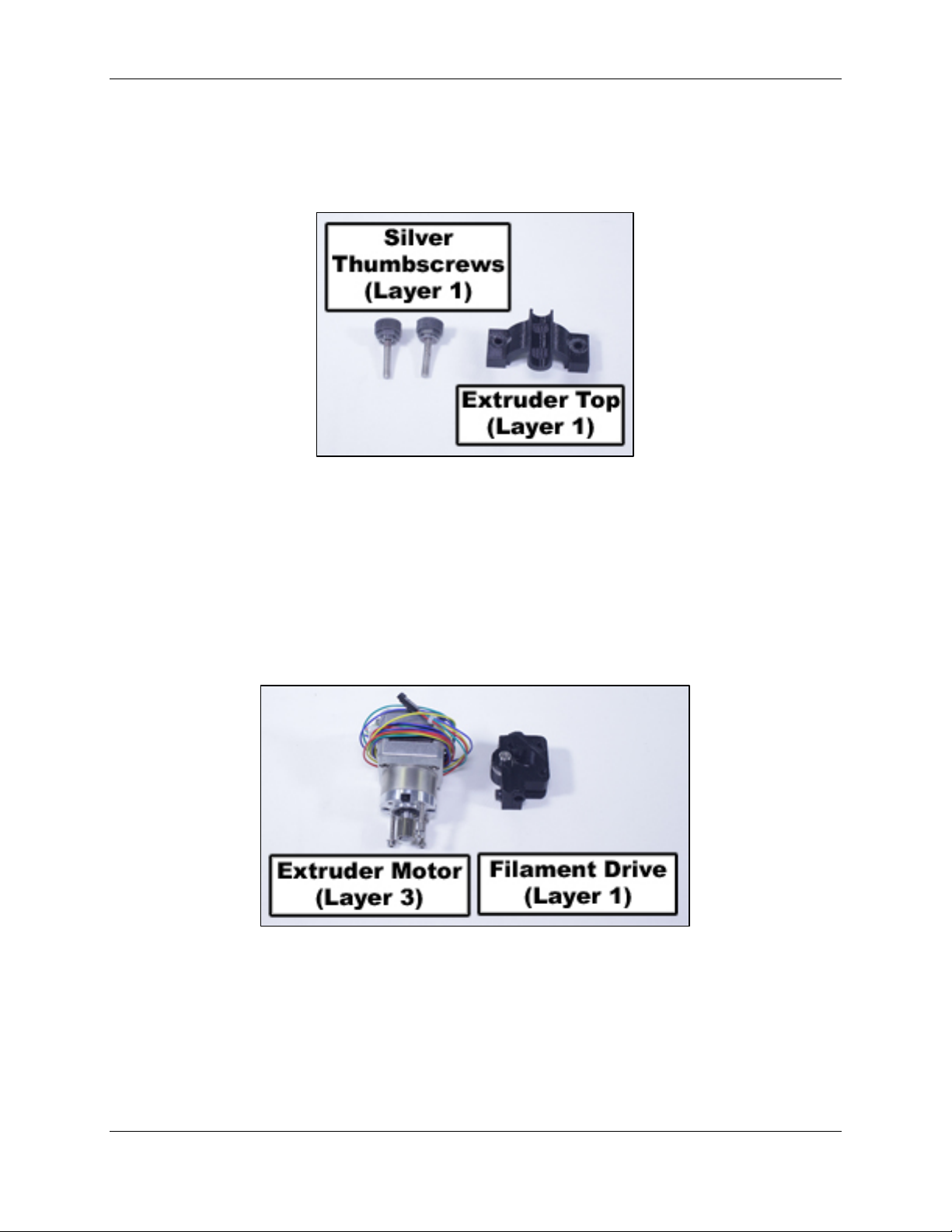

16. Removesilverthumbscrewsandextrudertop.Storetheextrudertopinthelocationas

showninCaseLayerDrawing1.Placethesilverthumbscrewsintheplasticboxforx-

axiscomponentsshowninCaseLayerDrawing1.



17. Removetheextrudermotorfromitsseatingontheextruderbottom.Removethe

filamentdrivefromtheextrudermotorandreplacethefilamentdrivemounting

hardwareintheextrudermotor.Coiltheextrudermotorwirearoundthebaseofthe

motorandstoreinthelocationasshowninCaseLayerDrawing3.Storefilamentdrive

inlocationasshowninCaseLayerDrawing1.



 
