Assistech BASIC 2.0 User manual

Operation Manual

Mobile Stand BASIC 2.0

OPERATION MANUAL OF THE MEDICAL DEVICE

Mobile Stand

REF BASIC 2.0

Page 1 of 14

VERSION 2_01.10.2021

Table of contents

Table of contents ...........................................................................................................................................1

1. Product description...............................................................................................................................2

2. Manufacturer and Service.....................................................................................................................2

3. Warnings on safe use.............................................................................................................................2

4. Contents of the package ........................................................................................................................3

5. Indications for use .................................................................................................................................4

6. Positioning the system relative to patient...........................................................................................4

7. Contraindications ..................................................................................................................................5

8. Damage / Repair / Maintenance ..........................................................................................................5

9. Cleaning and disinfection......................................................................................................................5

10. Working, storage and transport conditions....................................................................................6

11. Technical data....................................................................................................................................6

12. Disposal..............................................................................................................................................7

13. Assembly of the product...................................................................................................................7

14. Product life ......................................................................................................................................13

15. Warranty..........................................................................................................................................13

16. Exclusion from warranty................................................................................................................13

17. Explanation of symbols on the product.........................................................................................14

OPERATION MANUAL OF THE MEDICAL DEVICE

Mobile Stand

REF BASIC 2.0

Page 2 of 14

VERSION 2_01.10.2021

1. Product description

The specialized BASIC 2.0 stand allows a convenient positioning of C-Eye®, C-Eye®II COM,

C-Eye®II PRO and mediContact®products relative to the patient. This allows the patient, without

changing their position, to benefit from the full capabilities of the device, including communication

with relatives or therapists. The mobile stand allows the installed device to be positioned at any

angle, at the appropriate height and at the appropriate distance from the patient. Castors increase

the mobility of the whole kit, and specially designed base allows an easy placement of the device

near the bed or wheelchair. The castor lock option ensures a safe stability.

The stand is designed for non-communicative persons who are permanently immobilized and can

use the stand while lying down (on a bed) or sitting/semi-lying (in a wheelchair).

2. Manufacturer and Service

AssisTech Sp. z o.o.

ul. Trzy Lipy 3, 80-172 Gdańsk, Poland

tel. + 48 537 446 406

e-mail: contact@assistech.eu

www.assistech.eu

3. Warnings on safe use

Before use, please read the following instructions carefully

and strictly observe the precautions for safe use.

Ensure that all persons using the product are informed of the

contents of the manual.

Use the product only as described in this manual and only with original

parts supplied or approved for use by the manufacturer. Otherwise the

product may be damaged or the user may be injured.

Making technical changes to the stand or its improper use will void the

warranty.

OPERATION MANUAL OF THE MEDICAL DEVICE

Mobile Stand

REF BASIC 2.0

Page 3 of 14

VERSION 2_01.10.2021

4. Contents of the package

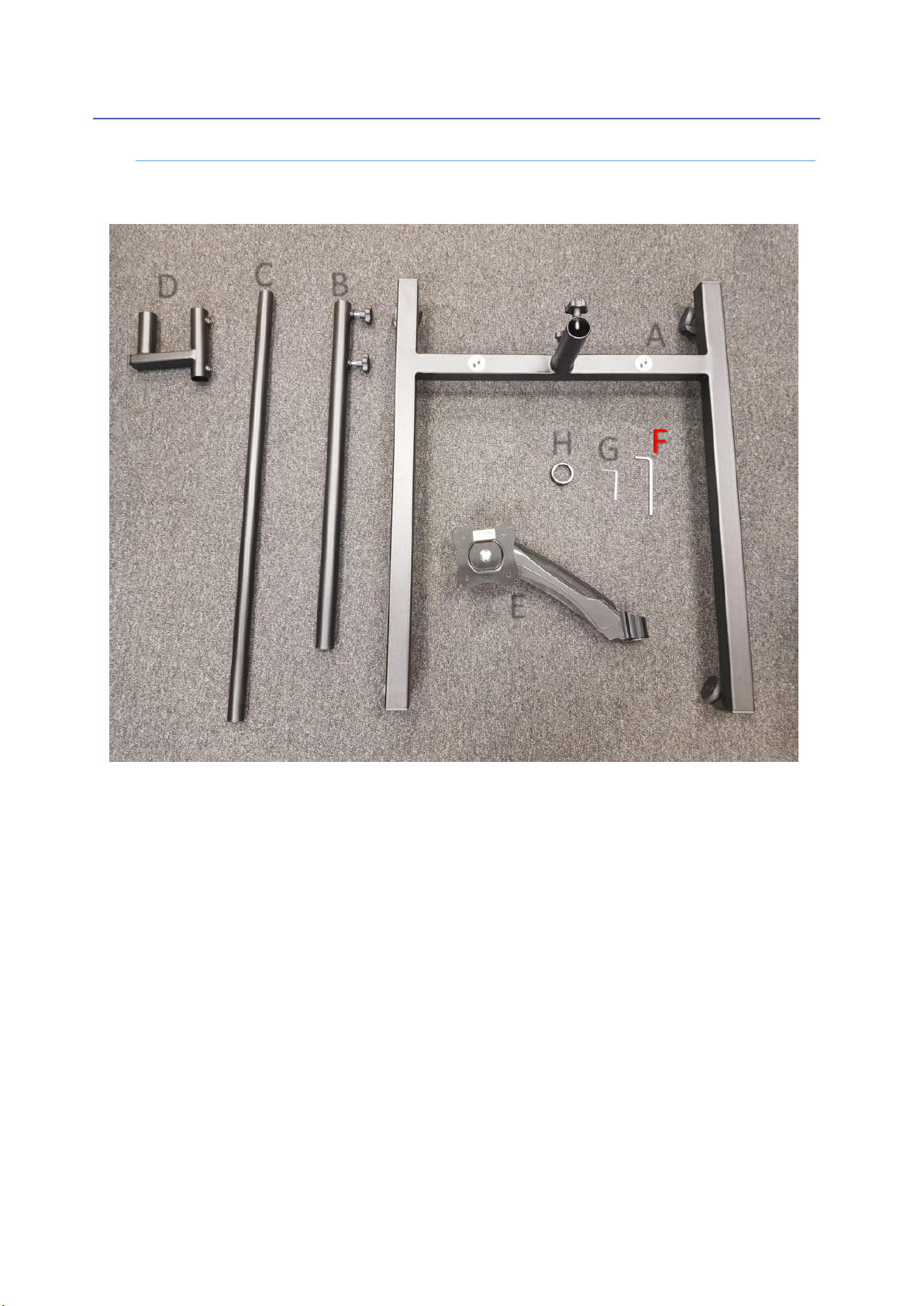

After purchasing the product, check the contents of the package. It should contain:

A- Base with castors

B- The shorter part of the mast

C- Longer mast section

D - Arm mountings

E- Arm

F- Larger allen wrench

G - Smaller allen wrench

H - Clamping ring for the arm

The packaging can be reused or recycled.

OPERATION MANUAL OF THE MEDICAL DEVICE

Mobile Stand

REF BASIC 2.0

Page 4 of 14

VERSION 2_01.10.2021

5. Indications for use

This tripod is recommended for use with the C-Eye®, C-Eye®II COM, C-Eye®II PRO and

mediContact® products.

The manufacturer allows the use with other medical devices provided that the

permissible arm load (8 kg) is not exceeded and the assembly method is

observed.

6. Positioning the system relative to patient

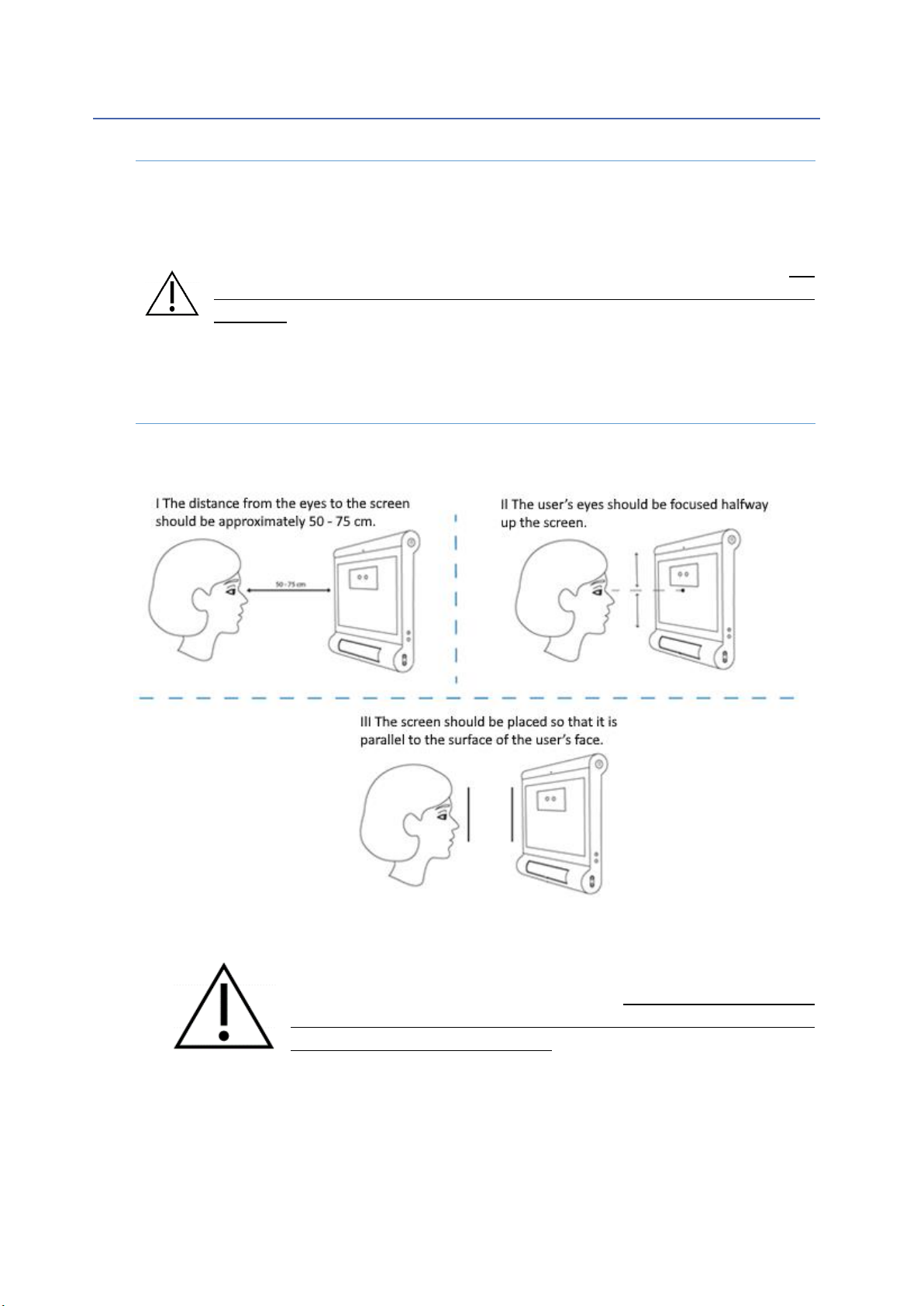

Position the stand for optimal placement of the device patient as shown in the figure below.

The orientation of the boom arm must be in the direction of the longer

arms of the tripod base (photo below left). Do not place the longer

arms of the extension arm and the central unit on opposite sides of

the pole (picture below right). Failure to do so may result in an

overturn of the tripod with the device suspended on it, which may have

negative consequences for the patient working with the system as well as for the device

itself.

OPERATION MANUAL OF THE MEDICAL DEVICE

Mobile Stand

REF BASIC 2.0

Page 5 of 14

VERSION 2_01.10.2021

7. Contraindications

None

8. Damage / Repair / Maintenance

Stop work immediately if the stand is disturbed, damaged, or suspected of being damaged.

Do not use a damaged stand under any circumstances. All repairs and maintenance may

only be carried out by the manufacturer or an authorised service centre.

In case of self-repair, the manufacturer is not liable for possible damage.

Periodically (at least once every 6 months) check the proper functioning of the

castors, brakes, arm fastening to the pole and the screws securing the computer are

not loose.

9. Cleaning and disinfection

The product should be cleaned with a soft dry cloth.

OPERATION MANUAL OF THE MEDICAL DEVICE

Mobile Stand

REF BASIC 2.0

Page 6 of 14

VERSION 2_01.10.2021

Do not use abrasive substances and substances containing free chlorine and oxygen - they

may damage the paint coating.

For disinfection purposes, use agents intended for disinfection of active medical devices,

observing the manufacturer's instructions for use.

10. Working, storage and transport conditions

The product must not be:

used in areas where flammable gases or vapours of flammable substances are present,

exposed to weather conditions,

exposed to moisture and liquids,

exposed to fire.

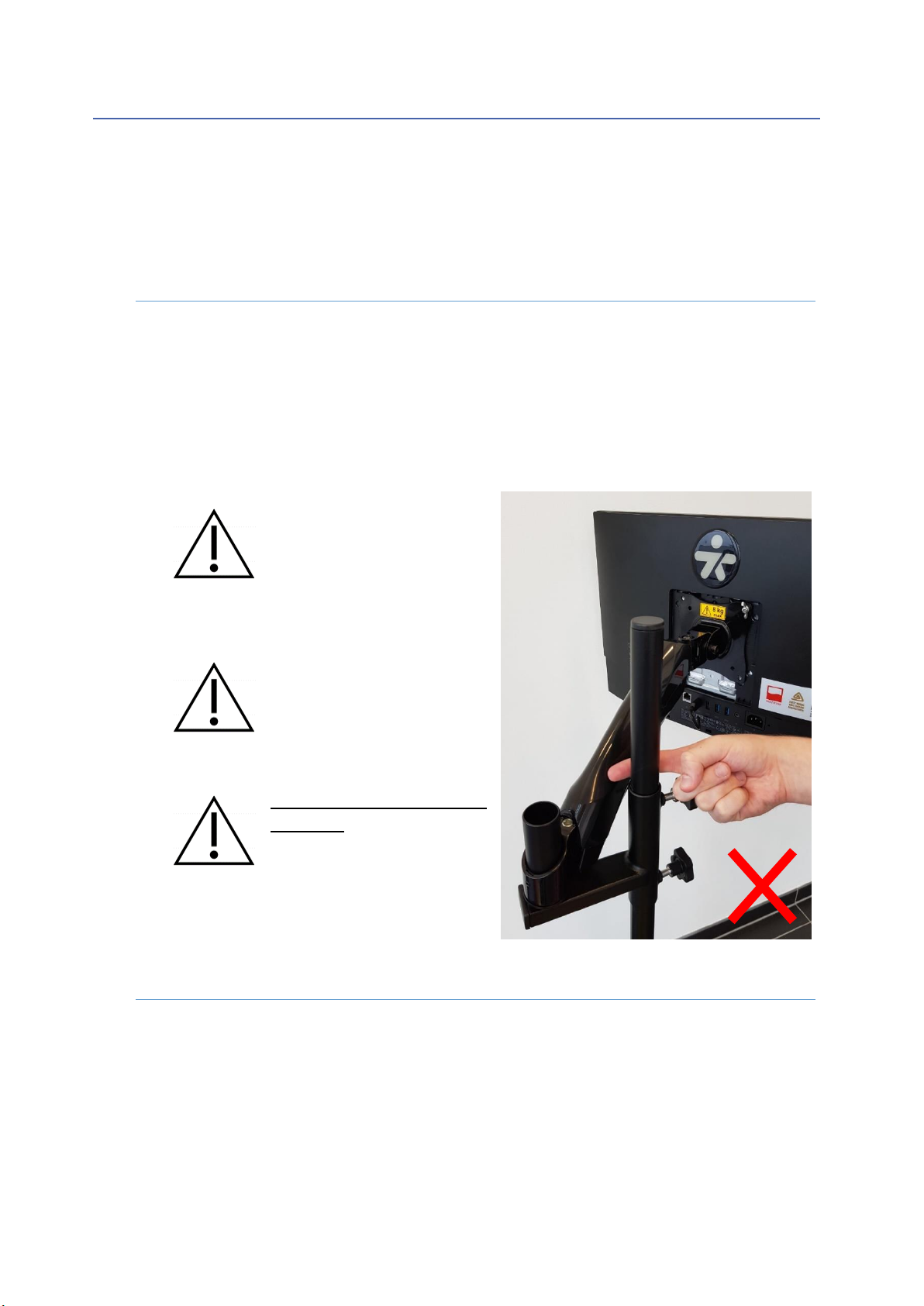

When working with the

device, be careful not to put

your hand between the

mast and the tripod arm, it

may result in injury!

Transport tripod with

folded arm.

It is forbidden to stand on

the stand during operation,

storage and transport of the

kit between rooms.

11. Technical data

Weight: 10 kg

Maximum load: 8 kg

Operating temperature: room temperature

OPERATION MANUAL OF THE MEDICAL DEVICE

Mobile Stand

REF BASIC 2.0

Page 7 of 14

VERSION 2_01.10.2021

Relative humidity: 30%-85% (non-condensing)

Atmospheric pressure: 700hPa to 1060hPa

12. Disposal

Disposal must be carried out in accordance with the legal regulations in force.

13. Assembly of the product

STAND

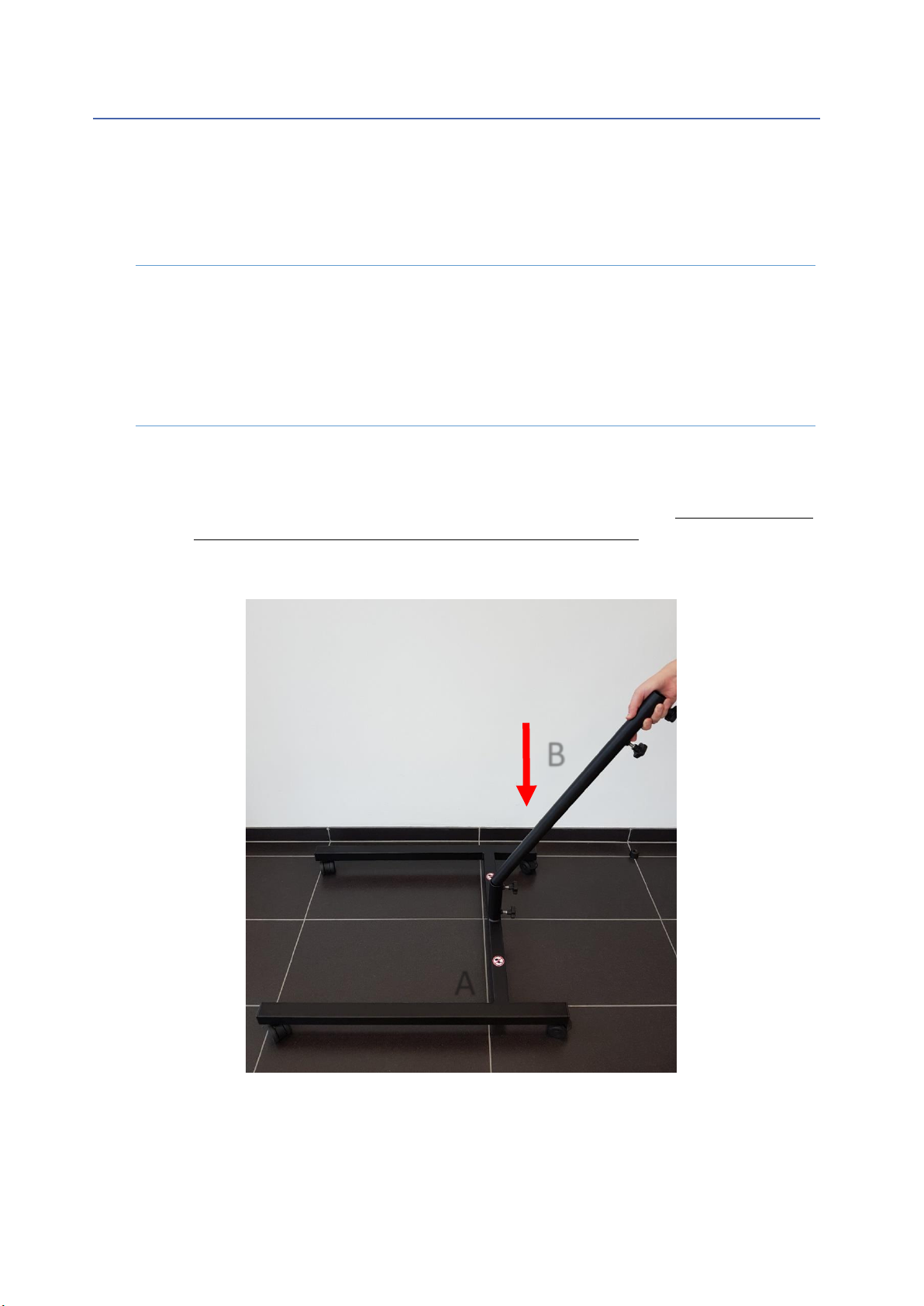

1) Insert the shorter part of the mast (B) into the hole in the base (A). Remember to push

the mast all the way in, do not let go before it touches the base. The clamping knobs on

the mast should be on the same side as the base. You can adjust the mast height by

tightening or loosening the knobs.

OPERATION MANUAL OF THE MEDICAL DEVICE

Mobile Stand

REF BASIC 2.0

Page 8 of 14

VERSION 2_01.10.2021

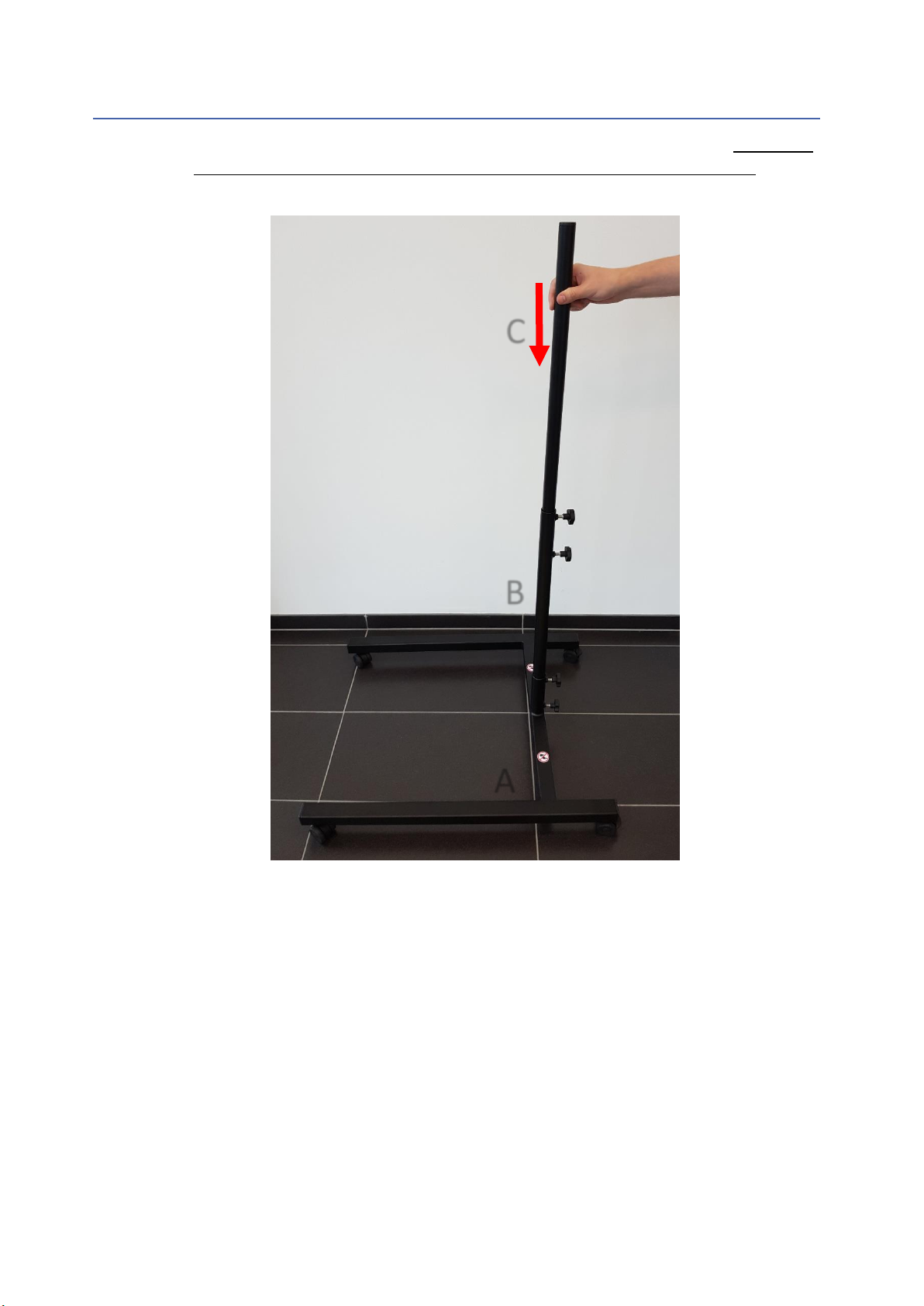

2) Slide the longer pole section (C) into the hole in the shorter pole section (B). Remember

to push the mast all the way in and do not release it until it touches the base. You can

adjust the height of the mast by tightening or loosening the knobs.

OPERATION MANUAL OF THE MEDICAL DEVICE

Mobile Stand

REF BASIC 2.0

Page 9 of 14

VERSION 2_01.10.2021

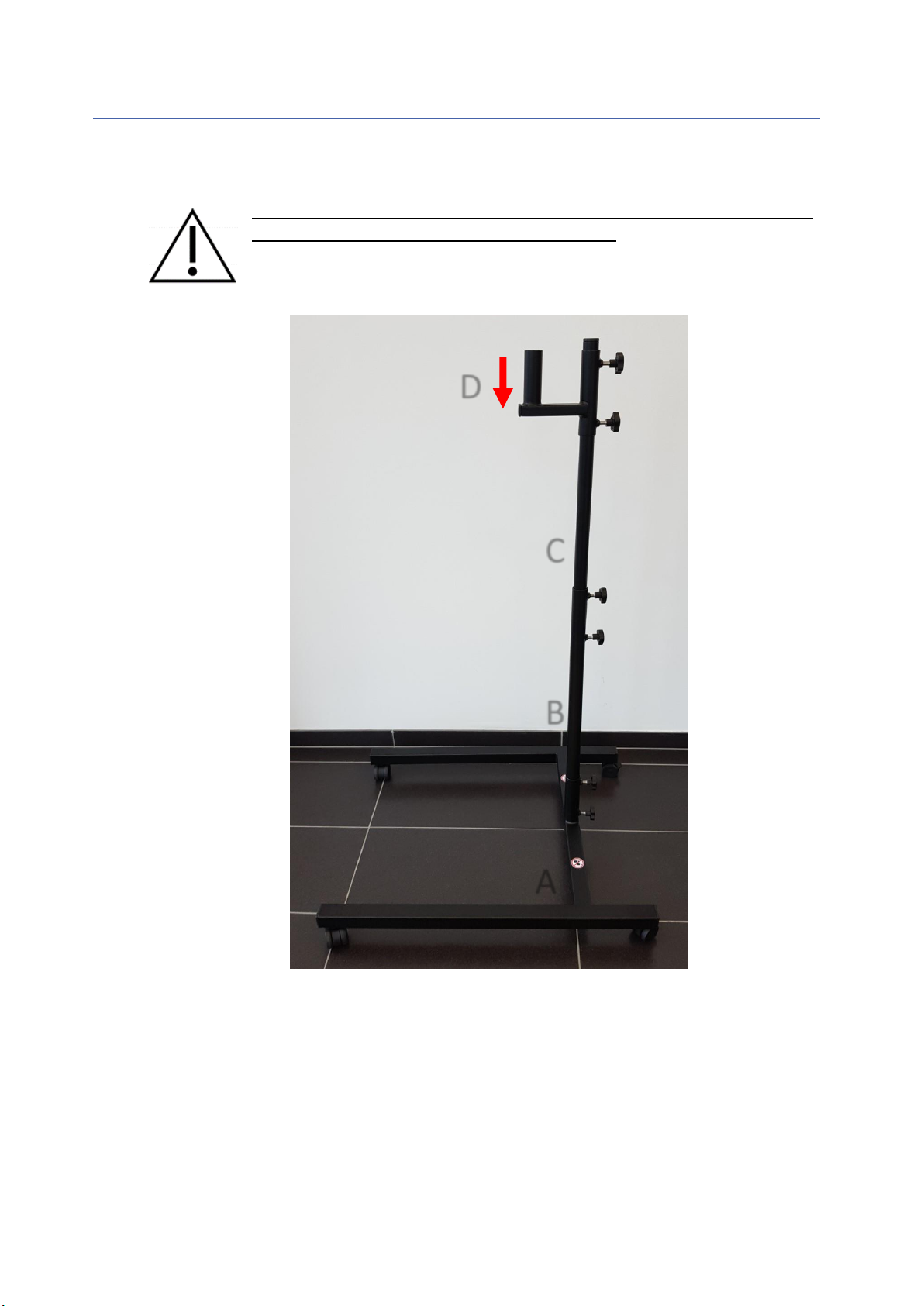

3) Slide the arm mount (D) onto the long side of the mast (C).

Remember that the pin on which you slide the arm should point in the

direction of the longer arms of the tripod base. Failure to do so may result

in the tripod tipping over, which may have negative consequences for the

patient who works with the system as well as for the device itself.
