Hardware Setup Instructions
Multipurpose Transmitter - Model ASM01
Recharging the Transmitter Battery*
2
3
4
5

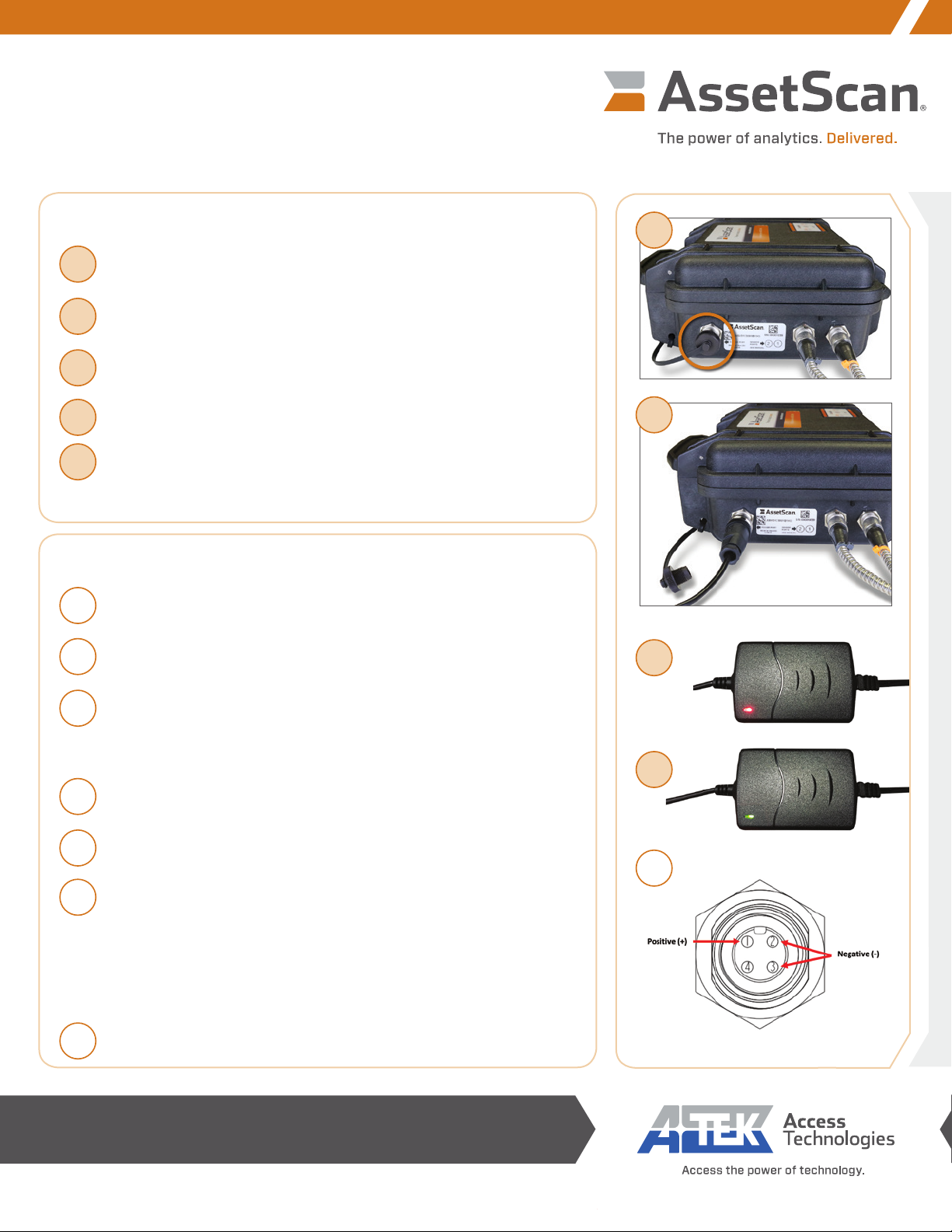

1Charging port is located on right side of transmitter case.
Remove threaded plastic cap from charging port by turning counterclockwise.
Plug battery charger’s AC plug into a nearby outlet and screw charging jack into
charging port using silver nut.
LED on battery charger will turn red to indicate transmitter is charging.
Transmitter will begin charging. Full charge is achieved within 6-8 hours.
LED on battery charger will turn green when charging is complete.
Unscrew charging jack from charging port and secure attached plastic cap onto
charging port.
*Note: Battery should be charged between -10º C and 40º C (14º F and 104º F). See Product
User Manual for detailed information on battery use and care.
Sensor Wire Connections
2
3
4
5
6
7
1
3
4
5
1
2
Verify intended sensor is a 2 wire, loop powered, 4-20mA output device, capable of
operating at 24VDC with a 200 Ohm load resistor in return line.
Sensor Port 1 (located at the right side of cable connections) should be used for a
single sensor installation.
Sensor Port 2 can be connected to a 2nd sensor for an additional measurement
point. The measured variable can be different than Port 1 as long as the sensor
is a 2 wire, 4-20mA loop powered device. Both lines are measured and reported
simultaneously.
Pin 1 of the M12-4 ASM sensor connector is +24VDC and must be connected to the
Positive (+) terminal of the sensor.
On the ASM transmitter, pins 2 and 3 are both wired to the Negative (-) terminal
• If the sensor cannot have pins 2 and 3 wired together, contact ATEK CCT.
Sensor connections may be accomplished via:
• Field wire-able M12 connector (ATEK Accessory: ASA004) to allow the use of
direct cabled sensors, or custom cable length.
• M12-4 M-F extension cable (ATEK Accessory: ASA005 for 5m, and ASA006
for 10m) to connect to sensors with integral M12-4 Male connector.
• M12-4 to 1/2NPT connection adapter (ATEK Accessory: ASA020) for
sensors with 1/2NPT conduit entries.
• Other methods per installer’s choosing.

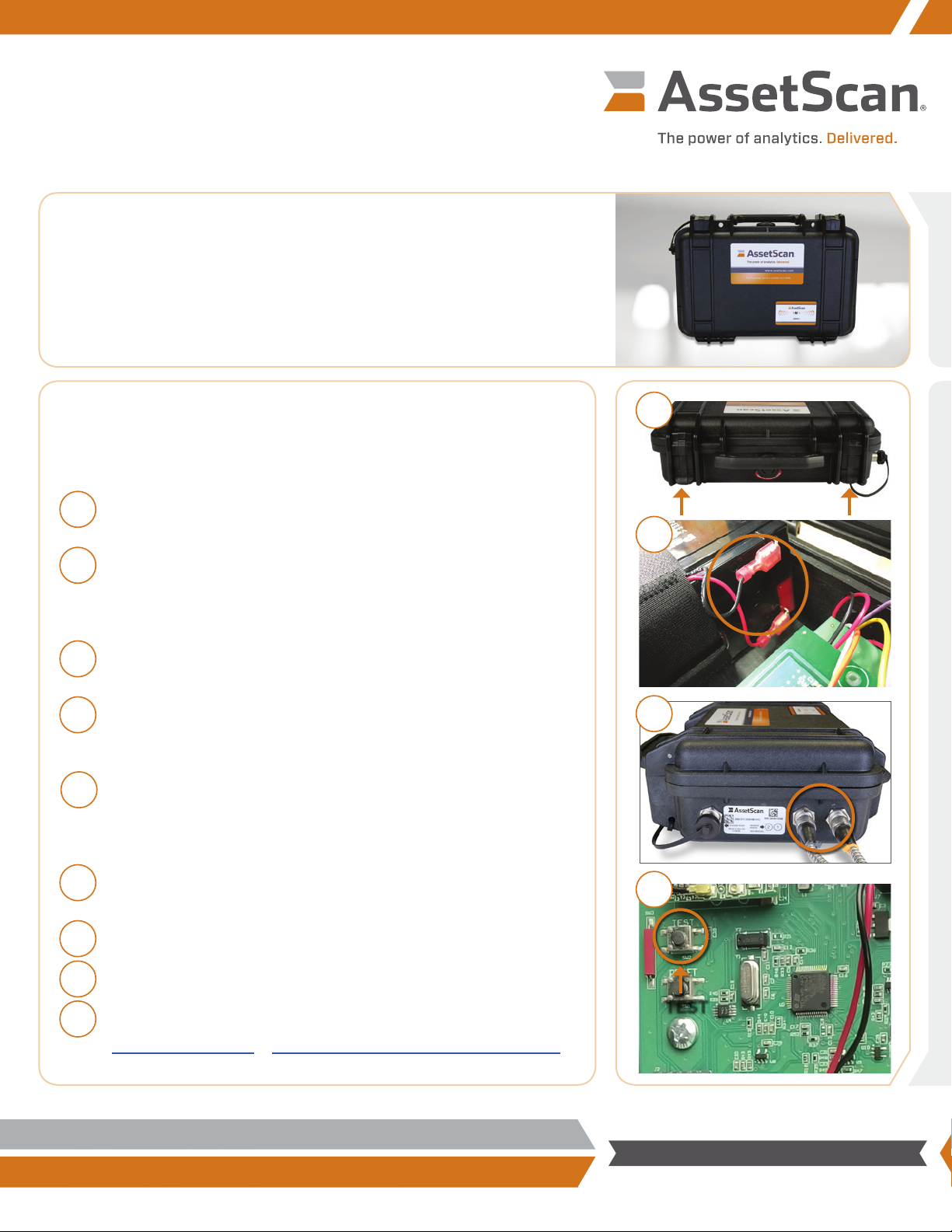

Refer to Setting up the Transmitter section to connect battery and start ASM
transmitter.
