Assa Abloy Corbin Russwin BLSS ML2000 Series User manual

For installation assistance contact Corbin Russwin

1-888-607-5703 • [email protected] FM352 10/18

QR Codes

To view the QR Code video clips within this document, download a free mobile app and scan the QR Code with your mobile device.

The complete video can be viewed on YouTube at https://youtu.be/I5MLFWODumo

Installation Instructions

permission of Corbin Russwin, Inc. is prohibited.

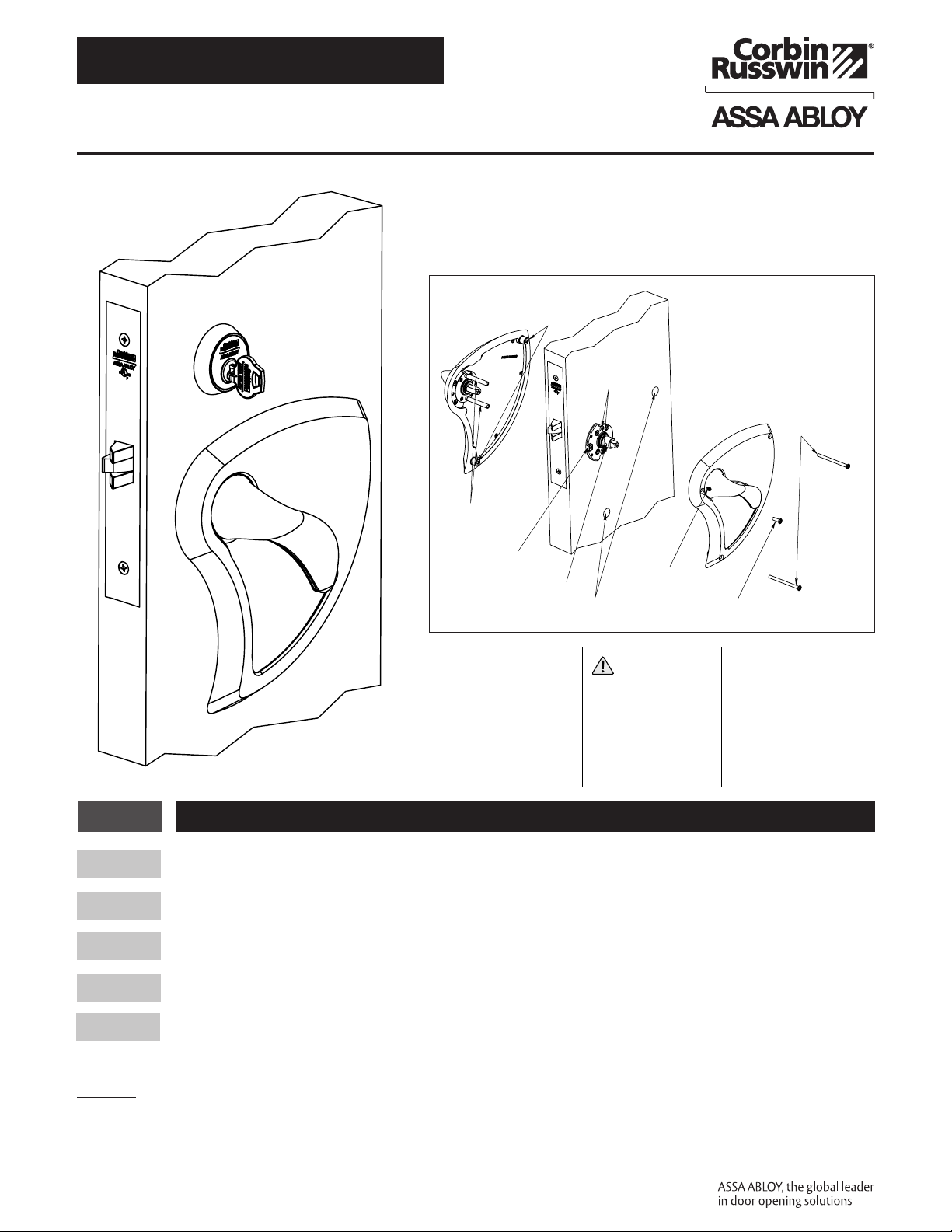

BHSS Trim for

ML2000 Series Mortise Locks

1Mortise Lock Handing Instructions.............................................2

Mortise Lock Door Preparation & Installation .....................................3

BHSS Trim Installation .....................................................5

Turn-Piece Installation.....................................................8

Coin-Turn Installation .....................................................8

TOC Table of Contents

Outside Trim

Inside Trim

#10 Escutcheon

Mounting Screws

#8 Escutcheon

Mounting Screws

Lever Set Screw

Thru-bolt

Holes

#8 Adapter

Mounting Screws

Mounting Posts

Cast-in Posts

Adapter Plate

Ta b

Set Screw

Hole

WARNING

This product can expose

you to lead which is

known to the state of

California to cause cancer

and birth defects or other

reproductive harm. For

more information go to

www.P65warnings.ca.gov.

08/2018

For installation assistance contact Corbin Russwin

1-888-607-5703 • [email protected]

FM352 10/18

BHSS Trim

Installation Instructions

ML2000 Series Mortise Lock

permission of Corbin Russwin, Inc. is prohibited.

MAKE SURE CATCH PLATE IS

EVEN W/ TOP SURFACE

GOOD BAD

WARNING:

LOCK-IN CAN

OCCUR IF LATCH

IS NOTPROPERLY

INSTALLED

4. Push in latch while holding

screwdriver behind latch tail.

(Figure 3)

5. Rotate lock front to match bevel of door as

shown. (Figure 5)

1 Mortise Lock Handing Instructions

Figure 1

Figure 2

Figure 3

RED Locking Screw

Catch Plate

LOCK HANDING

IS CRITICAL TO

ENSURE LOCK

FUNCTIONS

PROPERLY

Figure 4

1. Move the Red locking screw to side of lockbody

being locked.

2. Push in latch then depress catch plate with

screwdriver. (Figure 1)

3. Pull latch out of lock-body and turn latch over.

(Figure 2)

Figure 5

NOTE:

PUSH IN LATCH UNTIL CATCH

PLATE IS NO LONGER DEPRESSED.

(FIGURE 4)

For installation assistance contact Corbin Russwin

1-888-607-5703 • [email protected]

FM352 10/18

BHSS Trim

ML2000 Series Mortise Lock

Installation Instructions

permission of Corbin Russwin, Inc. is prohibited.

Turn-Piece Door

Marker Template

Turn-Piece Door

Marker Template

Outside

of Door

Figure 6

2 Mortise Lock Door Preparation & Installation

NOTE:

MAKE SURE TEMPLATE IS ORIENTED

CORRECTLY. (FIGURE 7)

Important: Be sure to hand the lockbody

before installing. See page 4.

1. Insert mortise lock into door and fully

tighten 1" lock mounting combination

screws. (Figure 6)

2. Insert spindle into outside lockbody hub.

3. Slide trim door marker template over

spindle.

4. Square template to edge of door. (Figure 7)

5. Mark two thru-bolt holes.

6. Repeat steps 2-5 for inside of door.

7. TURN-PIECE FUNCTIONS ONLY:

Insert turn-piece door marker spindle into

lockbody on inside of door.

8. TURN-PIECE FUNCTIONS ONLY:

Slide turn-piece door marker over spindle.

9. TURN-PIECE FUNCTIONS ONLY:

Mark three holes for turn-piece. (Figure 9)

NOTE:

USE SQUARE SIDE OF DOOR MARKER SPINDLE.

(FIGURE 8)

NOTE:

USE SQUARE SIDE OF DOOR MARKER SPINDLE.

(FIGURE 8)

10. COIN-TURN FUNCTIONS ONLY:

Insert turn-piece marker spindle into lockbody

on outside of door.

11. COIN-TURN FUNCTIONS ONLY:

Slide turn-piece door marker template over

spindle.

12. COIN-TURN FUNCTIONS ONLY:

Mark two holes for coin-turn. (Figure 10)

Figure 7

Figure 8

Square

Side

Figure 9

Figure 10

Lock-body

Installation

Inside

of Door

For installation assistance contact Corbin Russwin

1-888-607-5703 • [email protected]

FM352 10/18

BHSS Trim

Installation Instructions

ML2000 Series Mortise Lock

permission of Corbin Russwin, Inc. is prohibited.

Ø.290" Ø3/8"

Ø3/8"

Ø1/8" Ø1/8"

Thru-bolt

Plate

13. Remove lockbody from door.

14. Drill two thru-bolt holes (9/16") halfway

through one side of door.

15. Drill two thru-bolt holes (9/16") through from

opposite side of door.

16. TURN-PIECE FUNCTIONS ONLY:

Drill one middle hole (.290") and two outer holes

(3/8") halfway through door. (Figure 11)

17. COIN-TURN FUNCTIONS ONLY:

Drill two holes (1/8") halfway through door.

(Figure 12)

18. TURN-PIECE FUNCTIONS ONLY:

Install turn-piece thru-bolt plate using truss

head screw. (Leave screw slightly loose.)

(Figure 13)

19. Insert mortise lockbody into door and loosely

tighten 1" lock mounting combination screws.

NOTE:

DRILL THROUGH BOTH SIDES OF DOOR FOR

BETTER ACCURACY.

NOTE:

MAKE SURE LOCK IS UNLOCKED. (FIGURE 14)

2Mortise Lock Door Preparation & Installation

Figure 11

Figure 12

Figure 13

Drill Thrubolt

Holes

Figure 14

NOTE:

THE THRU-BOLT PLATE IS INSTALLED INSIDE

THE DOOR POCKET.

MAKE SURE LOCK

IS UNLOCKED

Un-Locked

Locked

Narrower Hole

Wider Hole

Strike Lip

* Strikes for Non-Deadbolt functions

only have narrower hole.

For installation assistance contact Corbin Russwin

1-888-607-5703 • [email protected]

FM352 10/18

BHSS Trim

ML2000 Series Mortise Lock

Installation Instructions

permission of Corbin Russwin, Inc. is prohibited.

Narro

wer Hole

Wider Hole

Strike Lip

Cylinder

Set Screw

Figure 15

Figure 16

BHSS Strike

Installation

Cylinder

Installation

Figure 17

3 BHSS Trim Installation

1. Install strike using 3/4" strike mounting screws.

2. CYLINDER FUNCTIONS ONLY:

Slide cylinder(s) through spring and collar,

threading into lockbody until cylinder face is

ﬂush with collar. (Figure 16)

3. CYLINDER FUNCTIONS ONLY:

Install cylinder set screw(s). (Figure 18)

4. Fully tighten lock mounting screws.

NOTE:

STRIKE MUST BE ORIENTED WITH

NARROWER HOLE ON LOWER HALF OF

STRIKE AND STRIKE LIP TOWARDS PULL

SIDE OF DOOR. (FIGURE 15)

NOTE:

PULL KEY SLIGHTLY OUT OF CYLINDER TO HELP

THREAD INTO LOCKBODY.

NOTE:

CYLINDER MUST BE ORIENTED CORRECTLY.

(FIGURE 17)

NOTE: Key and

cylinder must be

rotated as shown

Correct Incorrect

ASSA ABLO Y

ASSA ABLOY

Figure 18

For installation assistance contact Corbin Russwin

1-888-607-5703 • [email protected]

FM352 10/18

BHSS Trim

Installation Instructions

ML2000 Series Mortise Lock

permission of Corbin Russwin, Inc. is prohibited.

3 BHSS Trim Installation

Spindle & Outside

Trim Assembly

Installation

Adapter Plate

Installation

Outside Trim

Adaptor

Plate

Hub

NOTE:

SPINDLE CAN BE USED TO HELP THREAD HUB

INTO LEVER.

Outside Trim

Mounting

osts

5. Thread adapter plate hub into lever and fully

tighten. (Figure 19)

6. Align adapter plate hub with square hole in lever;

keeping hub as tight as possible. (Figure 20)

7. Insert spindle into outside trim assembly.

8. With lever in “up” position, align mounting posts

on adapter plate with holes in lockbody and

install outside trim assembly. (Figure 21)

9. Insert spindle into lockbody on inside of door.

(Figure 22)

NOTE:

AFTER OUTSIDE TRIM IS INSTALLED, ROTATE

LEVER TO MAKE SURE SPINDLE IS ENGAGED IN

LOCK.

Figure 19

Figure 20

Use Correct Spindle Orientation

GOODBAD

Figure 21

Figure 22

For installation assistance contact Corbin Russwin

1-888-607-5703 • [email protected]

FM352 10/18

BHSS Trim

ML2000 Series Mortise Lock

Installation Instructions

permission of Corbin Russwin, Inc. is prohibited.

Set Scre

Hole

Adapter

Plate Ta b

Inside Trim

Mounting

Screws

Inside Le

ver

Set Screw

3 BHSS Trim Installation

Mount Escutcheon

Lock Front

Installation

10. Slide inside adapter plate over spindle and

install using two adapter plate mounting

screws. (Figure 23)

11. With lever in “up” position, install inside trim

assembly.

12. Tighten inside lever set screw. (Figure 24)

13. Install three escutcheon mounting screws

through inside escutcheon. (Figure 24)

14. Install lock front using two front screws.

(Figure 25)

NOTE:

AFTER TRIM IS INSTALLED, ROTATE LEVER TO

MAKE SURE SPINDLE IS ENGAGED IN LOCK.

NOTE:

MAKE SURE ADAPTER PLATE TAB AND SET

SCREW HOLE ARE FACING LOCK FRONT PRIOR

TO INSTALLING SCREWS.

Figure 23

Figure 24

Inside Trim

Assembly

Installation

Figure 25

For installation assistance contact Corbin Russwin

1-888-607-5703 • [email protected]

FM352 10/18

permission of Corbin Russwin, Inc. is prohibited.

Patent pending and/or patent: www.assaabloydss.com/patents

Corbin Russwin

225 Episcopal Road

Berlin, CT 06037

Phone: 800-543-3658

Fax: 800-447-6714

corbinrusswin.com

4 Turn-Piece Installation

Turn-Piece

Installation

5 Coin-Turn Installation

1. Install coin-turn using two surface mount

screws. (Figure 28)

1. Install turn-piece loosely using two turn-

piece mounting screws. (Figure 26)

2. Adjust location of turn-piece on door until

turn-piece rotates easily, then fully tighten

mounting screws.

Figure 26

Figure 27

NOTE:

MAKE SURE LOCK IS UNLOCKED AND

TURN-PIECE IS ROTATED TOWARDS

LATCH. (FIGURE 27)

Figure 28

MAKE SURE LOCK

IS UNLOCKED

Un-Locked

Locked

Narrower Hole

Wider Hole

Strike Lip

* Strikes for Non-Deadbolt functions

only have narrower hole.

Other manuals for Corbin Russwin BLSS ML2000 Series

Table of contents

Other Assa Abloy Lock manuals

Assa Abloy

Assa Abloy hes RF0010 Owner's manual

Assa Abloy

Assa Abloy 836S User manual

Assa Abloy

Assa Abloy Securitron CEPT-10-10 User manual

Assa Abloy

Assa Abloy Corbin Russwin IN220 PoE User manual

Assa Abloy

Assa Abloy LOCWOOD 001TOUCH User manual

Assa Abloy

Assa Abloy EL410 User manual

Assa Abloy

Assa Abloy APERIO P100 Manual

Assa Abloy

Assa Abloy 118F A71 Series User manual

Assa Abloy

Assa Abloy Corbin Russwin UT5200 Series Quick start guide

Assa Abloy

Assa Abloy Corbin Russwin IN100 User manual

Assa Abloy

Assa Abloy HES KS200-640 User manual

Assa Abloy

Assa Abloy Door Lock User manual

Assa Abloy

Assa Abloy Yale P113 User manual

Assa Abloy

Assa Abloy Whitco Cyl4 Window Bolt User manual

Assa Abloy

Assa Abloy OneSystem N7 Series Installation guide

Assa Abloy

Assa Abloy 9800 TCNE1 Series User manual

Assa Abloy

Assa Abloy YALE 4600CK Series User manual

Assa Abloy

Assa Abloy Medeco XT User manual

Assa Abloy

Assa Abloy Sargent XC Series User manual

Assa Abloy

Assa Abloy 3090 Guide

Assa Abloy

Assa Abloy SECURITRON CEPT-10 User manual

Assa Abloy

Assa Abloy Securitron GL1 User manual

Assa Abloy

Assa Abloy Yale Real Living Assure Lock YRD226 Technical specifications

Assa Abloy

Assa Abloy Effeff 519 User manual

Popular Lock manuals by other brands

Magic

Magic 105 manual

Gantner

Gantner GAT NET.Lock 7020 System Installation, configuration & operation

Wittkopp

Wittkopp Insys 7202 manual

Dorma

Dorma Studio Classic Installation instruction

Securam

Securam ECSL-601 quick start guide

Sudhaus

Sudhaus 3003 operating manual

Safety 1st

Safety 1st 48517 user guide

Pado

Pado FDS-10 user manual

Esco

Esco systeQ Series installation instructions

COMPX

COMPX National D8951 instruction sheet

secureo

secureo Key Box instruction manual

Stock Loks

Stock Loks C8713 instruction sheet

COMPX

COMPX 1T-058 Information

Auslock

Auslock T11 user manual

ELCOM

ELCOM 7205 Operating instruction

Stealth SAFES

Stealth SAFES ShadowVault Instructions & Troubleshooting

Knox

Knox KeySecure 5 Admin & user guide

Kwikset

Kwikset 48334/01 Quick installation guide
