Asotel Dynamix DW-PhoneLite User manual

Dynamix DW-PhoneLite Administration Guide

Chapter 1 Overviewof the Dynamix DW-PhoneLite.............................................................4

1. HardwareOverview...........................................................................................5

2. SoftwareFeatures and Specification.................................................................8

Chapter 2 Configuring the Dynamix DW-PhoneLite through LCDPhone menu................10

1. Initialize Dynamix DW-PhoneLite............................................................................10

2. LCD Menu Configuration........................................................................................12

Chapter 3 Configuring the Dynamix DW-PhoneLite through Web Pages..........................18

Step 1. Browse the IPAddress predefined via Keypad...............................................19

Step 2. Input the login name and password................................................................20

Step 3. Enter the web interface main screen..............................................................21

Step 4. Start to configure ............................................................................................21

1. Network Interface ............................................................................................22

2. SIP Information................................................................................................24

3. System Configuration......................................................................................26

4. PPPoE Configure............................................................................................27

5. Voice Setting....................................................................................................28

6. Phone Book.....................................................................................................29

7. DSCP Configuration........................................................................................30

8. Password.........................................................................................................32

9. Rom Configuration...........................................................................................33

10. Flash Clean ...................................................................................................34

12. Reboot System..............................................................................................35

Chapter 4 Configuring the Dynamix DW-PhoneLite through Telnet command lines..........36

1. [help] command......................................................................................................36

2. [quit] command.......................................................................................................37

3. [debug] command...................................................................................................37

4. [reboot] command...................................................................................................37

5. [pbook] command...................................................................................................37

6. [commit] command .................................................................................................38

7. [ping] command......................................................................................................38

8. [time] command......................................................................................................39

9. [ifaddr] command....................................................................................................39

10. [pppoe] command.................................................................................................40

11. [flash] command....................................................................................................41

12. [sysconf] command...............................................................................................42

13. [sip] command ......................................................................................................42

14. [security] command...............................................................................................44

15. [voice] command...................................................................................................44

Dynamix DW-PhoneLite Administration Guide

16. [tos] command......................................................................................................46

17. [bureau] command................................................................................................47

18. [rom] command.....................................................................................................47

19. [passwd] command...............................................................................................49

Chapter 5 Upgrading Software on the Dynamix DW-PhoneLite..........................................50

1.From LCD Phone Menu...........................................................................................50

2. Web Management ..................................................................................................51

3. Telnet command lines.............................................................................................52

Dynamix DW-PhoneLite Administration Guide

Chapter 1 Overviewof the Dynamix DW-PhoneLite

Dynamix DW-PhoneLite isa full-featured IP-based telephone set for home telephony via

Ethernet base communication. It supportsSIP RFC3261 protocol. Two 10/100BaseT

embedded switch/hub RJ-45 portsallow connect to office LAN and PC on your table.

It is easily interface with ADSL/Cable Modem that isprovided by ITSP, ISP or Carrier

company to provide VoIP services to residential and SOHO application.

Dynamix DW-PhoneLite provides two 10/100BaseTswitch/hub RJ-45 ports. The internal

two-port Ethernet switch allowsfor a direct connection to a 10/100BaseT Ethernet network

via an RJ-45 interface with single LAN connectivityfor both the phone and a co-located PC.

Dynamix DW-PhoneLite Administration Guide

Note:

Marked with (**): May be not available yet, please contact with your distributor.

1. Hardware Overview

1.Front View and Keypad function

♦ System Indication LED: When Dynamix DW-PhoneLite didn’t register to Proxyserver

or having incomingcall, system indication LED will beblinking.

♦ MENU: Press to enter LCD Menu when in standby mode; if already in LCD Menu,

press thisbutton can return to standby mode

Dynamix DW-PhoneLite AdministrationGuide

♦ MUTE:

1. Mute the voice of Microphone and let others can’t hear from user in communication.

2. Change input mode to be digit or character mode: When configuration in LCD menu

can change input mode to be input digit only or input character.

♦ ▲▼: Move to up/down, left/right ; increase/decrease value.

♦ OK: Press OK to confirm the modification.

♦ Flash:

1. Transfer a call. UserAcan press FLASH button when in communication with user B,

then input phone number can make call to User C, after talk with C, A can hang up,

User B and User C can communicate.

2. Back to upper level of menu: when in LCD Menu, press FLASH button can jump to

upper level of menu.

♦ REDIAL / HOLD:

1. Redial the last outgoing call or hold one call in communication.

2. Upper-case/Lower-case character: change input character mode to be upper-case

or lower-case.

♦ SPEAKER: Speaking without picking up handset.

♦ 5 Graphic Memory key: User press these keys to do speed dial according to phone

book data 1-5 (please refer to LCD configuration-Phone Book, Configuring the

Dynamix DW-PhoneLite through Telnet command lines-[pbook] command, or Web

Configuration-Phone Book chapter).

♦ Number 1 –10, * and #: The function is as the same as the general phone set.

Corresponding list of keypad and symbol:

1 “1”

2 “a” ; “ b” ; “c” ; “2”

3 “d” ; “e” ; “f” ; “3”

4 “g” ; “h” ; “i” ; “4”

5 “j” ; “k” ; “l” ; “5”

6 “m” ; “n” ; “o” ; “6”

7 “p” ; “q” ; “r” ; “s” ; “7”

8 “t” ; “u” ; “v” ; “8”

9 “w” ; “x” ; “y” ; “z” ; “9”

* “.” ; “@” ; “_” ; ”-“ ; “,” ; “!” ; “?” ; “’” ; “+” ; “$” ; “*”

0 “Space” ; “0”

# “#”

Dynamix DW-PhoneLite Administration Guide

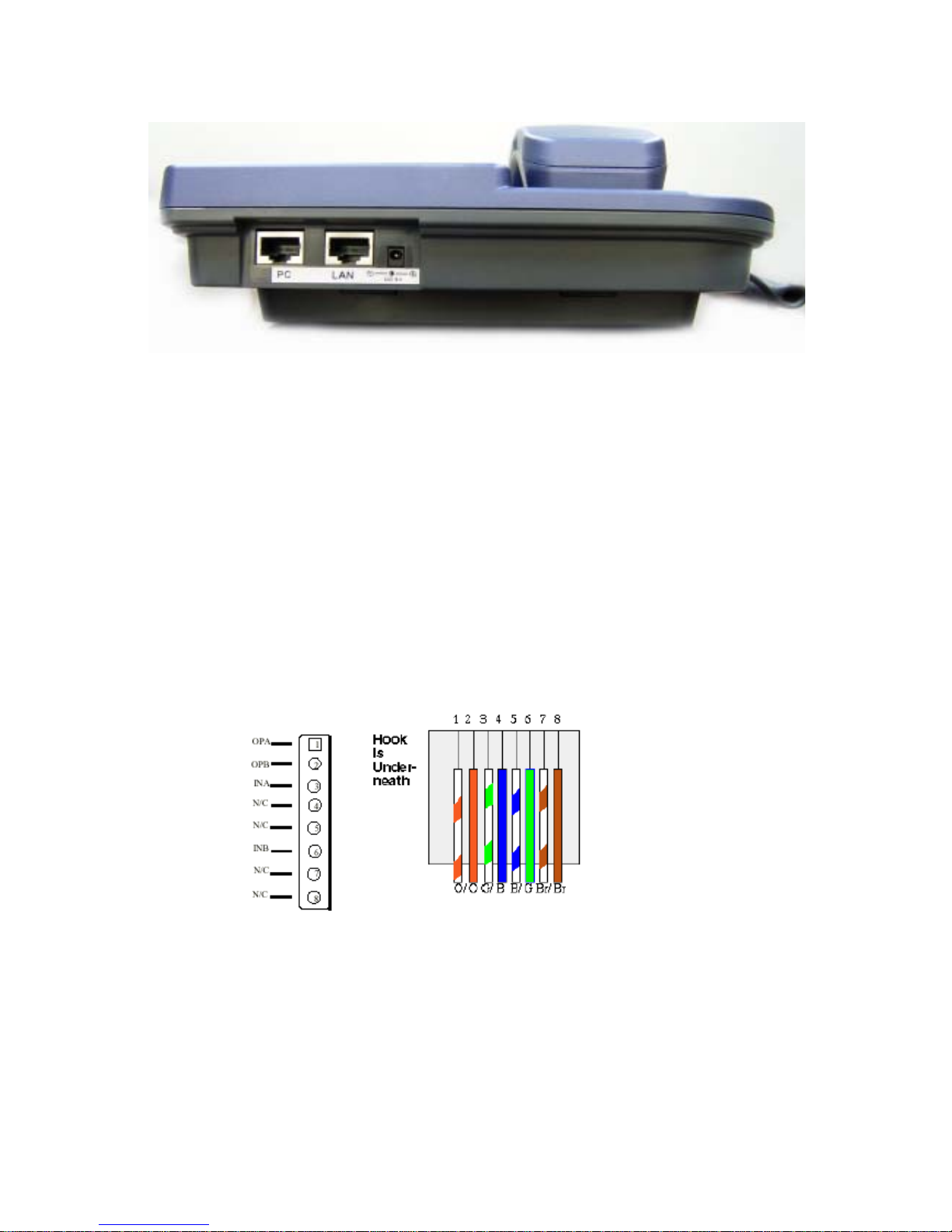

2.Back View

♦ DC 5V: DC 5V power input outlet

♦ LAN: 10/100 Base-T RJ-45 connector, connected directly to the Hub through the

straight CAT-5 cable.

♦ PC: 10/100 Base-T RJ-45 connector, connected directly to the PC through the straight

CAT-5 cable

3.Specification

1. Ethernet Port：

Ethernet port isfor connecting Dynamix DW-PhoneLite tonetwork, transmit rate supports

10/100 Base-T.

Ethernetconnector（LAN）

2. Dimension: 200mm(W) x 79mm(H) x 210mm(D)

3. Weight: 830g

Dynamix DW-PhoneLite Administration Guide

2. Software Features and Specification

Application:

 ISP/ITSP (Internet Telephony Service Provider)

 IP-PBX with office telephony services

 Multi-nation enterprise communication

 SOHO Telephony

Calling Features

 Call Hold

 Call Transfer

 Call Forward

 5 configurable speed dials

Network Supported

 Fixed IP

 Dynamic Host Configuration Protocol (DHCP)

 PPPoE connection(When PPPoE disconnect, Dynamix DW-PhoneLite can

via an re-connect)

 Behind NAT IP Sharing Device

 Support QOS by setting DSCP (Differentiated Service Code Point) parameters of VoIP

packet

Audio Features

 G.711 a/µ-Law, G.723.1, G.729, G.729a

 VAD, CNG

 G.165/G.168 compliant echo cancellation

 Programmable Dynamic Jitter Buffer

 Bad Frame Interpolation

 Gain/Attenuation Settings

Provisioning and Configuration

 SIP (RFC3261) compliance

 LCD configuration password protection

 Provide Proxy Mode or Peer-to-Peer Mode (Non Proxy Server needed) selection

 Ring tone, Speaker and Handset volume adjustable

 Support DNS server inquiry

Dynamix DW-PhoneLite Administration Guide

Management Features:

 Software Upgrade: TFTP/FTP download

 Three easy ways for system configuration

- LCD Front Panel

- Web Browser

- TELNET

Environmental

 Operating and storage Humidity: 10 to 95 % (Non-condensing)

 Operational Temperature: 0 to +40 °C

 Storage Temperature: -10 to 60℃

Certification

 CE

Dynamix DW-PhoneLite Administration Guide

Chapter 2 Configuring the Dynamix DW-PhoneLite through

LCD Phone menu

Note:

1. After any configuration has changed for the Dynamix DW-PhoneLite, user has to do

Reboot in the selection 7 “Reboot”.

2. We suggest user to set IP address via LCD menu 5→2.3.4.5 first, then go to

chapter 3 to do other configurations via web browser. If user need to do more

detail or advanced configurations, please refer to chapter 4 and use Telnet

command lines.

3. User can also tryto enter web configuration via defaultIP address of Dynamix

DW-PhoneLite: 10.1.1.3

1. Initialize Dynamix DW-PhoneLite

1.After Dynamix DW-PhoneLite finish initializing, it will getintostandbymode:

The main LCD screen would be shown as similar as above. “Proxy” means the

Dynamix DW-PhoneLite isinProxy Mode.

Note:

If SIP-Phone didn’t register to Proxy server,when DW-PhoneLite been off-hook,

user willhear busy tone instead ofdial tone, also system LED indicationwillbe blinking.

2. When Dynamix DW-PhoneLite isunder peer-to-peer mode, on LCD will show “P2P”

instead of “Proxy”.

SIP-Phone

Proxy

SIP-Phone

P2P
